Extender Round Body Spray

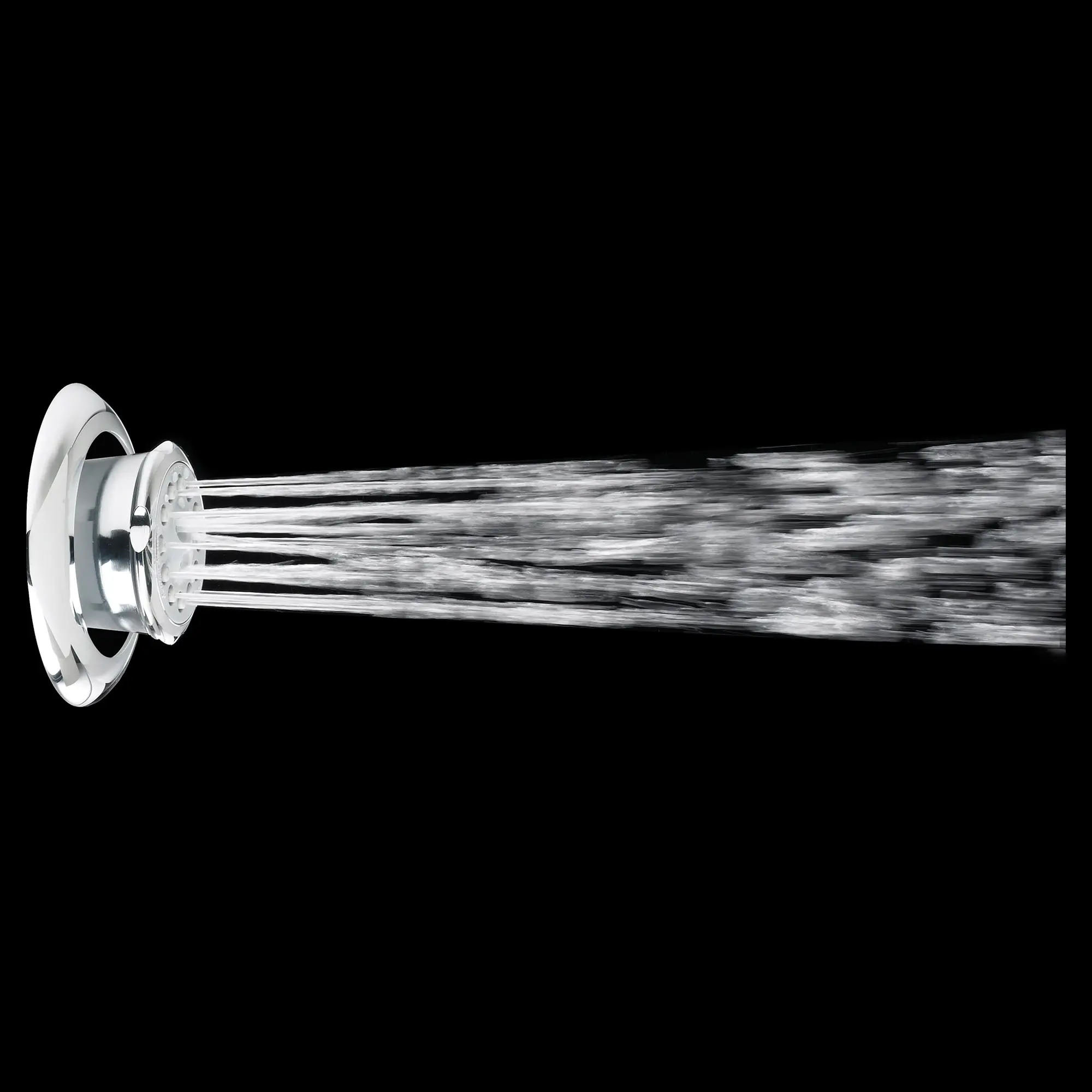

The Extender Body Spray from American Standard transforms an everyday shower into a spa-like experience. This three-function body spray features a soothing conventional spray, a targeted massage spray, and a combination of both for overall relief. The flush-mount Extender Body Spray features a round spray face that automatically extends and activates when the water is turned on, then retracts when the water is turned off. When extended, simply rotate the spray face to desired spray pattern and adjust the angle for personal comfort.

Features
  • Extends when water is turned on; retracts when water is turned off
  • Angle can be adjusted in any direction
  • Limescale buildup on spray face wipes clean with fingertip
  • One-piece installation with no loose parts
  • Includes exclusive plaster guard and rough-in kit
  • Limited lifetime warranty
  • Includes exclusive plaster guard and rough-in kit
  • 1-piece installation with no loose parts to lose or reassemble on site
Technical Features
  • Extender body sprays with 1.5 gpm/5.7 L/min maximum flow
  • Flush mount
  • Easy to clean spray face
  • Spray face automatically extends when water is turned on and retracts when water is off
  • Three functions: widespray, massage and combination
  • Includes exclusive rough-in that must be installed during rough-in installation and before the wall is closed
  • Angle adjustable. Spray position adjusts up to 15° in any direction
  • 1-piece installation with no loose parts to lose or reassemble on site
Nominal Dimensions: 0.4 in x 2.9 in x 2.9 in (10 mm x 74 mm x 74 mm)
Description
Net Weight
SKU
Color
List Price USD
Extender Round Body Spray
1 lb (0.5 kg)
Chrome (002)
177
Polished Nickel (013)
243
Oil Rubbed Bronze (224)
229
Matte Black (243)
257
Legacy Bronze (278)
261
Brushed Nickel
265
Brushed Cool Sunrise
266


Models marked with * are discontinued, but product may still be available while supplies last.
Brand: American Standard
Cal Green: Yes
Category: Showers Head Hand Side
CEC Certified: Yes
Color / Finish: Chrome
Department of Energy Certified: Yes
Collections: Extender
Fitting Connection Size Input: 1/2
Gallons Per Minute (min-max): 1.5 GPM
Height: 2.9
Length: 0.4
Width: 2.9
Residential or Commercial: Residential
Number of Spray Settings: 3
Spary Patterns: Full, Massage, Mist
Subcategory: Body Spray Showers
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
