Displaying 60 of 60 Total
Sort By

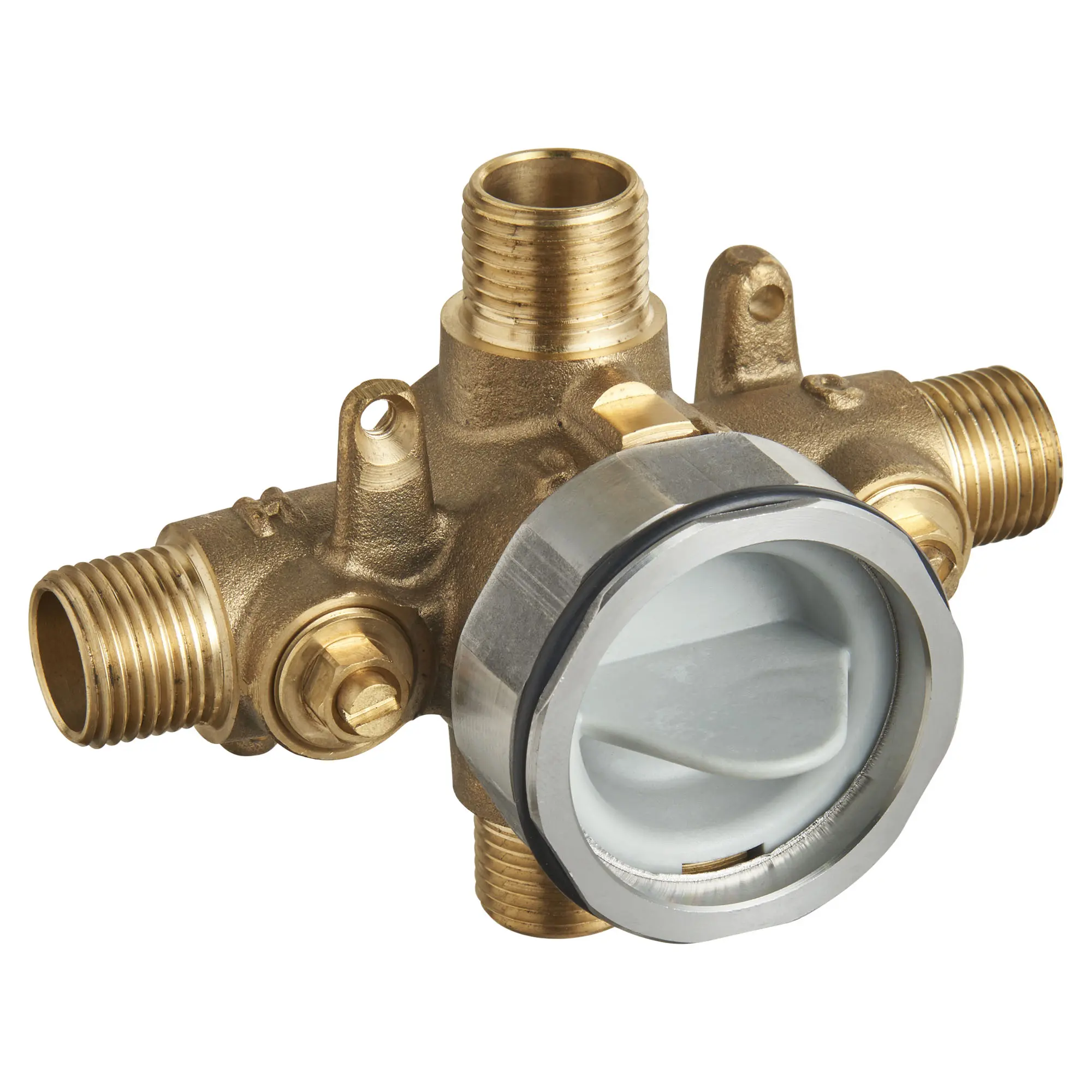

Flash® Shower Rough In Valve (Unfinished (191))
D35101SS0.191
Discontinued
$109.00
Flash® Shower Rough In Valve (Unfinished (191))
  • Durable DZR brass valve body ideal material for prolonged contact with water
  • Flat back allowing valve to be mounted flush against cross brace
  • Flush plug allows valve body to be tested and flushed without the presence of the valve cartridge
  • Can be tested using flush plug with air (200 psi) or water (300 psi)
  • Stainless steel retaining ring with flats secures test cap/cartridge in place and eliminates need for screws
  • Back-to-Back capability
  • Includes plaster guard for thin wall installation
  • Wide rough-in range from 1-3/4" to 2-2/4" from the finished wall to back of valve
  • Includes service stops
  • Cartridge ships with trim
Nominal Dimensions: 2-7/8 in x 4-13/16 in x 4 in (73 mm x 122 mm x 102 mm)
Floor Mounted Tub Faucet Rough-In Valve (No Finish (00G))
29038001
Discontinued
$378.00
Floor Mounted Tub Faucet Rough-In Valve (No Finish (00G))
  • Floor mounted
  • Installation plate with 360° horizontal and 3° vertical adjustment
  • 1/2" NPT female connections (hot/cold supplies)
  • Installation depth 2"- 6" (53-157mm) for bath mixers/spouts, depth compensation 4" (104mm)
  • Flush plug included
½” Volume Control Rough-In Valve (No Finish (00G))
29273000
Discontinued
$106.00
½” Volume Control Rough-In Valve (No Finish (00G))
  • ½" NPT Connection
3/4" Volume Control Rough-In Valve (No Finish (00G))
29274000
Discontinued
$170.00
3/4" Volume Control Rough-In Valve (No Finish (00G))
  • ¾" NPT Connection

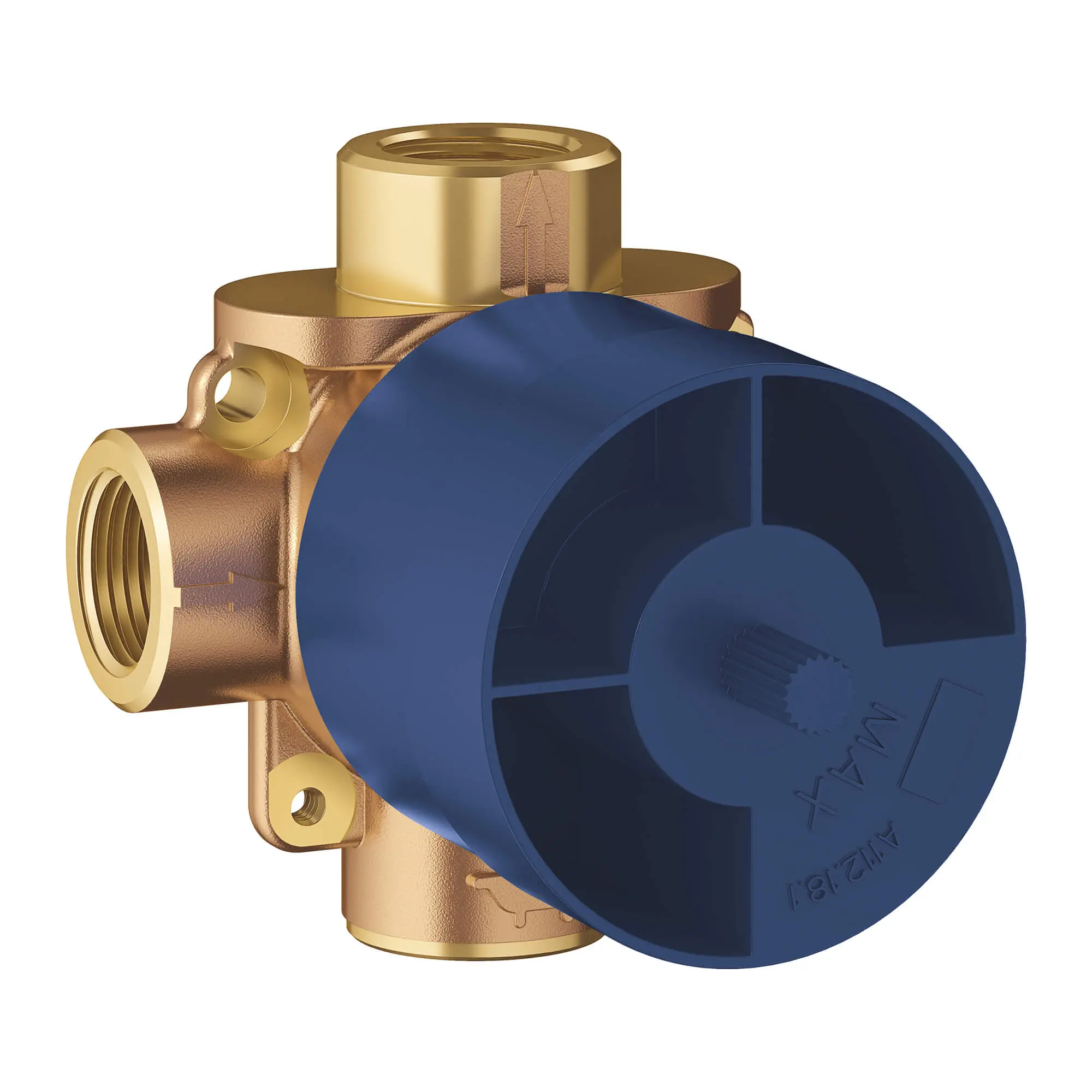

2-Way Diverter Rough-In Valve (Discrete Functions) (No Finish (00G))
29900000
Discontinued
$230.00
2-Way Diverter Rough-In Valve (Discrete Functions) (No Finish (00G))
  • GROHE SilkMove
  • 1 Inlet, 2 outlets
  • 2 Discrete functions (non-shared)
  • ½” NPT threads
  • ADA compliant: requires less than 5lbs/22.2N force to operate handle
  • CALGreen compliant

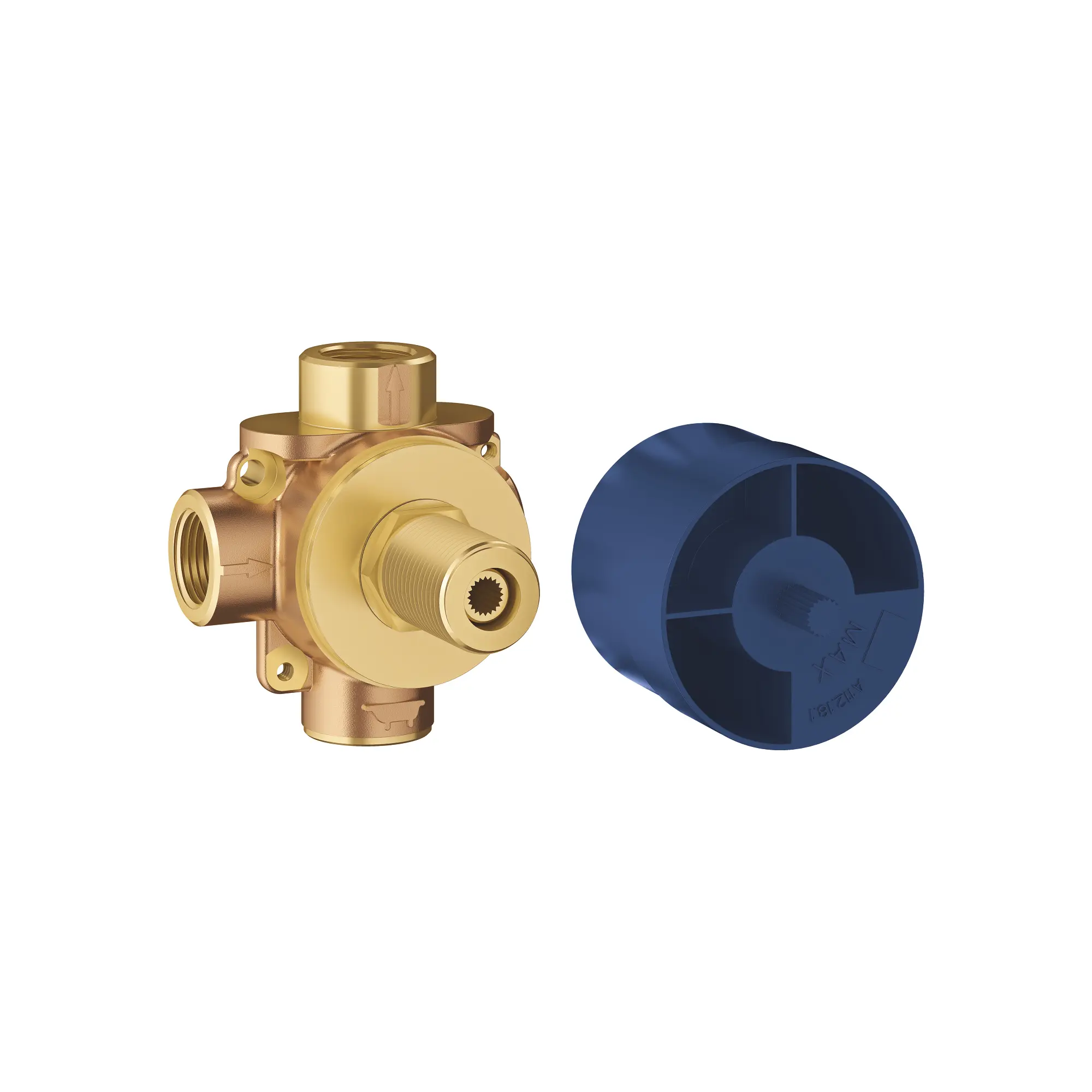

2-Way Diverter Rough-In Valve (Shared Functions) (No Finish (00G))
29901000
Discontinued
$230.00
2-Way Diverter Rough-In Valve (Shared Functions) (No Finish (00G))
  • GROHE SilkMove
  • 1 Inlet, 2 outlets
  • 2 Discrete, 1 shared functions
  • ½” NPT threads
  • ADA compliant: requires less than 5lbs/22.2N force to operate handle
3-Way Diverter Rough-In Valve (Discrete Functions) (No Finish (00G))
29902000
Discontinued
$259.00
3-Way Diverter Rough-In Valve (Discrete Functions) (No Finish (00G))
  • GROHE SilkMove
  • 1 Inlet, 3 outlets
  • 3 Discrete functions (non-shared)
  • ½” NPT threads
  • ADA compliant: requires less than 5lbs/22.2N force to operate handle
  • CALGreen Compliant

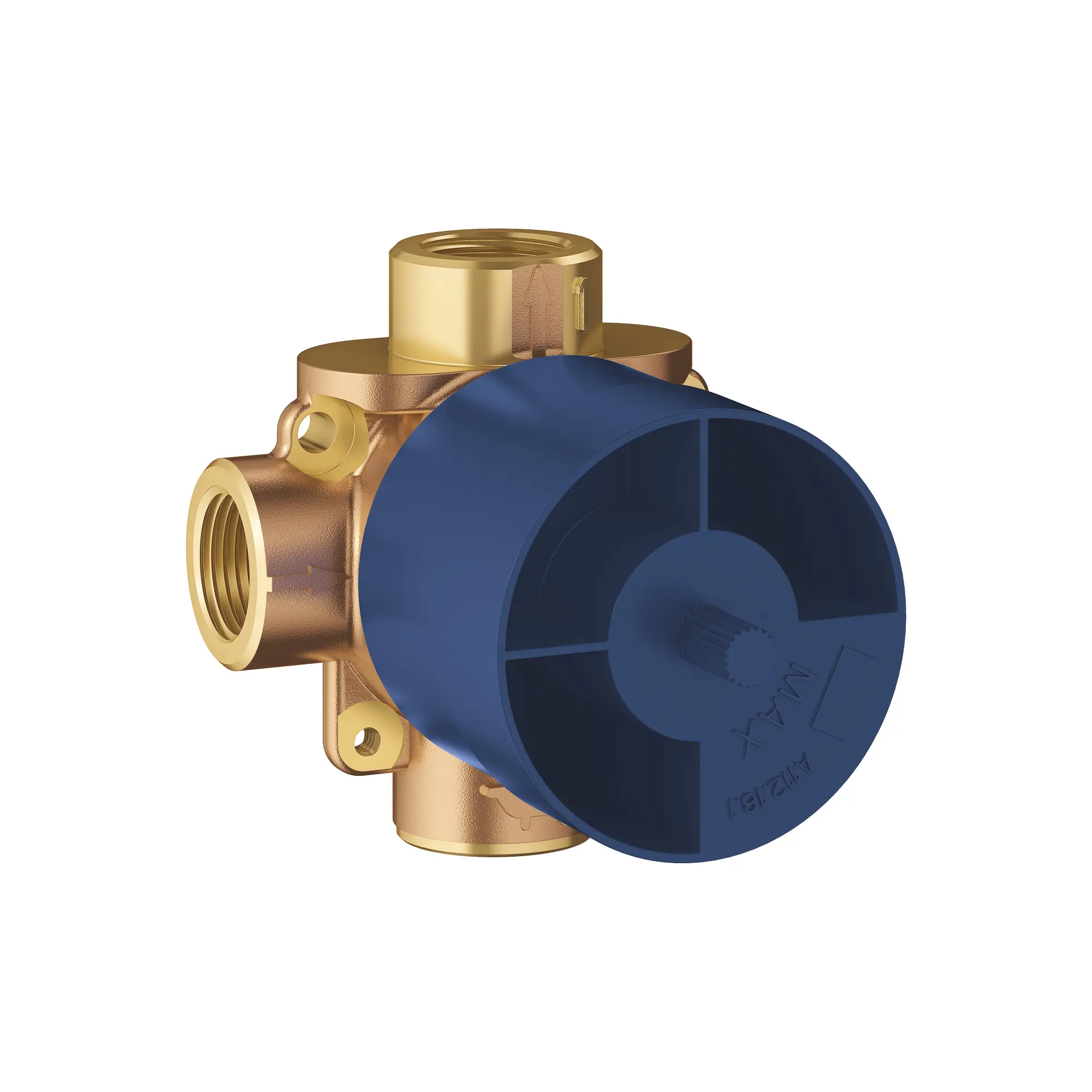

3-Way Diverter Rough-In Valve (Shared Functions) (No Finish (00G))
29903000
Discontinued
$259.00
3-Way Diverter Rough-In Valve (Shared Functions) (No Finish (00G))
  • GROHE SilkMove
  • 1 Inlet, 3 outlets
  • 3 Discrete, 3 shared functions
  • ½” NPT threads
  • ADA compliant: requires less than 5lbs/22.2N force to operate handle

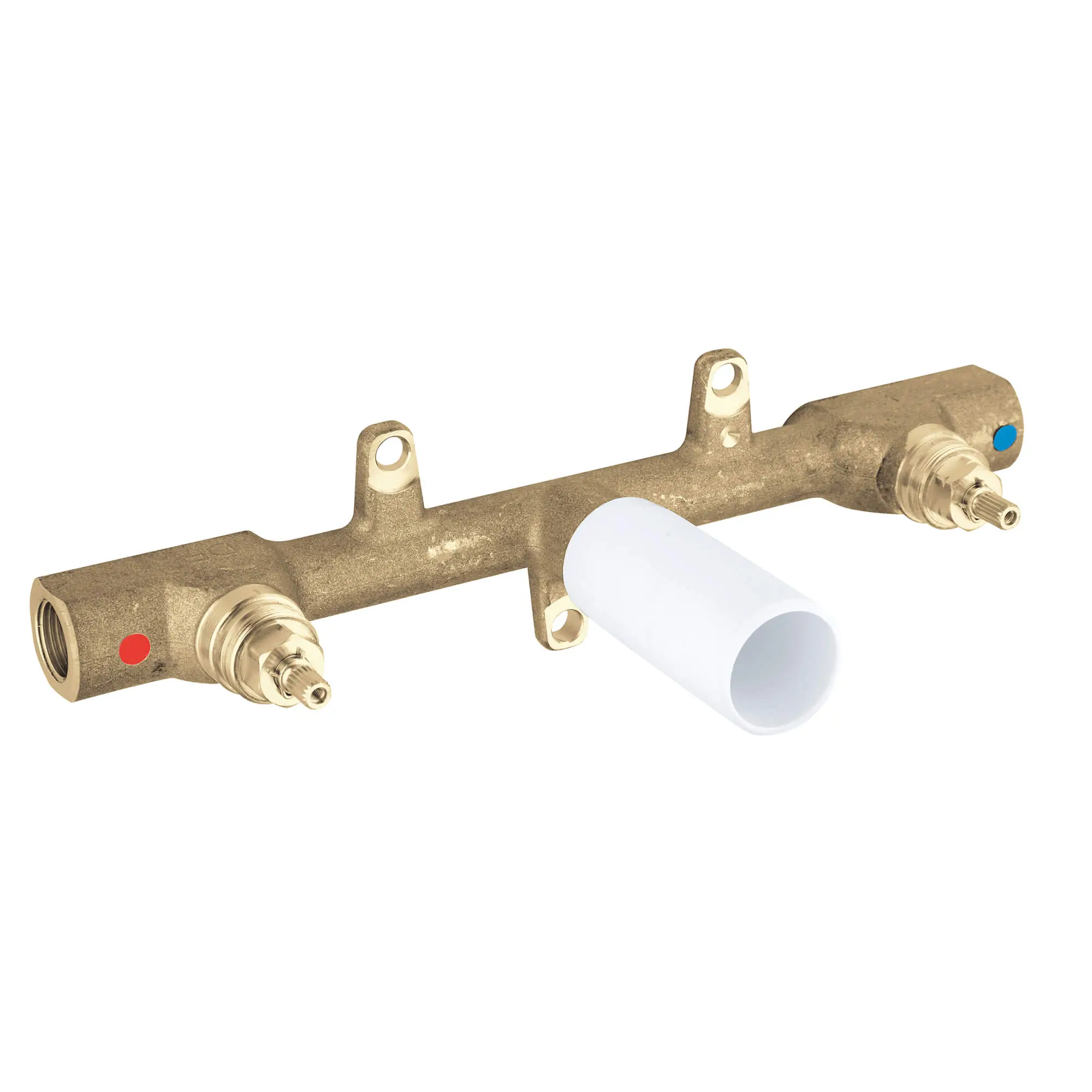

3-Hole Wall Mount Faucet Rough-In Valve (No Finish (00G))
33885000
Discontinued
$368.00
3-Hole Wall Mount Faucet Rough-In Valve (No Finish (00G))
  • GROHE SilkMove
  • 1/2" NPT female inlets
  • 8" On-center rough-in valve
  • Cast brass construction
Pressure Balance Rough-In Valve (No Finish (00G))
35110000
Discontinued
$105.00
Pressure Balance Rough-In Valve (No Finish (00G))
  • 1/2" Universal inlets/outlets
  • Includes plug for 3-port installation
  • Flush plug included
  • Made of DZR Brass
  • Service stops
  • Can be tested using flush plug with air (200psi) or water (300psi).
  • Cartridge ships with the trim
  • Minimum flow pressure 20 psi
  • Recommended flow pressure 20 - 72.5 psi
  • Greater than 72.5 psi, fit pressure reducing valve,Max. operating pressure 125 psi,Max. test pressure 500 psi,Flow rate at 45 psi flow pressure: minimum 6.8 L/min or 1.8 gpm,Max flow rate at 45 psi flow pressure - top port: 14 L/min or 3.7 gpm, bottom port: 15 L/min or 4.0 gpm
Nominal Dimensions: 2-3/4 in x 4-7/8 in x 3-5/8 in (70 mm x 124 mm x 92 mm)
Pressure Balance Rough-In Valve (No Finish (00G))
35111000
Discontinued
$105.00
Pressure Balance Rough-In Valve (No Finish (00G))
  • 1/2" PEX crimp (ASTM F1807) inlets
  • 1/2" Universal outlets
  • Includes plug for 3-port installation
  • Flush plug included
  • Made of DZR Brass
  • Service stops
  • Can be tested using flush plug with air (200psi) or water (300psi).
  • Cartridge ships with the trim
Nominal Dimensions: 2-3/4 in x 4-15/16 in x 4 in (70 mm x 125 mm x 102 mm)
Pressure Balance Rough-In Valve (No Finish (00G))
35112000
Discontinued
$105.00
Pressure Balance Rough-In Valve (No Finish (00G))
  • 1/2" PEX cold expansion (ASTM F1960) inlets
  • 1/2" Universal outlets
  • Includes plug for 3-port installation
  • Flush plug included
  • Made of DZR Brass
  • Service stops
  • Can be tested using flush plug with air (200psi) or water (300psi).
  • Cartridge ships with the trim
Nominal Dimensions: 2-3/4 in x 4-15/16 in x 4 in (70 mm x 125 mm x 102 mm)
Pressure Balance Rough-In Valve (No Finish (00G))
35113000
Discontinued
$105.00
Pressure Balance Rough-In Valve (No Finish (00G))
  • 1/2" Stub-out inlets/outlets
  • Accepts 1/2" press-connect fittings
  • Flush plug included
  • Made of DZR Brass
  • Service stops
  • Can be tested using flush plug with air (200psi) or water (300psi).
  • Cartridge ships with the trim
Nominal Dimensions: 2-3/4 in x 5-7/8 in x 4-3/4 in (70 mm x 149 mm x 121 mm)
Pressure Balance Rough-In Valve (No Finish (00G))
35114000
Discontinued
$127.00
Pressure Balance Rough-In Valve (No Finish (00G))
  • 1/2" CPVC inlets
  • 1/2" Universal outlets
  • Includes plug for 3-port installation
  • Flush plug included
  • Made of DZR Brass
  • Service stops
  • Can be tested using flush plug with air (200psi) or water (300psi).
  • Cartridge ships with the trim
Nominal Dimensions: 2-3/4 in x 6-5/8 in x 4 in (70 mm x 168 mm x 102 mm)
Pressure Balance Rough-In Valve (No Finish (00G))
35115000
Discontinued
$127.00
Pressure Balance Rough-In Valve (No Finish (00G))
  • 1/2" PEX crimp (ASTM F1807) Elbow inlets
  • 1/2" Universal outlets
  • Includes plug for 3-port installation
  • Flush plug included
  • Valve can be rotated 180° to accommodate floor or ceiling supplies
  • Made of DZR Brass
  • Service stops
  • Can be tested using flush plug with air (200psi) or water (300psi).
  • Cartridge ships with the trim
Nominal Dimensions: 2-3/4 in x 6-9/16 in x 4 in (70 mm x 167 mm x 102 mm)
Pressure Balance Rough-In Valve (No Finish (00G))
35116000
Discontinued
$127.00
Pressure Balance Rough-In Valve (No Finish (00G))
  • 1/2" PEX cold expansion (ASTM F1960) Elbow inlets
  • 1/2" Universal outlets
  • Includes plug for 3-port installation
  • Flush plug included
  • Valve can be rotated 180° to accommodate floor or ceiling supplies
  • Made of DZR Brass
  • Service stops
  • Can be tested using flush plug with air (200psi) or water (300psi).
  • Cartridge ships with the trim
Nominal Dimensions: 2-3/4 in x 6-9/16 in x 4 in (70 mm x 167 mm x 102 mm)

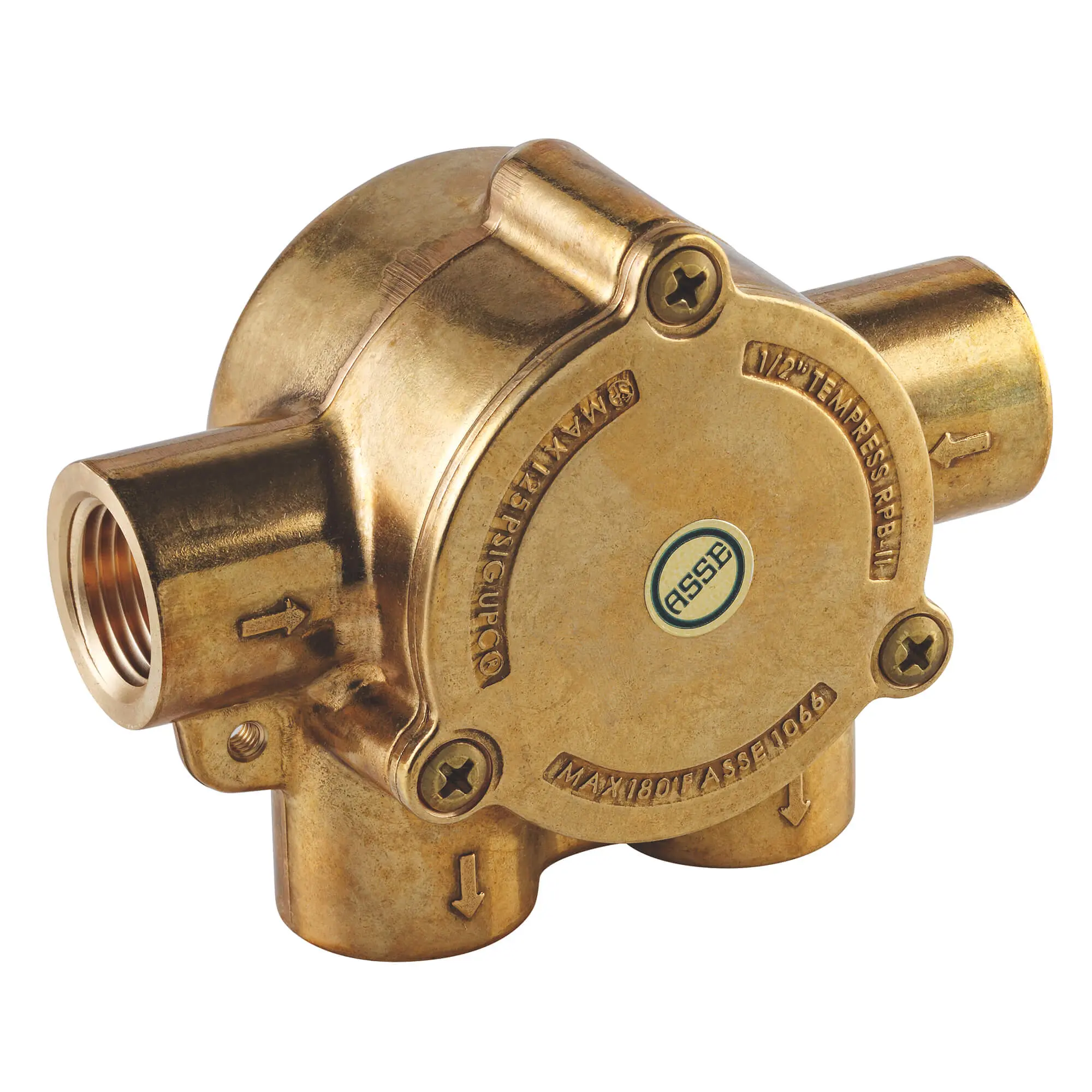

In-Line Remote Pressure Balance Valve (No Finish (00G))
35204000
Discontinued
$254.00
In-Line Remote Pressure Balance Valve (No Finish (00G))
  • To be installed upstream of the mixing valves
  • For use with non-safety mixing valves
  • 1/2" NPT female inlets
  • Max. flow rate: 5.5gpm at 45psi

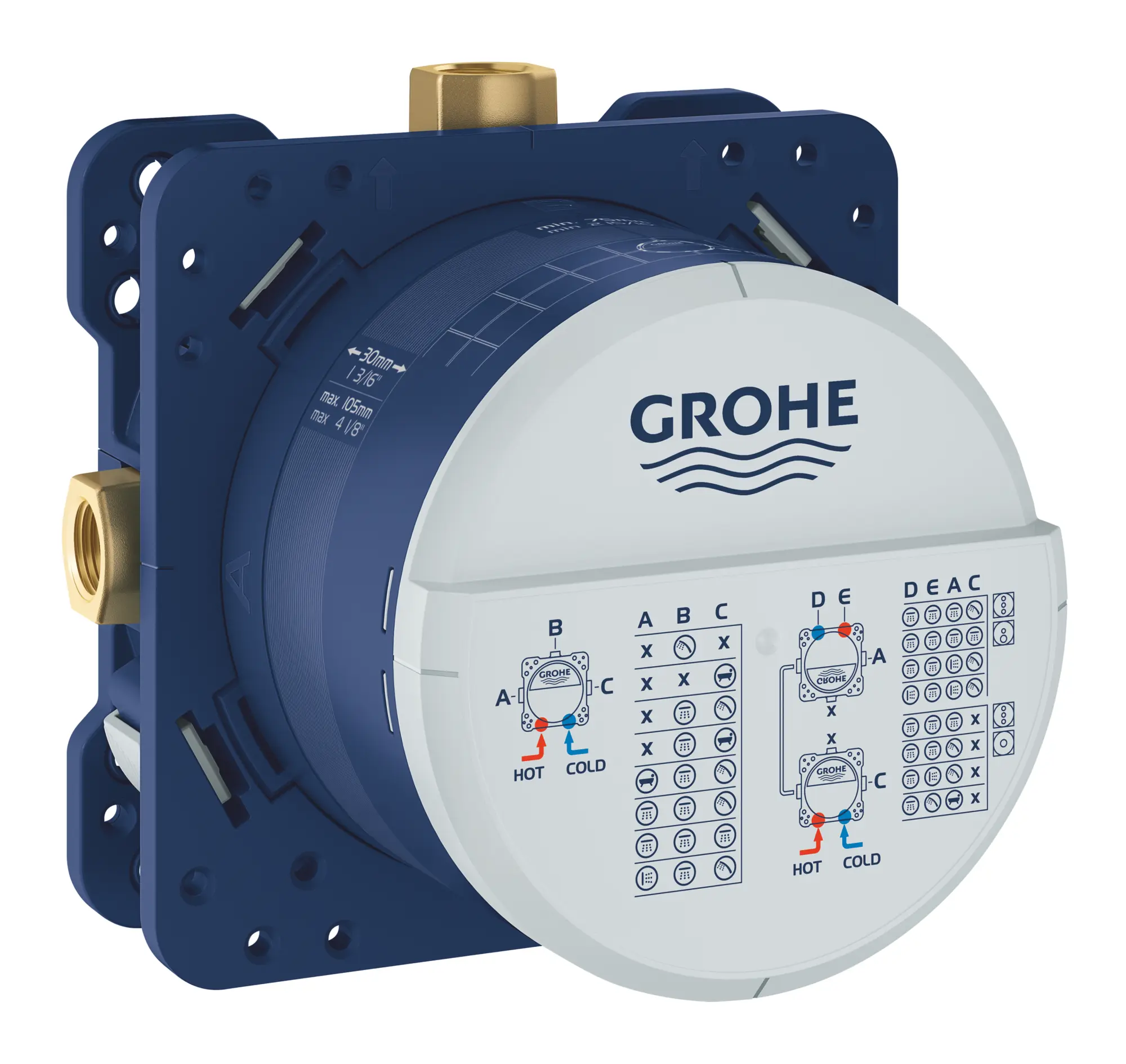

Universal Rough-In Box (No Finish (00G))
35601000
Discontinued
$162.00
Universal Rough-In Box (No Finish (00G))
  • 3 Outlets 1/2" female NPT
  • 2 Inlets below, 1/2" female NPT
  • Installation depth 3"–4 1/8" (75-105mm)
  • Connection unit in DR brass
  • Includes integrated pre-mounted flushing plug
  • Stable built-in box / protective cover
  • Leak-proof housing
  • Service Stops for maintenance of cartridge included with the trim
  • Mounting options for solid walls and dry walls
  • Trim sold separately
Nominal Dimensions: 4-1/8 in x 6-15/16 in x 5-11/16 in (105 mm x 176 mm x 144 mm)

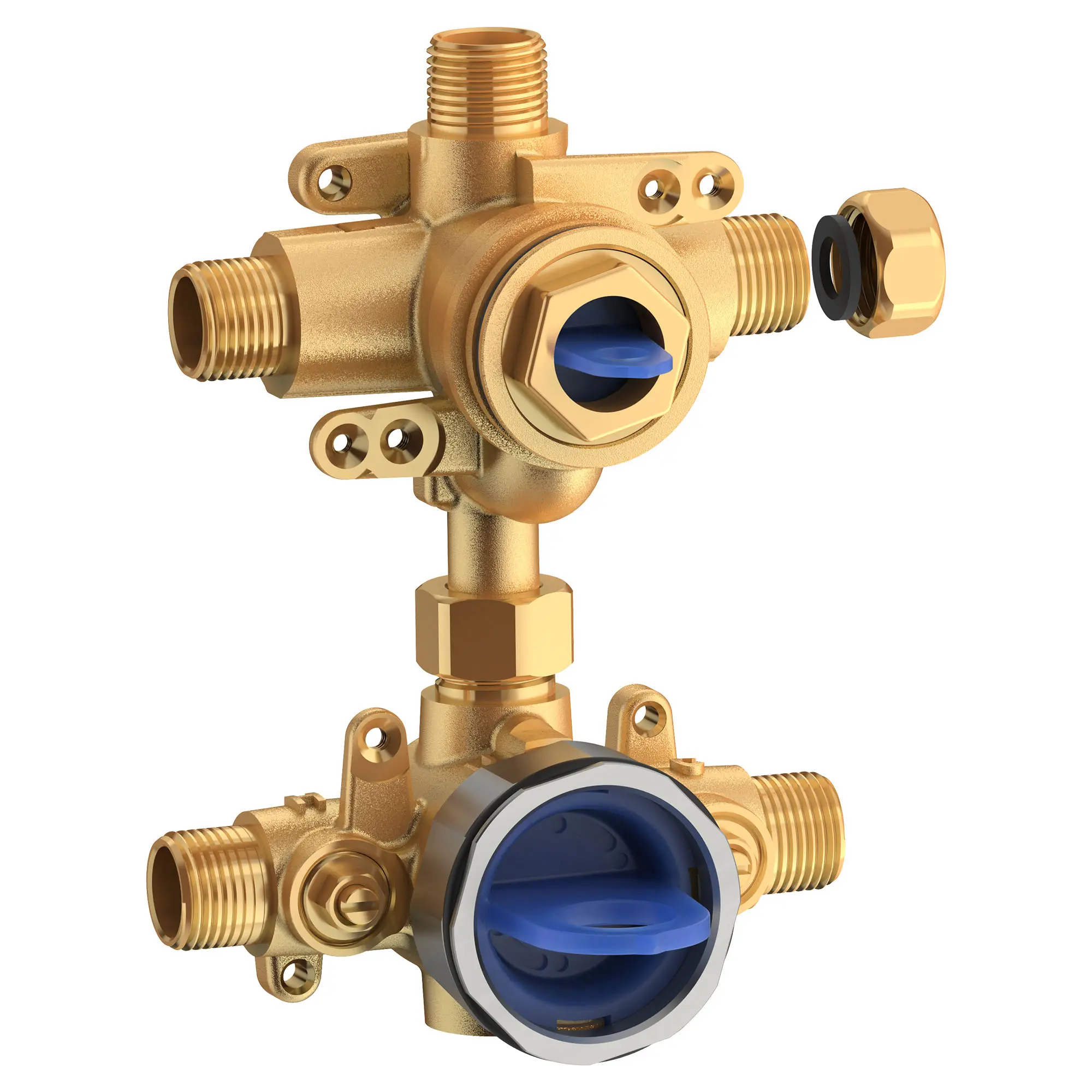

GROHSAFE 3.0 PRESSURE BALANCE VALVE WITH INTEGRATED DIVERTER (No Finish (00G))
35117000
Discontinued
$269.00
GROHSAFE 3.0 PRESSURE BALANCE VALVE WITH INTEGRATED DIVERTER (No Finish (00G))
  • Flat Back for sturdy, quick installation
  • Pre-installed Flush Plug with Fixation Ring to speed up testing and flushing the lines
  • Convertible Flush Plug/Test Cap to accommodate single and multiple valve installations
  • Aligned Inlets & Outlets to eliminate misaligned piping and rough-in mistakes due to different rough-in depths
  • 2-Way/3-Way Convertible for one valve that makes specification & installation simple
  • Made of DZR Brass to provide a corrosion resistant valve that can be installed in areas of with harsh water conditions
  • ½ NPT
  • Flow Pressure: min 20 psi
  • Recommended Flow Pressure 20 - 72.5 psi
  • Greater than 72.5 psi, fit pressure reducing valve,Max. operating pressure 125 psi,Max. test pressure 500 psi,Flow rate at 45 psi flow pressure: minimum 6.8 L/min or 1.8 gpm,Max. flow rate at 45 psi flow pressure - top port: 14 L/min or 3.7 gpm, bottom port: 15 L/min or 4.0 gpm,Shared diverter kit available (14 230) (sold separately)
Pressure Balance Valve Rough-In with Integrated Diverter (No Finish (007))
RU520
Discontinued
$269.00
Pressure Balance Valve Rough-In with Integrated Diverter (No Finish (007))
  • Made of casted DZR brass to resist corrosion
  • For use with Flash® 2-Handle Integrated Shower Diverter Trim
  • 1/2” NPT Inlets/Outlets
  • 2 or 3-Way Shared functionality cartridge RP# M970789-0070A, sold separately
  • Compatible with Aspirations® trim or TU series trim kits
  • Trim sold separately, discrete cartridge ships with trim
Studio® S 6-Inch Slip-On Non-Diverter Tub Spout (Chrome (002))
8888316.002
Discontinued
$93.00
Studio® S 6-Inch Slip-On Non-Diverter Tub Spout (Chrome (002))
  • For 1/2" (13 mm) copper pipe
  • 6" (152 mm) length to center of spout outlet
  • Metal construction
Nominal Dimensions: 6-5/8 in x 2-3/4 in x 2-3/4 in (168 mm x 70 mm x 70 mm)
Studio® S 6-Inch IPS Non-Diverter Tub Spout (Chrome (002))
8888317.002
Discontinued
$93.00
Studio® S 6-Inch IPS Non-Diverter Tub Spout (Chrome (002))
  • 1/2" (13 mm) IPS connection
  • 6" (152 mm) length to center of spout outlet
  • Metal construction
Nominal Dimensions: 6-11/16 in x 3 in x 3 in (170 mm x 76 mm x 76 mm)
Studio® S 6-Inch Slip-On Diverter Tub Spout (Chrome (002))
8888318.002
Discontinued
$100.00
Studio® S 6-Inch Slip-On Diverter Tub Spout (Chrome (002))
  • For 1/2" (13 mm) copper pipe
  • 6" (152 mm) length to center of spout outlet
  • Metal construction
Nominal Dimensions: 6-5/8 in x 2-3/4 in x 2-3/4 in (168 mm x 70 mm x 70 mm)
Studio® S 6-Inch IPS Diverter Tub Spout (Chrome (002))
8888319.002
Discontinued
$100.00
Studio® S 6-Inch IPS Diverter Tub Spout (Chrome (002))
  • 1/2" (13 mm) IPS connection
  • 6" (152 mm) length to center of spout outlet
  • Metal construction
Nominal Dimensions: 6-5/8 in x 2-3/4 in x 2-7/8 in (168 mm x 70 mm x 73 mm)
3/2 Port Diverter Rough Valve Only (Unfinished (191))
D35000420.191
Discontinued
$249.00
3/2 Port Diverter Rough Valve Only (Unfinished (191))
  • Alternates water flow between 2 or 3 shared shower outlets
  • 4/3 Port diverter allows for 1 inlet and 3 outlets
  • 3/2 Port diverter allows for 1 inlet and 2 outlets
  • 1/2" NPT inlets and outlets
4/3 Port Diverter Rough Valve Only (Unfinished (191))
D35000430.191
Discontinued
$282.00
4/3 Port Diverter Rough Valve Only (Unfinished (191))
  • Alternates water flow between 2 or 3 shared shower outlets
  • 4/3 Port diverter allows for 1 inlet and 3 outlets
  • 3/2 Port diverter allows for 1 inlet and 2 outlets
  • 1/2" NPT inlets and outlets

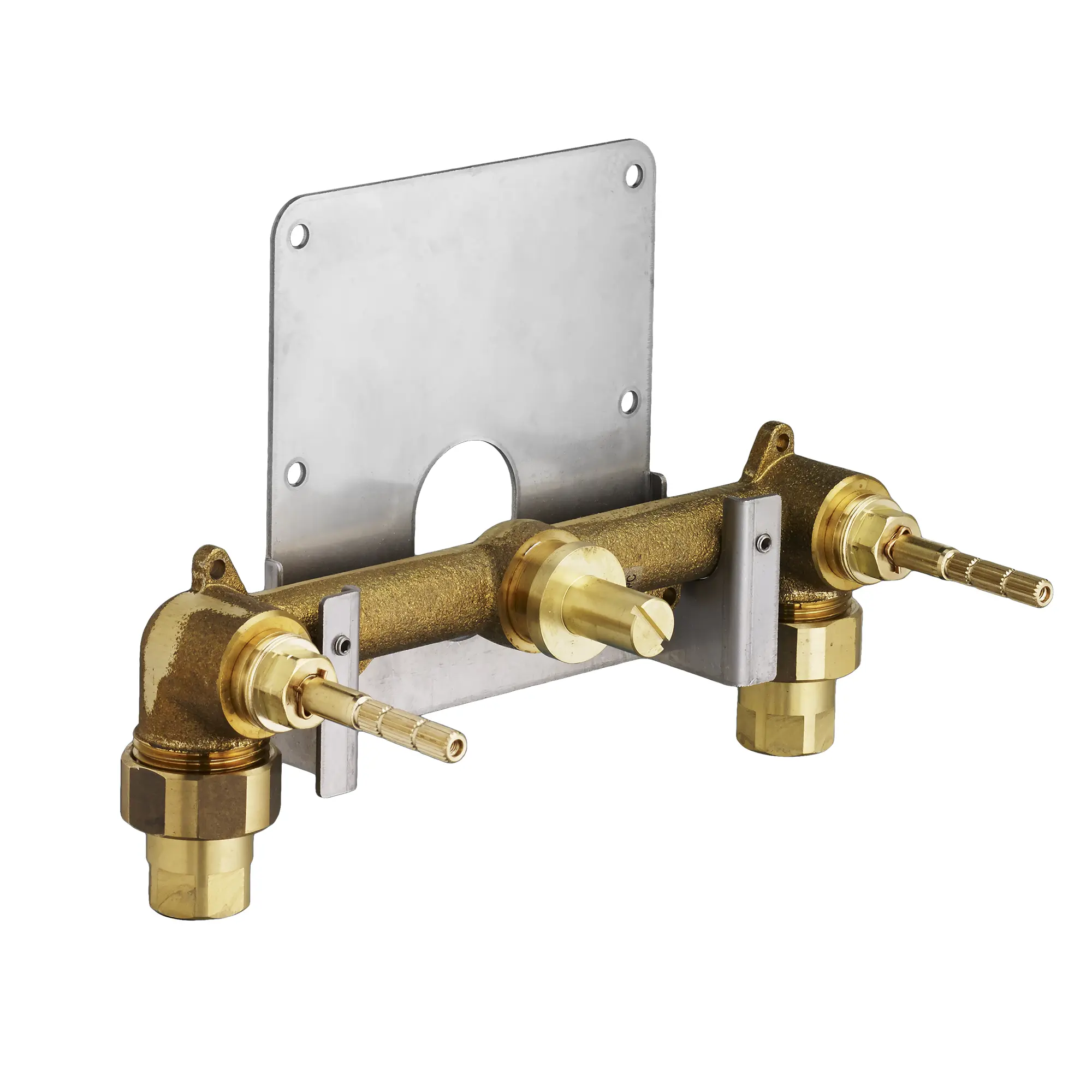

Dual Control Wall Mount Bathroom Faucet Rough Valve Only (Unfinished (191))
D35000450.191
Discontinued
$391.00
Dual Control Wall Mount Bathroom Faucet Rough Valve Only (Unfinished (191))
  • Wall rough
  • Brass construction
Deck Mount Tub Filler Rough Valve (Unfinished (191))
D35000910.191
Discontinued
$332.00
Deck Mount Tub Filler Rough Valve (Unfinished (191))
  • Durable brass construction ideal for prolonged contact with water
  • Ceramic disc valve cartridge assures a lifetime of drip-free performance
  • Exclusive handle alignment system allows fine tuning of handle position
Wall Mount Tub Filler Rough Valve (No Finish (007))
D35000981.191
Discontinued
$1,207.00
Wall Mount Tub Filler Rough Valve (No Finish (007))
  • Ceramic disc valve cartridge
  • Forged brass valve body with built-in check stops
  • 2-Way diverter with discrete (non-shared) functions
  • ¾" Wax thermostatic unit permits shuttle valve to move between the hot and cold seats to maintain the preselected constant water temperature
  • ¾" NPT Inlets ½" Outlets
  • Includes adjustable hot limit safety stop
  • Maximum temperature limit is 120°F

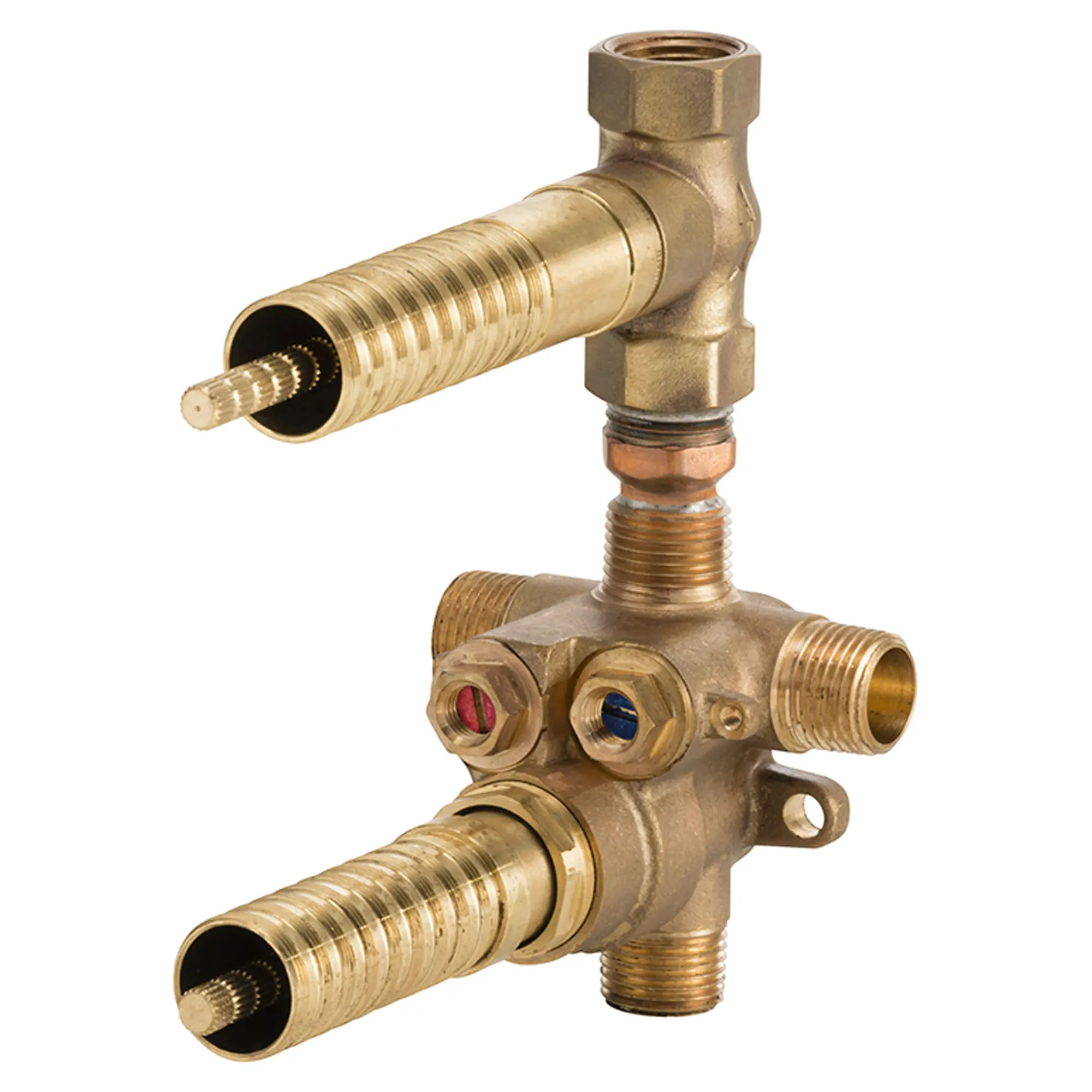

2-Handle Thermostatic Rough Valve with Volume Control (Unfinished (191))
D35005511.191
Discontinued
$459.00
2-Handle Thermostatic Rough Valve with Volume Control (Unfinished (191))
  • Ceramic disc valve cartridge
  • Forged brass valve body with built-in check stops
  • One ½" volume control
  • ½" Wax thermostatic unit permits shuttle valve to move between the hot and cold seats to maintain the preselected constant water temperature
  • ½" NPT Inlets/Outlets
  • Includes adjustable hot limit safety stop
  • Maximum temperature limit is 120°F
2-Handle Thermostatic Rough Valve with 2-Way Diverter Non-Shared Functions (Unfinished (191))
D35005522.191
Discontinued
$484.00
2-Handle Thermostatic Rough Valve with 2-Way Diverter Non-Shared Functions (Unfinished (191))
  • Durable forged brass construction to last a lifetime
  • 2-way diverter valve
  • Allows for 2 discrete functions only (no shared functions)
  • Adjustable hot-limit safety stop helps to prevent accidental scalding
  • ½” Thermostatic cartridge maintains constant temperature
  • CEC Certified
2-Handle Thermostatic Rough Valve with 2-Way Diverter Shared Functions (Unfinished (191))
D35005522S.191
Discontinued
$484.00
2-Handle Thermostatic Rough Valve with 2-Way Diverter Shared Functions (Unfinished (191))
  • Durable forged brass construction to last a lifetime
  • 2-way diverter valve
  • Shared Function version (D35005522S.191) allows for 2 discrete functions + 1 shared function
  • Adjustable hot-limit safety stop helps to prevent accidental scalding
  • ½” Thermostatic cartridge maintains constant temperature
2-Handle Thermostatic Rough Valve with 3-Way Diverter Non-Shared Functions (Unfinished (191))
D35005523.191
Discontinued
$511.00
2-Handle Thermostatic Rough Valve with 3-Way Diverter Non-Shared Functions (Unfinished (191))
  • Durable forged brass construction to last a lifetime
  • 3-Way diverter options
  • Allows for 3 discrete functions only (no shared functions)
  • Adjustable hot-limit safety stop helps to prevent accidental scalding
  • ½” Thermostatic cartridge maintains constant temperature
  • Integral check stops ensure easy servicing at the valve, and prevents the cross flow of hot and cold water
  • CEC Certified

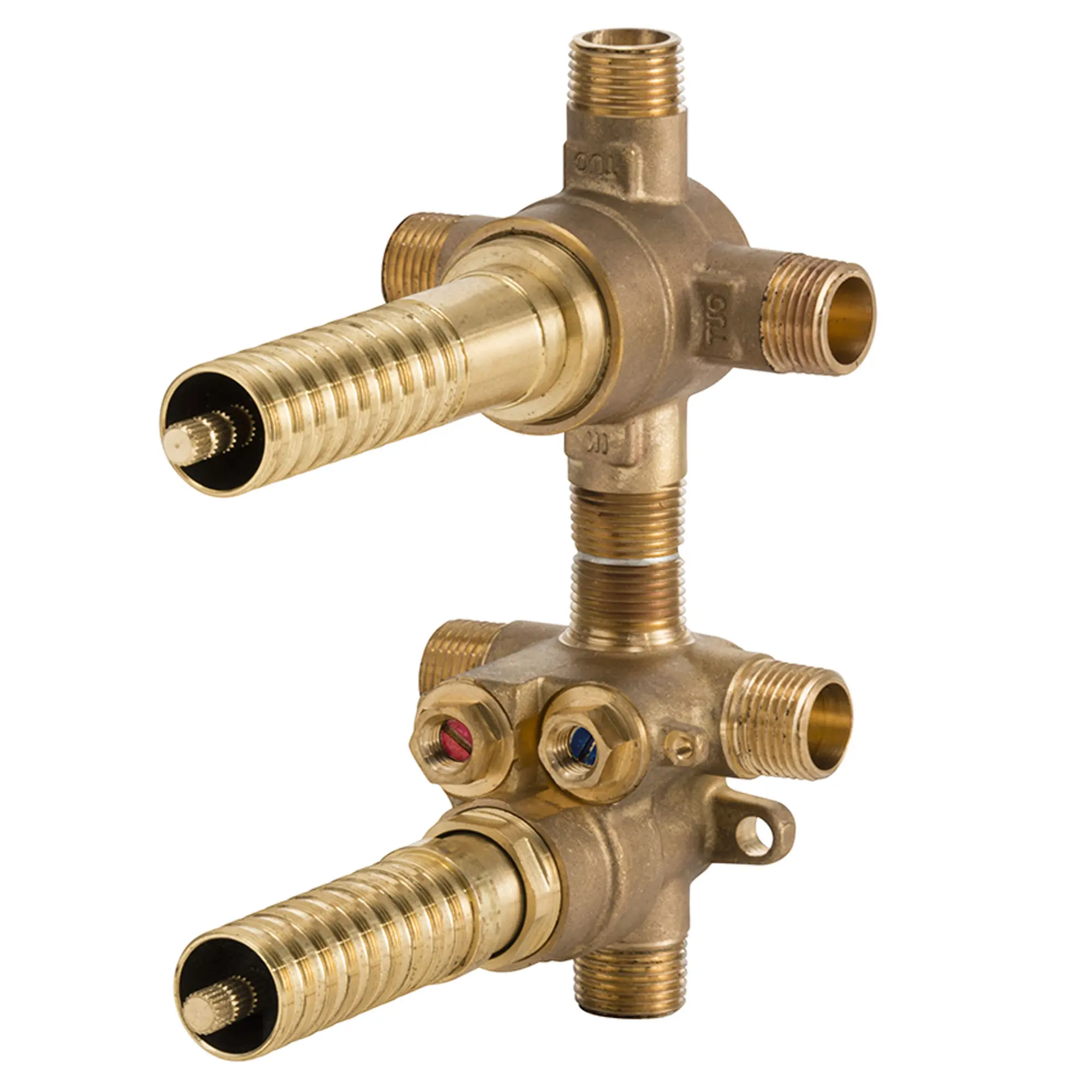

2-Handle Thermostatic Rough Valve with 3-Way Diverter Shared Functions (Unfinished (191))
D35005523S.191
Discontinued
$511.00
2-Handle Thermostatic Rough Valve with 3-Way Diverter Shared Functions (Unfinished (191))
  • Durable forged brass construction to last a lifetime
  • 3-way diverter valve
  • Shared Function version allows for 3 discrete functions + 2 shared functions
  • Adjustable hot-limit safety stop helps to prevent accidental scalding
  • ½” Thermostatic cartridge maintains constant temperature
  • Integral check stops ensure easy servicing at the valve, and prevents the cross flow of hot and cold water
3-Handle Thermostatic Rough Valve with 2 Volume Controls (Unfinished (191))
D35005532.191
Discontinued
$965.00
3-Handle Thermostatic Rough Valve with 2 Volume Controls (Unfinished (191))
  • Ceramic disc valve cartridge
  • Forged brass valve body with built-in check stops
  • Two ¾" volume control
  • ¾" Wax thermostatic unit permits shuttle valve to move between the hot and cold seats to maintain the preselected constant water temperature
  • ¾" Inlets/Outlets
  • Includes Adjustable Hot Limit Safety Stop
  • Maximum temperature limit is 120°F
3-Handle Thermostatic Rough Valve with 2-Way Diverter Non-Shared Functions (Unfinished (191))
D35005533.191
Discontinued
$978.00
3-Handle Thermostatic Rough Valve with 2-Way Diverter Non-Shared Functions (Unfinished (191))
  • Ceramic disc valve cartridge
  • Forged brass valve body with built-in check stops
  • 2-Way diverter options include discrete or shared functions
  • ¾" Wax thermostatic unit permits shuttle valve to move between the hot and cold seats to maintain the preselected constant water temperature
  • ¾" NPT Inlets/Outlets
  • Includes Adjustable Hot Limit Safety Stop
  • Maximum temperature limit is 120°F
3-Handle Thermostatic Rough Valve with 2-Way Diverter Shared Functions (Unfinished (191))
D35005533S.191
Discontinued
$978.00
3-Handle Thermostatic Rough Valve with 2-Way Diverter Shared Functions (Unfinished (191))
  • Ceramic disc valve cartridge
  • Forged brass valve body with built-in check stops
  • 2-Way diverter options include discrete or shared functions
  • ¾" Wax thermostatic unit permits shuttle valve to move between the hot and cold seats to maintain the preselected constant water temperature
  • ¾" NPT Inlets/Outlets
  • Includes Adjustable Hot Limit Safety Stop
  • Maximum temperature limit is 120°F
H960294-3/4 In Side Vlv Mounting Kit (Unfinished (191))
H960294.191
Discontinued
$31.00
H960294-3/4 In Side Vlv Mounting Kit (Unfinished (191))

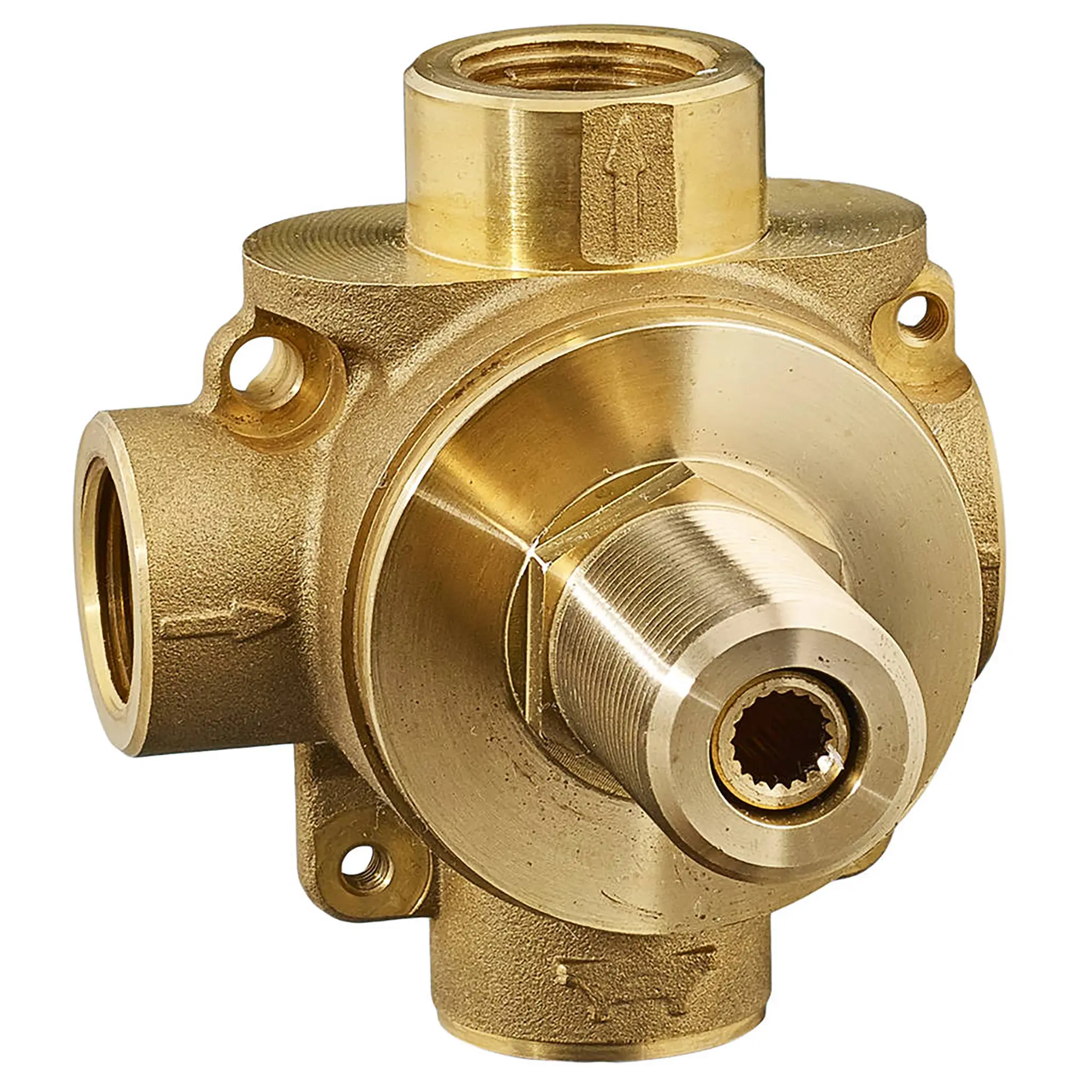

2-Way In-Wall Diverter Rough-In Valve With 2 Discrete Functions (No Finish (007))
R422
Discontinued
$231.00
2-Way In-Wall Diverter Rough-In Valve With 2 Discrete Functions (No Finish (007))
  • Durable cast brass valve body – excellent for high use applications with prolonged water use
  • Controls water flow between 2 outlets (shower or sprays)
  • 1/2" (13 mm) NPT inlets/outlets
  • Trim must be ordered separately
Nominal Dimensions: 3 in x 2-7/8 in x 3-1/8 in (76 mm x 73 mm x 79 mm)
2-Way In-Wall Diverter Rough-In Valve With 2 Discrete/1 Shared Function (No Finish (007))
R422S
Discontinued
$231.00
2-Way In-Wall Diverter Rough-In Valve With 2 Discrete/1 Shared Function (No Finish (007))
  • Durable cast brass valve body – excellent for high use applications with prolonged water use
  • Controls water flow between 2 outlets (shower or sprays)
  • 1/2" (13 mm) NPT inlets/outlets
  • Trim must be ordered separately
Nominal Dimensions: 3 in x 2-7/8 in x 3-1/8 in (76 mm x 73 mm x 79 mm)
3-Way In-Wall Diverter Rough-In Valve With 3 Discrete Functions (No Finish (007))
R433
Discontinued
$262.00
3-Way In-Wall Diverter Rough-In Valve With 3 Discrete Functions (No Finish (007))
  • Durable cast brass valve body – excellent for high use applications with prolonged water use
  • Controls water flow between 3 outlets (shower or sprays)
  • 1/2" (13 mm) NPT inlets/outlets
  • Trim must be ordered separately
Nominal Dimensions: 3 in x 3-1/4 in x 3-1/4 in (76 mm x 83 mm x 83 mm)
3-Way In-Wall Diverter Rough-In Valve With 3 Discrete/3 Shared Functions (No Finish (007))
R433S
Discontinued
$262.00
3-Way In-Wall Diverter Rough-In Valve With 3 Discrete/3 Shared Functions (No Finish (007))
  • Durable cast brass valve body – excellent for high use applications with prolonged water use
  • Controls water flow between 3 outlets (shower or sprays)
  • 1/2" (13 mm) NPT inlets/outlets
  • Trim must be ordered separately
Nominal Dimensions: 3 in x 3-1/4 in x 3-1/4 in (76 mm x 83 mm x 83 mm)
Flash® Bathtub Filler Rough-In Valve (No Finish (007))
R900
Discontinued
$184.00
Flash® Bathtub Filler Rough-In Valve (No Finish (007))
  • Brass construction and washerless 1/4-turn ceramic disc valve cartridges
  • 1/2" (13 mm) copper inlets
  • Connections to spout can be made via flexible hoses (provided) or 1/2" (13 mm) copper sweat connections
  • 14 gpm/52.9 L/min maximum flow rate at 40 psi
  • 8"–16" (203–406 mm) flexible installation
  • Adjustable rough-in: 2-1/2" (64 mm) maximum deck thickness
Nominal Dimensions: 1-15/17 in x 14-1/262 in x 7-1/2 in (48 mm x 356 mm x 191 mm)
Flash® Bathtub Filler Rough-In Valve With Personal Shower (No Finish (007))
R910
Discontinued
$322.00
Flash® Bathtub Filler Rough-In Valve With Personal Shower (No Finish (007))
  • Brass construction and washerless 1/4-turn ceramic disc valves cartridge
  • 1/2" (13 mm) copper inlets
  • Connections to spout can be made via flexible hoses (provided) or 1/2" (13 mm) copper sweat connections
  • 14 gpm/59.2 L/min maximum flow rate at 40 psi
  • 8"–16" (203–406 mm) flexible installation
  • Adjustable rough-in: 2-1/2" (64 mm) maximum deck thickness
  • Includes hand shower rough-in
Nominal Dimensions: 1-15/17 in x 19-7/8 in x 7-1/2 in (48 mm x 505 mm x 191 mm)
Flash® Freestanding Bathtub Filler Rough-In Valve (No Finish (007))
R950
Discontinued
$230.00
Flash® Freestanding Bathtub Filler Rough-In Valve (No Finish (007))
  • Brass construction
  • 1/2" (13 mm) copper inlets
  • Level adjustable
  • Test plugs included
  • Must order trim separately
Nominal Dimensions: 5-11/16 in x 5-11/16 in x 5-5/8 in (144 mm x 144 mm x 143 mm)
Flash® Freestanding Bathtub Filler Rough-In Valve With Screwdriver Stops (No Finish (007))
R950SS
Discontinued
$265.00
Flash® Freestanding Bathtub Filler Rough-In Valve With Screwdriver Stops (No Finish (007))
  • Brass construction
  • 1/2" (13 mm) copper inlets
  • Level adjustable
  • Test plugs included
  • Must order trim separately
  • Includes screwdriver stops for easy servicing at the valve
Nominal Dimensions: 5-11/16 in x 5-11/16 in x 5-5/8 in (144 mm x 144 mm x 143 mm)
Flash® Shower Rough-In Valve With Universal Inlets/Outlets (No Finish (007))
RU101
Discontinued
$72.00
Flash® Shower Rough-In Valve With Universal Inlets/Outlets (No Finish (007))
  • 1/2" (13 mm) male NPT/Sweat inlets/outlets accept 1/2" copper, 1/2" iron pipe, PEX or CPVC adapters
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Cartridge ships with trim
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 4-7/16 in x 3-11/16 in (70 mm x 113 mm x 94 mm)
Flash® Shower Rough-In Valve With Universal Inlets/Outlets With Screwdriver Stops (No Finish (007))
RU101SS
Discontinued
$103.00
Flash® Shower Rough-In Valve With Universal Inlets/Outlets With Screwdriver Stops (No Finish (007))
  • 1/2" (13 mm) male NPT/Sweat inlets/outlets accept 1/2" copper, 1/2" iron pipe, PEX or CPVC adapters
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Includes screwdriver stops for easy servicing at the valve
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 4-7/8 in x 3-11/16 in (70 mm x 124 mm x 94 mm)
Flash® Shower Rough-In Valve With Stub-Outs (No Finish (007))
RU102
Discontinued
$72.00
Flash® Shower Rough-In Valve With Stub-Outs (No Finish (007))
  • 1/2" (13 mm) Stub-out inlets/outlets accept 1/2" press-connect fittings
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Cartridge ships with trim
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 5-5/8 in x 4-3/4 in (70 mm x 143 mm x 121 mm)
Flash® Shower Rough-In Valve With Stub-Outs With Screwdriver Stops (No Finish (007))
RU102SS
Discontinued
$103.00
Flash® Shower Rough-In Valve With Stub-Outs With Screwdriver Stops (No Finish (007))
  • 1/2" (13 mm) Stub-out inlets/outlets accept 1/2" press-connect fittings
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Includes screwdriver stops for easy servicing at the valve
  • Cartridge ships with trim
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 5-7/8 in x 4-3/4 in (70 mm x 149 mm x 121 mm)
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets for Crimp Ring System (No Finish (007))
RU107
Discontinued
$72.00
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets for Crimp Ring System (No Finish (007))
  • 1/2" (3 mm) PEX crimp inlets/Universal outlets (ASTM F1807)
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Cartridge ships with trim
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 4-3/4 in x 3-5/8 in (70 mm x 121 mm x 92 mm)
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets for Crimp Ring System (No Finish (007))
RU107E
Discontinued
$95.00
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets for Crimp Ring System (No Finish (007))
  • 1/2" (13 mm) PEX crimp elbow inlets/Universal outlets (ASTM F1807)
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Cartridge ships with trim
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 6-1/8 in x 3-5/8 in (70 mm x 156 mm x 92 mm)
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets With Screwdriver Stops for Crimp Ring System (No Finish (007))
RU107ESS
Discontinued
$125.00
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets With Screwdriver Stops for Crimp Ring System (No Finish (007))
  • 1/2" (13 mm) PEX crimp elbow inlets/Universal outlets (ASTM F1807)
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Includes screwdriver stops for easy servicing at the valve
  • Cartridge ships with trim
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 6-1/2 in x 3-5/8 in (70 mm x 165 mm x 92 mm)
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets With Screwdriver Stops for Crimp Ring System (No Finish (007))
RU107SS
Discontinued
$103.00
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets With Screwdriver Stops for Crimp Ring System (No Finish (007))
  • 1/2" (13 mm) PEX crimp inlets/Universal outlets (ASTM F1807)
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Includes screwdriver stops for easy servicing at the valve
  • Cartridge ships with trim
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 4-7/8 in x 3-5/8 in (70 mm x 124 mm x 92 mm)
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets for Cold Expansion System (No Finish (007))
RU108
Discontinued
$72.00
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets for Cold Expansion System (No Finish (007))
  • 1/2" (13 mm) PEX cold expansion inlets/Universal outlets (ASTM F1960)
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Cartridge ships with trim
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 4-3/4 in x 3-5/8 in (70 mm x 121 mm x 92 mm)
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets for Cold Expansion System (No Finish (007))
RU108E
Discontinued
$95.00
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets for Cold Expansion System (No Finish (007))
  • 1/2" (13 mm) PEX cold expansion elbow inlets/Universal outlets (ASTM F1960)
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Cartridge ships with trim
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 6-1/8 in x 3-5/8 in (70 mm x 156 mm x 92 mm)
Flash® Shower Rough-In Valve With PRX Inlet Elbows/Universal Outlets With Screwdriver Stops for Cold Expansion System (No Finish (007))
RU108ESS
Discontinued
$125.00
Flash® Shower Rough-In Valve With PRX Inlet Elbows/Universal Outlets With Screwdriver Stops for Cold Expansion System (No Finish (007))
  • 1/2" (13 mm) PEX cold expansion elbow inlets/Universal outlets (ASTM F1960)
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Includes screwdriver stops for easy servicing at the valve
  • Cartridge ships with trim
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 6-1/2 in x 3-5/8 in (70 mm x 165 mm x 92 mm)
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets With Screwdriver Stops for Cold Expansion System (No Finish (007))
RU108SS
Discontinued
$103.00
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets With Screwdriver Stops for Cold Expansion System (No Finish (007))
  • 1/2" (13 mm) PEX cold expansion inlets/Universal outlets (ASTM F1960)
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Includes screwdriver stops for easy servicing at the valve
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 4-7/8 in x 3-5/8 in (70 mm x 124 mm x 92 mm)
Flash® Shower Rough-In Valve With CPVC Inlets/Universal Outlets (No Finish (007))
RU109
Discontinued
$95.00
Flash® Shower Rough-In Valve With CPVC Inlets/Universal Outlets (No Finish (007))
  • 1/2" (13 mm) CPVC inlets/Universal outlets
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Cartridge ships with trim
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 6-3/8 in x 3-5/8 in (70 mm x 162 mm x 92 mm)
Flash® Shower Rough-In Valve With CPVC Inlets/Universal Outlets With Screwdriver Stops (No Finish (007))
RU109SS
Discontinued
$125.00
Flash® Shower Rough-In Valve With CPVC Inlets/Universal Outlets With Screwdriver Stops (No Finish (007))
  • 1/2" (13 mm) CPVC inlets/Universal outlets
  • Cast DZR brass valve body
  • Flow rate: 5.1 gpm @ 45 psi*
  • Back-to-back capability
  • Includes flush plug with stainless steel ring
  • Includes screwdriver stops for easy servicing at the valve
  • Cartridge ships with trim
  • For use with TU series pressure balance bath/shower trim kits
Nominal Dimensions: 2-3/4 in x 6-5/8 in x 3-5/8 in (70 mm x 168 mm x 92 mm)
Top
Products
Solutions
Resources
Your Tools
Contact

Customer Care at LIXIL
865 Centennial Ave.
Piscataway, NJ 08854


Privacy Policy
Term of Use
