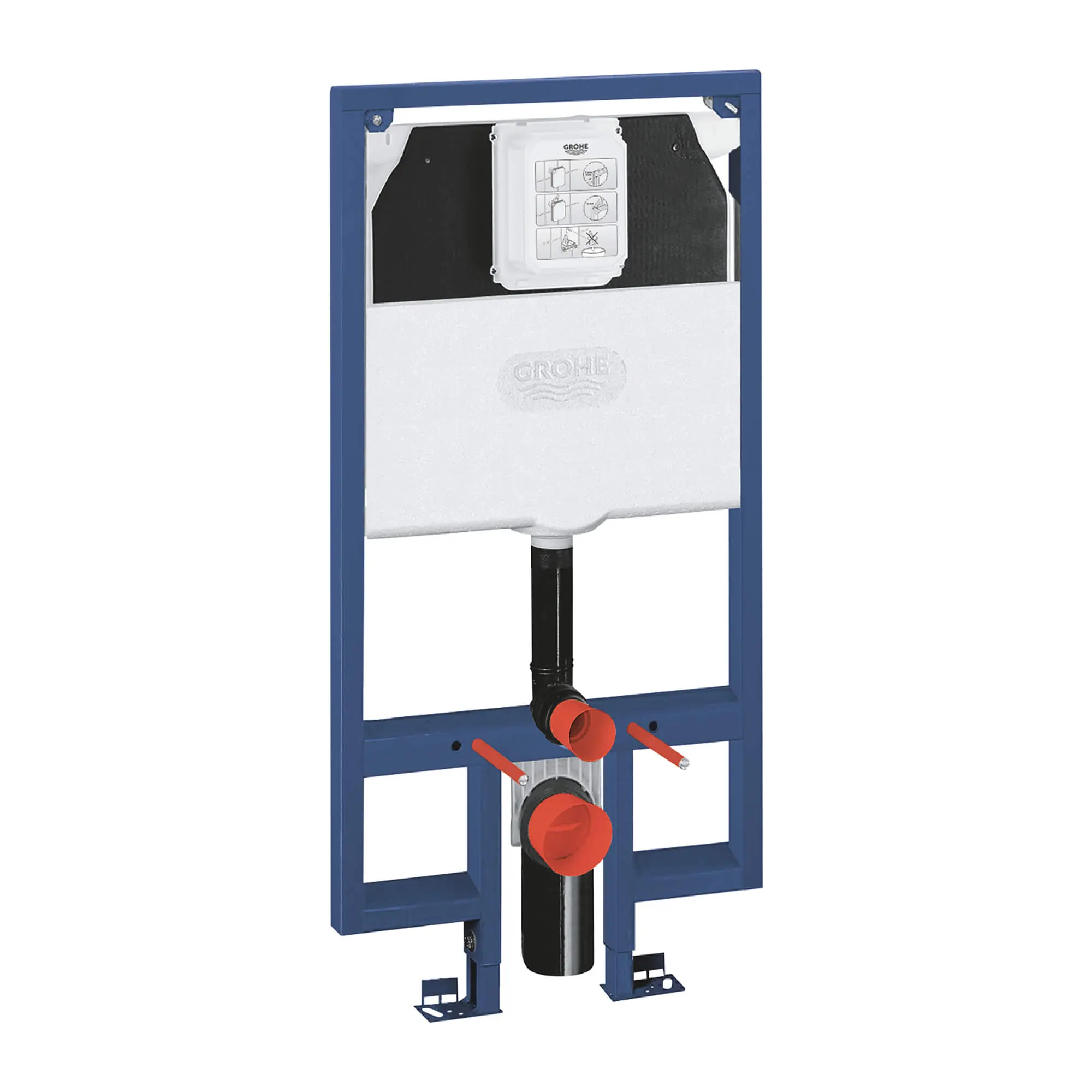

Low noise operation – meets strict European noise (DIN) standards
19 7/16" Overall width
Maintenance accessible through front
Self-supporting, pre-assembled powder coated steel frame with quick and lockable adjustments
ADA Compliant, Bowl rim height adjustments 15" to 19"
Pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
Tank insulated to prevent condensation
1/2" Water supply connection is possible from four sides of the carrier (top,Left, right, back);Drain outlet connections can be set horizontally or vertically;Includes 2 fixing bolts and installation hardware for the toilet installation;Actuation plate (sold separately);CALGreen compliant;For vertical and horizontal use of actuation plate
44" (1.13 m) installation height
Nominal Dimensions: 4 in x 24-5/8 in x 48-7/16 in (102 mm x 625 mm x 1230 mm)
Innovative water technology delivering whisper-quiet acoustics
Save precious resources and enjoy 100% water comfort
no tools are needed to connect the main water supply, flexible hose and inspection shaft
A pneumatic hose connects the flush valve to the flush plate to accommodate all tile thicknesses
concept ensures flexibility and ease of installation, cutting installation time significantly
the supply hose can be attached at four points: front, rear, left or right
certifies load bearing capacity and stability of the carrier has been confirmed at 880 lbs. (400 kg).

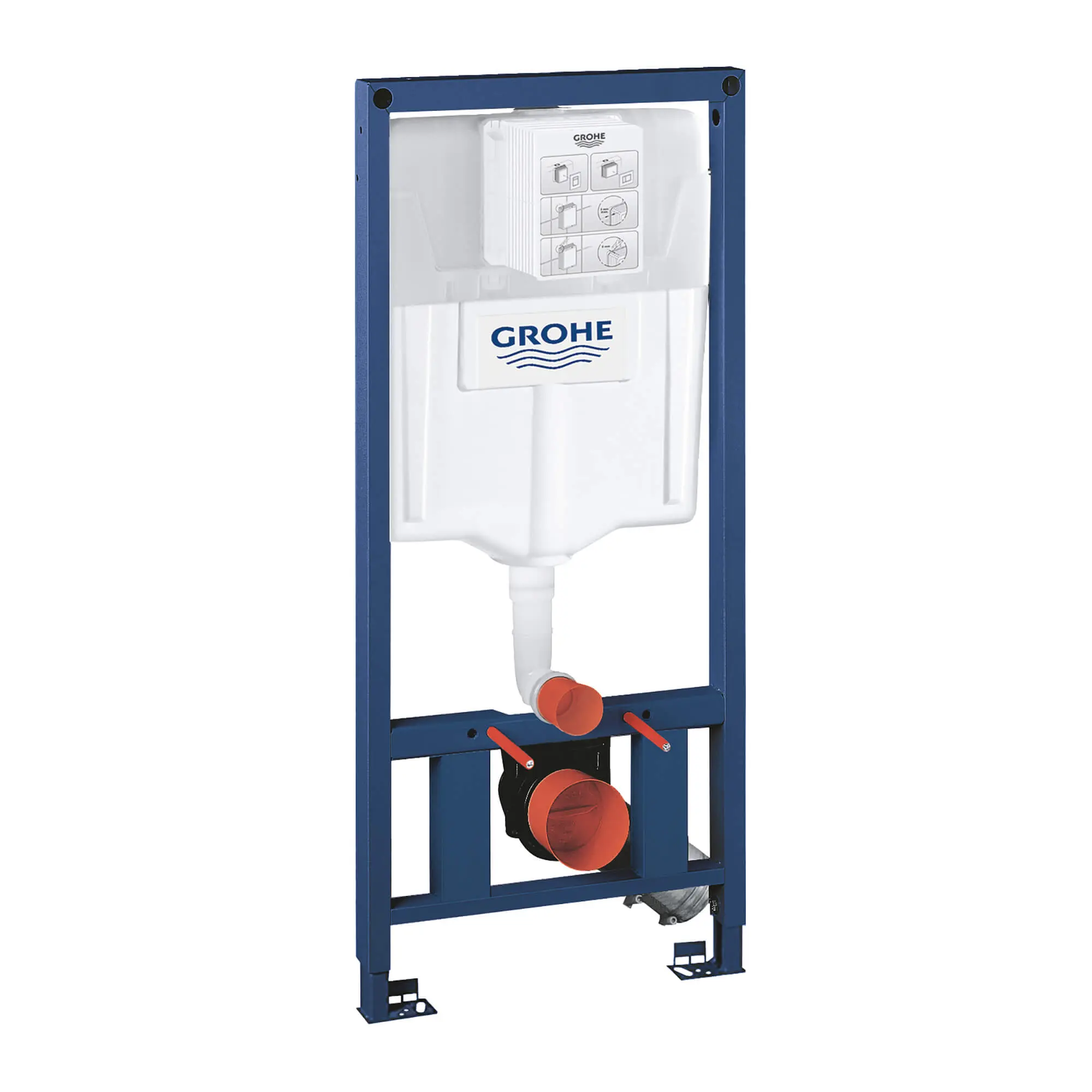

For on-the-wall or studded wall installations
Water supply from left, right or back
Flushing cistern 1.6 gal and .8 gal,Pneumatic discharge valve offering 3 modes of operation: dual flush, start/stop or single flush for vertical or horizontal use,Integrated vertical support brackets w/ 7" - 9" mounting screw distance,Powder coated self-supporting steel frame w/ quick and lockable adjustments,44" installation height,15-1/2” to 19-1/2” rim height adjustment for Right Height & ADA applications
