Rapid SL

2" x 4" In-Wall Carrier and Tank For Toilet

No Finish 38996000 DISCONTINUED
List Price: $743.00
ADA Compliant
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • For 2x4 wall installation
  • Dual flush – 0.8 gpf and 1.6 gpf (3 L and 6 L)
  • Low noise operation – meets strict European noise (DIN) standards
  • 24 5 /8” Overall width
  • Maintenance accessible through front plate
  • Pre-assembled powder coated steel frame with in-wall tank
  • Bowl rim height adjustments 15" to 19"
  • Pneumatic discharge valve with stop feature
  • Tank insulated to prevent condensation
  • 1/2" Water supply connection is located on top of the carrier,Drain outlet connection is vertical,Includes 2 fixing bolts and installationhardware for the toilet installation,Actuation plate sold separately,CALGreen compliant,For vertical actuation plates only
Technical Features
  • Dual flush – 0.8gpf and 1.6gpf (3Lpf and 6Lpf)
  • Low noise operation – meets strict European noise (DIN) standards
  • 24 5/8” Overall width
  • Maintenance accessible through front plate
  • Self-supporting, pre-assembled powder coated steel frame with quick and lockable adjustments
  • ADA Compliant, Bowl rim height adjustments 15" to 19"
  • Pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
  • Tank insulated to prevent condensation
  • 1/2" Water supply connection located on top of the carrier
  • Drain outlet connection is vertical,For vertical actuation plates only,Actuation plate sold separately,Includes 2 fixing bolts and installation hardware for the toilet installation,CALGreen compliant,44" (1.13m) installation height
Nominal Dimensions: 4 in x 24-5/8 in x 48-7/16 in (102 mm x 625 mm x 1230 mm)
Description
Net Weight
SKU
Color
List Price USD
2" x 4" In-Wall Carrier and Tank For Toilet
35 lb (15.7 kg)
38996000 *
No Finish (00G)
743


Models marked with * are discontinued, but product may still be available while supplies last.

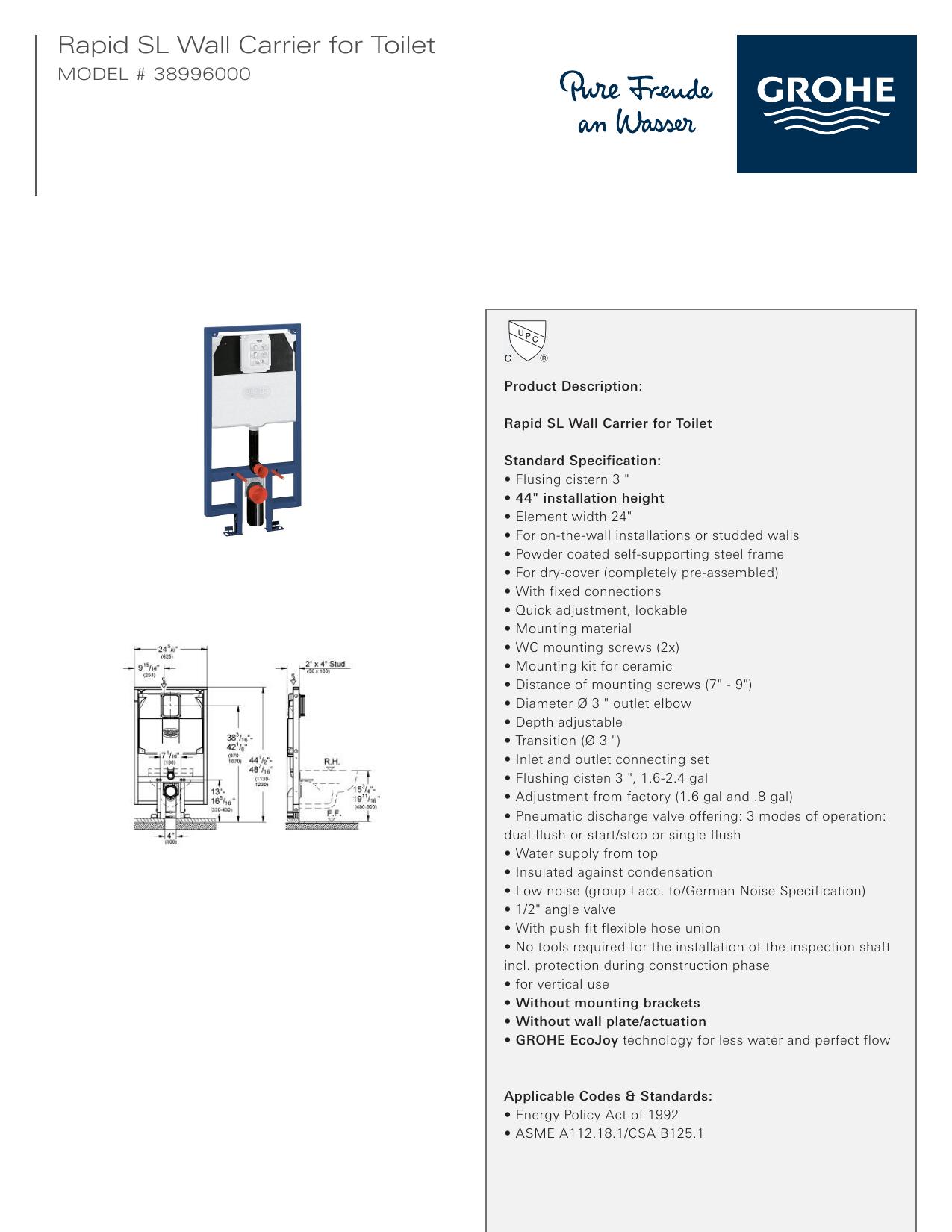

Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: GROHE
Category: Flush Valves and Sanitary Items
Color / Finish: No Finish
Department of Energy Certified: Yes
Collections: Rapid SL
Gallons Per Flush (min-max): .8 - 1.6 GPF
Kitchen or Bathroom: Bath
Height: 48-7/16
Length: 4
Length: 4
Width: 24-5/8
Residential or Commercial: Residential
Subcategory: Wall Carriers Flush Valves
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
.dxf icon 2D CAD File
3D CAD Files
.dxf icon 3D CAD File
REVIT Files
.rfa icon REVIT File
3D Objects are not currently available for this product
