Features
- Innovative water technology delivering whisper-quiet acoustics
- Save precious resources and enjoy 100% water comfort
- no tools are needed to connect the main water supply, flexible hose and inspection shaft
- A pneumatic hose connects the flush valve to the flush plate to accommodate all tile thicknesses
- concept ensures flexibility and ease of installation, cutting installation time significantly
- the supply hose can be attached at four points: front, rear, left or right
- certifies load bearing capacity and stability of the carrier has been confirmed at 880 lbs. (400 kg).
- For on-the-wall or studded wall installations
- Water supply from left, right or back
- Flushing cistern 1.6 gal and .8 gal,Pneumatic discharge valve offering 3 modes of operation: dual flush, start/stop or single flush for vertical or horizontal use,Integrated vertical support brackets w/ 7" - 9" mounting screw distance,Powder coated self-supporting steel frame w/ quick and lockable adjustments,44" installation height,15-1/2” to 19-1/2” rim height adjustment for Right Height & ADA applications
Technical Features
- Innovative water technology delivering whisper-quiet acoustics
- Save precious resources and enjoy 100% water comfort
- no tools are needed to connect the main water supply, flexible hose and inspection shaft
- A pneumatic hose connects the flush valve to the flush plate to accommodate all tile thicknesses
- concept ensures flexibility and ease of installation, cutting installation time significantly
- the supply hose can be attached at four points: front, rear, left or right
- certifies load bearing capacity and stability of the carrier has been confirmed at 880 lbs. (400 kg).
- For on-the-wall or studded wall installations
- Water supply from left, right or back
- Flushing cistern 1.6 gal and .8 gal,Pneumatic discharge valve offering 3 modes of operation: dual flush, start/stop or single flush for vertical or horizontal use,Integrated vertical support brackets w/ 7" - 9" mounting screw distance,Powder coated self-supporting steel frame w/ quick and lockable adjustments,44" installation height,15-1/2” to 19-1/2” rim height adjustment for Right Height & ADA applications

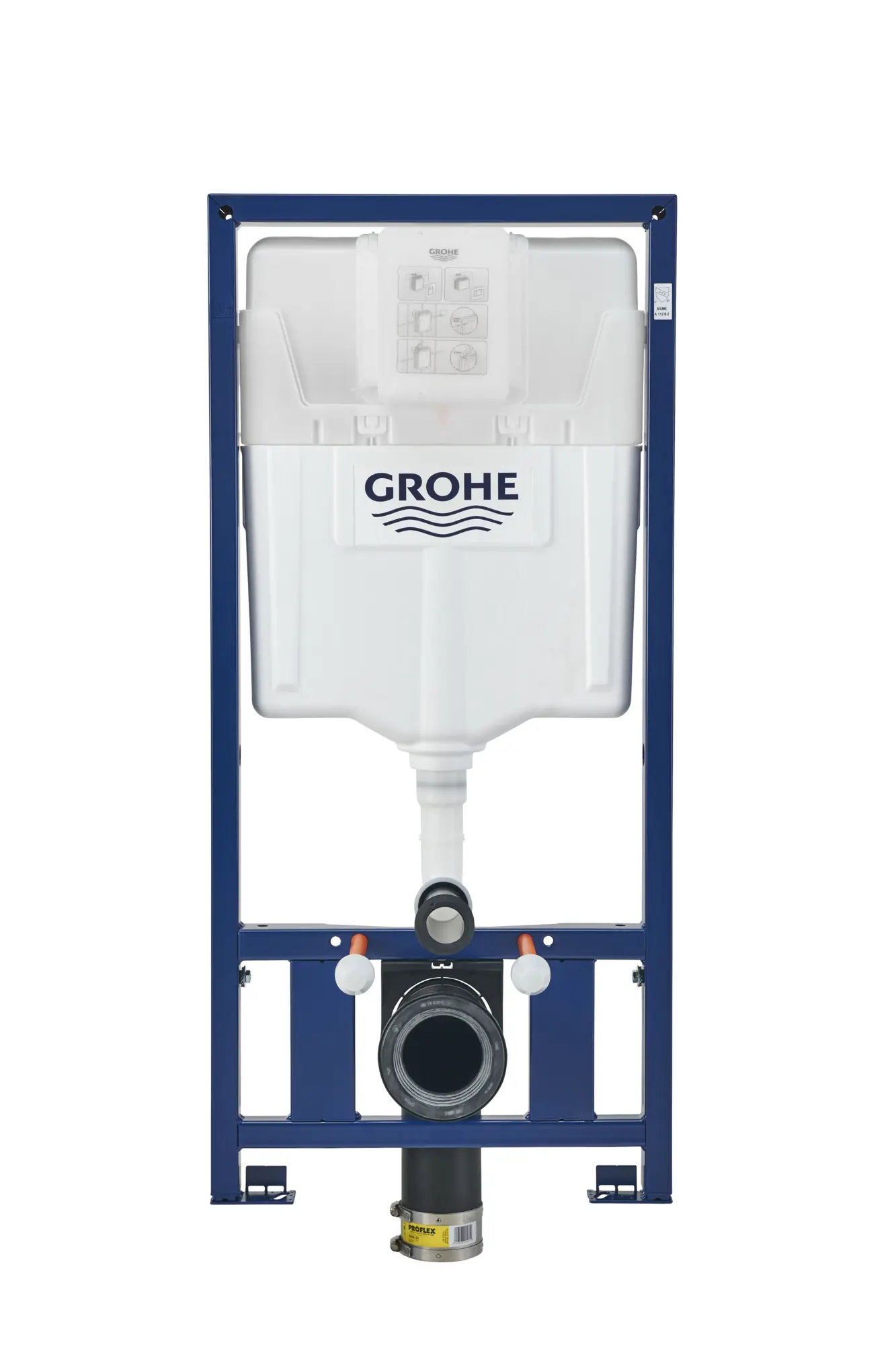

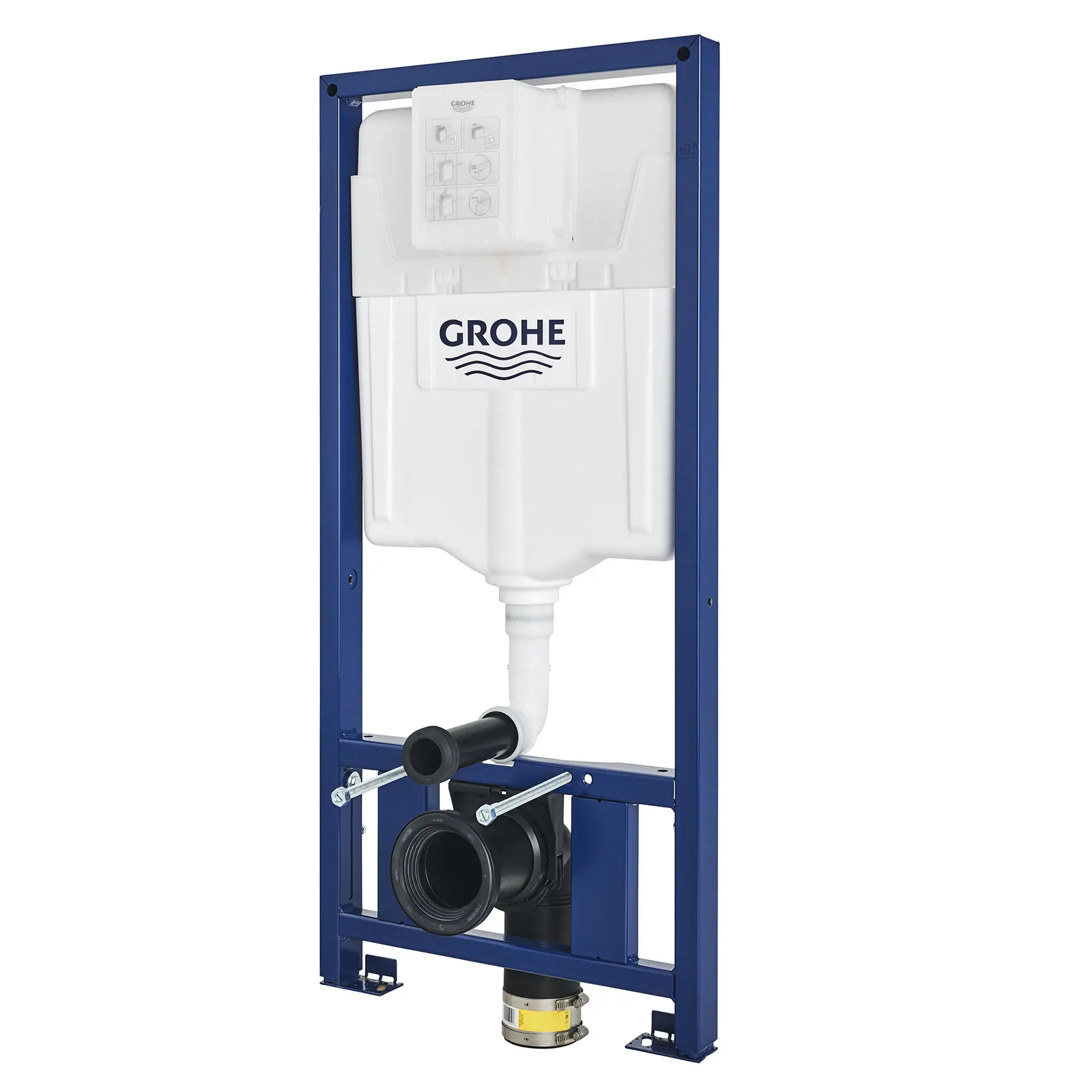

In-Wall Carrier
33 lb (15.2 kg)
No Finish (007)
575
Rapid SLX 2” x 6” In-Wall Carrier
43 lb (19.3 kg)
No Finish
777
In-Wall Carrier
33 lb (15.2 kg)
No Finish (007)
575
Rapid SLX 2” x 6” In-Wall Carrier
43 lb (19.3 kg)
No Finish
777
Models marked with * are discontinued, but product may still be available while supplies last.
Brand:
DXV
Category:
Flush Valves and Sanitary Items
Color / Finish:
No Finish
Collections:
Rapid SL
WaterSense:
Yes
Flusing Type:
Single Flush
Gallons Per Flush (min-max):
1.1 - 1.6 GPF
Residential or Commercial:
Residential
Subcategory:
Wall Carriers Flush Valves
