Studio S

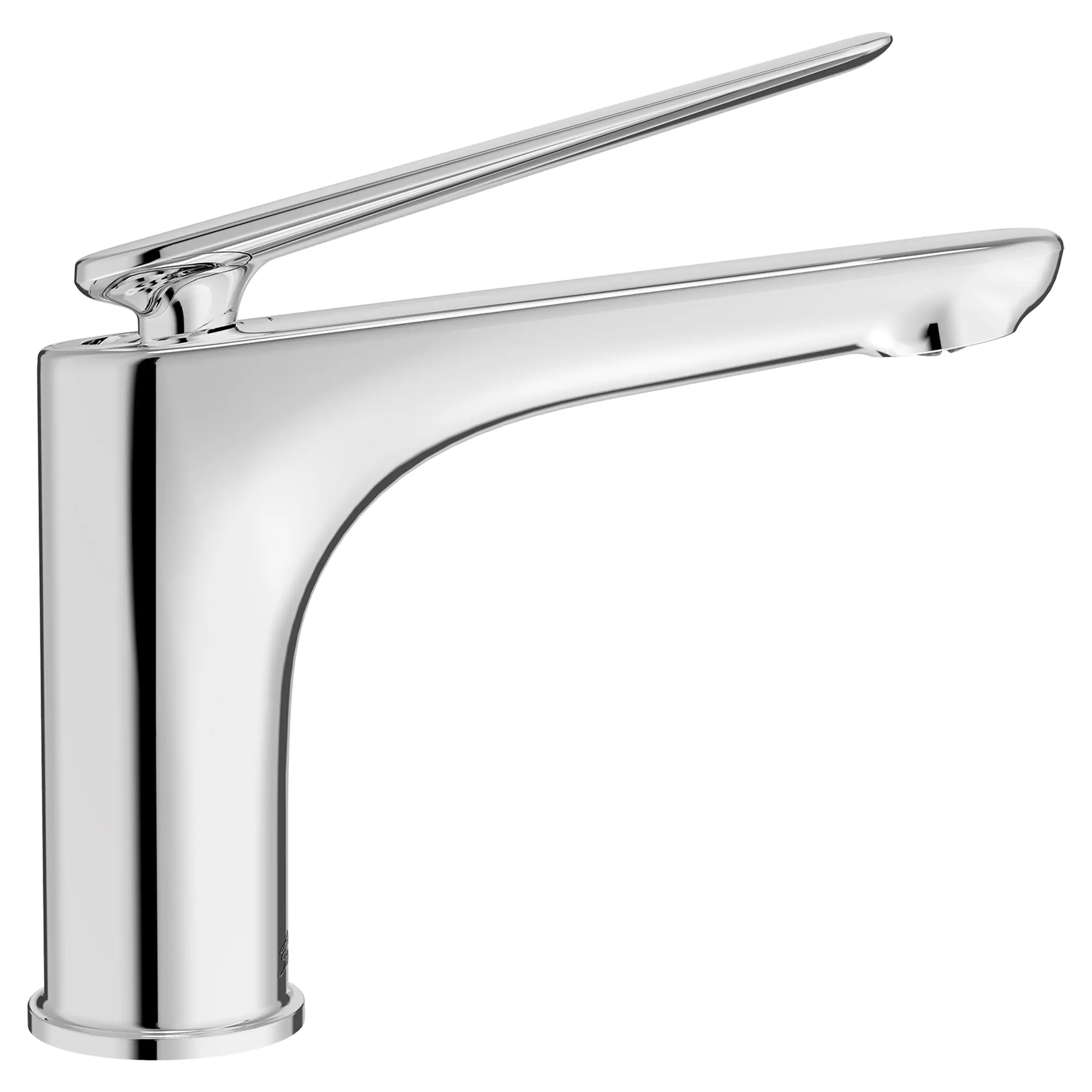

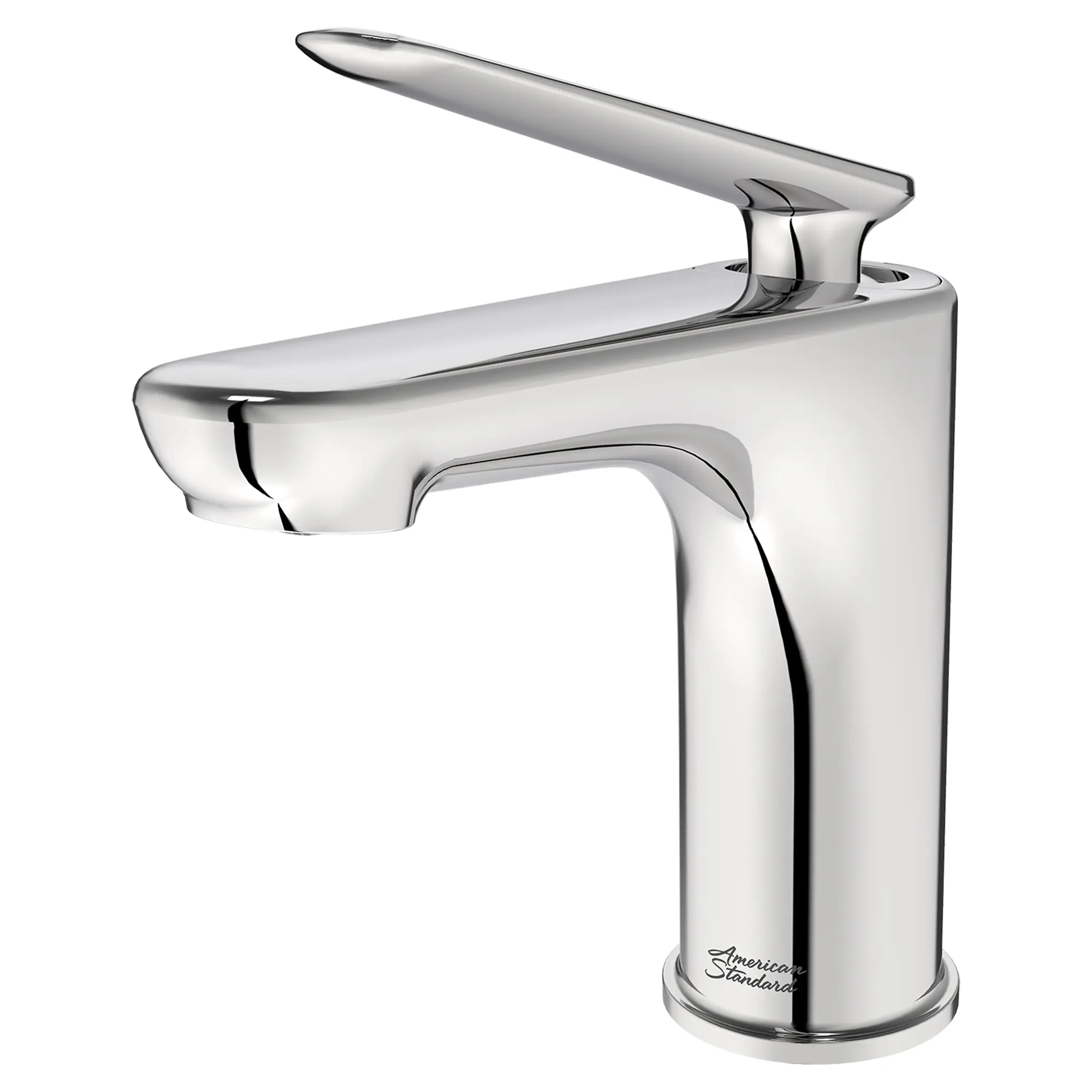

Studio® S Single Hole Single-Handle Bathroom Faucet 1.2 gpm/ 4.5 L/min With Lever Handle

Perfect in a contemporary bathroom, the Studio S Single-Handle Faucet is an urban-inspired design with soft geometric lines and a sleek lever handle. Engineered to conserve water, the Studio S faucet promises drip-free performance, and features a push pop-up drain for fast, easy installation. Coordinates with the entire Studio S Bath Collection.

Chrome 7105121.002 DISCONTINUED
List Price: $384.00
ADA Compliant Cal Green CEC Certified Enjoy More Rewards Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Drip-free performance – Equipped with a quality ceramic disc valve
  • WaterSense Certified – Water-saving maximum flow rate of 1.2 gpm/4.5 Lpm without sacrificing performance
  • Metal lever handle – Sturdy and comfortable to use
  • Push pop-up drain – Push to close, push again to open
  • Hot limit safety stop – Adjustable to reduce the risk of scalding
  • Includes - Flexible braided stainless steel supply hoses with compression connectors
  • Limited lifetime warranty – Your assurance of quality
Technical Features
  • Metal construction and washerless ceramic disc valve cartridge
  • 1.2 gpm (4.5 L/min) flow rate meets WaterSense certification requirements
  • Braided flexible hoses with 3/8" (10 mm) compression connectors
  • Metal lever handle
  • Brass push pop-up drain
Nominal Dimensions: 7-3/8 in x 2 in x 7 in (187 mm x 51 mm x 178 mm)
Description
Net Weight
SKU
Color
List Price USD
Studio® S Single Hole Single-Handle Bathroom Faucet 1.2 gpm/ 4.5 L/min With Lever Handle
4 lb (1.8 kg)
7105121.002
Chrome (002)
384
7105121.243
Matte Black (243)
518
7105121.295
Brushed Nickel (295)
518
7105121.GN0
Brushed Cool Sunrise (GN0)
557
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Bathroom Faucets
CEC Certified: Yes
Color / Finish: Chrome
Department of Energy Certified: Yes
Collections: Studio S
Drain Included: Yes
Drain Material: Brass
WaterSense: Yes
Faucet Type: Monoblock
Fitting Connection Size Input: 9.52
Handle Height: 179
Handle Material: Zinc
Handle Type: Lever
Mount Type: Sink Mount
Number of Handles: 1
Fitting Number of Holes: 1
Spout Type: High Arc
Valve Material: Composite
Gallons Per Minute (min-max): 1.2 GPM
Input Connection Type: Compression
Hardware Included: Yes
Height: 7
Height: 7
Length: 7-3/8
Width: 2
Residential or Commercial: Residential
Subcategory: Monoblock Bathroom Faucets
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
3D Objects are not currently available for this product
