DXV® Modulus

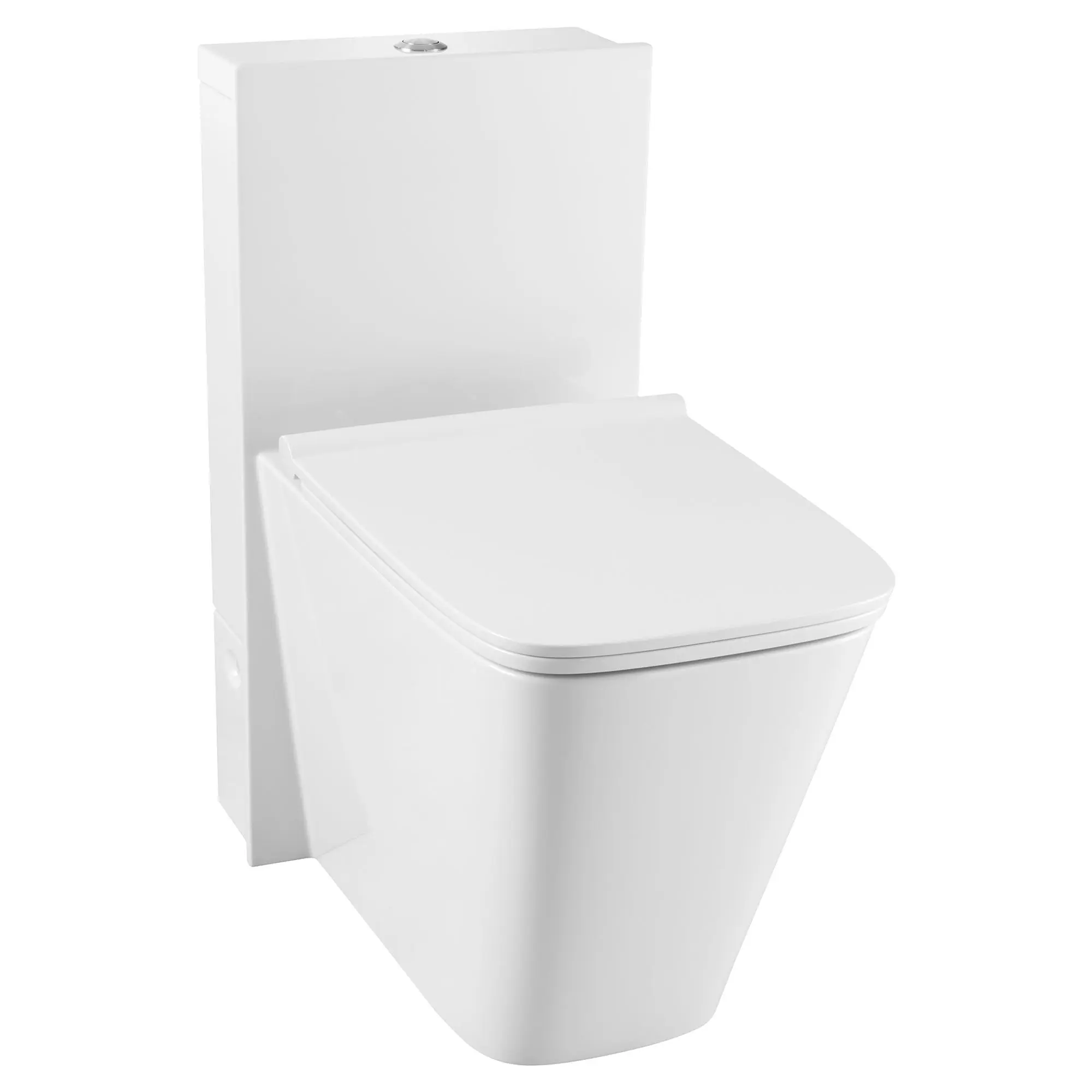

DXV® Modulus One-Piece Chair Height Elongated Toilet with Seat

Sleek, modern, and deserving of the most luxurious bathroom setting, the DXV® Modulus One-Piece Toilet is thoughtfully crafted with a slim, high-back profile adding stature to the soft contours and tapered shape of the elongated bowl. The result is a visual expression of functional elegance. Smooth, skirted sides further the streamlined aesthetic, concealing the trapway for easy cleaning. Engineered with a single-flush, push-button actuator on the lid to deliver a powerful, water-conserving flush. The DXV® Modulus Toilet is a chair-height design to ensure maximum comfort and accessibility.

Canvas White D22020A100.415 DISCONTINUED
List Price: $1,351.00
ADA Compliant Cal Green CEC Certified Enjoy More Rewards Everclean LIXIL Select WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • From the DXV® Modulus Collection - Modern Movement
  • One-piece design with slim, high-back tank
  • Polished Chrome, push-button actuator included. Additional finish options are available, sold separately.
  • Smooth skirted sides for a clean, modern look
  • Elongated bowl for added comfort
  • Chair height provides added ease when sitting and standing
  • Made of stain-resistant, high-gloss vitreous china
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria on the toilet
  • Slow-close, quick-release toilet seat is included
  • WaterSense® Certified, uses 1.28 gallons per flush,12-inch rough-in,Limited lifetime warranty on chinaware, 5-year limited warranty on mechanical parts, 1-year limited warranty on toilet seat
Technical Features
  • Vitreous china elongated toilet design with sleek and modern styling
  • Chair Height elongated siphon action bowl with smooth-sided, concealed trapway
  • 12” (305 mm) rough-in installation
  • PowerWash® rim scrubs bowl with each flush
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • High efficiency, ultra-low consumption (1.28 gpf/4.8 Lpf), utilizes 20% less water
  • 2” (51 mm) trapway with 3" (76 mm) flush valve for optimal performance with best flush score
  • Includes top-mount slow-close seat and cover with quick-release feature
Nominal Dimensions: 27-1/2 in x 15-9/16 in x 31 in (699 mm x 395 mm x 787 mm)
Description
Net Weight
SKU
Color
List Price USD
DXV® Modulus One-Piece Chair Height Elongated Toilet with Seat
144 lb (65.4 kg)
D22020A100.415
Canvas White (415)
1351
Separate Components
Elongated Closed Front Toilet Seat
7 lb (3.2 kg)
5026A10G.415 *
Canvas White
125
spacer
DXV Modulus® Seat, Lo, Sc, Ec, Topmnt
7 lb (3.2 kg)
5026A15AG.415 *
Canvas White
125


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Included: Yes
Bowl Shape: Elongated
Brand: DXV
Cal Green: Yes
Category: Toilets
CEC Certified: Yes
Chair Height: Chair
Color / Finish: Canvas White
Collections: DXV® Modulus
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Adjustable Flapper: Yes
Flush Technology: Siphonic Jet
Flush Valve Size: 4
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.28 GPF
Handle Finish: CHROME
LIXIL Select: Yes
MAP Performance Rating: 1000
Number of Flush Valves: 1
Height: 31
Length: 27-1/2
Width: 15-9/16
Residential or Commercial: Residential
Rough In Size: 12
Rough In Valve Included: Yes
Subcategory: Floor Standing Toilets
Trip Lever Location: Top
Bowl Height With Seat: 18-1/2
Toilet Water Efficiency: Ultra Height Efficiency Toilet
Toilet Mount Type: Floor Mount
Toilet Seat Type: Closed
Seat Included: Yes
Trapway Diameter: 2-1/2
Toilet Type: One Piece
Warranty: Limited Lifetime Warranty on Chinaware; 5-Year Warranty on Mechanical Parts; 1-Year Warranty on Seat
Download All Supporting Documents

Specification Sheet

Installation Instructions

Warranty
