Features
- Clean lines with knob handles: Matching knob handles with knurling detail adds an elegant touch while enhancing grip

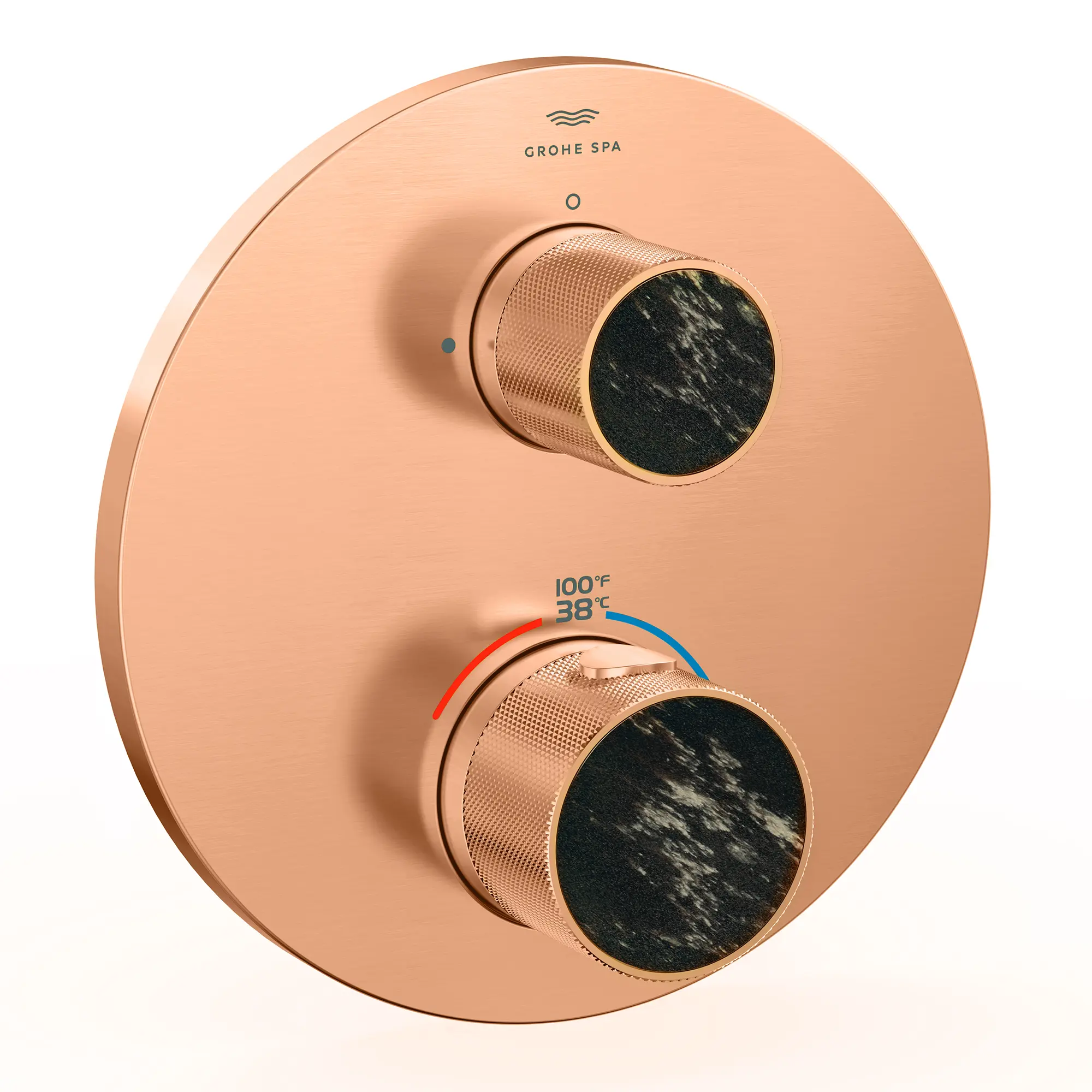

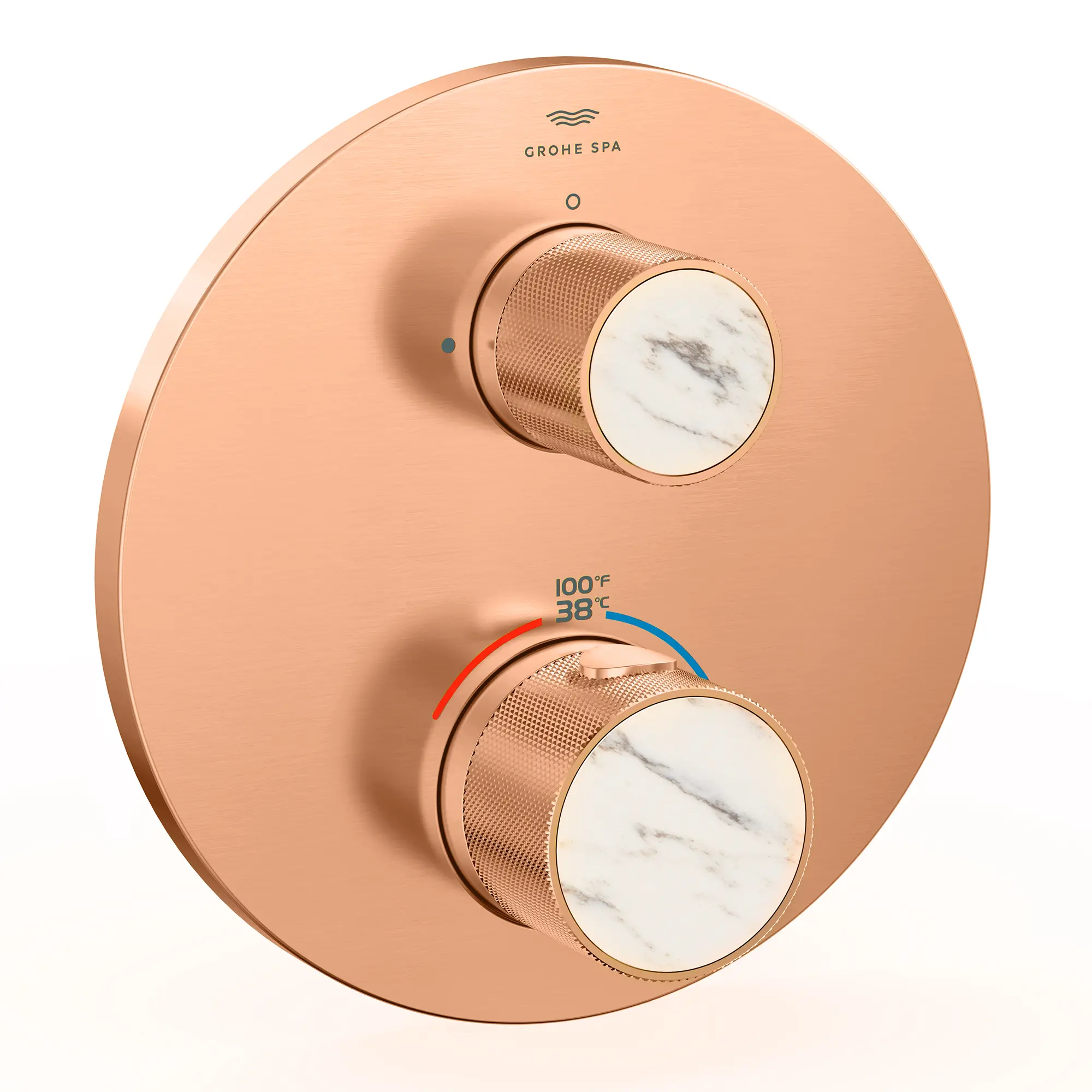

- Customizable for a unique look: Knob handles may be customized with Caesarstone inlays in White Attica (48466) or sophisticated Vanilla Noir (48467), sold separately
- Premium quality and craftsmanship: All-metal trim is designed and engineered in Germany, promising long-lasting beauty and durability
- Reliable temperature without fluctuations: Grohe TurboStat technology ensures water stays at the desired temperature throughout, also saving water and energy
- Easy to maintain: GROHE LongLife Finish is a multilayered coating designed for unbeatable durability, that can be kept clean and pristine with just a quick wipe of a cloth
- Exquisite finishes to choose from: Available in 7 decorator favorites to complete your vision
- Required for installation: GROHE Rapido SmartBox Rough-in (35601), sold separately
Technical Features
- GROHE LongLife finish
- GROHE TurboStat compact cartridge with wax thermoelement
- Thermostatic temperature control with GROHE SafeStop safety button at 100°F/38°C
- GROHE SafeStop Pus temperature limiter at 115°F/46°C
- 6 1/4” Metal wall trim plate with GROHE FastFixation (concealed mounting screws)
- Metal trim angle adjustable up to 6°
- GROHE AquaDimmer (top handle) includes integrated shut off & 2-way diverter (2 discrete functions)
- Knobs with metal inlay, can be combined with (48 466) or (48 467)
- Includes service stops
- 7.1gpm at 45 psi,Requires GROHE Rapido SmartBox (35 601) (sold separately)

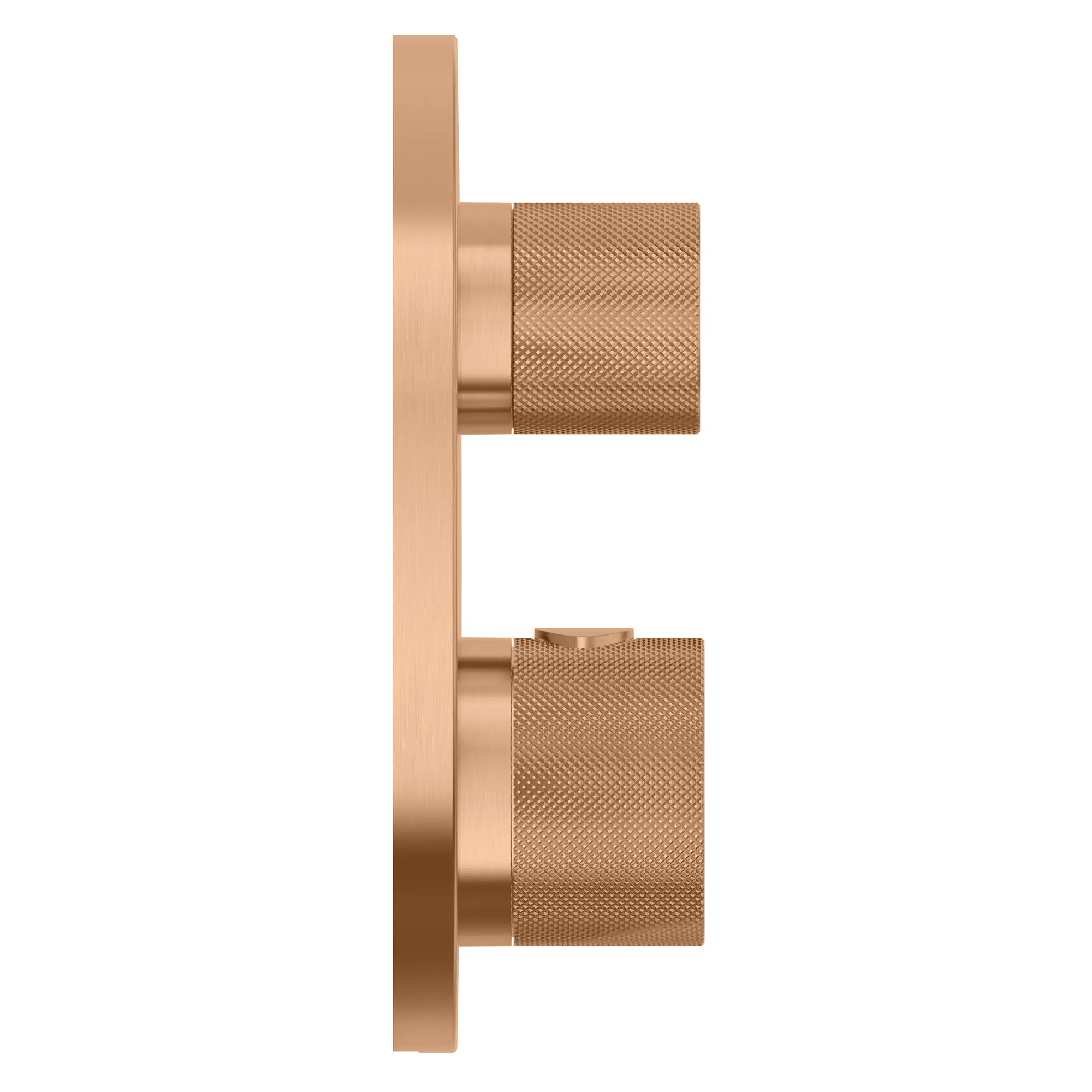

Nominal Dimensions: 1-7/8 in x 6-1/4 in x 6-1/4 in (48 mm x 159 mm x 159 mm)

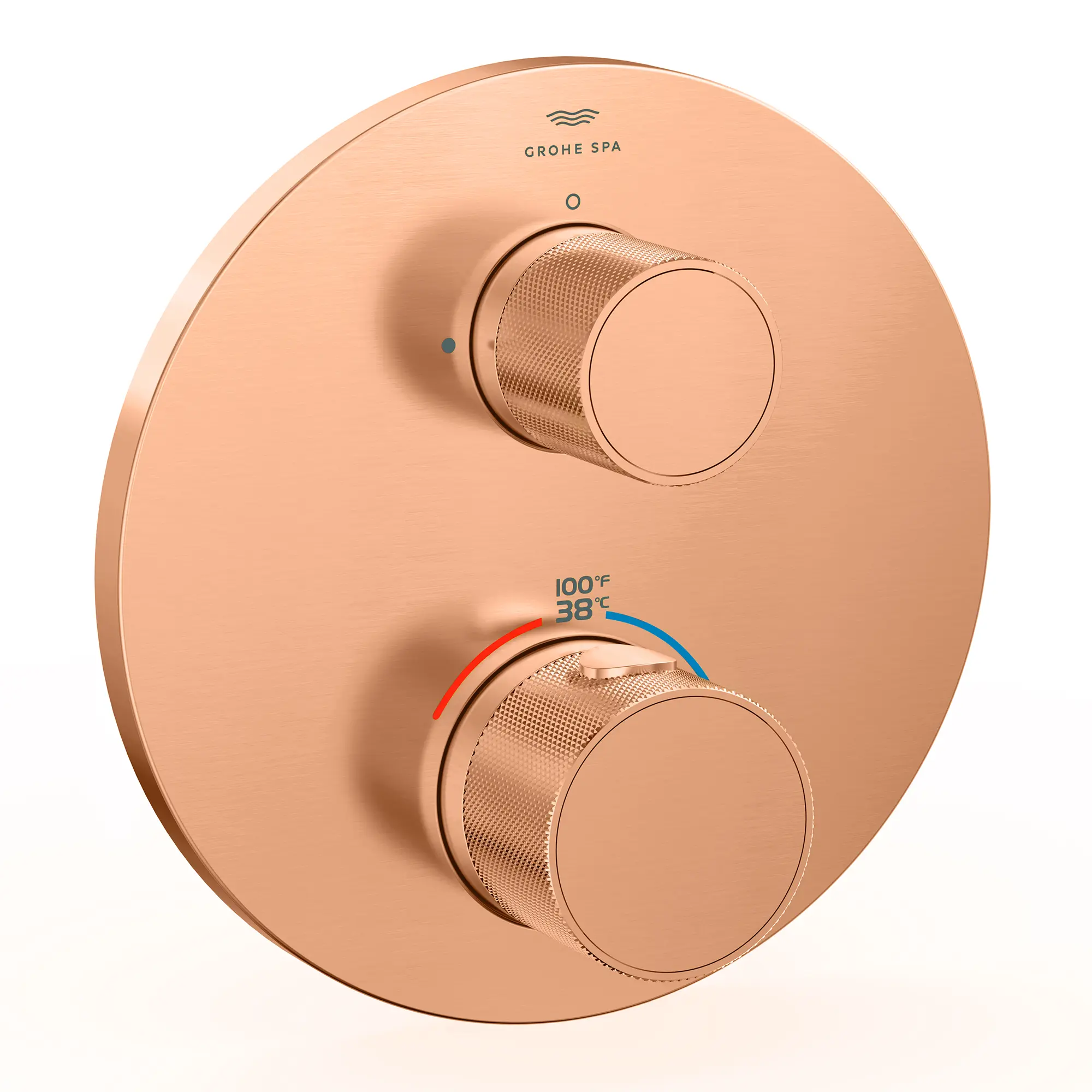

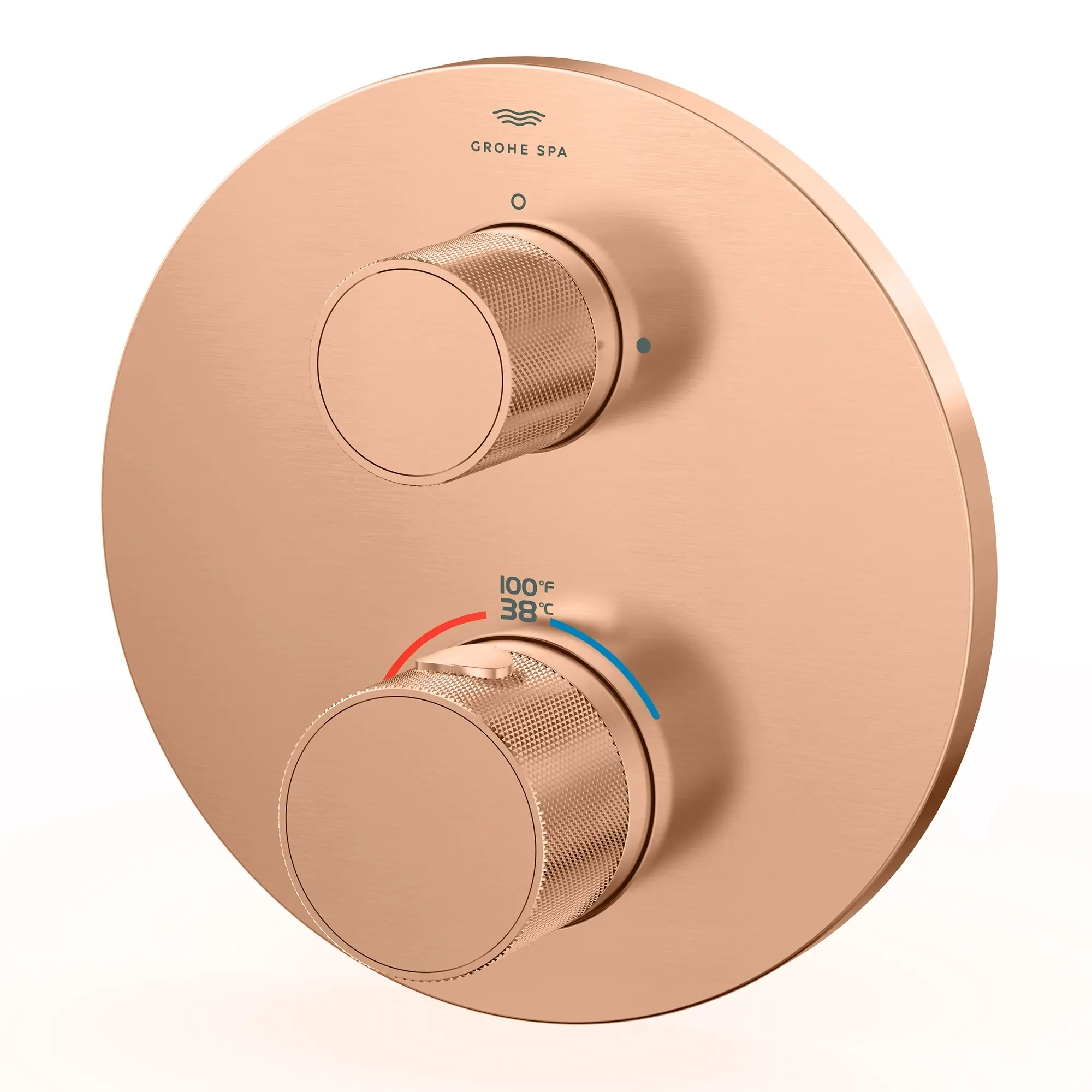

Atrio Private Collection Dual Function 2-Handle Thermostatic Valve Trim with Control Module with Knob Handles
4 lb (1.9 kg)
0
0
0
0
0
0
0
Atrio Private Collection White Attica Caesarstone Stick Handles for 2-Handle Thermostatic Trim (Pair)
0 lb (0.1 kg)
0
spacer
Atrio Private Collection Vanilla Noir Caesarstone Stick Handles for 2-Handle Thermostatic Trim (Pair)
0 lb (0.1 kg)
0
Atrio Private Collection Dual Function 2-Handle Thermostatic Valve Trim with Control Module with Knob Handles
4 lb (1.9 kg)
0
0
0
0
0
0
0
Atrio Private Collection White Attica Caesarstone Stick Handles for 2-Handle Thermostatic Trim (Pair)
0 lb (0.1 kg)
0
spacer
Atrio Private Collection Vanilla Noir Caesarstone Stick Handles for 2-Handle Thermostatic Trim (Pair)
0 lb (0.1 kg)
0
