Universal

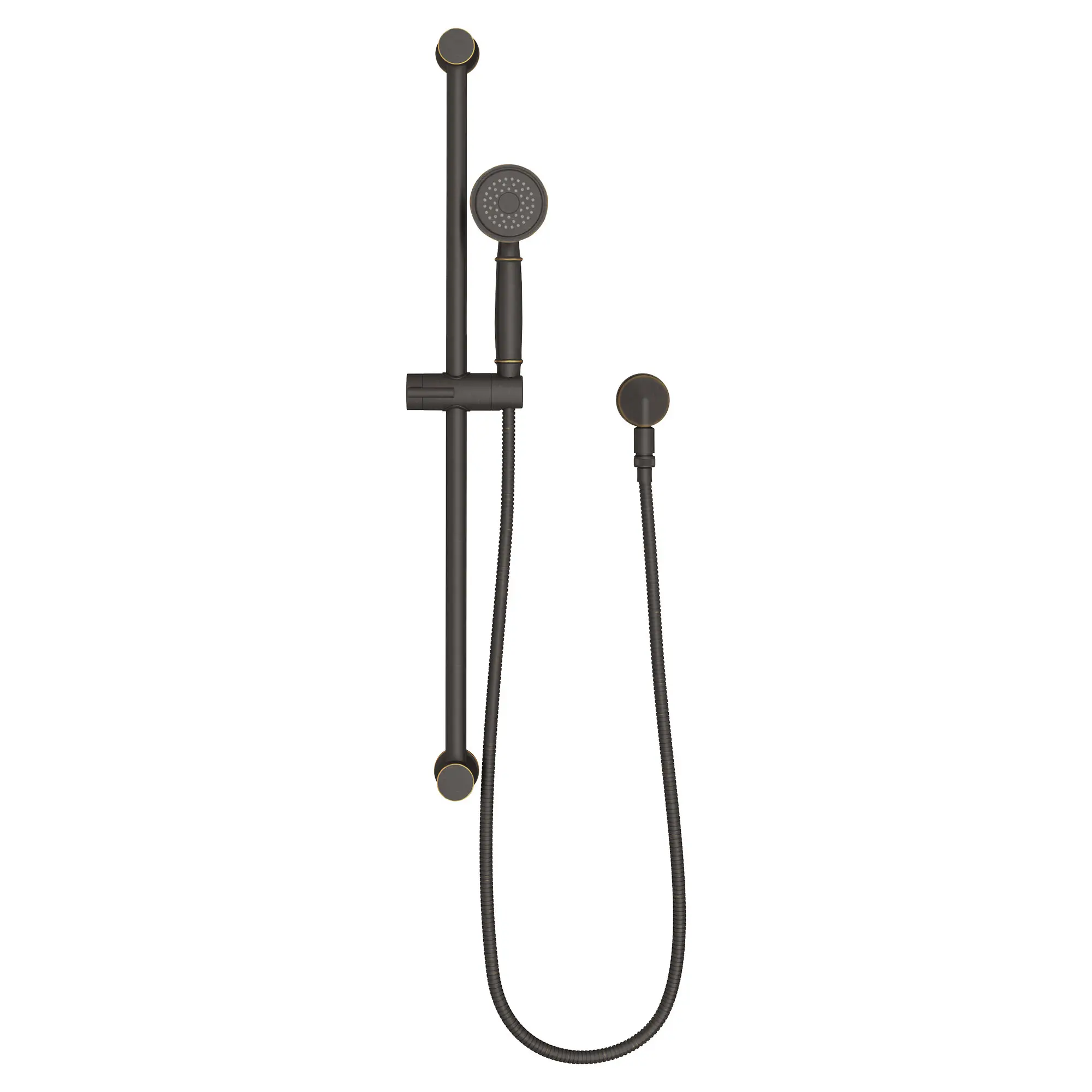

Traditional 1.8 gpm/6.8 L/min Single Function Slide Bar Kit

The Traditional Hand Shower Slide Bar Kit from American Standard adds form, function and comfort to your bathroom. Includes an easy-to-grip, single-spray hand shower, 30” slide bar, hose and wall supply. Slide adjusts to position hand shower at desired height.

Legacy Bronze 1662607.278 DISCONTINUED
List Price: $0.00
Cal Green CEC Certified
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Includes traditional handheld shower 1660142, traditional slide bar 1660773, 60-inch shower hose 8888035, and wall supply
  • Water-saving: WaterSense certified
  • Pressure compensating flow control device: Provides consistent flow over a wide pressure range
  • Hand shower features a lightweight, ergonomic design for a sure grip even with wet, soapy hands
  • Slide bar: Simple height adjustment allows positioning of the personal shower anywhere along the bar
Technical Features
  • Traditional handheld shower (1660142)
  • Traditional slide bar (1660773)
  • 60" shower hose (8888035)
  • Wall supply (8888037)
  • Double check valves
  • 1.8 gpm/6.8 L/min maximum flow rate
  • Water-saving: WaterSense® certified
  • Pressure-compensating flow control device: Provides consistent flow over a wide pressure range
  • Lightweight, ergonomic design: For a sure grip even with wet, soapy hands
  • Simple height adjustment: Allows positioning of the personal shower anywhere along the bar
Nominal Dimensions: 3-1/4 in x 6-9/16 in x 32 in (83 mm x 167 mm x 813 mm)
Description
Net Weight
SKU
Color
List Price USD
Traditional 1.8 gpm/6.8 L/min Single Function Slide Bar Kit
4 lb (1.6 kg)
1662607.278 *
Legacy Bronze (278)
0
1662607.002
Chrome (002)
531
1662607.013 *
Polished Nickel (013)
571
1662607.243
Matte Black (243)
717
1662607.295
Brushed Nickel (006)
717
1662607.GN0
Brushed Cool Sunrise (GN0)
770
Separate Components
Delancey 1.8 gpm/6.8 L/min Single Function Water-Saving Hand Shower
0 lb (0.1 kg)
1660142.278 *
Legacy Bronze
158
spacer
Traditional 30-Inch Shower Slide Bar
3 lb (1.2 kg)
1660773.278 *
Legacy Bronze
261
spacer
Metal Shower Hose
1 lb (0.4 kg)
8888035.278 *
Legacy Bronze
104
spacer
Wall Supply
1 lb (0.3 kg)
8888037.278 *
Legacy Bronze
74


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Bar Type: Straight
Brand: American Standard
Cal Green: Yes
Category: Shower Systems Retrofits, Slide Bar Kit
CEC Certified: Yes
Color / Finish: Legacy Bronze
Collections: Universal
Fitting Connection Size Input: 12.70
Fitting Material: Metal
Fixture or Fitting Material: Metal
Gallons Per Minute (min-max): 1.65 GPM
Shower Shape: Round
Input Connection Type: NPT (National Pipe Tapered Threads)
Height: 32
Height: 32
Length: 3-1/4
Width: 6-9/16
Residential or Commercial: Residential
Shower Arm Style: Straight
Corrosion Resistance: Yes
Number of Spray Settings: 1
Side Spray: Yes
Subcategory: Slide Bar Kit Shower Systems
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
