Universal

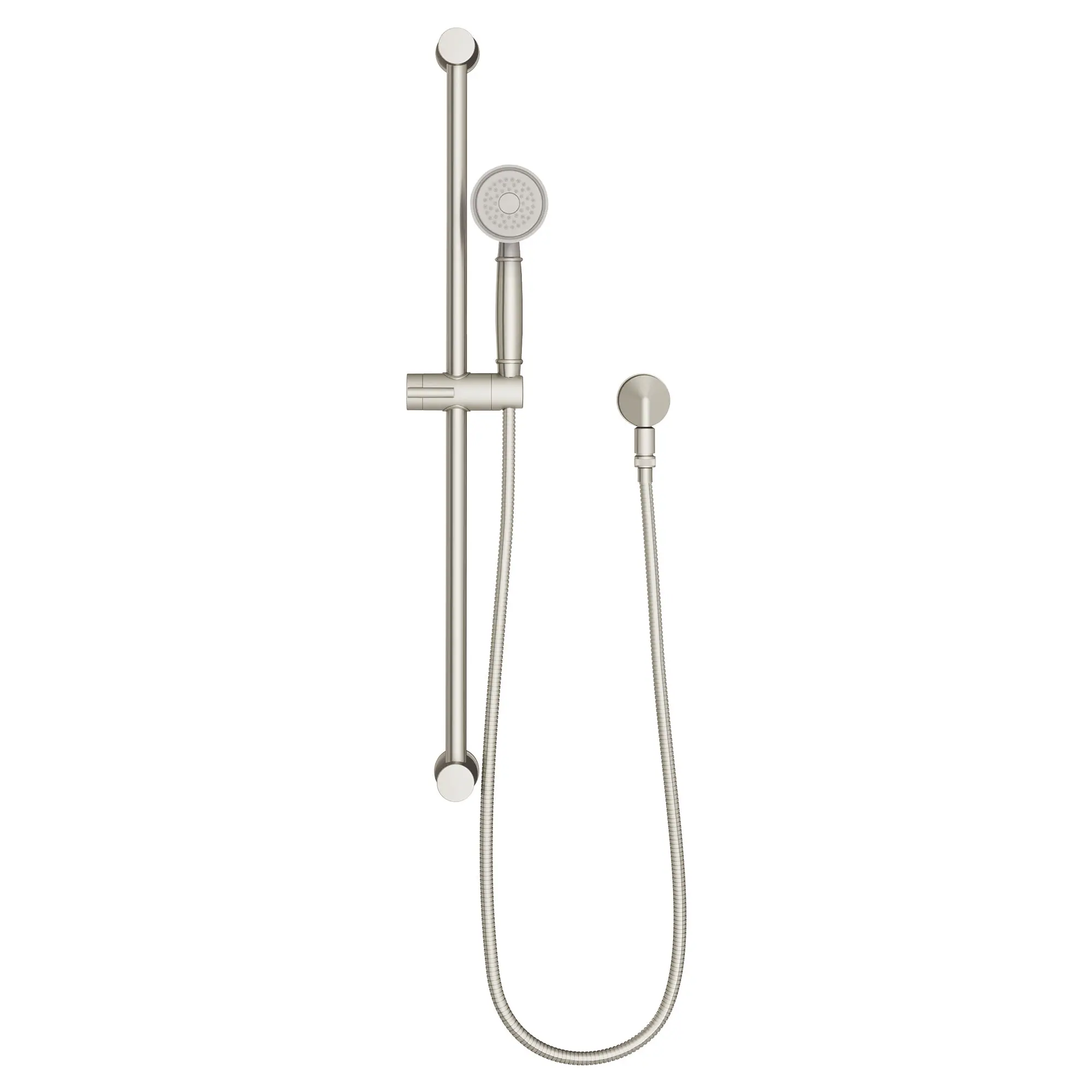

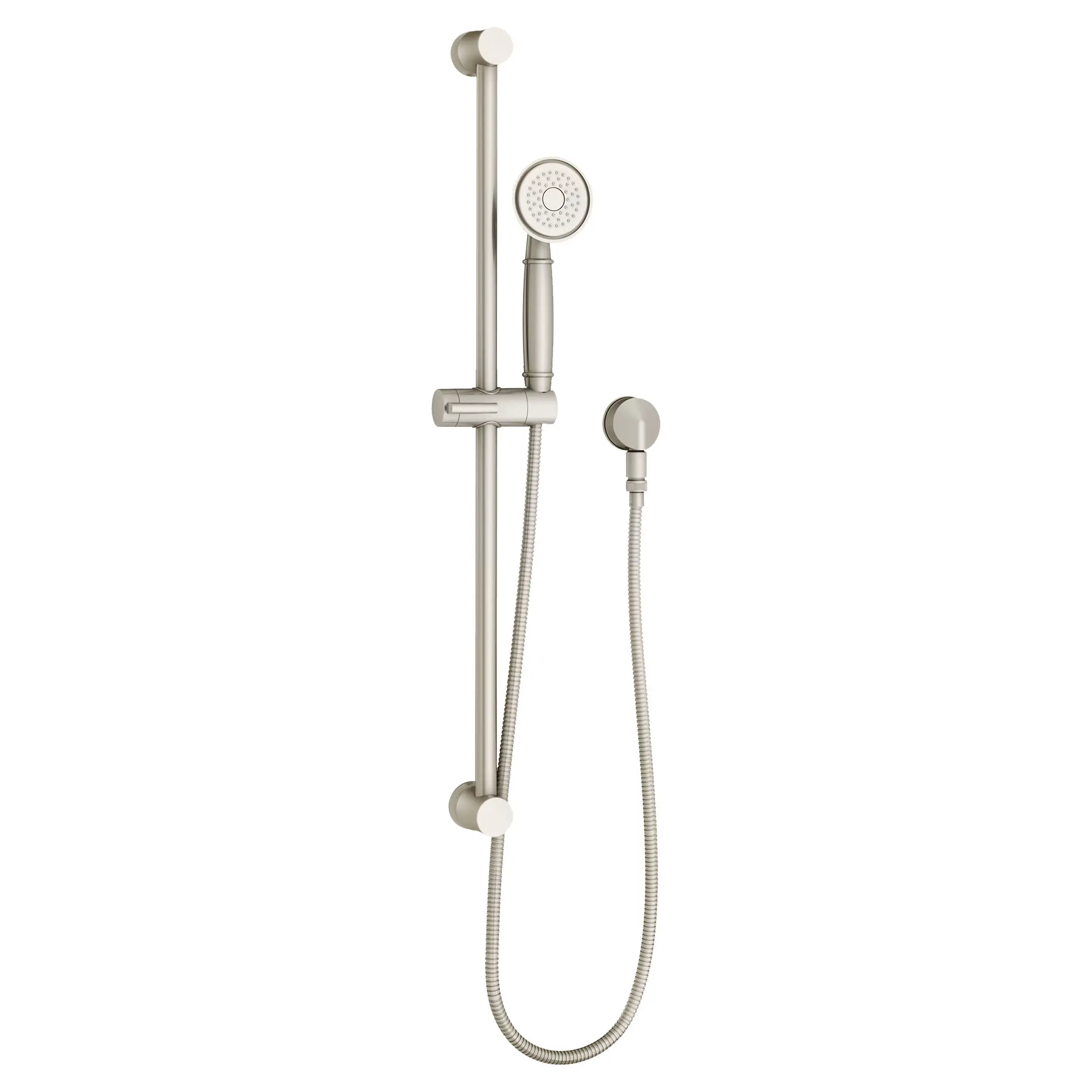

Traditional 1.8 gpm/6.8 L/min Single Function Slide Bar Kit

The Traditional Hand Shower Slide Bar Kit from American Standard adds form, function and comfort to your bathroom. Includes an easy-to-grip, single-spray hand shower, 30” slide bar, hose and wall supply. Slide adjusts to position hand shower at desired height.

Brushed Nickel 1662607.295 DISCONTINUED
List Price: $717.00
Cal Green CEC Certified Enjoy More Rewards
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Includes traditional handheld shower 1660142, traditional slide bar 1660773, 60-inch shower hose 8888035, and wall supply
  • Water-saving: WaterSense certified
  • Pressure compensating flow control device: Provides consistent flow over a wide pressure range
  • Hand shower features a lightweight, ergonomic design for a sure grip even with wet, soapy hands
  • Slide bar: Simple height adjustment allows positioning of the personal shower anywhere along the bar
Technical Features
  • Traditional handheld shower (1660142)
  • Traditional slide bar (1660773)
  • 60" shower hose (8888035)
  • Wall supply (8888037)
  • Double check valves
  • 1.8 gpm/6.8 L/min maximum flow rate
  • Water-saving: WaterSense® certified
  • Pressure-compensating flow control device: Provides consistent flow over a wide pressure range
  • Lightweight, ergonomic design: For a sure grip even with wet, soapy hands
  • Simple height adjustment: Allows positioning of the personal shower anywhere along the bar
Nominal Dimensions: 3-1/4 in x 6-9/16 in x 32 in (83 mm x 167 mm x 813 mm)
There are no additional components to display for this product
Download Specification Sheet
Bar Type: Straight
Brand: American Standard
Cal Green: Yes
Category: Shower Systems Retrofits, Slide Bar Kit
CEC Certified: Yes
Color / Finish: Brushed Nickel
Collections: Universal
Fitting Connection Size Input: 12.70
Fitting Material: Metal
Fixture or Fitting Material: Metal
Gallons Per Minute (min-max): 1.65 GPM
Shower Shape: Round
Input Connection Type: NPT (National Pipe Tapered Threads)
Height: 32
Height: 32
Length: 3-1/4
Width: 6-9/16
Residential or Commercial: Residential
Shower Arm Style: Straight
Corrosion Resistance: Yes
Number of Spray Settings: 1
Side Spray: Yes
Subcategory: Slide Bar Kit Shower Systems
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
