Commercial Shower Systems

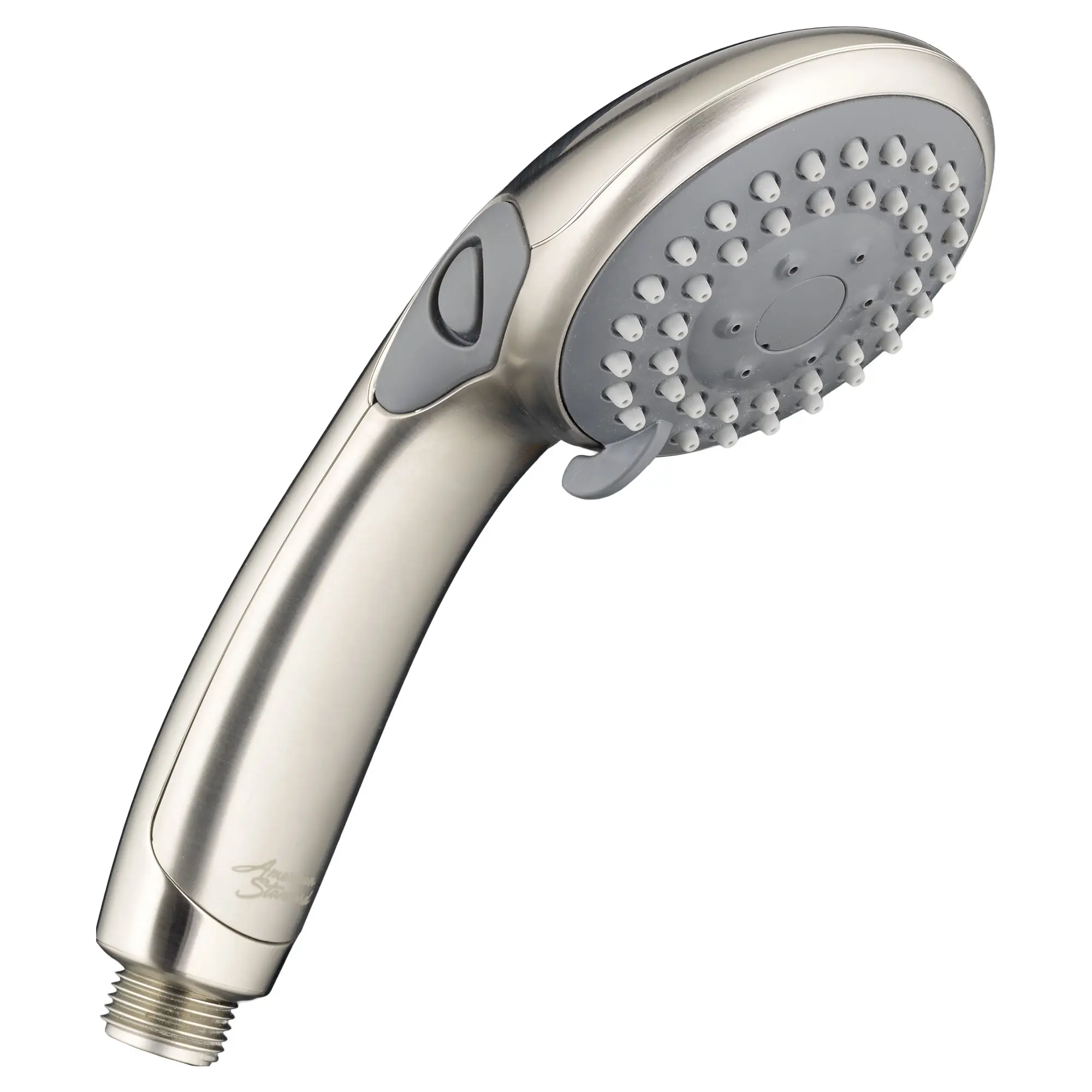

2.5 gpm/9.5 Lpf 3-Function Hand Shower With Pause Feature

The  3-Function Hand Shower with Pause Feature offers the option of a full spray, massage or combination spray for user convenience. With easy to clean rubber spray nozzles and an ADA compliant non-positive shut-off, this hand shower installs easily for use in commercial applications.

Brushed Nickel 1660767.295 DISCONTINUED   Substitution Available (1660767.002)
List Price: $87.00
ADA Compliant
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Pause Feature: Non-positive shut-off button on handle reduces flow to a trickle to meet ADA requirement
  • Pressure-compensating flow control device
  • Easy clean spray nozzles: Allows for easy cleaning of lime and calcium build up
  • Includes check valve
  • 2.5 gpm/9.5 Lpm maximum flow rate
Technical Features
  • Pause Feature: Non-positive shut-off button on handle reduces flow to a trickle to meet ADA requirement
  • Pressure-compensating flow control device
  • Easy Clean Spray Nozzles: Allows for easy cleaning of lime and calcium build up
  • Includes check valve
  • 2.5 gpm/9.5 Lpm maximum flow rate
Nominal Dimensions: 2.6 in x 3.3 in x 8.1 in (66 mm x 84 mm x 206 mm)
Description
Net Weight
SKU
Color
List Price USD
2.5 gpm/9.5 Lpf 3-Function Hand Shower With Pause Feature
1 lb (0.2 kg)
1660767.295 *
Brushed Nickel (295)
87
1660767.002
Chrome (002)
73
Substitutions
2.5 gpm/9.5 Lpf 3-Function Hand Shower With Pause Feature
0 lb (0.2 kg)
1660767.002
Chrome
73


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Category: Showers Head Hand Side
Color / Finish: Brushed Nickel
Department of Energy Certified: Yes
Collections: Commercial Shower Systems
Fitting Connection Size Input: 12.70
Gallons Per Minute (min-max): 2.5 GPM
Height: 8.1
Length: 2.6
Width: 3.3
Residential or Commercial: Commercial
Number of Spray Settings: 3
Spary Patterns: Full, Massage, Gentle Aerated
Subcategory: Hand Shower
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
