Afwall® Millennium® Wall-Hung EverClean® Toilet System With Touchless Selectronic® Piston Flush Valve, 1.6 gpf/6.0 Lpf

The Afwall Millennium Wall-Mount Toilet System from American Standard features the 1.6 gpf/6. Lpf Ultima Selectronic flush valve that uses minimal water to clear the bowl with maximum efficiency. The self-cleaning piston flush valve design saves time and money by reducing routine maintenance and preventing the valve from running due to clogs.8

White 3351660.020 DISCONTINUED
List Price: $767.00
ADA Compliant Environmental Product Declaration USMCA Compliant
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Exclusive self-cleaning valve technology: DynaClean® integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Manual override assurance: Fully mechanical override button for operation without power
  • Fail-safe operation: Valve automatically closes upon loss of power or water pressure
  • Resists dezincification: Made of proprietary brass alloy
  • Long-life battery is included: 5-year CR-P2 lithium battery installed in valve to eliminate downtime and the need for constant replacement
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • Powerful flush: Direct-fed siphon jet flush action
  • Fully glazed trapway: 2-1/8" (54 mm); 2" (51 mm) minimum ballpass
  • Inlet spud: 1-1/2" (38 mm)
Technical Features
  • Maximum 1,000 gram MaP Score
  • Elongated wall-hung flushometer bowl, top spud, less seat
  • Static weight load of 1,000 lbs (453 kg). Not recommended for bariatric use
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • Touchless piston-operated flush valve
  • 5-year CR-P2 lithium battery installed in valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
Description
Net Weight
SKU
Color
List Price USD
Afwall® Millennium® Wall-Hung EverClean® Toilet System With Touchless Selectronic® Piston Flush Valve, 1.6 gpf/6.0 Lpf
1 lb (0.4 kg)
3351660.020
White (020)
767
Separate Components
Afwall® Millennium® 1.0 - 1.6 gpf (3.8- 6.0 Lpf) Wall-Hung EverClean® Bowl Less Seat
52 lb (23.6 kg)
3351101.020
White
185
spacer
Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Battery, 1.6 gpf/6.0 Lpf
8 lb (3.8 kg)
6065161.002
Chrome
582
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Front to Back Length: 15.0
Bowl Shape: Elongated
Brand: American Standard
Category: Flush Valves and Sanitary Items
Chair Height: Standard
Color / Finish: White
Flush Value: Exposed
Collections: Afwall
Fitting Connection Size Input: 1
Fitting Material: Brass
Touchless: Touchless
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.6 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
MAP Performance Rating: 1000
Number of Output Valves: 1
Height: 752
Length: 660
Width: 356
Residential or Commercial: Commercial
Rough In Size: 12
Subcategory: Sensor Flush Valve and Sanitary Items
USMCA Compliant: Yes
Valve Input Diameter: 3/4
Valve Output Diameter: 3/4
Warranty: 5 Year Limited Warranty
Download All Supporting Documents

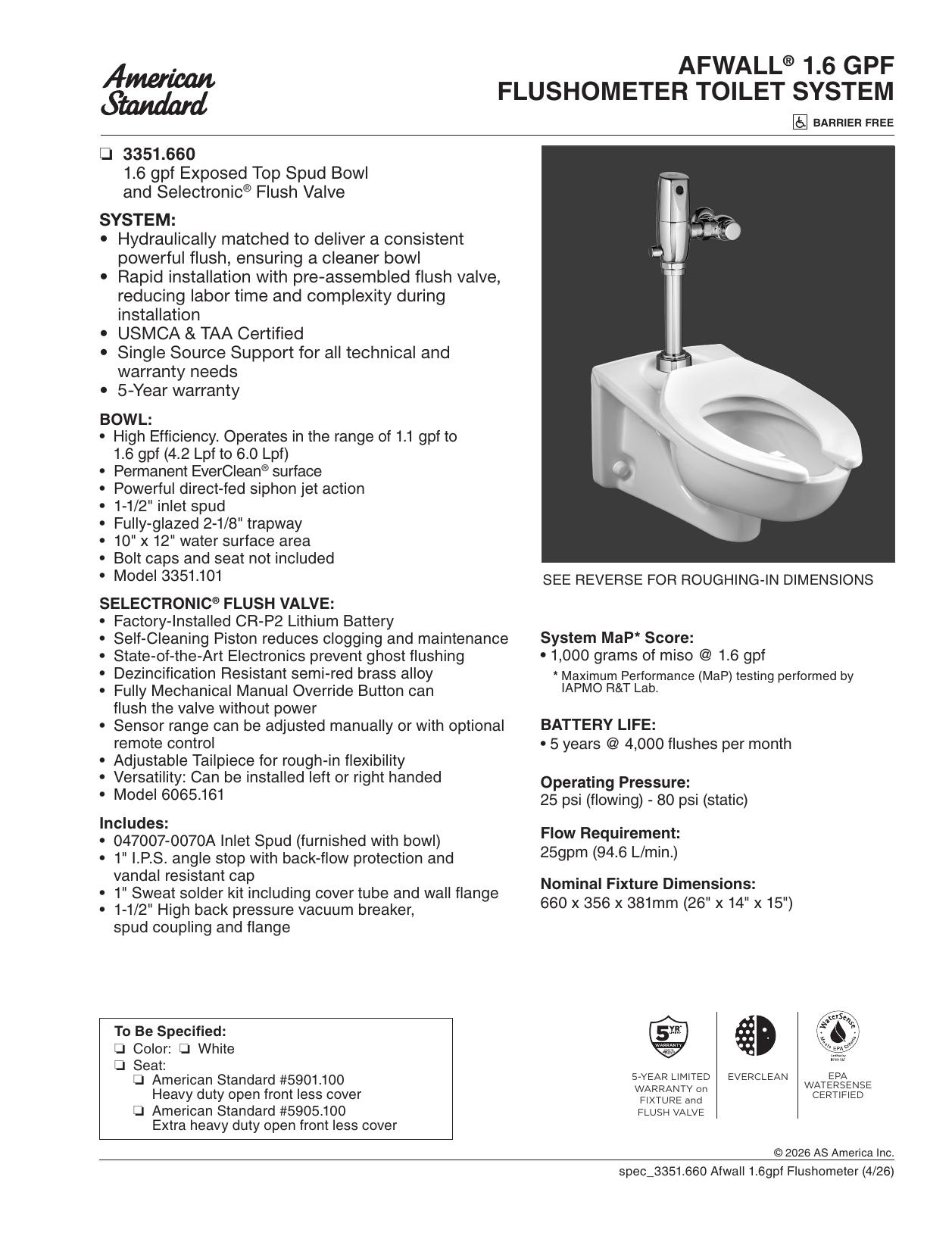

Specification Sheet

Environmental Product Declaration
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
