Afwall 1.6 gpf Toilet with Selectronic Exposed AC Flush Valve System

1.6 GPF HIGH-EFFICIENCY FLUSHOMETER TOILET SYSTEM System MaP Score:  1,000 grams of miso @ 1.6 gpf (when using a 1.6 gpf American Standard flush valve)All American Standard Selectronic Flush Valves are backed by unparalleled after-sales care, support and service. Learn more about the “Fast Attack” Service Team.

White 2257716.020 DISCONTINUED   Substitution Available (2257101.020)
List Price: $0.00
Environmental Product Declaration
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Wall-mounted elongated flushometer valve toilet
  • Vitreous china
  • High Efficiency. Operates in the range of 1.1 gpf to 1.6 gpf (4.2 Lpf to 6.0 Lpf)
  • Condensation channel
  • Powerful direct-fed siphon jet action
  • 1-1/2" inlet spud
  • Fully-glazed 2-1/8" trapway
  • 10" x 12" water surface area
  • 100% factory flush tested
Technical Features
  • Wall-mounted elongated flushometer valve toilet
  • Vitreous china
  • High Efficiency. Operates in the range of 1.1 gpf to 1.6 gpf (4.2 Lpf to 6.0 Lpf)
  • Condensation channel
  • Powerful direct-fed siphon jet action
  • 1-1/2" inlet spud
  • Fully-glazed 2-1/8" trapway
  • 10" x 12" water surface area
  • 100% factory flush tested
Description
Net Weight
SKU
Color
List Price USD
Afwall 1.6 gpf Toilet with Selectronic Exposed AC Flush Valve System
62 lb (28.0 kg)
2257716.020 *
White (020)
0
Separate Components
Afwall® Millennium® 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Top Spud Elongated Wall-Hung Bowl
52 lb (23.6 kg)
2257101.020
White
175
spacer
Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Base Model, 1.6 gpf/6.0 Lpf
11 lb (5.1 kg)
606B161.002
Chrome
629
spacer
Selectronic® Hard Wired AC Power Kit
1 lb (0.5 kg)
PK00.HAC *
No Finish
129
Substitutions
Afwall® Millennium® 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Top Spud Elongated Wall-Hung Bowl
52 lb (23.6 kg)
2257101.020
White
175


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Front to Back Length: 15.0
Bowl Shape: Elongated
Brand: American Standard
Category: Flush Valves and Sanitary Items
Chair Height: Standard
Color / Finish: White
Collections: Afwall
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.6 GPF
MAP Performance Rating: 1000
Residential or Commercial: Commercial
Rough In Size: 12
Subcategory: Sensor Flush Valve and Sanitary Items
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

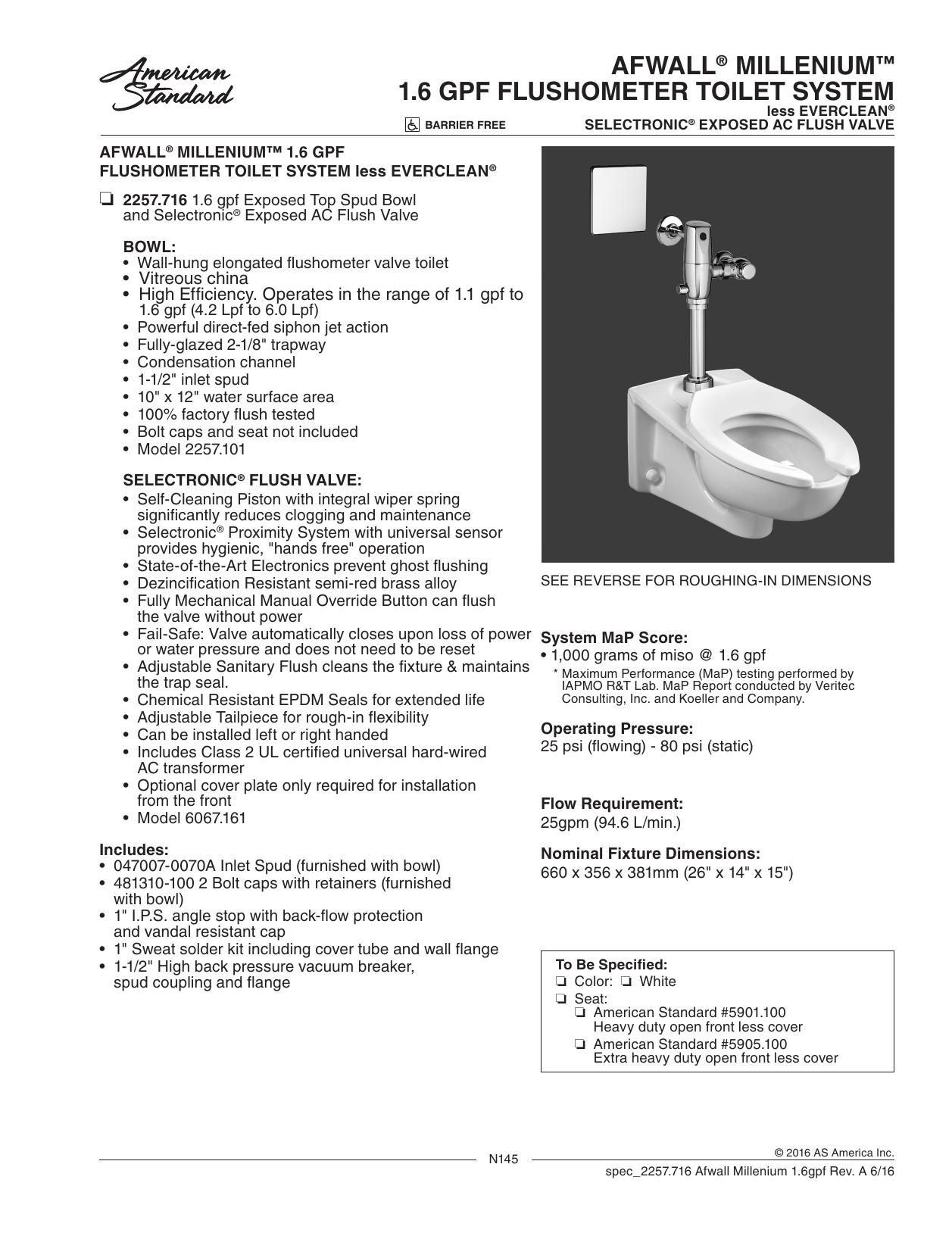

Specification Sheet

Environmental Product Declaration
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
There are no videos currently available for this product
3D Objects are not currently available for this product
