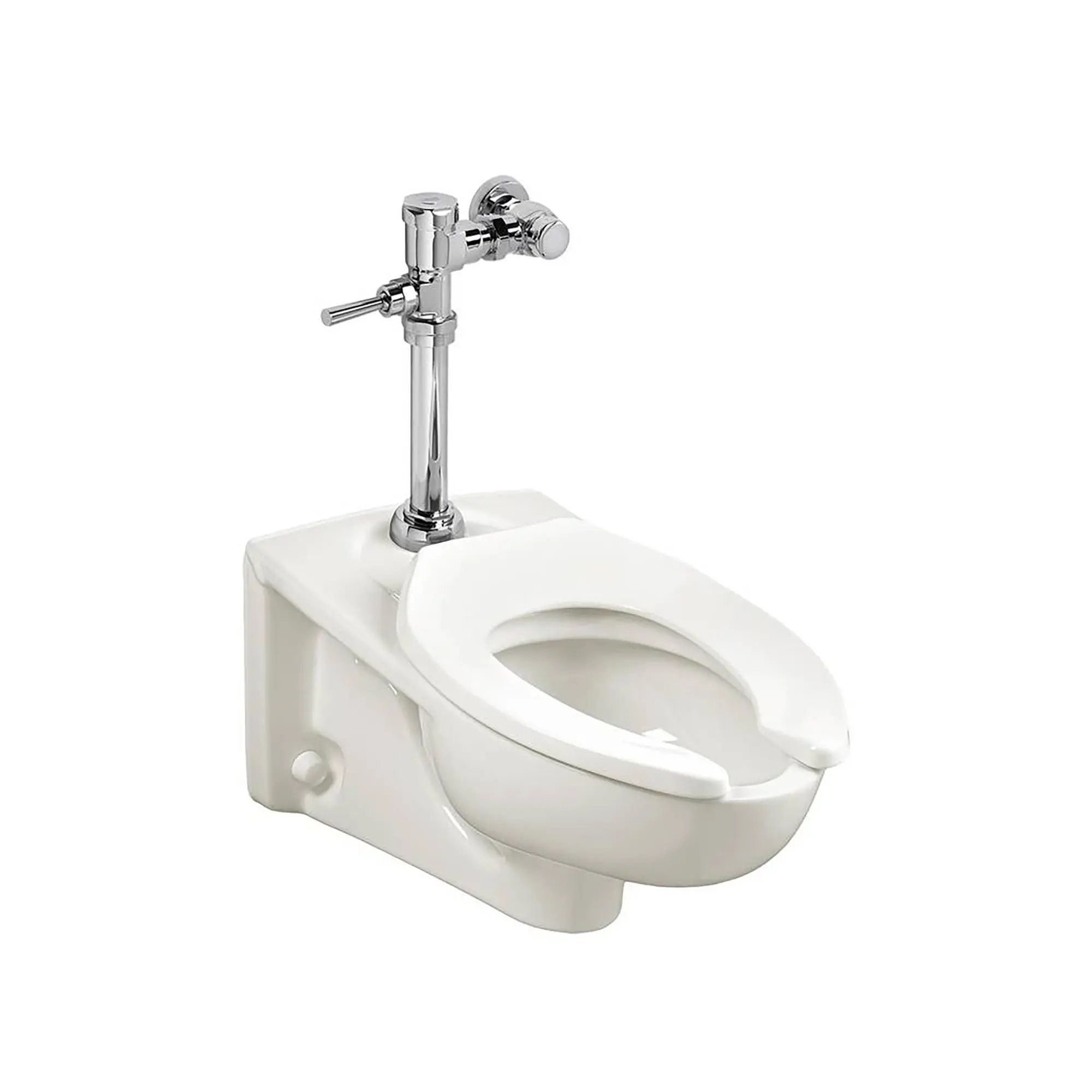

Afwall® Millennium® Wall-Hung EverClean® Toilet System With Manual Piston Flush Valve, 1.6 gpf/6.0 Lpf

We've been producing some of the industries best commercial toilets for more than 137 years. Built to stand the test of time and handle years of high use, there is an American Standard commercial toilet that's right for any job.

White 2856016.020 DISCONTINUED
List Price: $564.00
ADA Compliant
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Maximum 1,000 gram MaP Score
  • Elongated wall-hung flushometer bowl, top spud, less seat
  • Static weight load of 1,000 lbs (453 kg). Not recommended for bariatric use
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • Condensation channel
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Technical Features
  • Maximum 1,000 gram MaP Score
  • Elongated wall-hung flushometer bowl, top spud, less seat
  • Static weight load of 1,000 lbs (453 kg). Not recommended for bariatric use
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • Condensation channel
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Description
Net Weight
SKU
Color
List Price USD
Afwall® Millennium® Wall-Hung EverClean® Toilet System With Manual Piston Flush Valve, 1.6 gpf/6.0 Lpf
1 lb (0.4 kg)
2856016.020
White (020)
564
Separate Components
Afwall® Millennium® 1.0 - 1.6 gpf (3.8- 6.0 Lpf) Wall-Hung EverClean® Bowl Less Seat
52 lb (23.6 kg)
3351101.020
White
213
spacer
Ultima Manual Toilet Flush Valve, Piston-Type, 1.6 gpf/6.0 Lpf
6 lb (2.6 kg)
6047161.002
Chrome
351
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 15
Bowl Shape: Elongated
Brand: American Standard
Category: Flush Valves and Sanitary Items
Chair Height: Standard
Color / Finish: White
Flush Value: Exposed
Collections: Afwall
Fitting Connection Size Input: 25.40
Fitting Material: Brass
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.6 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
MAP Performance Rating: 1000
Number of Output Valves: 1
Height: 677
Length: 660
Width: 356
Residential or Commercial: Commercial
Subcategory: Manual Flush Valve and Sanitary Items
Valve Input Diameter: 1
Valve Output Diameter: 1-1/2
Warranty: 5 Year Limited Warranty
Download All Supporting Documents

Specification Sheet
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
