Afwall

Afwall® Millennium® 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Back Spud Elongated Wall-Hung Bowl

2634101.020 DISCONTINUED   Substitution Available (3353101.020)
List Price: $0.00
ADA Compliant Cal Green Environmental Product Declaration WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Wall-hung elongated flushometer bowl, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
  • Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
  • Conventional glaze
  • Direct-fed siphon jet flush action
  • 2-1/8" (54 mm) fully-glazed trapway – 2" (51 mm) minimum ballpass
  • Static weight load of 1,000 lbs (453 kg). Not recommnded for bariatric use.
  • Concealed trapway design with condensation channel
  • 1-1/2" (38 mm) inlet spud
  • Vitreous china
Technical Features
  • Wall-hung elongated flushometer bowl, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
  • Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
  • Conventional glaze
  • Direct-fed siphon jet flush action
  • 2-1/8" (54 mm) fully-glazed trapway – 2" (51 mm) minimum ballpass
  • Static weight load of 1,000 lbs (453 kg). Not recommnded for bariatric use.
  • Concealed trapway design with condensation channel
  • 1-1/2" (38 mm) inlet spud
Nominal Dimensions: 26 in x 14 in x 14-7/16 in (660 mm x 356 mm x 367 mm)
Description
Net Weight
SKU
Color
List Price USD
Afwall® Millennium® 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Back Spud Elongated Wall-Hung Bowl
53 lb (24.2 kg)
2634101.020 *
0
Optional Components (Not Included)
Commercial Heavy Duty Open Front Elongated Toilet Seat
3 lb (1.4 kg)
5901100.020
0
spacer
Commercial Heavy Duty Open Front Elongated Toilet Seat With EverClean® Surface
3 lb (1.3 kg)
5901110T.020
0
Substitutions
Afwall® Millennium® 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Back Spud Elongated Wall-Hung EverClean® Bowl
53 lb (24.2 kg)
3353101.020
0


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 13-1/8
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Commercial Toilet
Chair Height: Standard
Color / Finish: White (020)
Collections: Afwall
WaterSense: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Flushometer
Gallons Per Flush (min-max): 1.1 - 1.6 GPF
MAP Performance Rating: 1000
Height: 14-7/16
Length: 26
Length: 26
Width: 14
Residential or Commercial: Commercial
Subcategory: Wall Hung Commercial Toilet
Toilet Mount Type: Wall Mount
Trapway Diameter: 2-1/8
Toilet Type: Floor_Standing_Toilet_Bowl
Warranty: 1 Year Limited Warranty
Download All Supporting Documents

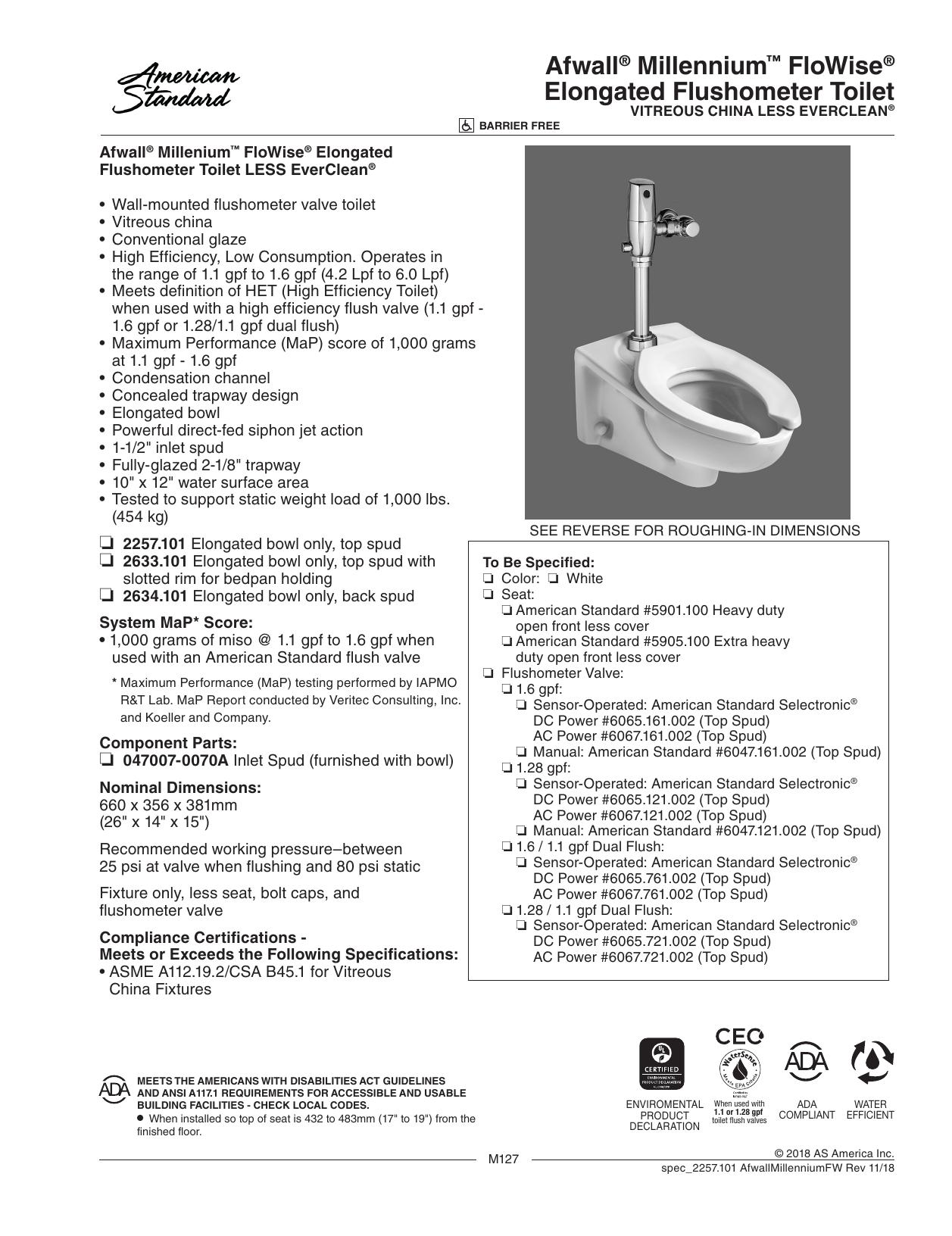

Specification Sheet

Installation Instructions

Environmental Product Declaration
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
