Afwall

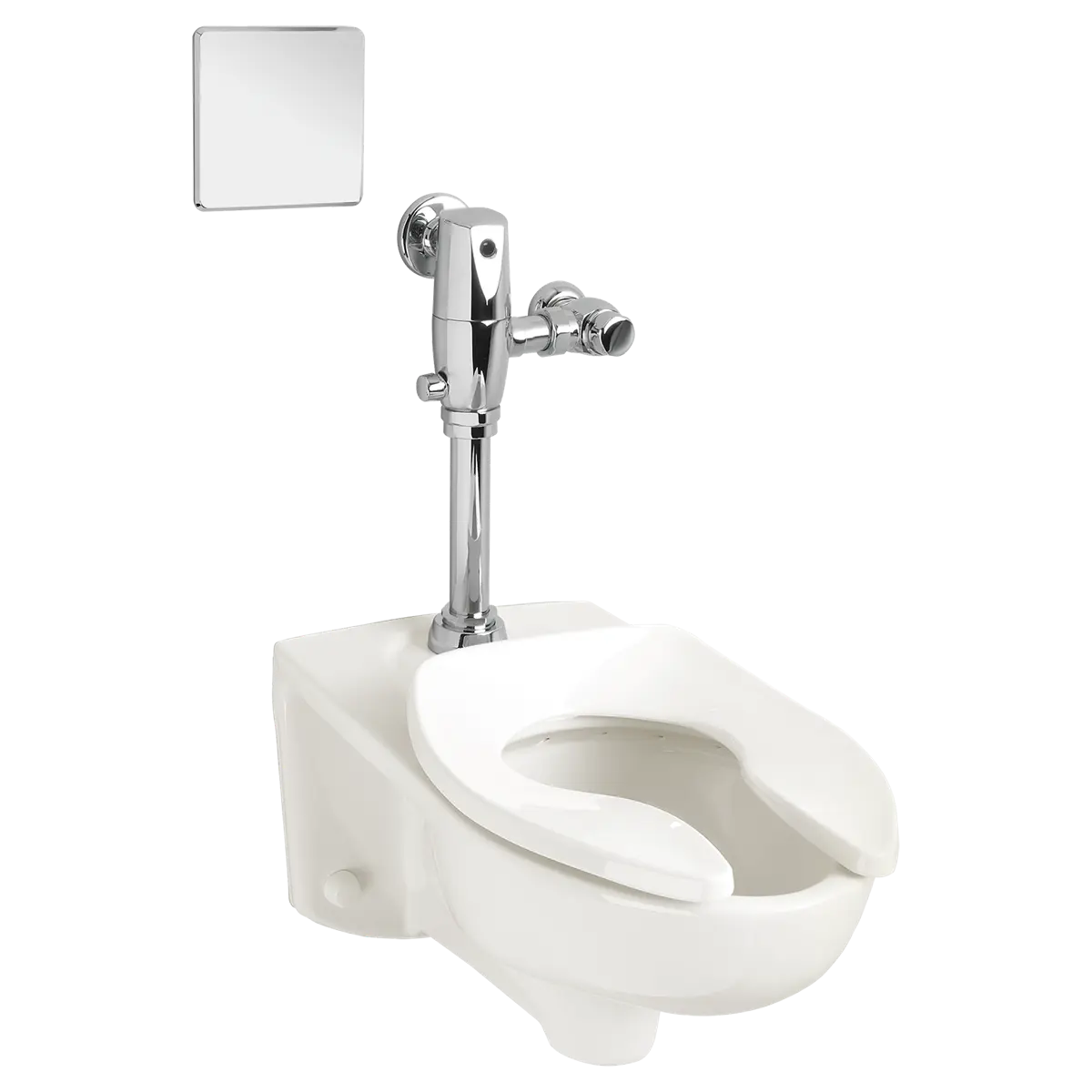

Afwall® Millennium® 1.0 - 1.6 gpf (3.8- 6.0 Lpf) Wall-Hung EverClean® Bowl Less Seat

The Afwall® Millennium® FloWise® Elongated Wall-Hung Toilet from American Standard is an exceptional toilet with premier flushing power at lower flush volumes to conserve water when combined with the Ultima Selectronic Flush Valve. Increased static weight load capacity assures strength and durability in a clean, streamlined design.

White 3351101.020 DISCONTINUED
List Price: $185.00
ADA Compliant Cal Green Environmental Product Declaration Everclean WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Compatibility: Works with the American Standard Ultima Selectronic Exposed Toilet Flush Valve 1.0 gpf-1.6 gpf/3.8 Lpf-6.0 Lpf, sold separately
  • Highest Maximum Performance (MaP) score: Achieves highest score of 1,000 grams when combined with 1.1 – 1.6 gpf; achieves impressive score of 800 grams when combined with 1.0 gpf
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • Increased capacity: Static weight load of 1,000 lbs (453 kg). Not recommended for bariatric use
  • Powerful flush: Direct-fed siphon jet flush action
  • Fully glazed trapway: 2-1/8" (54 mm); 2" (51 mm) minimum ballpass
  • Concealed trapway: Features condensation channel
  • Inlet spud: 1-1/2" (38 mm)
Technical Features
  • Wall-hung elongated flushometer bowl, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.0gpf – 1.6 gpf (3.8 Lpf – 6.0 Lpf)
  • Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • Direct-fed siphon jet flush action
  • 2-1/8" (54 mm) fully-glazed trapway – 2" (51 mm) minimum ballpass
  • Static weight load of 1,000 lbs (453 kg). Not recommended for bariatric use
  • Concealed trapway design with condensation channel
  • 1-1/2" (38 mm) inlet spud
Nominal Dimensions: 26 in x 14 in x 13-1/2 in (660 mm x 356 mm x 343 mm)
Description
Net Weight
SKU
Color
List Price USD
Afwall® Millennium® 1.0 - 1.6 gpf (3.8- 6.0 Lpf) Wall-Hung EverClean® Bowl Less Seat
52 lb (23.6 kg)
3351101.020
White (020)
185
Optional Components (Not Included)
Commercial Heavy Duty Open Front Elongated Toilet Seat
3 lb (1.4 kg)
5901100.020
White
43
spacer
Commercial Heavy Duty Open Front Elongated Toilet Seat With EverClean® Surface
3 lb (1.3 kg)
5901110T.020
White
53
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 13-1/8
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Commercial Toilet
Chair Height: Standard
Color / Finish: White
Collections: Afwall
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Flushometer
Gallons Per Flush (min-max): 1.1 - 1.6 GPF
MAP Performance Rating: 1000
Height: 13-1/2
Length: 26
Length: 26
Width: 14
Residential or Commercial: Commercial
Subcategory: Wall Hung Commercial Toilet
Toilet Mount Type: Wall Mount
Trapway Diameter: 2-1/8
Toilet Type: Floor_Standing_Toilet_Bowl
USMCA Compliant: Yes
Warranty: 1 Year Limited Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Environmental Product Declaration
Download All Design Files
There are no videos currently available for this product
3D Objects are not currently available for this product
