Metering

Metering 4-Inch Centerset 2-Handle Faucet 0.5 gpm/1.9 Lpf

1340227.002 DISCONTINUED
List Price: $0.00
ADA Compliant Cal Green CEC Certified Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Ideal for public restrooms
  • Automatic shut-off stops water and energy waste
  • Vandal-resistant cast brass construction
  • Factory set for a maximum of 0.09 gallon flow per activation
  • Optional grid drain available (sold separately)
  • 0.5 gpm/1.9 Lpf pressure-compensating VR multi-laminar spray
Technical Features
  • Ideal for public restrooms
  • Automatic shut-off stops water and energy waste
  • Vandal-resistant cast brass construction
  • Factory set for a maximum of 0.09 gallon flow per activation
  • Optional grid drain available (sold separately)
  • 0.5 gpm/1.9 Lpf pressure-compensating VR multi-laminar spray
Nominal Dimensions: 6-1/2 in x 6-1/16 in x 3-3/8 in (165 mm x 154 mm x 86 mm)
Description
Net Weight
SKU
Color
List Price USD
Metering 4-Inch Centerset 2-Handle Faucet 0.5 gpm/1.9 Lpf
4 lb (2.0 kg)
1340227.002
0
Optional Components (Not Included)
Grid Strainer Drain for Sinks
1 lb (0.4 kg)
2411015.002
0
spacer
Offset Grid Strainer Drain for Sinks
1 lb (0.7 kg)
7723018.002
0
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Commercial Fittings
CEC Certified: Yes
Color / Finish: Chrome (002)
Collections: Metering
Fitting Connection Size Input: 12.70
Handle Height: 3.375
Handle Type: Knob
Fitting Material: Brass
Mount Type: Deck Mount
Fitting Number of Holes: 3
Spout Height: 2-1/8
Spout Type: Standard
Gallons Per Minute (min-max): 0.5 GPM
Hardware Included: Yes
Height: 3-3/8
Length: 6-1/2
Width: 6-1/16
Residential or Commercial: Commercial
Subcategory: Mechanical Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

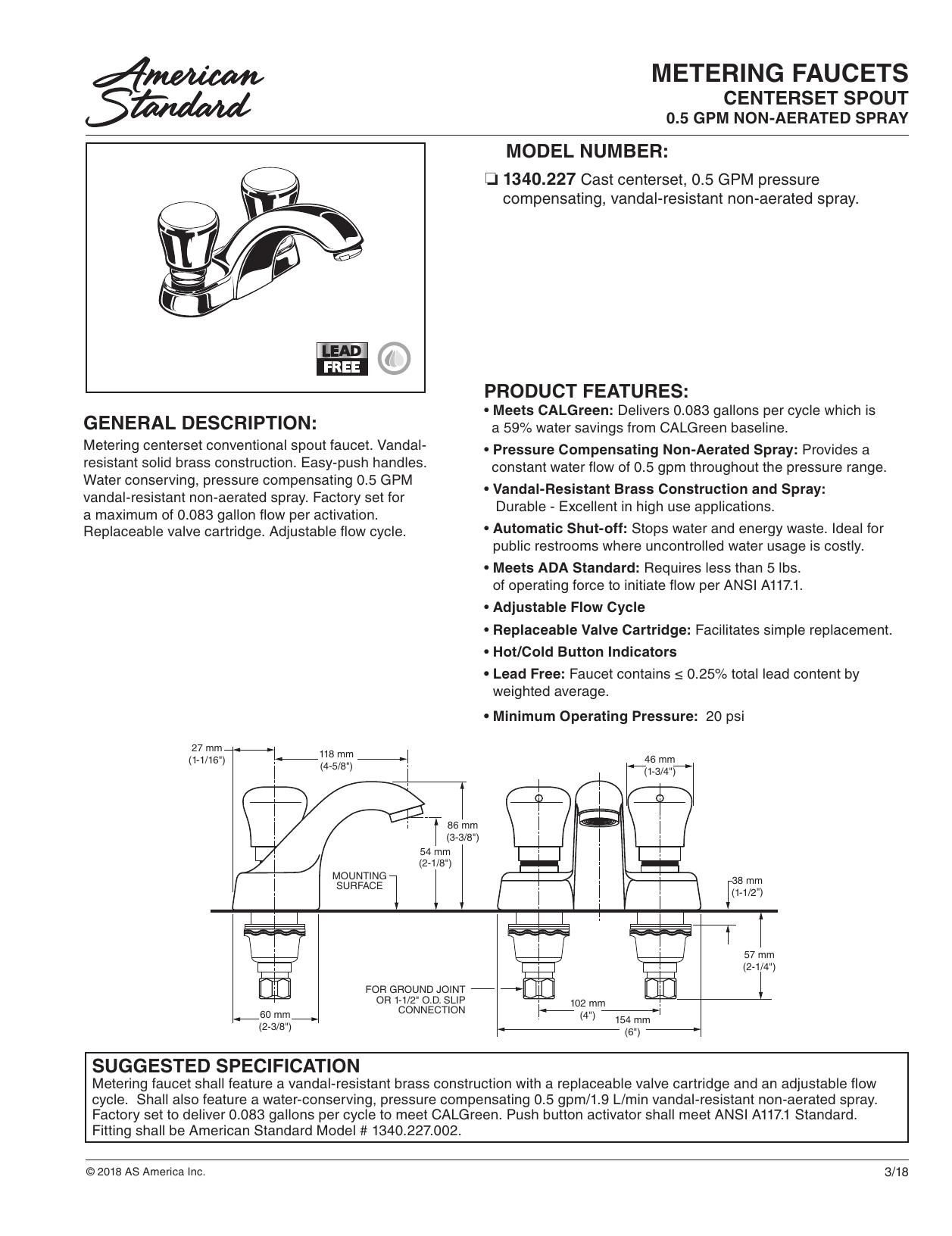

Specification Sheet

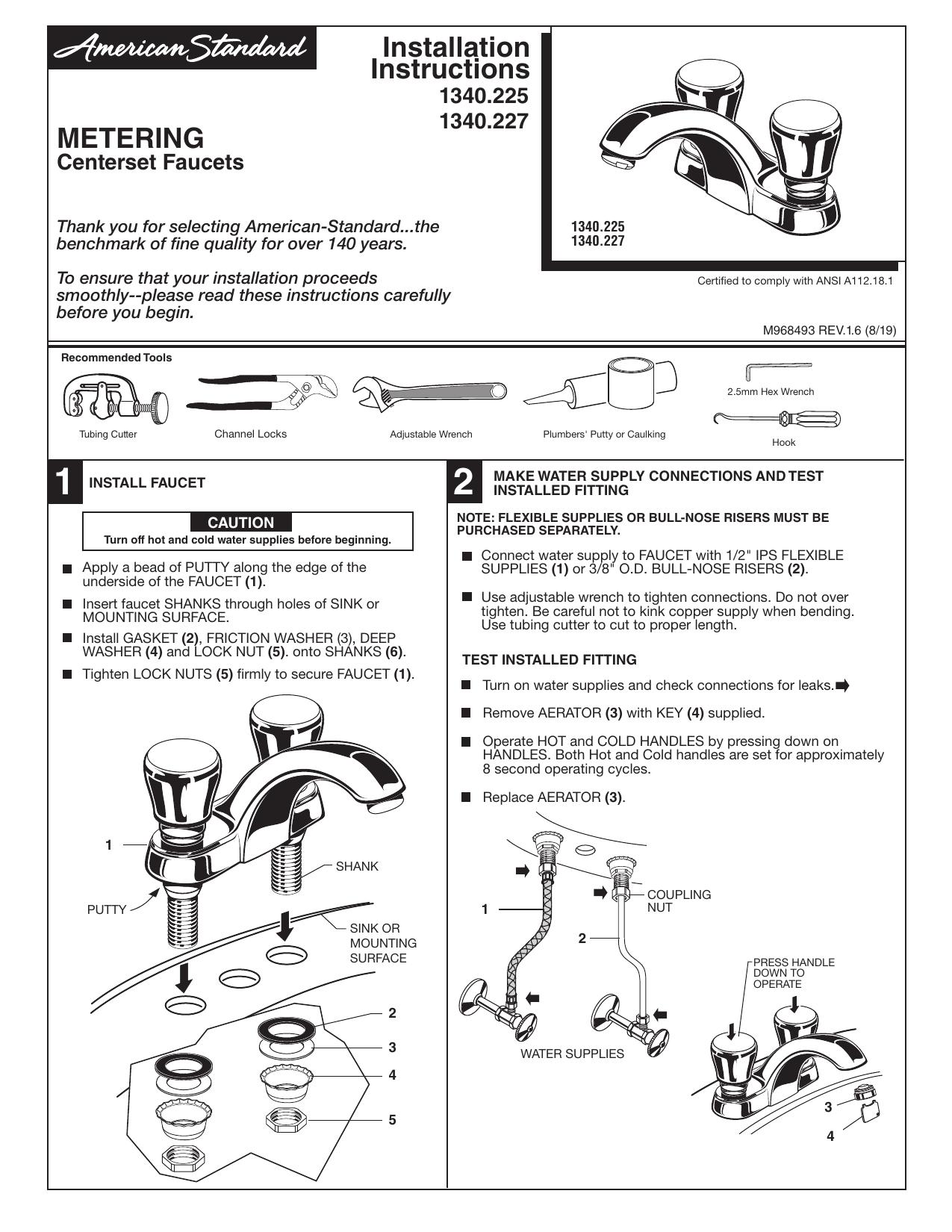

Installation Instructions

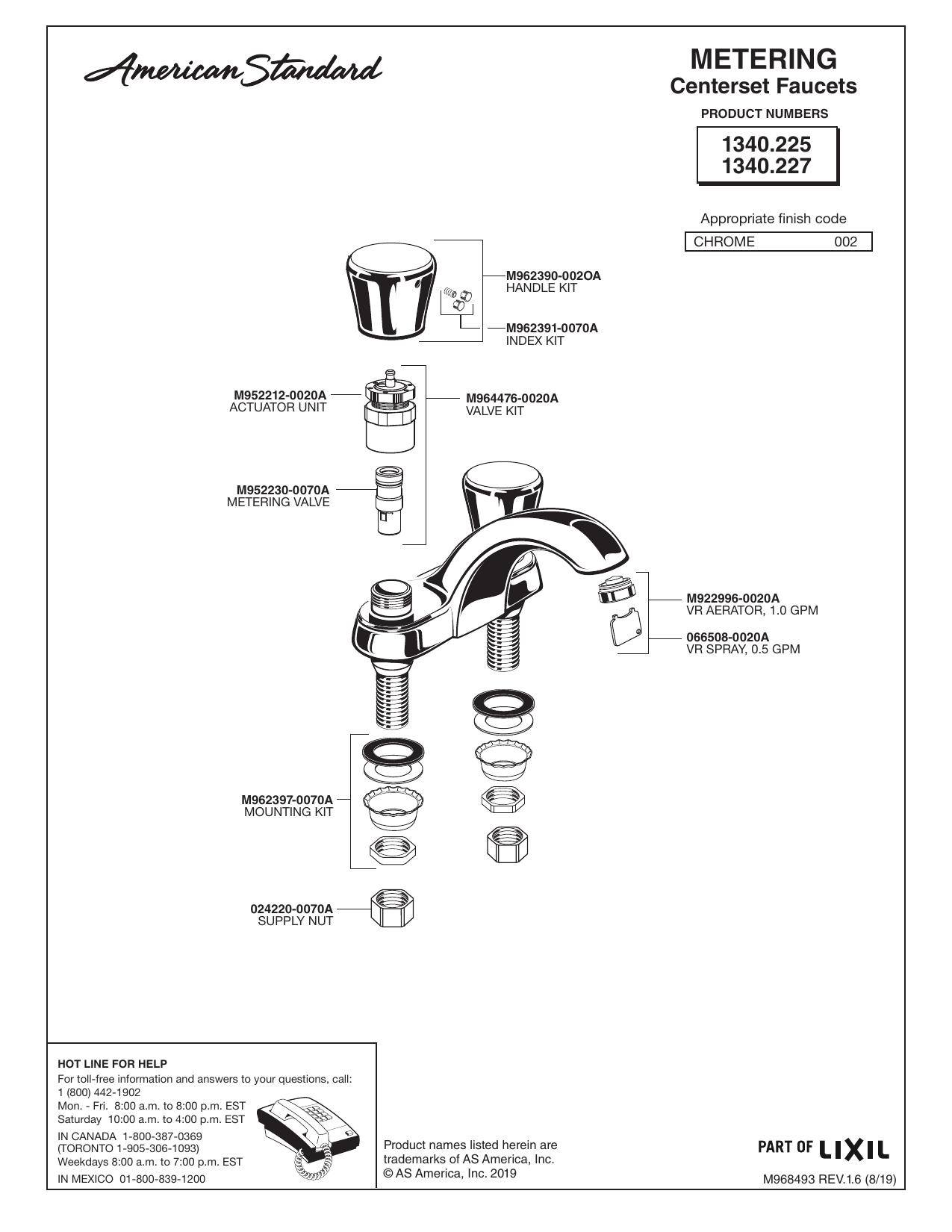

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
There are no videos currently available for this product
3D Objects are not currently available for this product
