DXV® Modulus

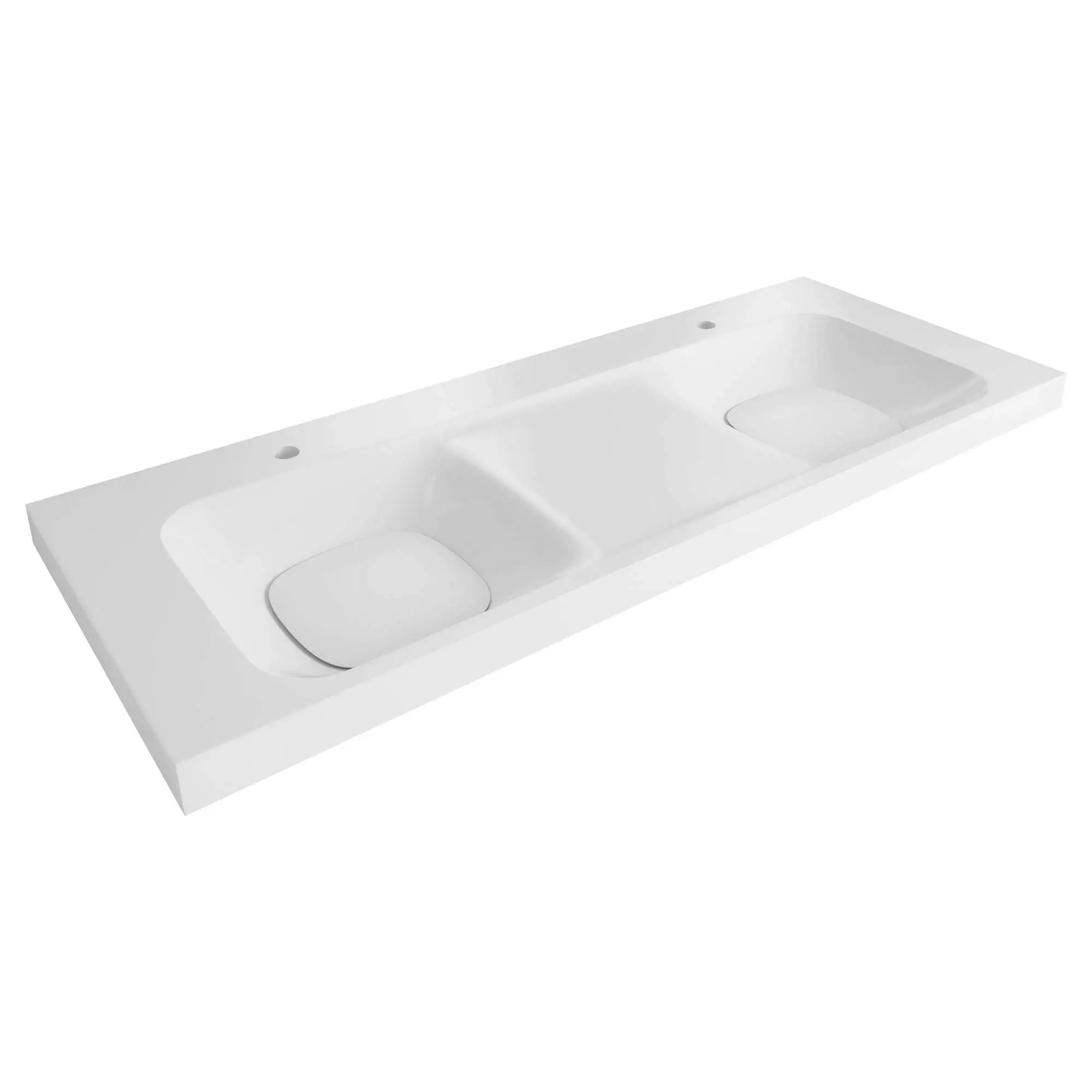

DXV Modulus® Above Counter Sink, 2 Single Hole

D21060055012.415 DISCONTINUED
List Price: $0.00
LIXIL Select
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • From the DXV® Modulus Collection - Modern Movement
  • Compatible with several DXV® Modulus furniture options
  • Smooth, glossy solid surface material
  • Requires large drain plates (shown) and grid drains, each sold separately
  • Template for custom installation is included
Technical Features
  • Sleek, minimalistic design
  • Made from solid surface material
  • Template included for custom installation
  • Drain plate and grid drain sold separately
  • Double basins with center wet surface
  • Two pre-drilled faucet holes
Nominal Dimensions: 55 in x 21 in x 5-1/16 in (1397 mm x 533 mm x 129 mm)
Description
Net Weight
SKU
Color
List Price USD
DXV Modulus® Above Counter Sink, 2 Single Hole
63 lb (28.4 kg)
D21060055012.415 *
0


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Front To Back Length: 15-3/8
Side to Side Width: 46
Top to Bottom Depth: 3-3/4
Brand: DXV
Color / Finish: Canvas White (415)
Collections: DXV® Modulus
Drain Locaton: Center
Handle Material: Brass
Fixture Material: Solid Surface
Fixture or Fitting Material: Solid Surface
LIXIL Select: Yes
Height: 5-1/16
Length: 55
Width: 21
Width: 21
Residential or Commercial: Residential
Below Counter Depth: 2-11/16
Sink Cutout Dimensions: 18-1/2 in x 17-5/16 in
Sink Width (front to back): 21
Sink Length (left to right): 55
Predrilled Holes: Yes
Sink Shape: Rectangle
Sink Depth: 2-3/8
Warranty: 5 Year Limited Warranty
Download All Supporting Documents

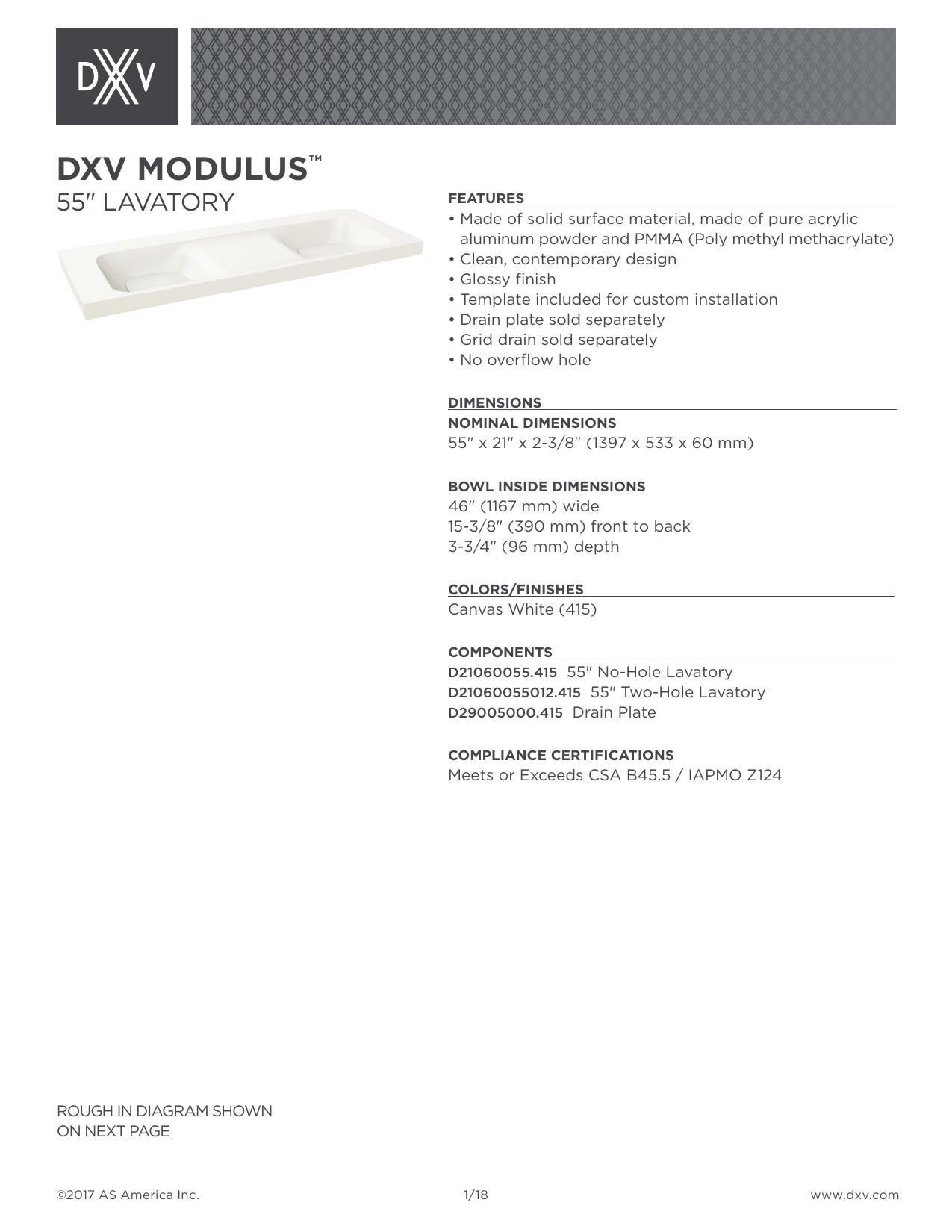

Specification Sheet

Installation Instructions

Warranty
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
3D Objects are not currently available for this product
