Studio S

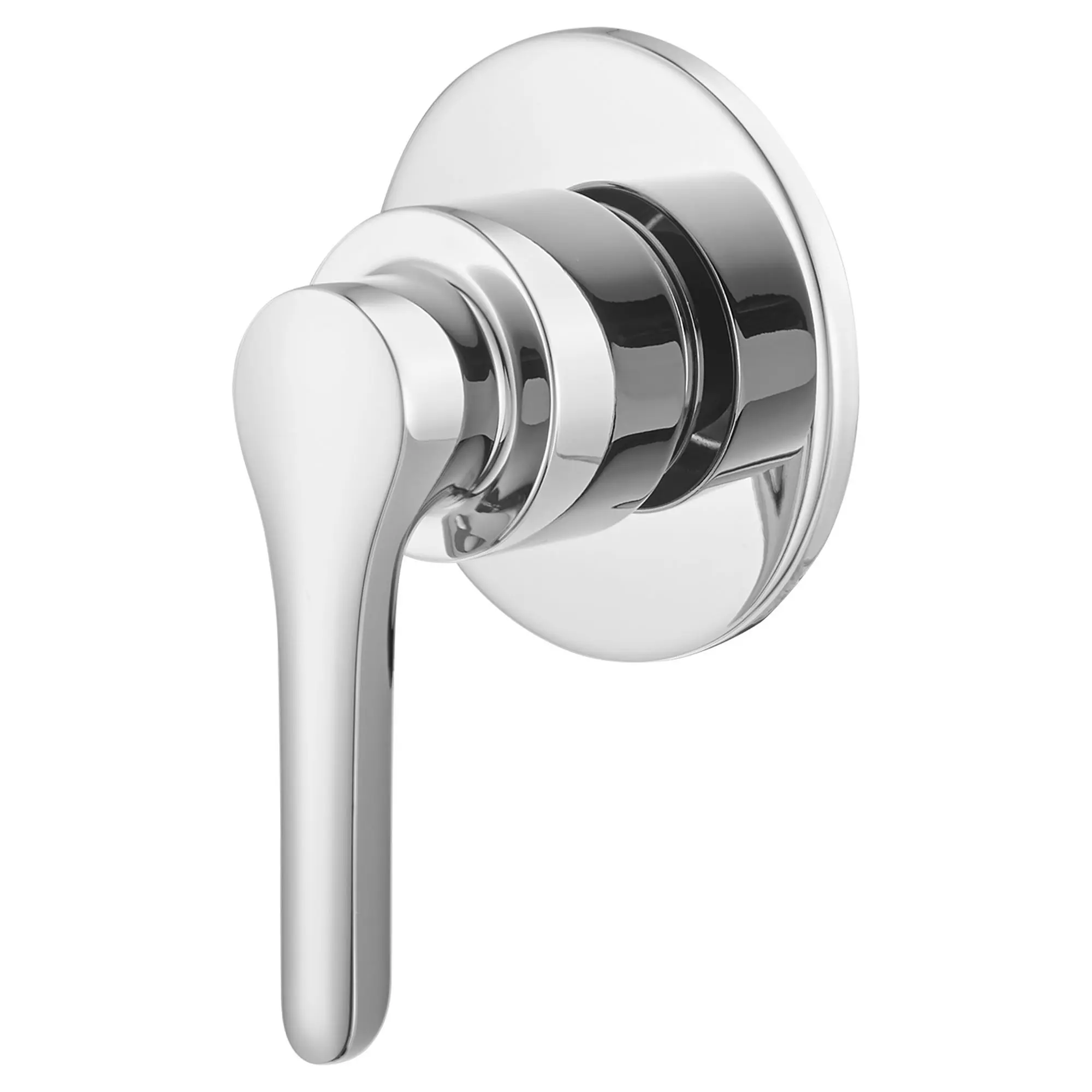

Studio® S Single-Handle Diverter Valve Trim Kit

Featuring a sleek geometric silhouette, the Studio S Diverter Valve is a modern update for your shower. Accommodating both 2- and 3-way diverter installations, the diverter is a versatile option for your bathroom. The solid brass construction offers durability for prolonged contact with water. Perfect for any modern bathroom, the Studio S Diverter Valve complements to Studio S bathroom collection.

Chrome T105430.002 DISCONTINUED
List Price: $136.00
ADA Compliant Enjoy More Rewards
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Metal lever handle is smooth and easy to operate
  • Removable Plaster Guard
  • Rough Valve Sold Separately
  • Limited Lifetime Warrany on function and finish
Technical Features
  • Metal lever handle
  • Removable plaster guard
  • Valve sold separately
Nominal Dimensions: 1-13/16 in x 2-3/4 in x 4-3/16 in (46 mm x 70 mm x 106 mm)
Description
Net Weight
SKU
Color
List Price USD
Studio® S Single-Handle Diverter Valve Trim Kit
1 lb (0.3 kg)
T105430.002
Chrome (002)
136
T105430.243
Matte Black (243)
204
T105430.295
Brushed Nickel (295)
188
T105430.GN0
Brushed Cool Sunrise (GN0)
205
Required Components (Not Included)
2-Way In-Wall Diverter Rough-In Valve With 2 Discrete Functions
2 lb (0.7 kg)
R422
No Finish
252
spacer
2-Way In-Wall Diverter Rough-In Valve With 2 Discrete/1 Shared Function
1 lb (0.6 kg)
R422S
No Finish
252
spacer
3-Way In-Wall Diverter Rough-In Valve With 3 Discrete Functions
1 lb (0.6 kg)
R433
No Finish
286
spacer
3-Way In-Wall Diverter Rough-In Valve With 3 Discrete/3 Shared Functions
1 lb (0.6 kg)
R433S
No Finish
286
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Category: Bathroom Faucets
Color / Finish: Chrome
Collections: Studio S
Faucet Type: Bath Trim
Fitting Connection Size Input: 0-1/2
Handle Material: Metal
Handle Type: Lever
Fitting Material: Zinc
Fixture or Fitting Material: Zinc
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
Number of Input Valves: 1
Height: 4-3/16
Length: 1-13/16
Width: 2-3/4
Residential or Commercial: Residential
Subcategory: Bath Trim Bathroom Faucets
Valve Type: Diverter Valves
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Download All Design Files
