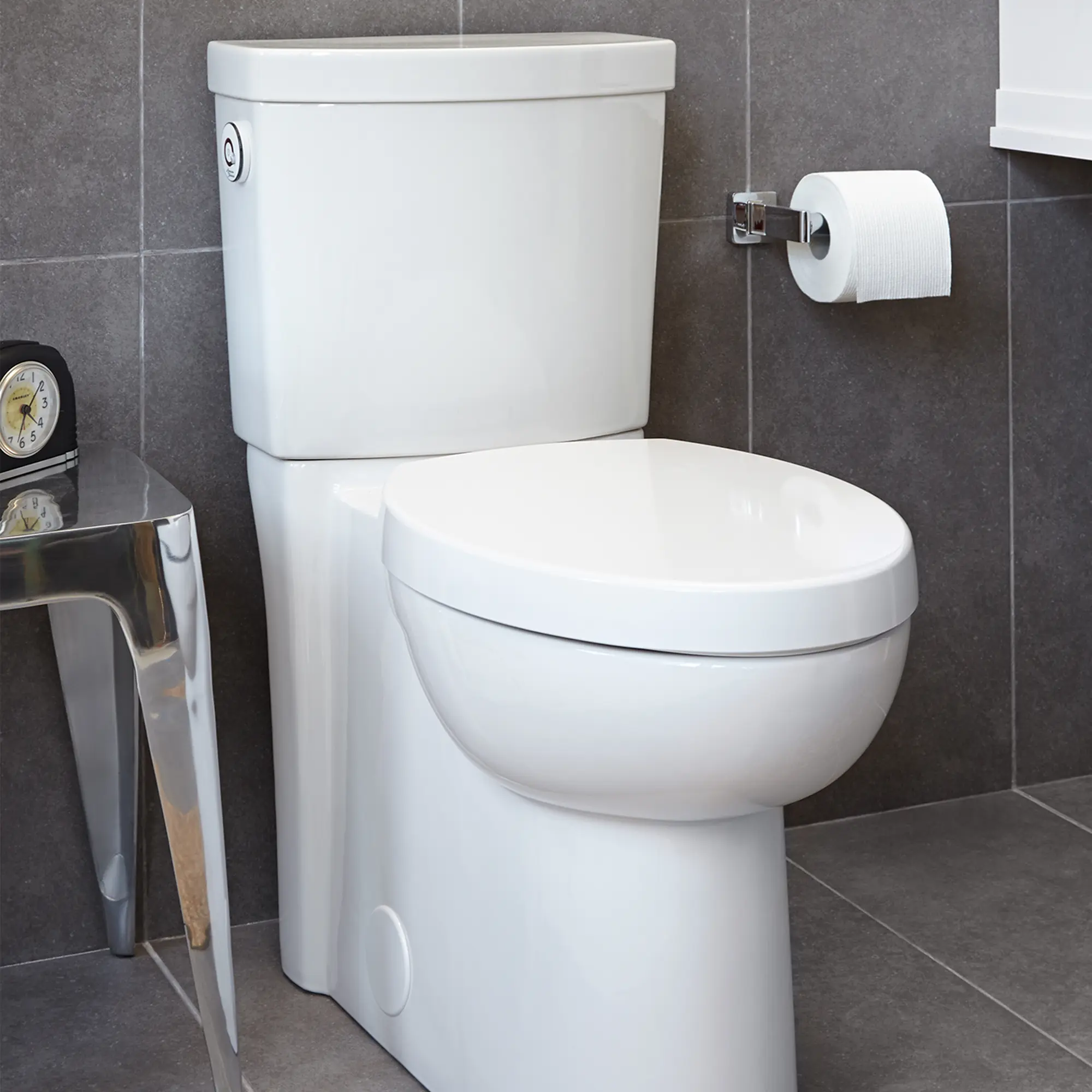

Studio® Activate® Two-Piece Concealed Trapway 1.28 gpf/4.8 Lpf Chair Height Round Front Toilet

The Studio Activate toilet from American Standard combines luxury, style, and performance for a toilet that is appreciated by all. This high-end touchless toilet flushes automatically, and has a sleek concealed trapway for a seamless look that fits in beautifully in any bathroom, and coordinates perfectly as part of the Studio collection of bathroom products from American Standard. With a round-front design that fits great even in small bathrooms, this right height toilet sits at 16-1/2 inches which is higher than the standard toilet and provides added comfort. This toilet also includes our EverClean® antimicrobial surface to protect against mold, mildew, odor- and stain-causing bacteria.

White 2795119.020 DISCONTINUED   Substitution Available (2795204.020)
List Price: $0.00
ADA Compliant Cal Green CEC Certified WaterSense Everclean Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • LXP (Luxury Performance) Toilet with touchless flush activation
  • Powered by 4 AA batteries (included)
  • Combination bowl and tank, with seat
  • Siphon action jetted bowl with smooth-sided, concealed trapway
  • Meets EPA WaterSense Criteria
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria on the toilet
  • PowerWash rim scrubs bowl with each flush
  • Includes Duroplast slow close seat and cover with concealed seat ring and easy lift-off feature for simple removal and reattachment for cleaning
  • Wave hand actuator with manual override flush button
Technical Features
  • LXP® (Luxury Performance) toilet
  • Combination activation bowl and tank, with seat
  • Siphon action jetted bowl with smooth-sided, concealed trapway
  • 12" (305 mm) rough-in
  • High efficiency, ultra-low consumption (1.28 gpf/4.8 Lpf), utilizes 20% less water
  • Meets EPA WaterSense® criteria
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • PowerWash® rim scrubs bowl with each flush
  • 16-1/2" (419 mm) rim height
  • LXP® (Luxury Performance) toilet with touchless flush,2-1/8" (54 mm) fully glazed trapway,3" (76 mm) flush valve,9" x 8" (229 x 203 mm) water surface area,Includes slow-close seat and cover with concealed seat ring and easy lift-off feature for simple removal and reattachment for cleaning,Wave hand actuator with manual override flush button,Powered by four AA batteries (included),Two color-matched bolt hole covers,Five-year warranty, one-year warranty on electronics and seat,Design coordinates with Studio lavatories,Round Front Toilet
Nominal Dimensions: 28-3/16 in x 15-3/4 in x 30-3/4 in (716 mm x 400 mm x 781 mm)
Description
Net Weight
SKU
Color
List Price USD
Studio® Activate® Two-Piece Concealed Trapway 1.28 gpf/4.8 Lpf Chair Height Round Front Toilet
1 lb (0.4 kg)
2795119.020 *
White (020)
0
Separate Components
Studio® Skirted Chair Height Round Front Bowl With Seat
69 lb (31.1 kg)
3053120.020
White
597
spacer
Studio Activate Tank
29 lb (13.4 kg)
4000119.020 *
White
238
spacer
Telescoping Slow-Close & Easy Lift-Off Round Front Toilet Seat
4 lb (1.9 kg)
5025B65G.020
White
142
spacer
Studio 12-Inch Rough Tank Cover
7 lb (3.3 kg)
735158-400.020
White
77
Substitutions
Studio Skirted Two-Piece Dual Flush 1.6 gpf/6.0 Lpf and 1.1 gpf/4.2 Lpf Chair Height Round Front Toilet With Seat
1 lb (0.4 kg)
2795204.020 *
White
762


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Included: Yes
Bowl Shape: Round
Brand: American Standard
Cal Green: Yes
Category: Toilets
CEC Certified: Yes
Chair Height: Chair
Color / Finish: White
Collections: Studio
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Gravity Fed
Flush Valve Size: 3
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.28 GPF
MAP Performance Rating: 1000
Number of Flush Valves: 1
Height: 30-3/4
Length: 28-3/16
Length: 28-3/16
Width: 15-3/4
Residential or Commercial: Residential
Rough In Size: 12
Subcategory: Floor Standing Toilets
Tank Included: Yes
Trip Lever Location: Left Side
Toilet Water Efficiency: Hight Efficiency Toilet
Toilet Mount Type: Floor Mount
Seat Included: Yes
Trapway Diameter: 2.125
Toilet Type: Two Piece
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
