Studio® Activate® Two-Piece Concealed Trapway 1.28 gpf/4.8 Lpf Chair Height Elongated Toilet

The Studio Activate toilet from American Standard has a modern, sleek design and a concealed trapway so that your bathroom can look its best. This luxury touchless toilet flushes automatically, and the siphon action jetted bowl creates a powerful flush. The Studio Activate toilet also comes with our Right Height design, making a 16-1/2 inch toilet, a taller toilet with an elongated bowl that provides extra comfort. The concealed trapway is a large 2-1/8” and the flush valve is oversized at 3” to help prevent clogging. This luxurious design coordinates perfectly with the Studio and Boulevard collections.

Features
  • LXP (Luxury Performance) Toilet with touchless flush activation
  • Combination dual flush bowl and tank, with seat
  • Meets EPA WaterSense Criteria
  • Includes Duroplast slow close seat and cover with concealed seat ring and easy lift-off feature for simple removal and reattachment for cleaning

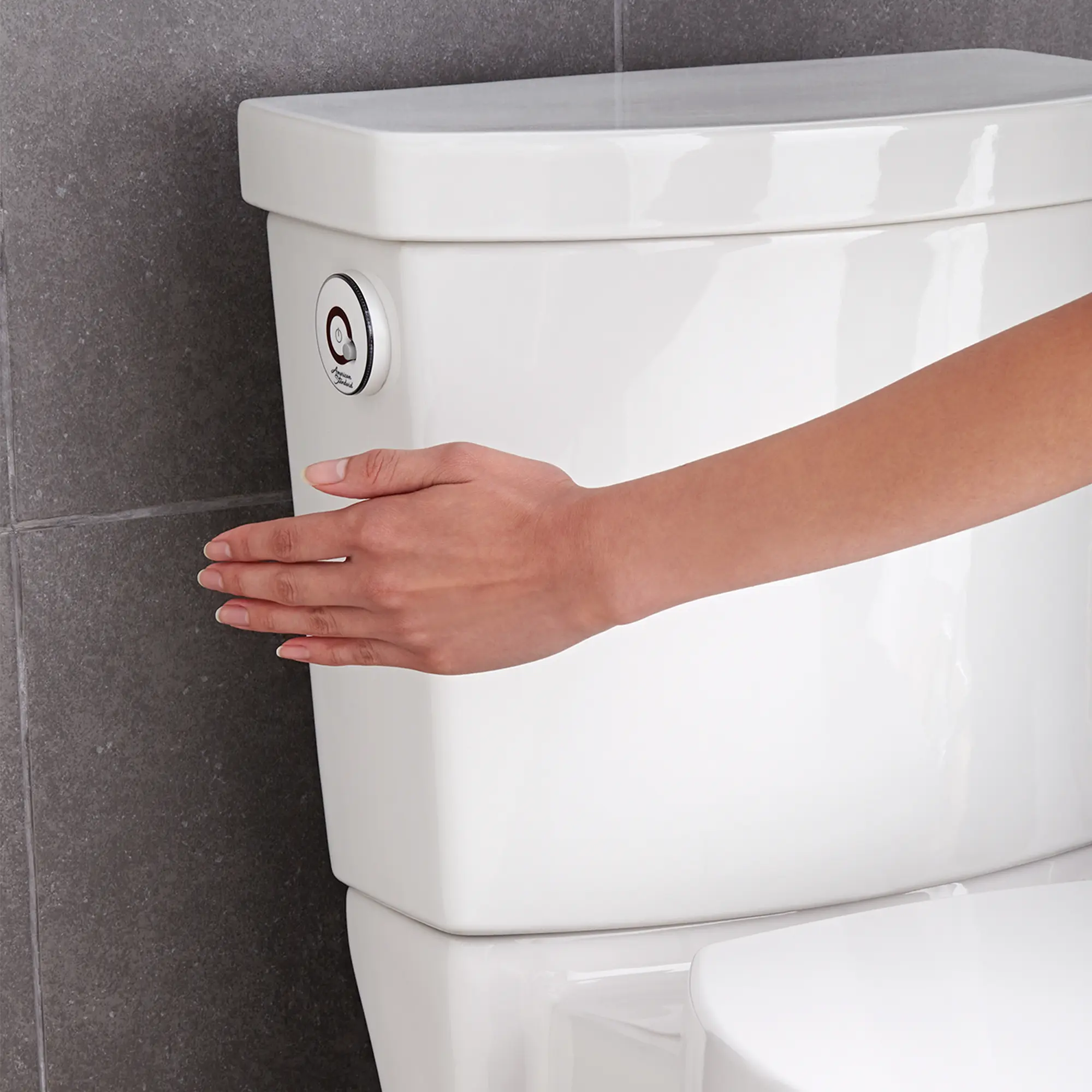

  • Wave hand actuator with manual override flush button
  • Powered by 4 AA batteries (included)
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria on the toilet
  • PowerWash rim scrubs bowl with each flush
  • Limited lifetime warranty on chinaware, a limited 5 year warranty on all mechanical parts of the toilet, 1 year warranty on electronic parts and a limited 1 year warranty on the toilet seat
Technical Features
  • Combination activation bowl and tank, with seat
  • Siphon action jetted bowl with smooth-sided, concealed trapway
  • 12" (305 mm) rough-in
  • High efficiency, ultra-low consumption (1.28 gpf/4.8 Lpf), utilizes 20% less water
  • Meets EPA WaterSense® criteria
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • PowerWash® rim scrubs bowl with each flush
  • 16-1/2" (419 mm) rim height
  • 2-1/8" (54 mm) fully glazed trapway
  • 3" (76 mm) flush valve,9" x 8" (229 x 203 mm) water surface area,Includes slow-close seat and cover with concealed seat ring and easy lift-off feature for simple removal and reattachment for cleaning,Wave hand actuator with manual override flush button,Powered by four AA batteries (included),Two color-matched bolt hole covers,Five-year warranty, one-year warranty on electronics and seat,Design coordinates with Studio lavatories,LXP® (Luxury Performance) toilet with touchless flush
Nominal Dimensions: 30-3/4 in x 15-3/4 in x 30-3/4 in (781 mm x 400 mm x 781 mm)
Description
Net Weight
SKU
Color
List Price USD
Studio® Activate® Two-Piece Concealed Trapway 1.28 gpf/4.8 Lpf Chair Height Elongated Toilet
1 lb (0.4 kg)
White (020)
0
Separate Components
Studio® Skirted Chair Height Elongated Bowl With Seat
73 lb (33.1 kg)
White
562
spacer
Studio Activate Tank
29 lb (13.4 kg)
White
238
spacer
Telescoping Slow-Close Easy Lift-Off Elongated Toilet Seat
4 lb (2.0 kg)
White
155
spacer
Studio 12-Inch Rough Tank Cover
7 lb (3.3 kg)
White
77
Substitutions
Studio® Skirted Two-Piece Dual Flush 1.6 gpf/6.0 Lpf and 1.1 gpf/4.2 Lpf Chair Height Elongated Toilet With Seat
1 lb (0.4 kg)
White
727


Models marked with * are discontinued, but product may still be available while supplies last.
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Front to Back Length: 16-1/2
Bowl Included: Yes
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Toilets
CEC Certified: Yes
Chair Height: Chair
Color / Finish: White
Collections: Studio
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Gravity Fed
Flush Valve Size: 3
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.28 GPF
MAP Performance Rating: 1000
Number of Flush Valves: 1
Height: 30-3/4
Length: 30-3/4
Length: 30-3/4
Width: 15-3/4
Residential or Commercial: Residential
Rough In Size: 12
Subcategory: Floor Standing Toilets
Tank Included: Yes
Trip Lever Location: Left Side
Toilet Water Efficiency: Hight Efficiency Toilet
Toilet Mount Type: Floor Mount
Seat Included: Yes
Trapway Diameter: 2.125
Toilet Type: Two Piece
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
