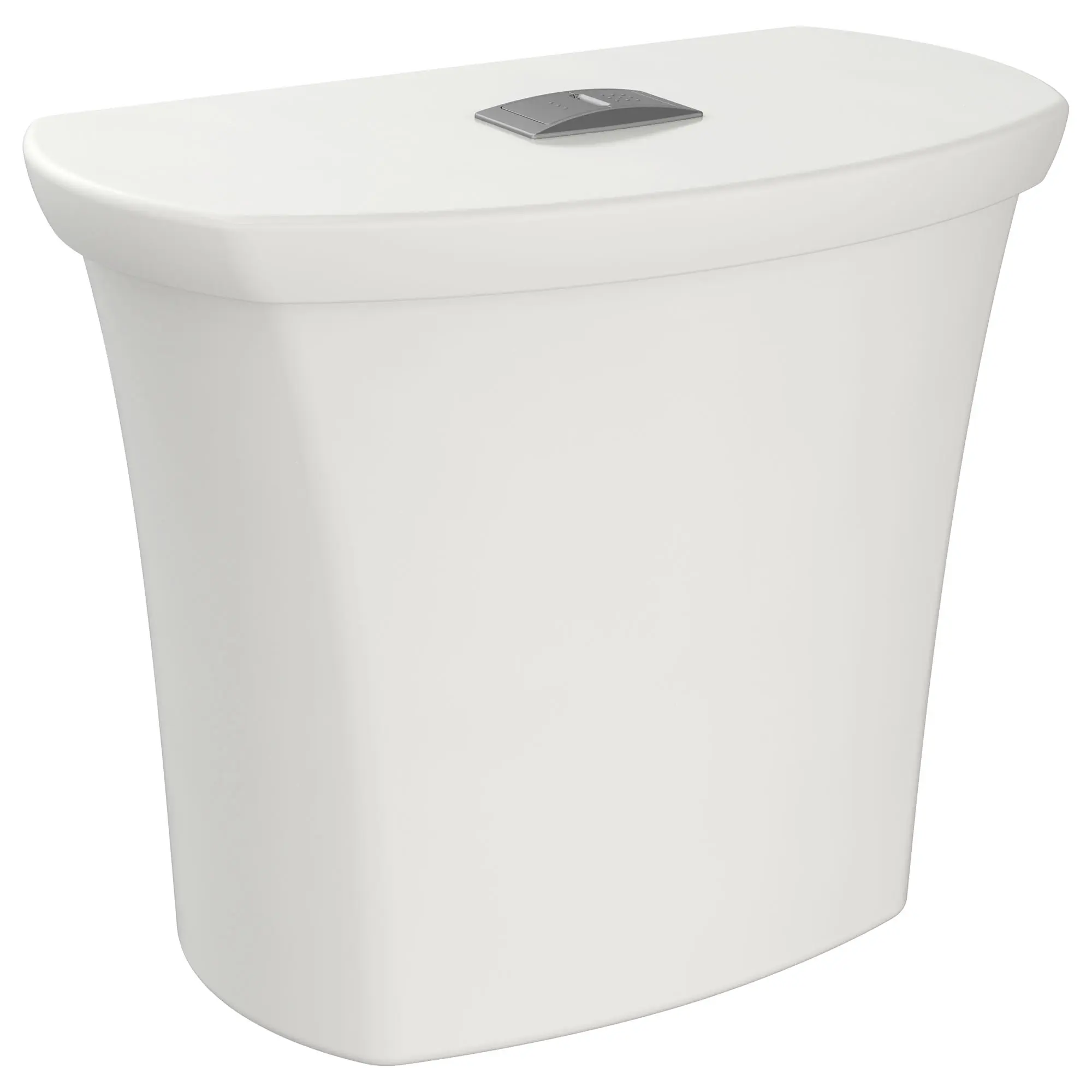

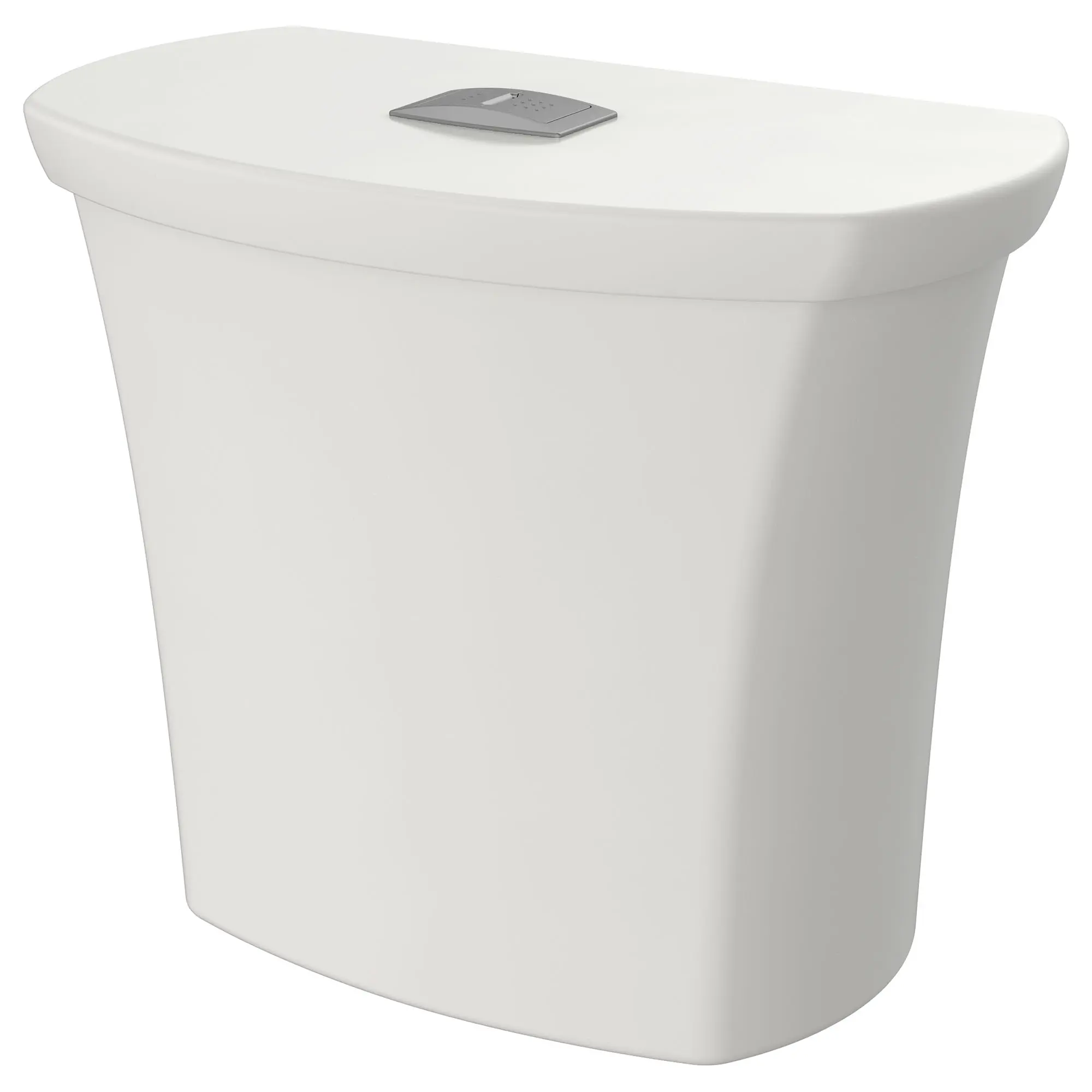

Edgemere® Dual Flush 1.6 gpf/6.0 Lpf and 1.1 gpf/4.2 Lpf 12 in. Rough Tank

The Edgemere Dual Flush 12-Inch Rough-In Tank from American Standard lends classic elegance to the bathroom. Defined by soft angles, this design ensures comfort, style, and superior performance. At the press of a button, the dual flush toilet allows you to activate a partial flush of 1.1 gpf or a full flush of 1.6 gpf, using 31% less water than a standard toilet. Coordinates beautifully with the entire Edgemere Collection.

White 4519A200.020 DISCONTINUED   Substitution Available (4519A203.020)
List Price: $179.00
CEC Certified Enjoy More Rewards Everclean USMCA Compliant Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Combination bowl and tank, less seat
  • 12" (305 mm) rough-in
  • High efficiency, low consumption, full flush (1.6 gpf/6.0 Lpf), conserving flush (1.1 gpf/4.2 Lpf)
  • Meets EPA WaterSense® criteria
  • PowerWash® rim scrubs bowl with each flush
  • Chrome top-of-tank push button actuator
  • Includes EZ-Install Tools
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • 16-1/2" (419 mm) rim height for accessible application
  • 2" (51 mm) fully glazed trapway,9" x 8" (229 x 203 mm) water surface area,Design coordinates with Edgemere® suite
Technical Features
  • Siphon action jet
  • Dual Flush Tank
  • 12" (305mm) rough-in
  • High efficiency, low consumption: Full Flush 1.6gpf/6.0Lpf, Conserving Flush 1.1 gpf/4.1Lpf
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • Limited Lifetime Warranty
Nominal Dimensions: 17 in x 8-1/2 in x 13-9/16 in (432 mm x 216 mm x 344 mm)
Description
Net Weight
SKU
Color
List Price USD
Edgemere® Dual Flush 1.6 gpf/6.0 Lpf and 1.1 gpf/4.2 Lpf 12 in. Rough Tank
27 lb (12.4 kg)
4519A200.020
White (020)
179
Substitutions
Edgemere® Dual Flush 1.28 gpf/4.8 Lpf and 1.0 gpf/3.8 Lpf 12 in. Rough Tank
27 lb (12.4 kg)
4519A203.020
White
179

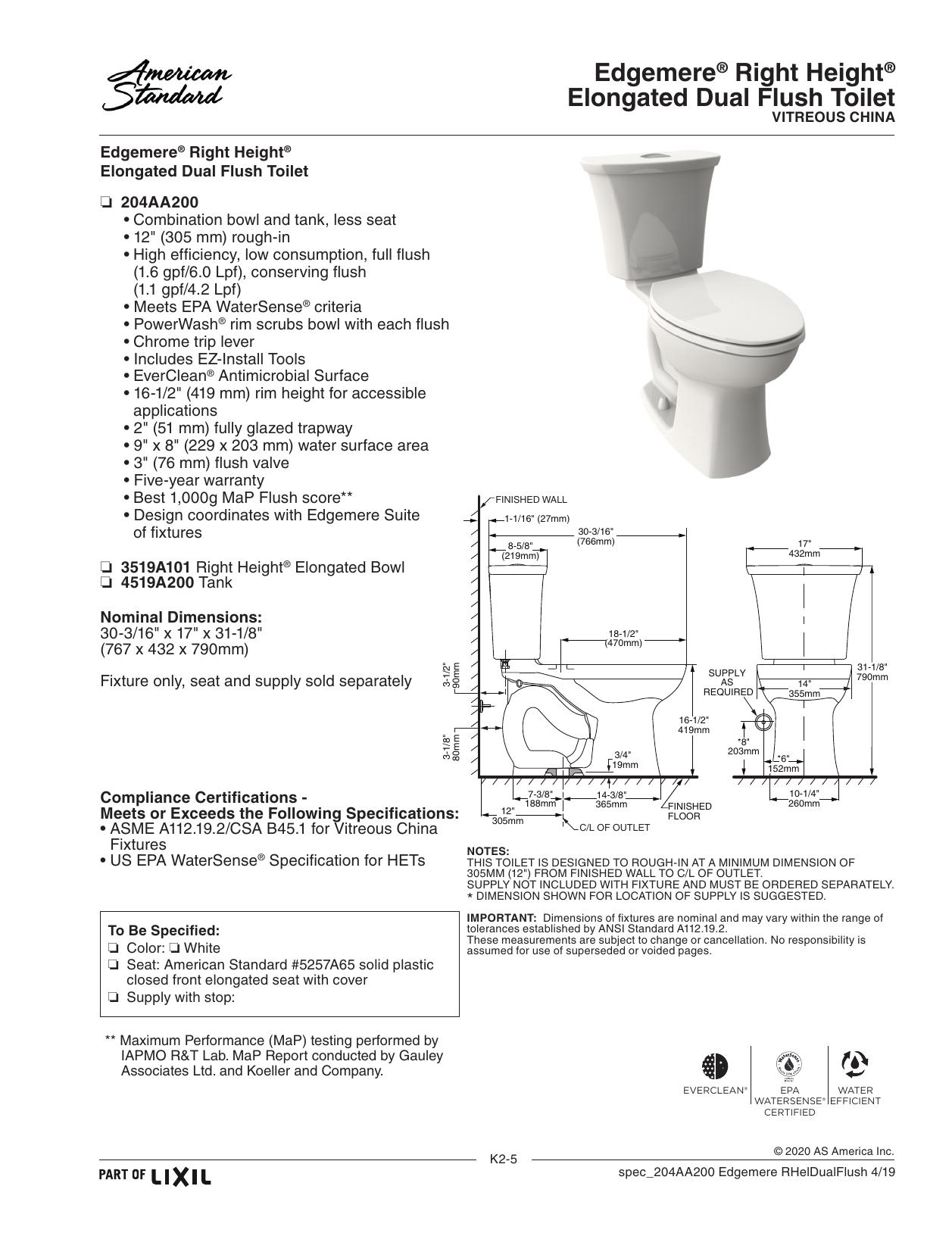

Download Specification Sheet
Brand: American Standard
Category: Toilets
CEC Certified: Yes
Color / Finish: White
Collections: Edgemere
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Dual Flush
Flush Valve Size: 2
Flusing Type: Dual Flush
Gallons Per Flush (min-max): 1.1 - 1.6 GPF
Handle Finish: CHROME
Number of Flush Valves: 1
Number of Flush Valves: 1
Height: 13-9/16
Length: 17
Length: 17
Width: 8-1/2
Residential or Commercial: Residential
Subcategory: Floor Standing Toilets
Trip Lever Location: Top
Dual Flush: Yes
Toilet Mount Type: Floor Mount
Toilet Type: Tank Only
USMCA Compliant: Yes
Warranty: Limited Lifetime Residential; 10 Year Commercial
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
There are no design files currently available for this product
There are no videos currently available for this product
3D Objects are not currently available for this product
