Flowise

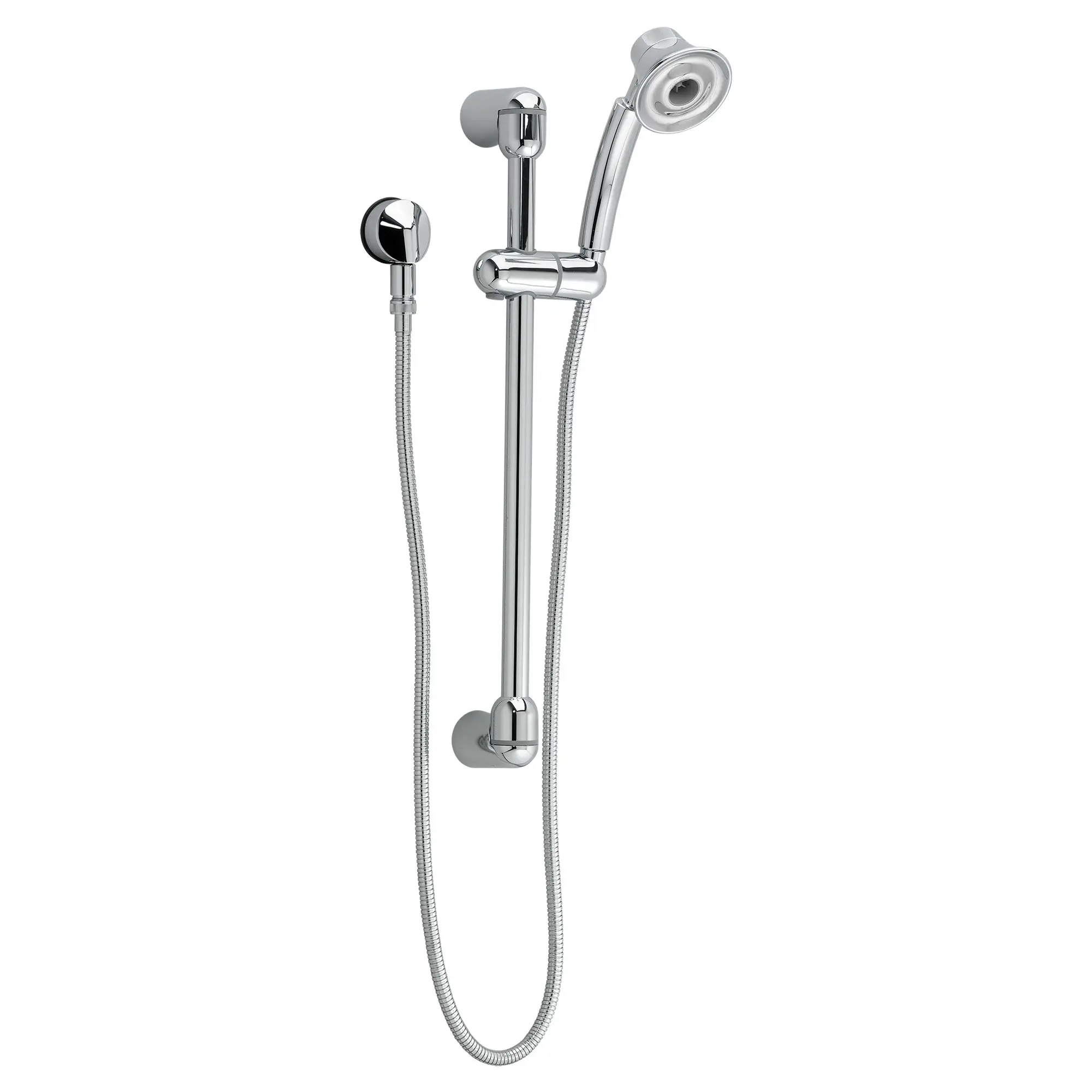

FloWise Water Saving Shower System Kit

Saving water never goes out of style. The FloWise® Transitional single-function handshower delivers an invigorating shower using 40% less water. The kit complements bathrooms with casual décor and includes a matching 59"" shower hose, wall supply and a 25"" Standard slide bar so you can position the handshower just right.

Chrome 1662741.002 DISCONTINUED   Substitution Available (1662743.002)
List Price: $228.00
Cal Green CEC Certified WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Water Saving: Saves 40% in water usage.
  • Pressure Compensating Flow Control Device: Provides consistent flow over a wide pressure range
  • Single Function: Hand Shower provides drenching spray for full coverage of the user
  • Complete personal shower system includes: a wall supply with 1/2" NPT female inlet, 1/2" NPSM male outlet; a 59" (1500mm) shower hose; a FloWise Water Saving hand shower; and a 25" slide bar
  • Hand shower uses 40% less water than standard 2.5gpm hand showers
  • Hand shower rated at 1.5gpm/5.7L/min. maximum flow rate
  • Hand shower has single spray function using Turbine Technology
  • Pressure compensating flow control device
  • Slide bar features an adjustable shower holder which can be set at any height or position along the bar and angle up to 45%
Technical Features
  • Water Saving: Saves 40% in water usage.
  • Pressure Compensating Flow Control Device: Provides consistent flow over a wide pressure range
  • Single Function: Hand Shower provides drenching spray for full coverage of the user
  • Complete personal shower system includes: a wall supply with 1/2" NPT female inlet, 1/2" NPSM male outlet; a 59" (1500mm) shower hose; a FloWise Water Saving hand shower; and a 25" slide bar
  • Hand shower uses 40% less water than standard 2.5gpm hand showers
  • Hand shower rated at 1.5gpm/5.7L/min. maximum flow rate
  • Hand shower has single spray function using Turbine Technology
  • Pressure compensating flow control device
  • Slide bar features an adjustable shower holder which can be set at any height or position along the bar and angle up to 45%
Description
Net Weight
SKU
Color
List Price USD
FloWise Water Saving Shower System Kit
3 lb (1.4 kg)
1662741.002 *
Chrome (002)
228
Substitutions
FloWise 25-In. 3-Function 2.0 GPM Shower System
5 lb (2.1 kg)
1662743.002 *
Chrome
353


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Brand: American Standard
Cal Green: Yes
Category: Shower Systems Retrofits, Slide Bar Kit
CEC Certified: Yes
Color / Finish: Chrome
Collections: Flowise
WaterSense: Yes
Fitting Connection Size Input: 1/2
Residential or Commercial: Residential
Number of Showerheads: 1
Number of Spray Settings: 1
Shower Bar Installation: Direct to stud
Shower Bar Length: 600.07
Subcategory: Slide Bar Kit Shower Systems
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
