Universal

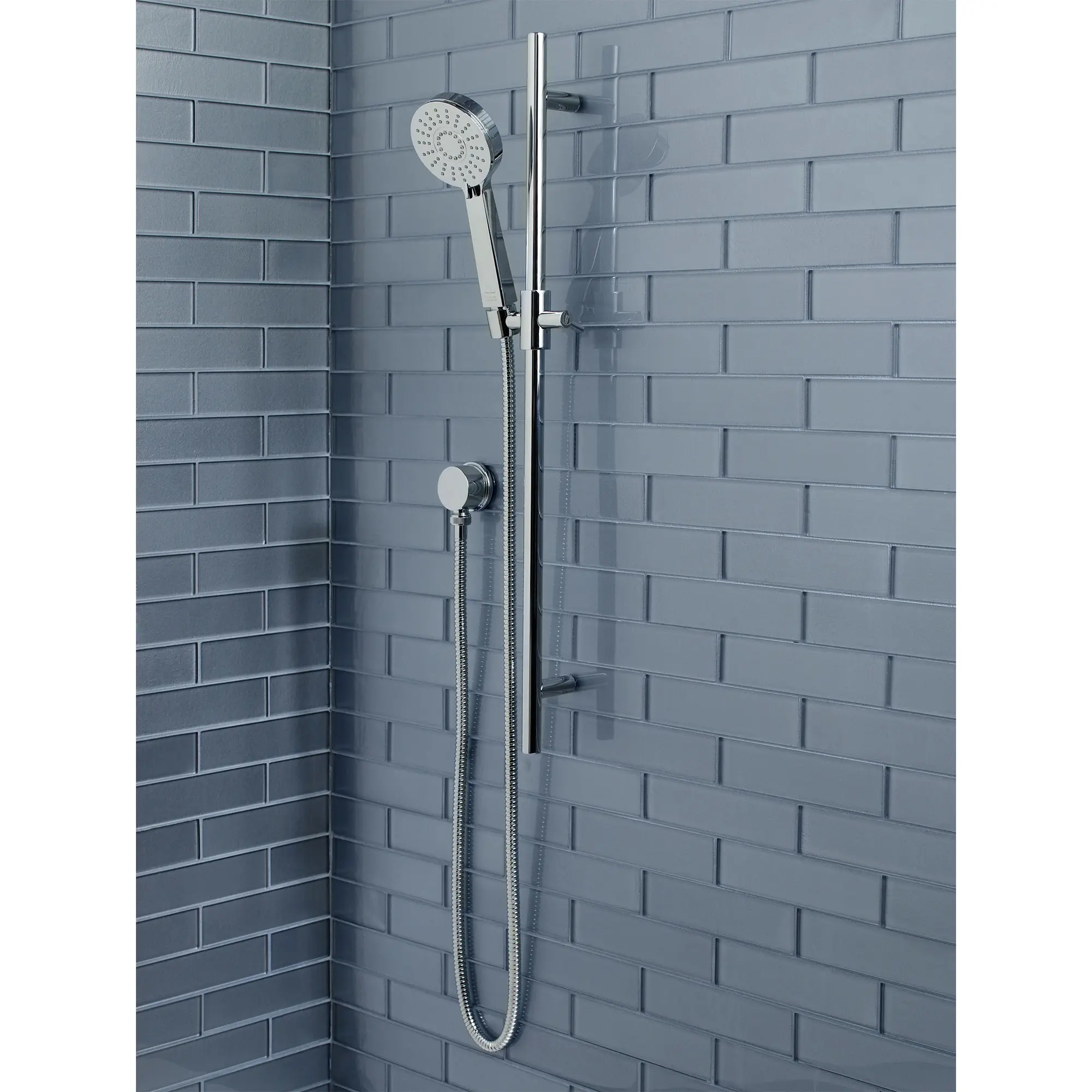

30-In. 3-Function 2.0 GPM Round Shower System Kit

This complete shower system kit includes a matching water-saving three-function handshower, 59" shower hose, wall supply and a 30" Round Slide Bar.Complete shower system kit includes:  A wall supply with 1/2" NPT female inlet, 1/2" NPSM male outlet; a 59" (1500mm) shower hose. A water saving hand shower; and a 30" Standard Slide Bar.  Hand shower adjusts from full spray to full/massage combination to pulsating massage. Spray pattern can be changed with the flick of the thumb. 2.0 gpm/7.6L/min. flow restrictor.  Adjustable shower holder can be set at any height or position along the bar and angle up to 45¢ª.  Kit includes double check valves to prevent cross flow of hot and cold water.Sustainability CEC Listed  CALGreen Compliant

Chrome 1662801.002 DISCONTINUED   Substitution Available (1662647.002)
List Price: $290.00
Cal Green CEC Certified WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • A wall supply with 1/2" NPT female inlet, 1/2" NPSM male outlet; a 59" (1500mm) shower hose
  • A water saving hand shower; and a 30" Standard Slide Bar
  • Hand shower adjusts from full spray to full/massage combination to pulsating massage. Spray pattern can be changed with the flick of the thumb. 2.0 gpm/7.6L/min. flow restrictor
  • Adjustable shower holder can be set at any height or position along the bar and angle up to 45
  • Kit includes double check valves to prevent cross flow of hot and cold water
  • 3-function hand shower
  • 4" (102 mm) diameter
  • 2.0 gpm/7.6 Lpm maximum flow rate
Technical Features
  • A wall supply with 1/2" NPT female inlet, 1/2" NPSM male outlet; a 59" (1500mm) shower hose
  • A water saving hand shower; and a 30" Standard Slide Bar
  • Hand shower adjusts from full spray to full/massage combination to pulsating massage. Spray pattern can be changed with the flick of the thumb. 2.0 gpm/7.6L/min. flow restrictor
  • Adjustable shower holder can be set at any height or position along the bar and angle up to 45
  • Kit includes double check valves to prevent cross flow of hot and cold water
  • 3-function hand shower
  • 4" (102 mm) diameter
  • 2.0 gpm/7.6 Lpm maximum flow rate
Description
Net Weight
SKU
Color
List Price USD
30-In. 3-Function 2.0 GPM Round Shower System Kit
5 lb (2.3 kg)
1662801.002 *
Chrome (002)
290
Substitutions
30-Inch 1.8 gpm/6.8 L/min 3-Function Slide Bar Kit
5 lb (2.3 kg)
1662647.002
Chrome
368


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Brand: American Standard
Cal Green: Yes
Category: Shower Systems Retrofits, Slide Bar Kit
CEC Certified: Yes
Color / Finish: Chrome
Collections: Universal
WaterSense: Yes
Fitting Connection Size Input: 1/2
Gallons Per Minute (min-max): 2 - 2.0 GPM
Residential or Commercial: Residential
Number of Showerheads: 1
Number of Spray Settings: 3
Shower Bar Installation: Direct to stud
Shower Bar Length: 762.00
Subcategory: Slide Bar Kit Shower Systems
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions
