5-Func

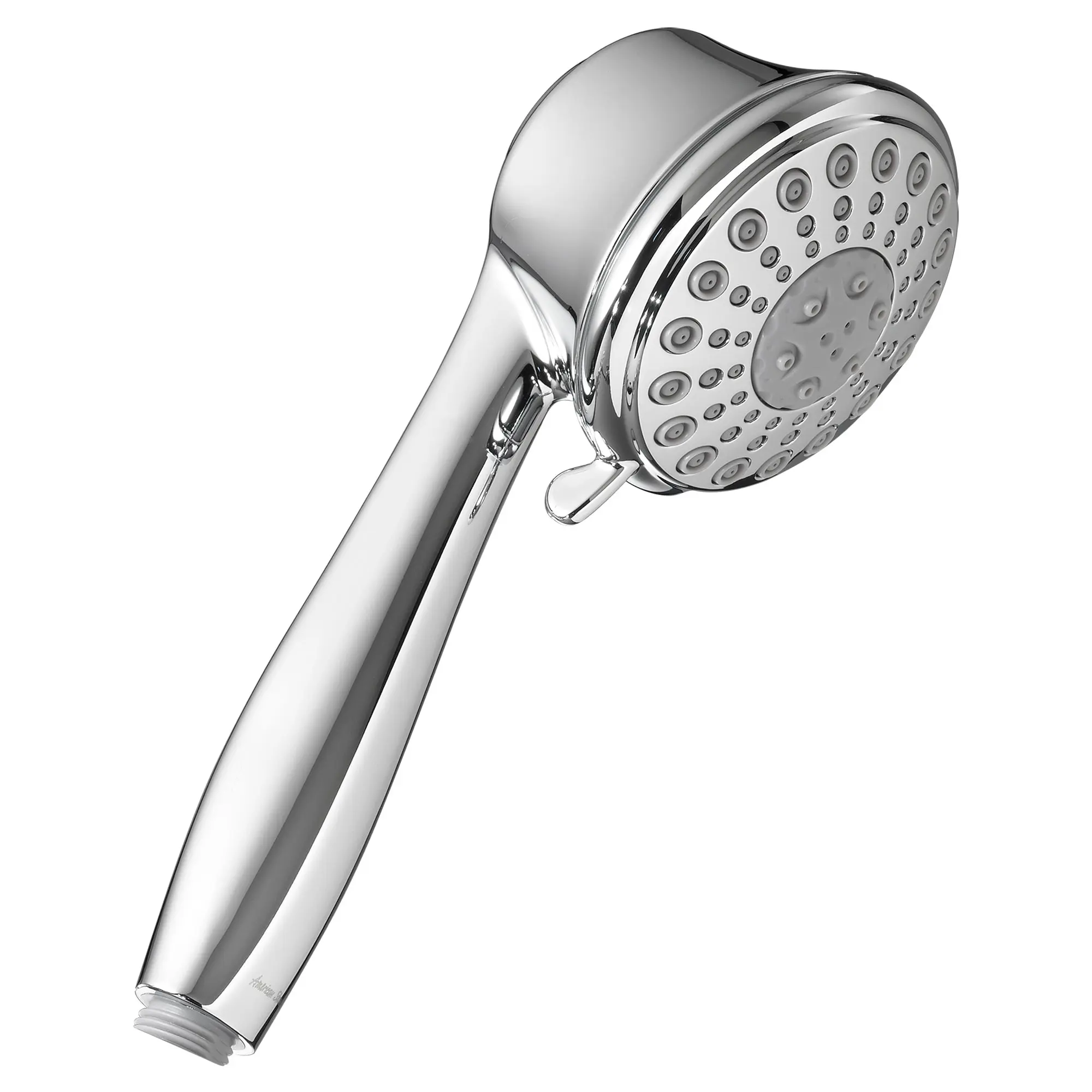

Traditional 2.5 gpm/9.5 L/min 5-Function Hand Shower

A smarter approach to showering. This stylish multi-function showerhead goes well with traditional and casual bathrooms. Choose the spray that suits your mood: full spray, full spray/massage combo, pulsating massage, massage/mist or power mist. 5-Function hand shower Spray pattern adjusts from full spray to full/massage combination (1) to pulsating massage to massage/mist combination (2) to power mist  Includes pressure compensating flow control device Includes check valve to prevent cross flow of hot and cold water Easy clean spray nozzles. 2.5gpm/9.5L/min. maximum flow rate.

Chrome 1660627.002 DISCONTINUED   Substitution Available (1660142.002)
List Price: $106.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • 5-Function hand shower
  • Spray pattern adjusts from full spray to full/massage combination (1) to pulsating massage to massage/mist combination (2) to power mist
  • Includes pressure compensating flow control device
  • Includes check valve to prevent cross flow of hot and cold water
  • Easy clean spray nozzles
  • 2.5gpm/9.5L/min. maximum flow rate
  • 4-3/4" (121 mm) face diameter
  • Hand shower only – Requires hose and wall connection
Technical Features
  • Hand shower only - requires hose and wall connection
  • Variable spray adjusts from a full spray to full/massage to pulsating massage to massage/mist combination to power mist
  • Pressure-compensating flow control device
  • Easy to clean spray face
  • 4-3/4" (121 mm face diameter
  • Includes check valve
  • 2.5 gpm/9.5 Lpm maximum flow rate
  • 5-Function hand shower
  • Spray pattern adjusts from full spray to full/massage combination (1) to pulsating massage to massage/mist combination (2) to power mist
  • Includes pressure compensating flow control device
Nominal Dimensions: 3.1 in x 3.8 in x 9.7 in (79 mm x 97 mm x 246 mm)
Description
Net Weight
SKU
Color
List Price USD
Traditional 2.5 gpm/9.5 L/min 5-Function Hand Shower
1 lb (0.5 kg)
1660627.002 *
Chrome (002)
106
1660627.295 *
Brushed Nickel (295)
144
Substitutions
Delancey 1.8 gpm/6.8 L/min Single Function Water-Saving Hand Shower
0 lb (0.1 kg)
1660142.002
Chrome
117


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Brand: American Standard
Category: Showers Head Hand Side
Color / Finish: Chrome
Collections: 5-Func
Fitting Connection Size Input: 12.70
Gallons Per Minute (min-max): 2.5 GPM
Height: 9.7
Length: 3.1
Width: 3.8
Residential or Commercial: Residential
Number of Spray Settings: 5
Spary Patterns: Full, Massage, Pulsating Massage, Combination, Power Mist
Subcategory: Hand Shower
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

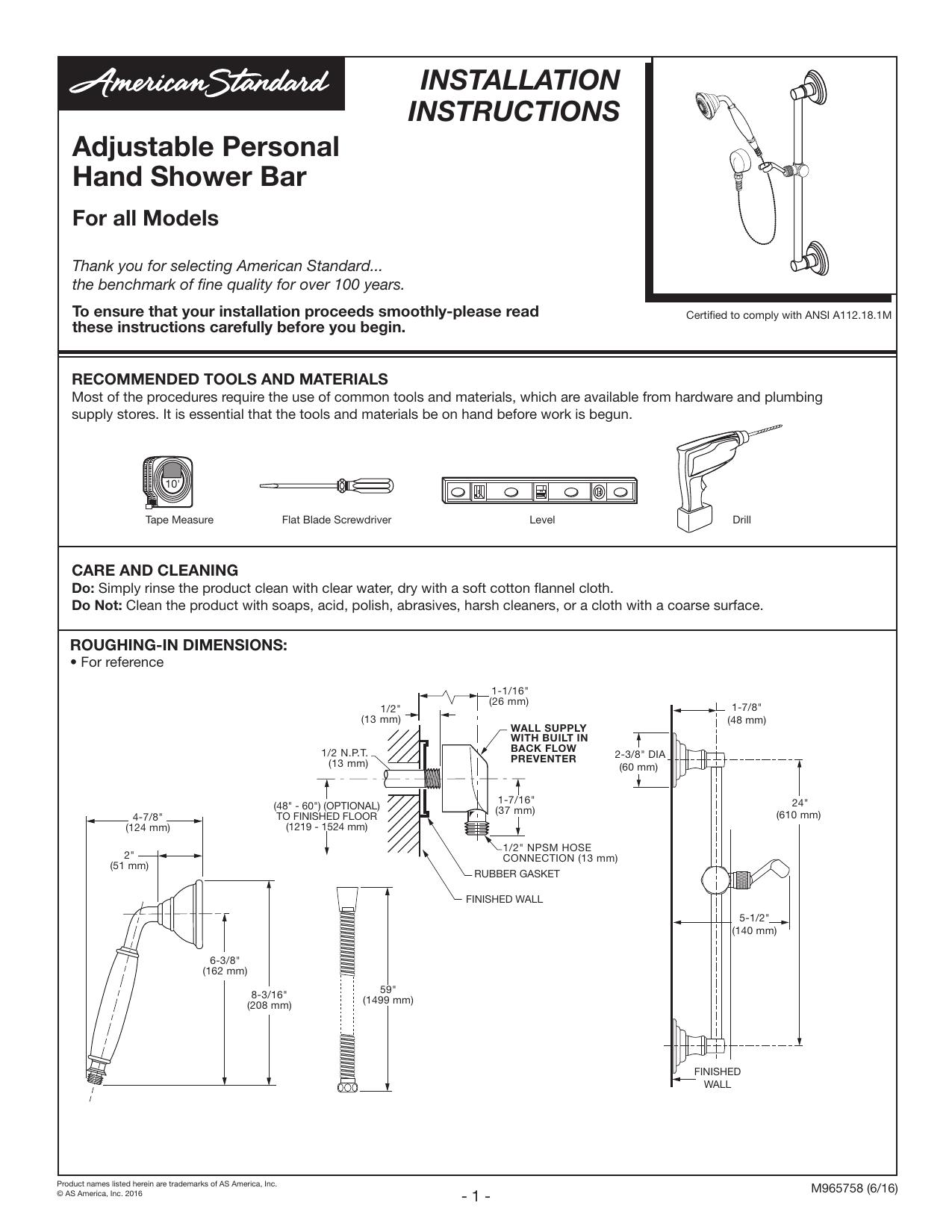

Installation Instructions
