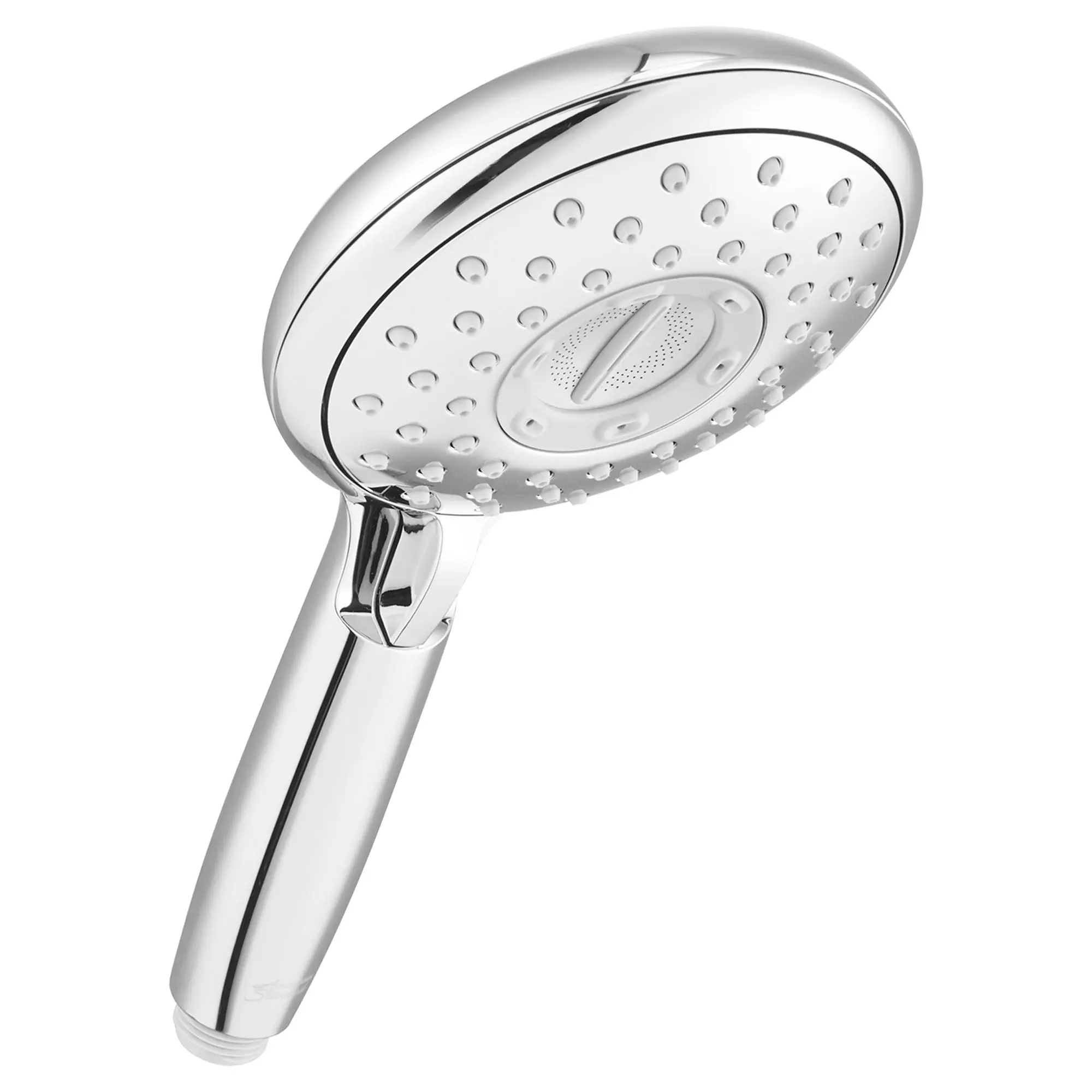

Spectra® Handheld 1.8 gpm/6.8 L/min 5-Inch 4-Function Hand Shower

The Spectra+ Handheld™ 4-function hand shower from American Standard has all the functionality of a stable shower head, with the convenience of a hand shower. The Spectra+ hand shower allows each user to select from either a Drench, Sensitive, Powerwash™, and Massage setting for a custom shower experience that will maximize your relaxation and showering experience.

Chrome 9038154.002 DISCONTINUED
List Price: $113.00
Cal Green CEC Certified Enjoy More Rewards Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Includes four separate spray functions
  • AquaToggle easily changes sprays
  • Drench provides a soaking spray with full body coverage
  • Sensitive is a fine spray that is soft and gentle on the skin
  • Powerwash® provides powerful, sweeping coverage to help make cleaning the shower and tub easy
  • Massage brings a pulsating spray to help you unwind and relax
  • 1.8 gpm flow rate
  • Watersense
  • CEC
Technical Features
  • Hand shower only - requires hose and wall connection
  • 5" (127 mm) easy clean spray face
  • 4-function sprays: drench, sensitive, PowerWash® and massage
  • Pressure-compensating flow control device
  • Includes check valve
  • 1.8 gpm/6.8 L/min maximum flow rate
Nominal Dimensions: 1.6 in x 4.9 in x 10 in (41 mm x 124 mm x 254 mm)
There are no additional components to display for this product
Download Specification Sheet
Brand: American Standard
Cal Green: Yes
Category: Showers Head Hand Side
CEC Certified: Yes
Color / Finish: Chrome
Collections: Spectra
WaterSense: Yes
Height: 10
Height: 10
Length: 1.6
Width: 4.9
Residential or Commercial: Residential
Number of Spray Settings: 4
Spary Patterns: Drench, Sensitive, Powerwash™, Massage
Subcategory: Hand Shower
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions
Download All Design Files
2D CAD Files
.zip icon 2D CAD File
REVIT Files
.rfa icon REVIT File
3D Objects are not currently available for this product
