Spectra

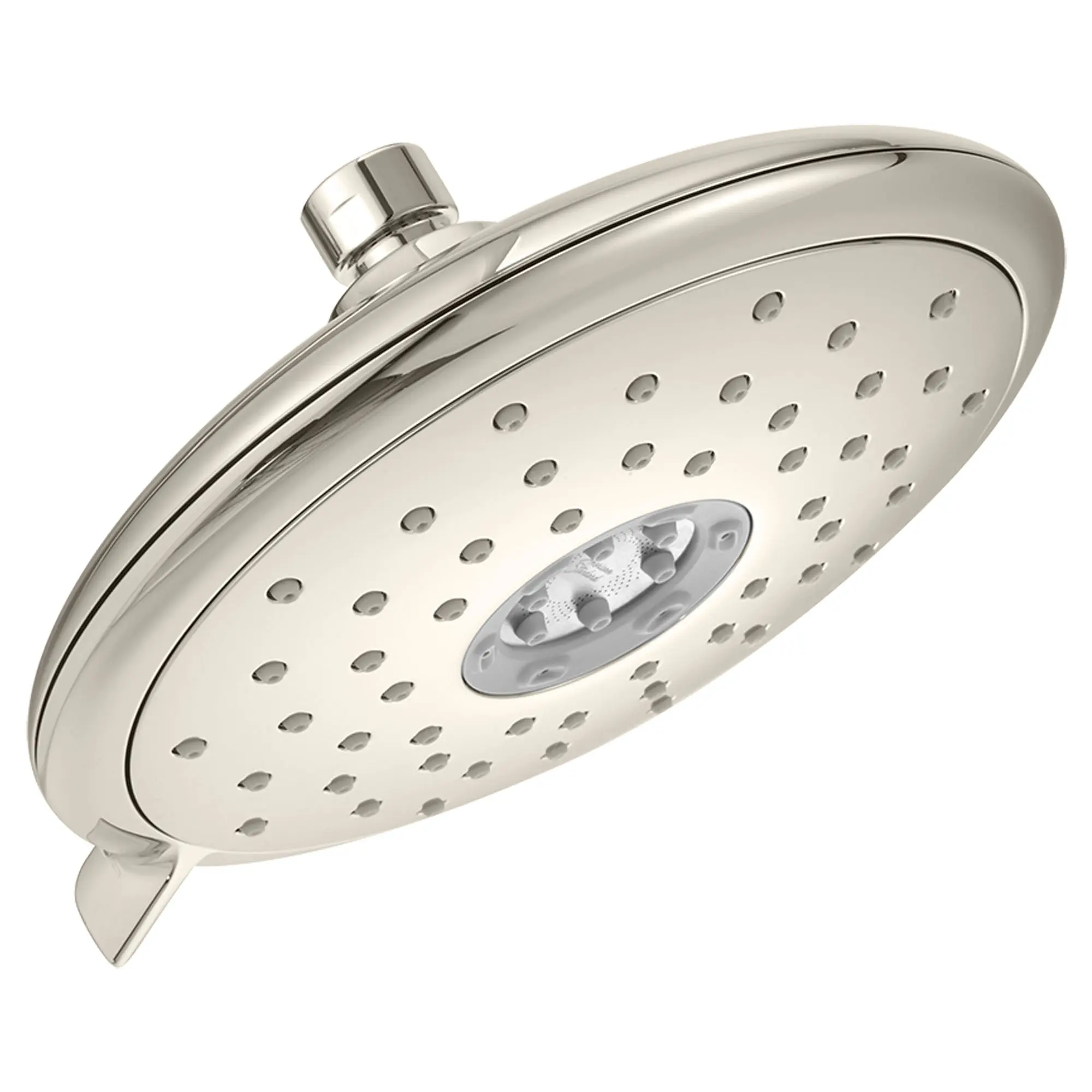

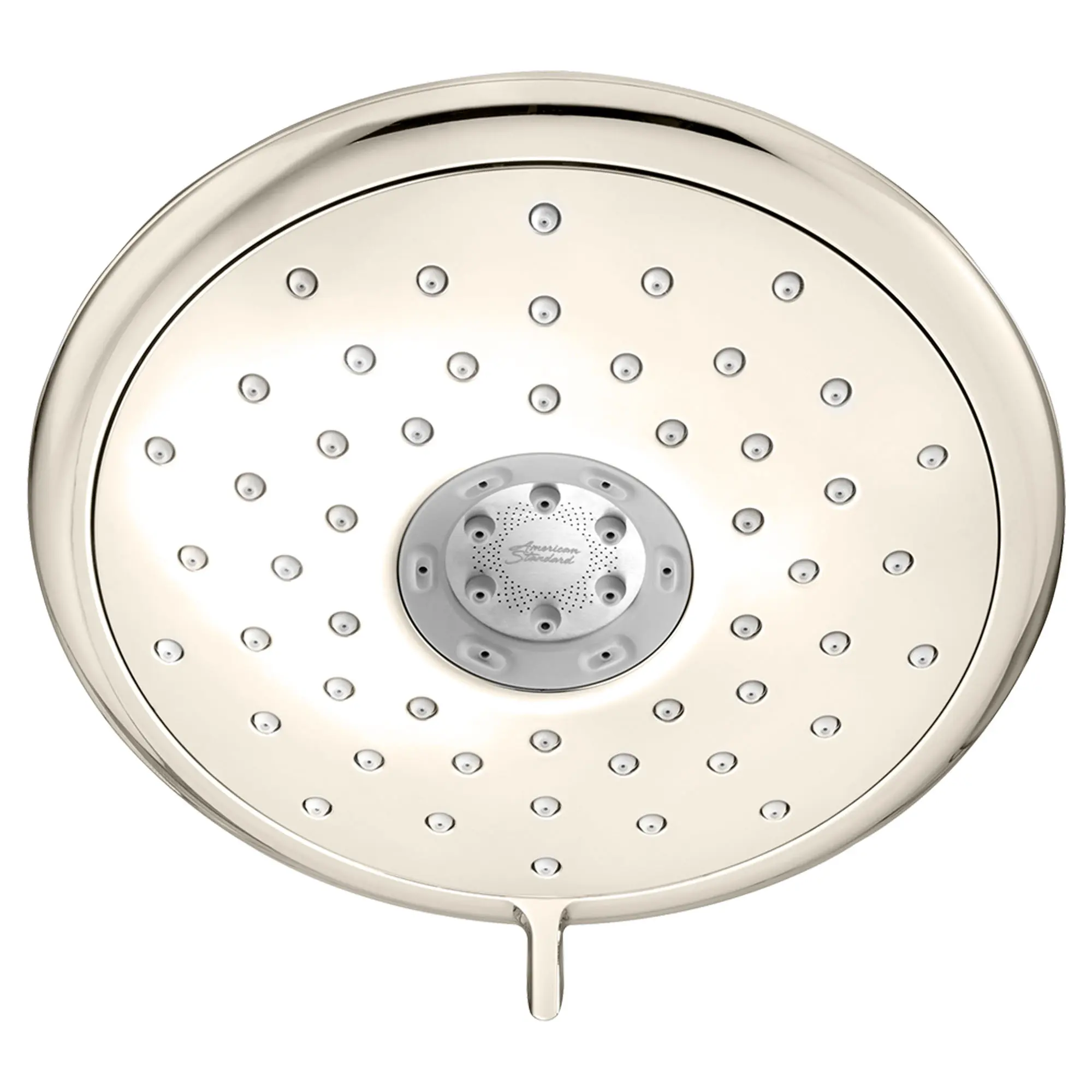

Spectra Fixed 7-Inch 1.8 gpm/6.8 L/min Fixed Showerhead

Find bliss in your next shower, with the Spectra+ Fixed™ 4-function shower head from American Standard. This adjustable shower head has four separate spray options, ensuring that your shower meets the needs of each day, and each person who uses it. With spray patterns for your most gentle and relaxing shower, to an invigorating pulsing massage, the Spectra+ shower head is the perfect option for your bathroom.

Polished Nickel 9038074.013 DISCONTINUED
List Price: $116.00
Cal Green CEC Certified Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Beautiful finishes that are scratch and tarnish resistant
  • Includes four separate spray functions
  • Drench provides a soaking spray with full body coverage
  • Sensitive is a fine spray that is soft and gentle on the skin
  • Jet provides targeted water coverage
  • Massage brings a pulsating spray to help you unwind and relax
  • Pressure compensating flow device provides a consistent flow over a wide pressure range
  • 1.8 gpm flow rate
  • Watersense
  • CEC
Technical Features
  • 7" (178 mm) easy clean showerhead
  • 4-functions adjust from drench to sensitive to jet to massage
  • Pressure-compensating flow control device
  • Showerhead only
  • 1.8 gpm/6.8 L/min maximum flow
  • Limited lifetime warranty
  • Beautiful finishes that are scratch and tarnish resistant
Nominal Dimensions: 3.1 in x 7.1 in x 7.6 in (79 mm x 180 mm x 193 mm)
There are no additional components to display for this product
Download Specification Sheet
Brand: American Standard
Cal Green: Yes
Category: Showers Head Hand Side
CEC Certified: Yes
Color / Finish: Polished Nickel
Collections: Spectra
WaterSense: Yes
Fitting Connection Size Input: 12.70
Shower Shape: Round
Input Connection Type: NPT (National Pipe Tapered Threads)
Height: 7.6
Length: 3.1
Width: 7.1
Residential or Commercial: Residential
Number of Showerheads: 1
Number of Spray Settings: 4
Spary Patterns: Drench, Sensitive, Jet, Massage
Subcategory: Fixed Shower
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions
