Universal

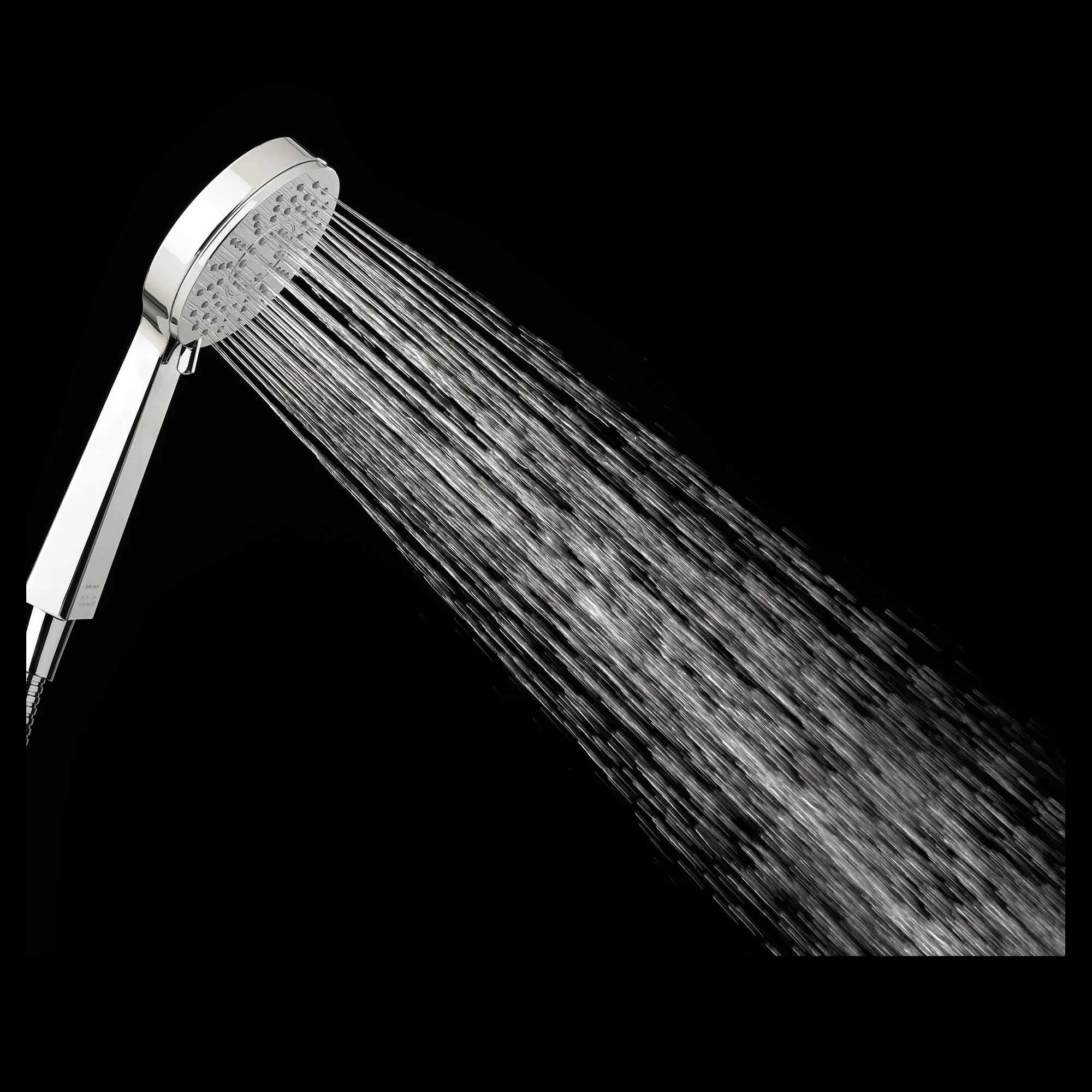

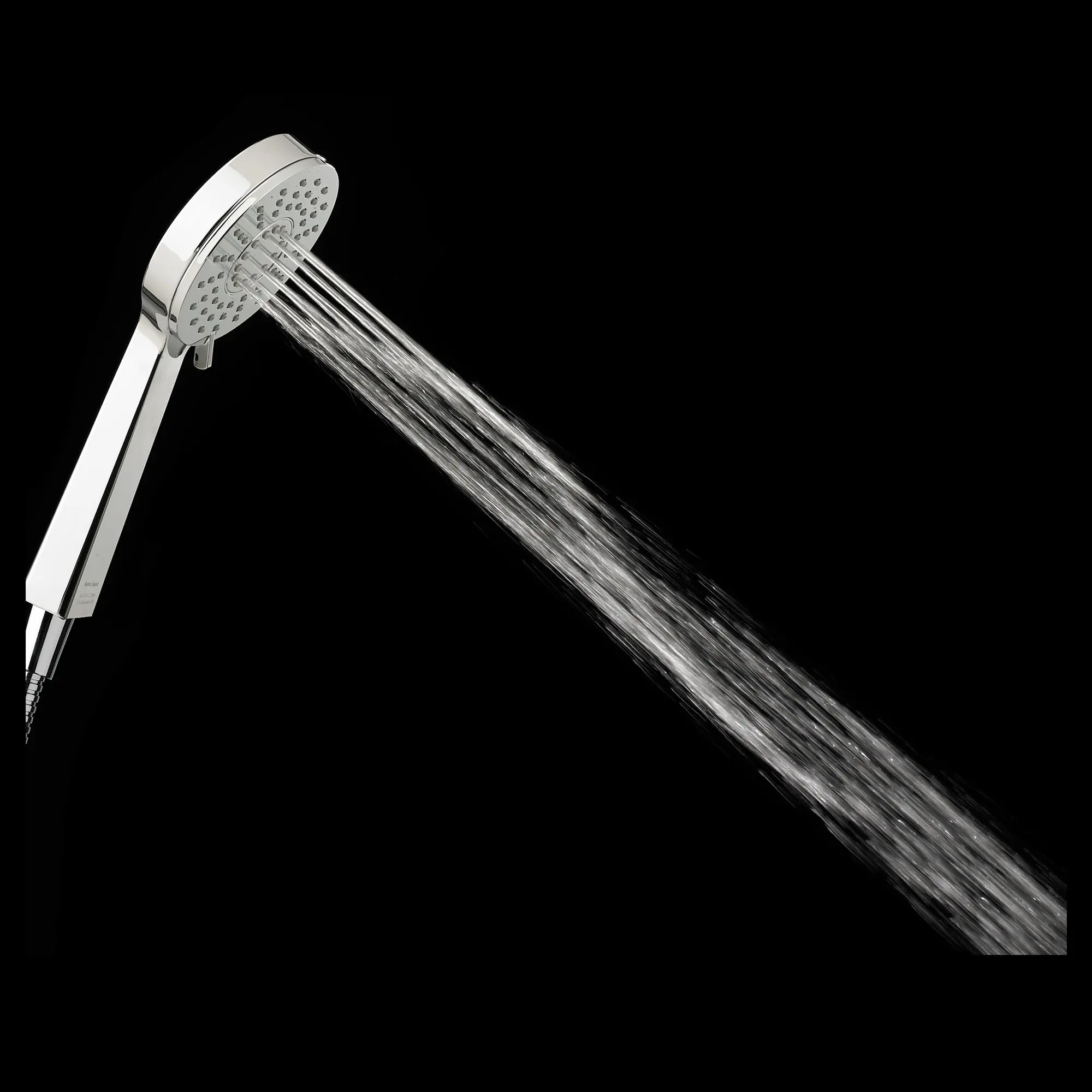

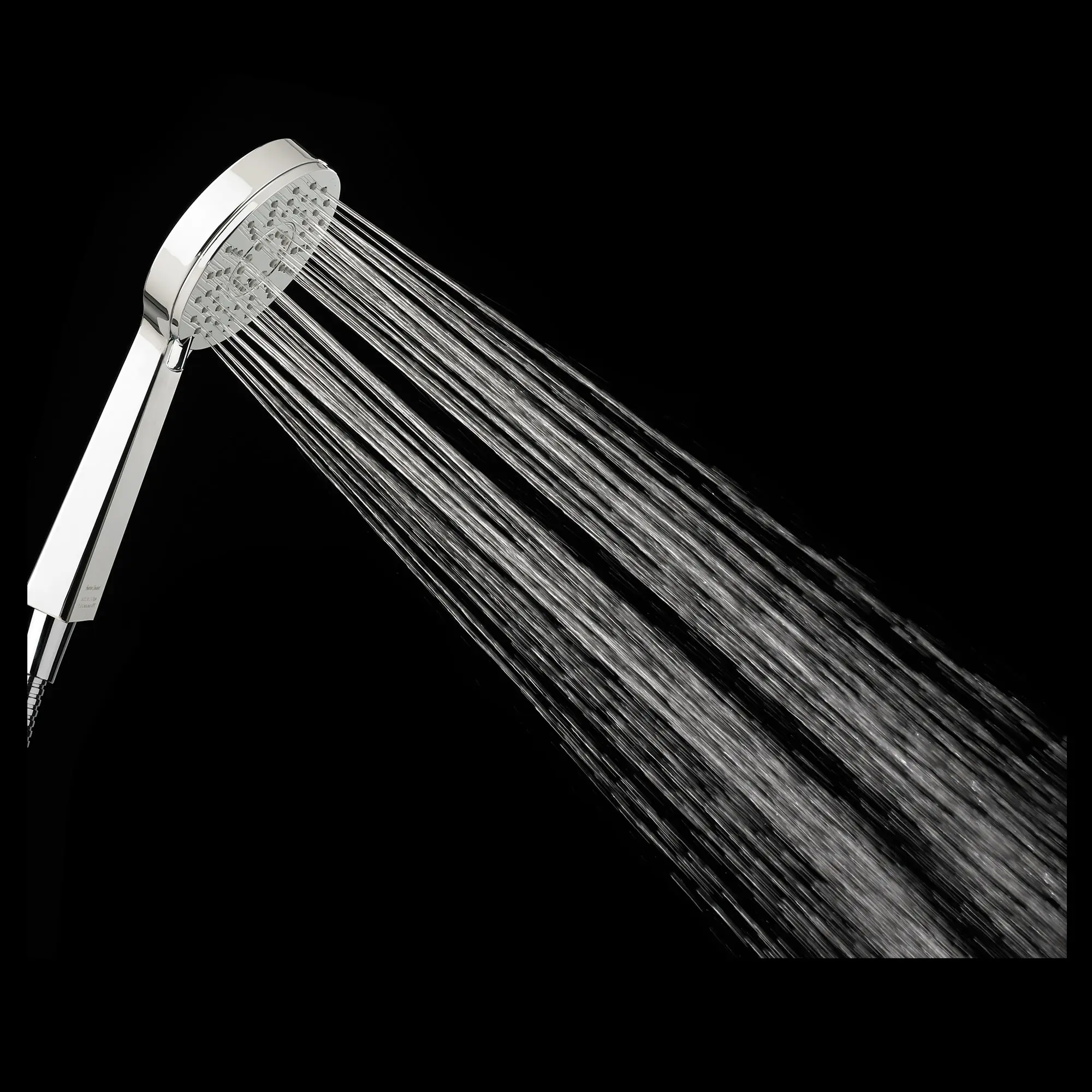

Shower Systems 2.0 GPM/7.6 LPM 3-7/8-in. 3-Function Hand Shower

Attractive in more ways than one. This stylish multi-function handshower goes well with modern and casual bathrooms. Choose the spray that suits your mood: full spray, pulsating massage or a full spray/pulsating massage combination. Hand shower adjusts from full spray to full/massage combination to pulsating massage.  Includes pressure compensating flow control device.  Includes check valve to prevent cross flow of hot and cold water.  Easy clean spray nozzles. 2.0gpm/ 7.6L/min. maximum flow rate.

Chrome 1660144.002 DISCONTINUED
List Price: $55.00
Cal Green WaterSense Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Hand shower adjusts from full spray to full/massage combination to pulsating massage
  • Includes pressure compensating flow control device
  • Includes check valve to prevent cross flow of hot and cold water
  • Easy clean spray nozzles
  • 2.0gpm/ 7.6L/min. maximum flow rate
  • 4" (102 mm) diameter face
  • Variable spray pattern
  • Hand shower only – Requires hose and wall connection
Technical Features
  • Hand shower adjusts from full spray to full/massage combination to pulsating massage
  • Includes pressure compensating flow control device
  • Includes check valve to prevent cross flow of hot and cold water
  • Easy clean spray nozzles
  • 2.0gpm/ 7.6L/min. maximum flow rate
  • 4" (102 mm) diameter face
  • Variable spray pattern
  • Hand shower only – Requires hose and wall connection
Nominal Dimensions: 2.16 in x 3-15/16 in x 9.52 in (55 mm x 100 mm x 242 mm)
Description
Net Weight
SKU
Color
List Price USD
Shower Systems 2.0 GPM/7.6 LPM 3-7/8-in. 3-Function Hand Shower
1 lb (0.4 kg)
1660144.002 *
Chrome (002)
55
1660144.243 *
Matte Black (243)
83
1660144.295
Brushed Nickel (295)
0


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Head Diameter: 3-7/8 in
Head Diameter: 3-7/8
Brand: American Standard
Cal Green: Yes
Category: Showers Head Hand Side
Color / Finish: Chrome
Department of Energy Certified: Yes
Collections: Universal
WaterSense: Yes
Fitting Connection Size Input: 1/2
Gallons Per Minute (min-max): 2 - 2.0 GPM
Input Connection Type: NPT (National Pipe Tapered Threads)
Height: 9.52
Length: 2.16
Width: 3-15/16
Residential or Commercial: Residential
Number of Spray Settings: 3
Spary Patterns: Full, Massage, Mist
Subcategory: Hand Shower
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
