Universal

Modern 3-Function Hand Shower

This complete shower system kit includes a matching water-saving three-function hand shower, 59" shower hose, wall supply and a 30" Round Slide Bar.

Matte Black 1660147.243 DISCONTINUED
List Price: $88.00
WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • A wall supply with 1/2" NPT female inlet, 1/2" NPSM male outlet; a 59" (1500mm) shower hose.
  • A water saving hand shower; and a 30" Standard Slide Bar.
  • Hand shower adjusts from full spray to full/massage combination to pulsating massage. Spray pattern can be changed with the flick of the thumb. 2.0 gpm/7.6L/min. flow restrictor.
  • Adjustable shower holder can be set at any height or position along the bar and angle up to 45¢ª.
  • Kit includes double check valves to prevent cross flow of hot and cold water.
Technical Features
  • Hand shower only – Requires hose and wall connection
  • 4" (102 mm) diameter face
  • Hand shower adjusts from full spray to full/massage combination to pulsating massage.
  • A wall supply with 1/2" NPT female inlet, 1/2" NPSM male outlet; a 59" (1500mm) shower hose.
  • Includes check valve
  • 2.0 gpm/7.6L/min. flow restrictor.
Nominal Dimensions: 2.1 in x 3.9 in x 9.5 in (53 mm x 99 mm x 241 mm)
There are no additional components to display for this product
Brand: American Standard
Category: Showers Head Hand Side
Color / Finish: Matte Black
Collections: Universal
WaterSense: Yes
Gallons Per Minute (min-max): 2.0 GPM
Height: 9.5
Length: 2.1
Width: 3.9
Residential or Commercial: Residential
Corrosion Resistance: Yes
Shower Bar Installation: Wall anchor
Subcategory: Hand Shower
Download All Supporting Documents

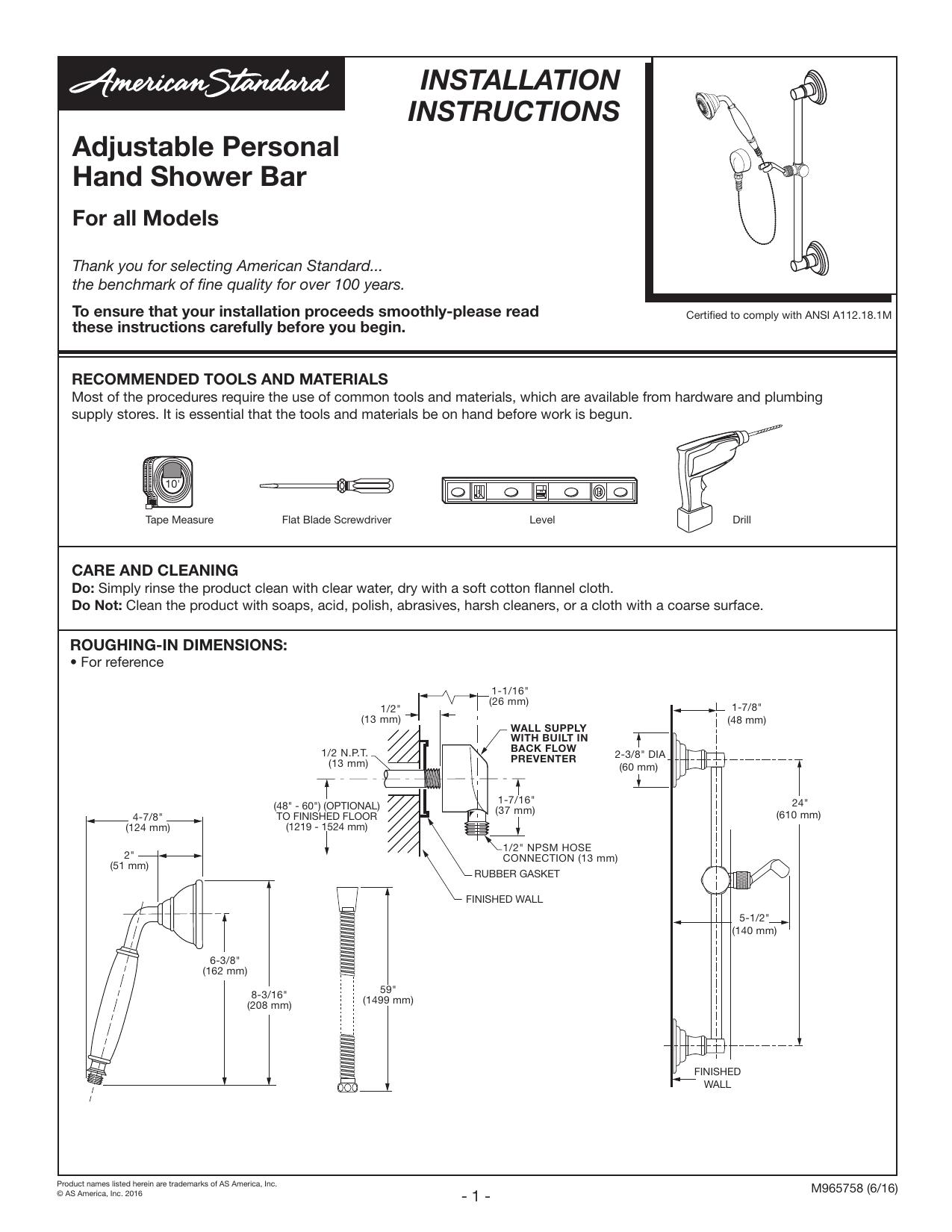

Installation Instructions
