Non Rapido®

2-Hole Wall Mount Faucet Rough-In Valve

No Finish 33780000 DISCONTINUED
List Price: $330.00
Enjoy More Rewards
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • GROHE SilkMove for a lifetime of smooth operation
  • 1/2 in. NPT Female inlets
  • 4-5/16 in. Center to center
  • Cast brass construction
  • Max Flow Rate 2.2 gpm at 60 psi (8.3 L/min); 2.5 gpm at 80 psi (9.5 L/min) for hand shower
Technical Features
  • GROHE SilkMove
  • 1/2" NPT female inlets
  • 4 5/16" Center to center
  • Cast brass construction
  • Optional: Vessel sink pop-up drain (65 818) (sold separately)
  • Max flow rate: 2.2gpm at 60psi (8.3L/min); 2.5gpm at 80psi (9.5L/min) for hand shower
There are no additional components to display for this product
Download Specification Sheet
Brand: GROHE
Category: Rough-ins Concealed Bodies
Color / Finish: No Finish
Department of Energy Certified: Yes
Collections: Non Rapido®
Fitting Connection Size Input: 0-1/2
Fitting Material: Brass
Fixture or Fitting Material: Brass
Input Connection Type: FPT, FNPT or FIP (Female Pipe Thread)
Kitchen or Bathroom: Bath
Number of Input Valves: 1
Number of Output Valves: 1
Output Connection Type: FPT, FNPT or FIP (Female Pipe Thread)
Height: 3-3/8
Width: 6
Residential or Commercial: Residential
Fixed Shower Head: Yes
Subcategory: Lav Faucet Wall Mount Valve Rough in
Valve Input Diameter: 1/2
Valve Output Diameter: 0.5
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

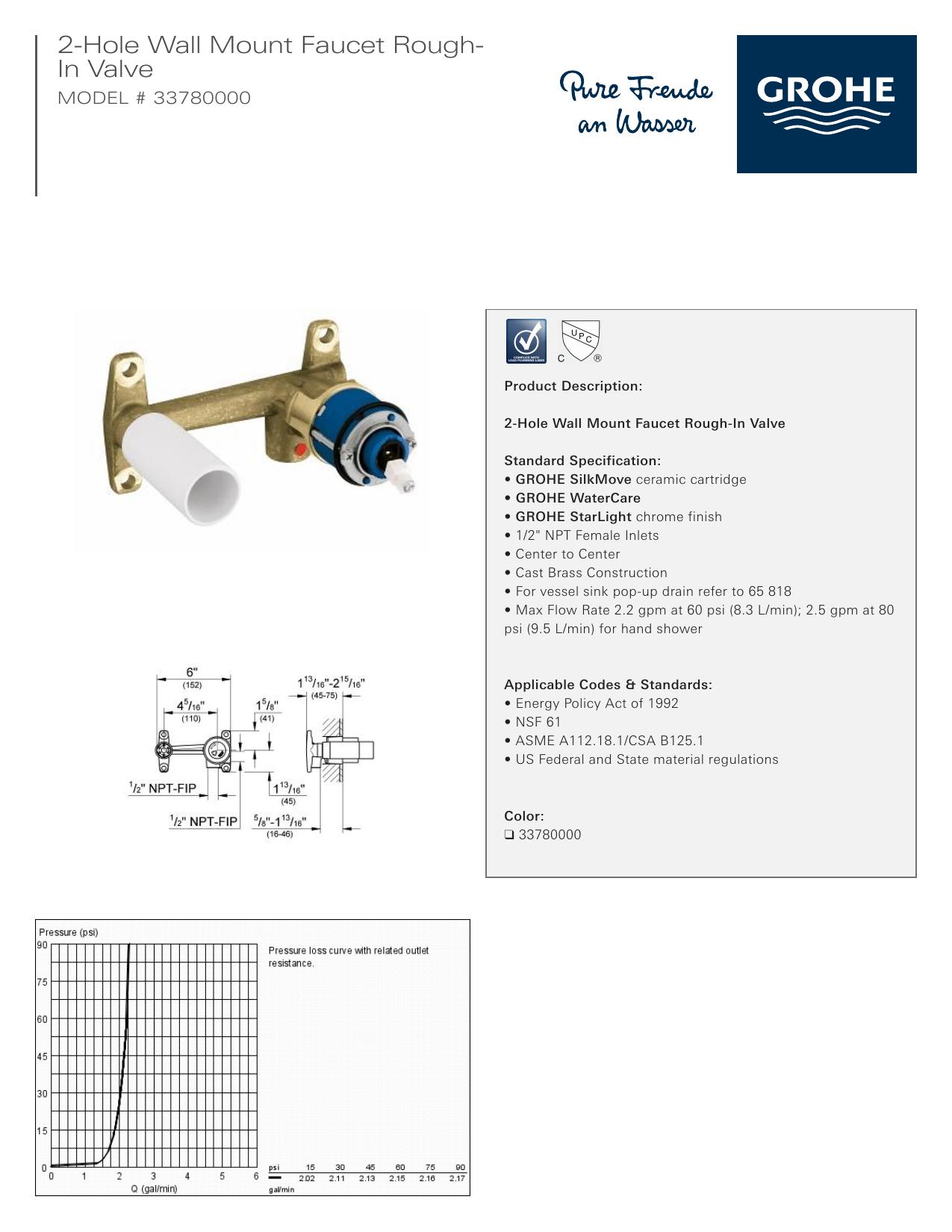

Specification Sheet

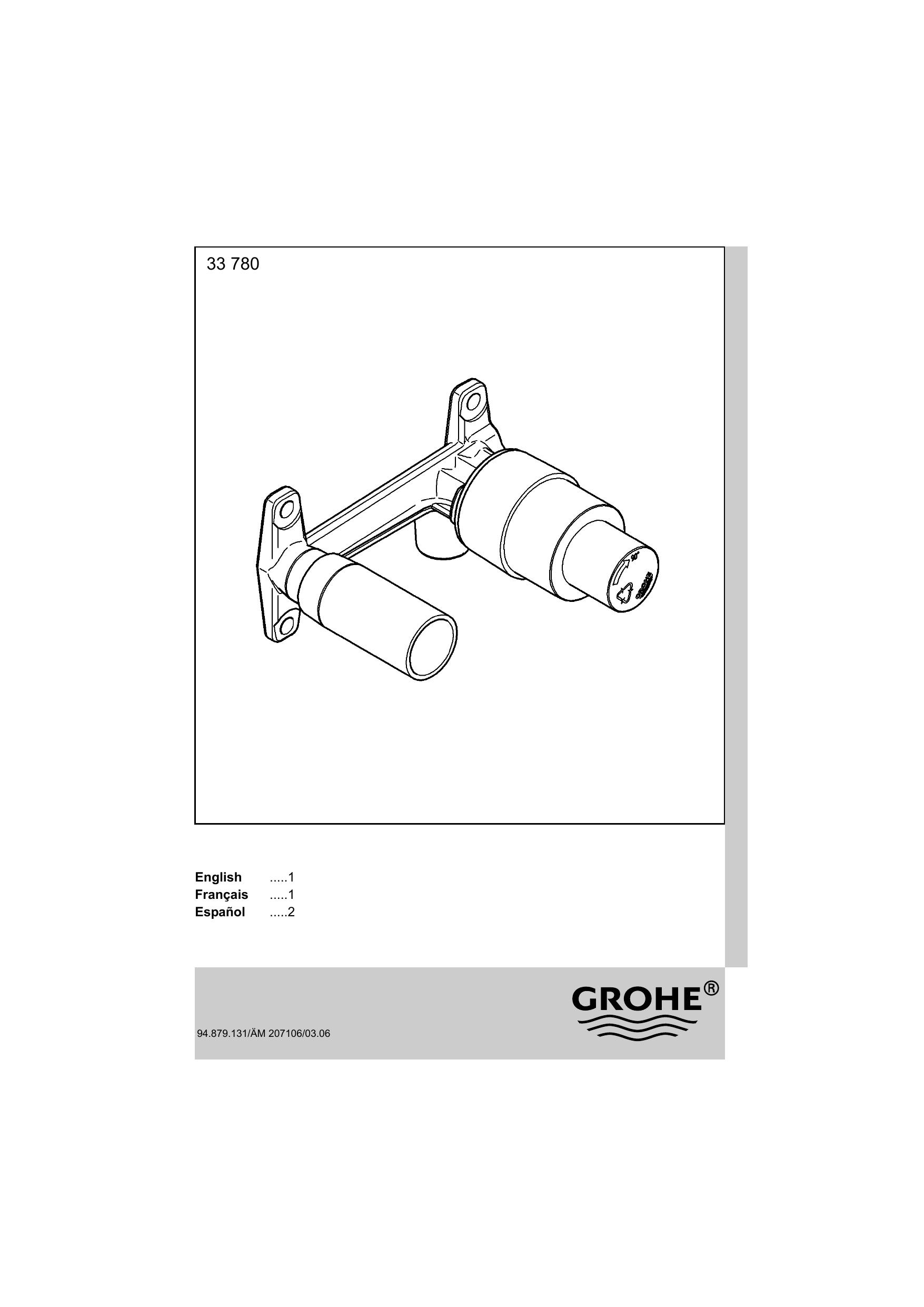

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
.dxf icon 2D CAD File
3D CAD Files
.dxf icon 3D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
