Roughs/Valves

1/2 Inch Thermostatic Wall Rough Valve

Unfinsihed D35000510.191 DISCONTINUED
List Price: $305.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Ceramic disc valve cartridge
  • Cast brass valve body with built-in check stops
  • Adjustable hot limit safety stop
  • Wax thermostatic unit permits shuttle valve to move between the hot and cold seats to maintain the preselected constant water temperature
  • Concealed mounting hardware
  • Maximum Temperature Limit: 112°
Technical Features
  • Ceramic disc valve cartridge
  • Cast brass valve body with built-in check stops
  • Adjustable hot limit safety stop
  • Wax thermostatic unit permits shuttle valve to move between the hot and cold seats to maintain the preselected constant water temperature
  • Concealed mounting hardware
  • Maximum Temperature Limit: 112°
There are no additional components to display for this product
Brand: DXV
Category: Rough-ins Concealed Bodies
Color / Finish: Unfinsihed
Collections: Roughs/Valves
Fitting Connection Size Input: 0-1/2
Input Connection Type: NPT (National Pipe Tapered Threads)
Number of Input Valves: 2
Number of Output Valves: 2
Output Connection Type: NPT (National Pipe Tapered Threads)
Height: 3-3/8
Width: 5-7/8
Residential or Commercial: Residential
Shower Trim Type: Shower
Subcategory: Thermostat Valve Rough in
Valve Input Diameter: 0.5
Valve Output Diameter: 0.5
Download All Supporting Documents

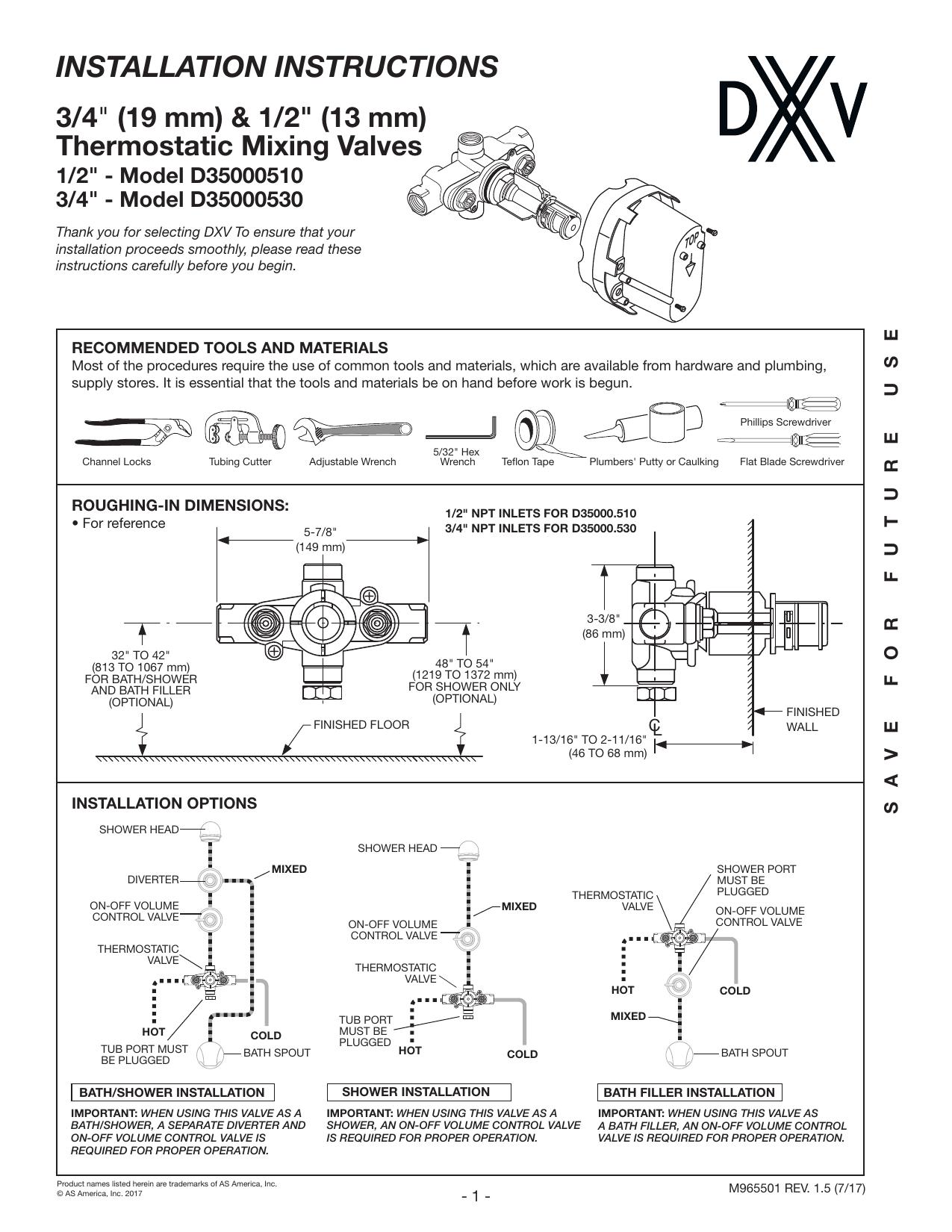

Installation Instructions

Warranty
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
