Manual Piston Flush Valve

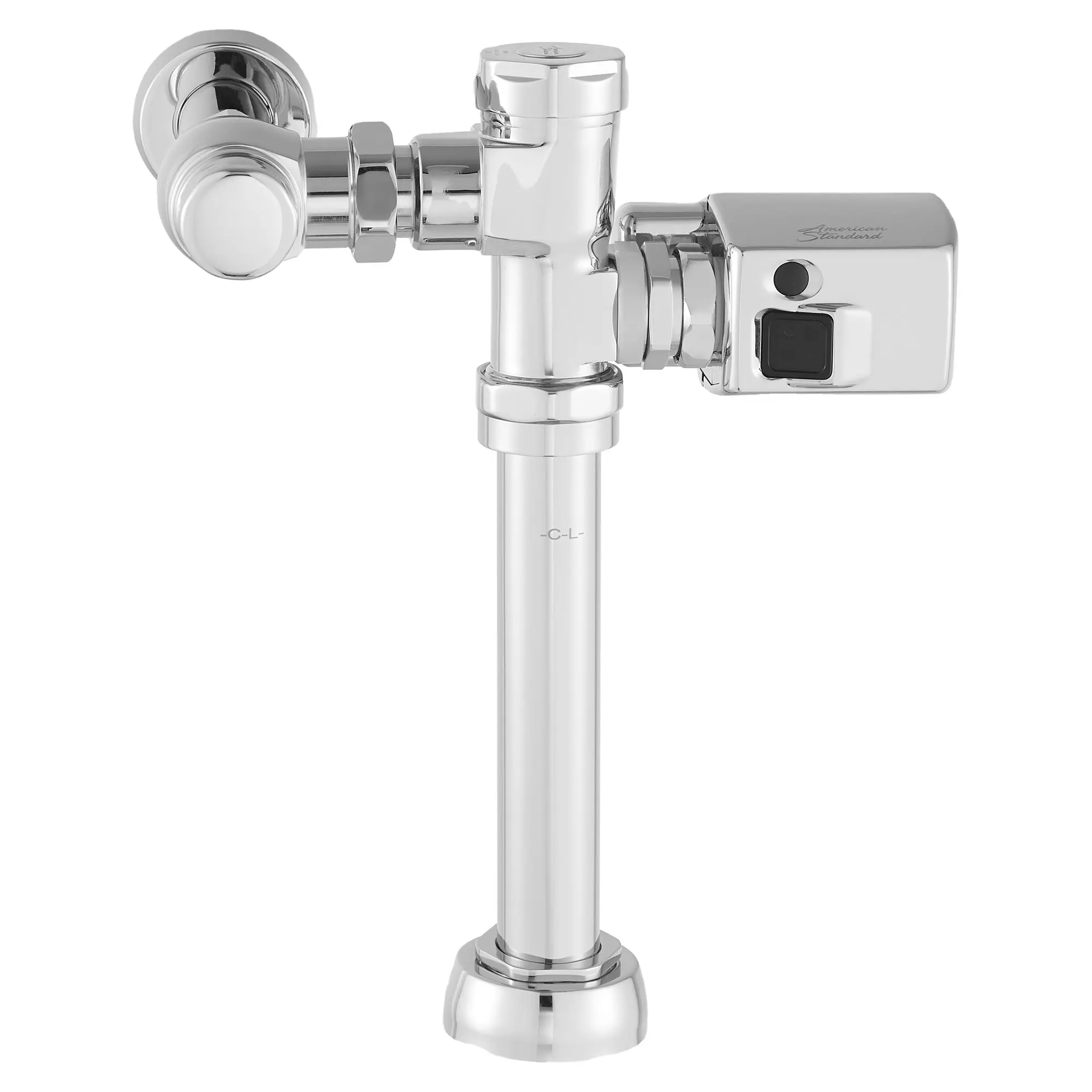

Ultima Touchless Sensor Toilet Flush Valve, Piston-Type, 1.1 gpf/4.2 Lpf

The manual toilet flush valve features a touch-free side operator that automatically flushes the toilet to keep hands germ-free. This WaterSense certified flush valve is designed to fit ½” (38mm) top spud bowls and can be installed left or right handed.Features

Chrome 6047SM111.002 DISCONTINUED   Substitution Available (6065111.002)
List Price: $0.00
ADA Compliant Cal Green WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
  • Includes 4 C-sized alkaline batteries
  • Touchless operation limits the spread of germs
  • Side-mount sensor-operated gear operator automatically flushes the valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Electronically operated override button
  • Can be install left- or right-handed
  • 11-1/2" (292 mm) rough-in
Technical Features
  • For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
  • Includes 4 C-sized alkaline batteries
  • Touchless operation limits the spread of germs
  • Side-mount sensor-operated gear operator automatically flushes the valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Electronically operated override button
  • Can be install left- or right-handed
  • 11-1/2" (292 mm) rough-in
Description
Net Weight
SKU
Color
List Price USD
Ultima Touchless Sensor Toilet Flush Valve, Piston-Type, 1.1 gpf/4.2 Lpf
8 lb (3.7 kg)
6047SM111.002 *
Chrome (002)
0
Substitutions
Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Battery, 1.1 gpf/4.2 Lpf
8 lb (3.7 kg)
6065111.002
Chrome
582


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Brand: American Standard
Cal Green: Yes
Category: Flush Valves and Sanitary Items
Color / Finish: Chrome
Collections: Manual Piston Flush Valve
WaterSense: Yes
Fitting Connection Size Input: 1
Touchless: Touchless
Gallons Per Flush (min-max): 1.1 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Number of Output Valves: 1
Height: 376
Length: 247
Width: 289
Residential or Commercial: Commercial
Rough In Size: 11.5
Subcategory: Sensor Flush Valve and Sanitary Items
Download All Supporting Documents

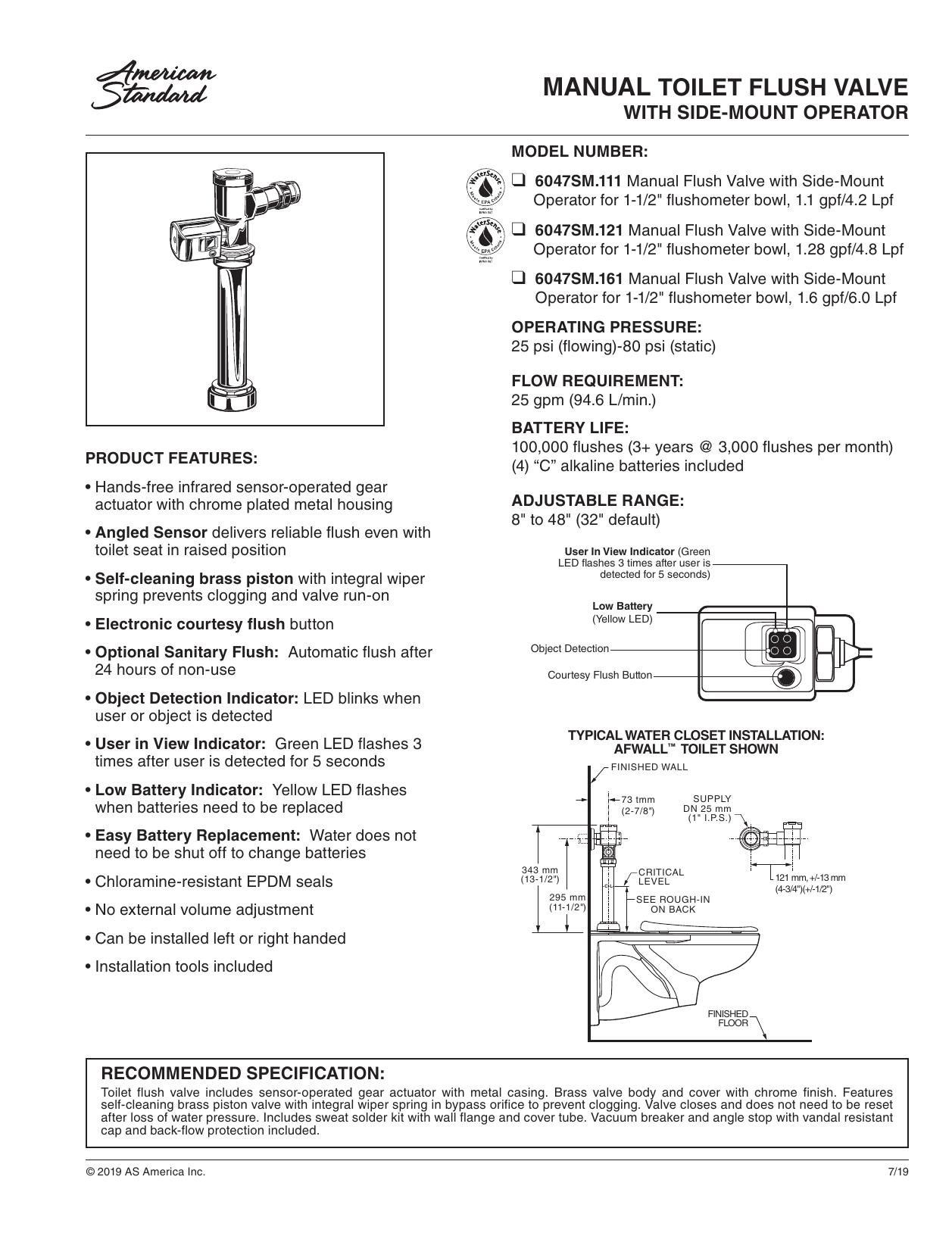

Specification Sheet

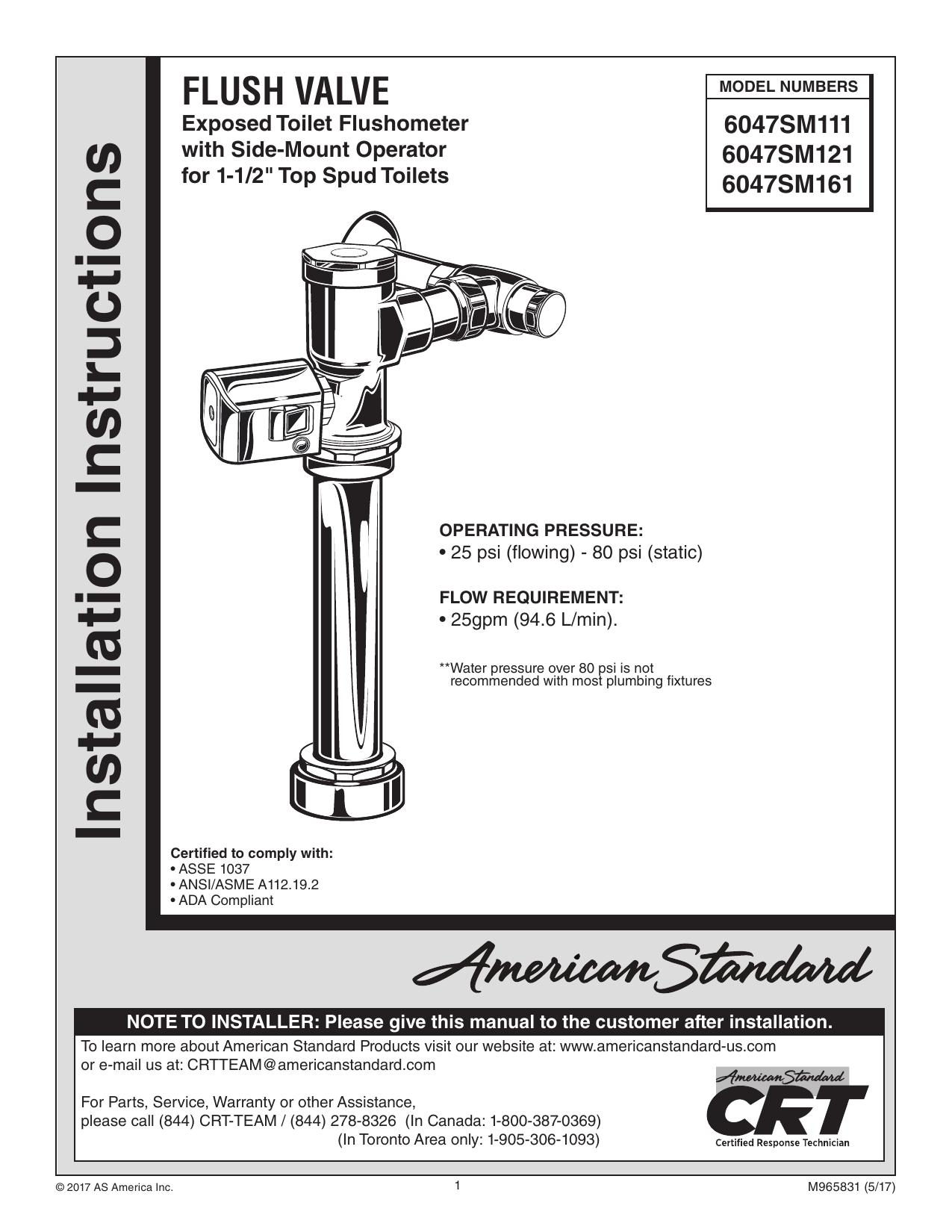

Installation Instructions
