Selectronic Exposed AC Urinal Flush Valve - Base Model - 0.25 gpf

The Selectronic® Exposed AC Urinal Flush Valve features a self-cleaning piston design that saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs.  The Selectronic urinal flush valves include a pressure compensation feature that maintains the proper flush volume regardless of inlet water pressure.Features

Chrome 606B025.002 DISCONTINUED   Substitution Available (606B013.002)
List Price: $571.00
Environmental Product Declaration WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Exclusive Pressure Compensation feature eliminates the need for the installer to adjust the stop valves, saving time & money and ensuring water savings
  • Self-cleaning piston eliminates routine maintenance. No diaphragms to replace or filter screens to clean.
  • Integral wiper spring cleans the refill orifice with every flush. Delivers reliable operation even with poor water quality
  • Hygienic, touch-free operation
  • Flexible Selectronic® Platform with programmable sensor
  • Fully Mechanical Manual Override allows valve to flush during a power failure
  • Fail-Safe Operation: Valve automatically closes on loss of power or water pressure
  • Plug-In & Hard-Wired AC power supplies are available. POWER KIT SOLD SEPARATELY.
  • Can be installed left or right-handed
Technical Features
  • Exclusive Pressure Compensation feature eliminates the need for the installer to adjust the stop valves, saving time & money and ensuring water savings
  • Self-cleaning piston eliminates routine maintenance. No diaphragms to replace or filter screens to clean.
  • Integral wiper spring cleans the refill orifice with every flush. Delivers reliable operation even with poor water quality
  • Hygienic, touch-free operation
  • Flexible Selectronic® Platform with programmable sensor
  • Fully Mechanical Manual Override allows valve to flush during a power failure
  • Fail-Safe Operation: Valve automatically closes on loss of power or water pressure
  • Plug-In & Hard-Wired AC power supplies are available. POWER KIT SOLD SEPARATELY.
  • Can be installed left or right-handed
Description
Net Weight
SKU
Color
List Price USD
Selectronic Exposed AC Urinal Flush Valve - Base Model - 0.25 gpf
11 lb (4.8 kg)
606B025.002 *
Chrome (002)
571
Substitutions
Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Base Model, 0.125 gpf/0.5 Lpf
11 lb (4.8 kg)
606B013.002
Chrome
629


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Brand: American Standard
Category: Flush Valves and Sanitary Items
Color / Finish: Chrome
Collections: Selectronic
WaterSense: Yes
Fitting Connection Size Input: 3/4
Touchless: Touchless
Gallons Per Flush (min-max): 0.25 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Residential or Commercial: Commercial
Rough In Size: 11.5
Subcategory: Sensor Flush Valve and Sanitary Items
Download All Supporting Documents

Specification Sheet

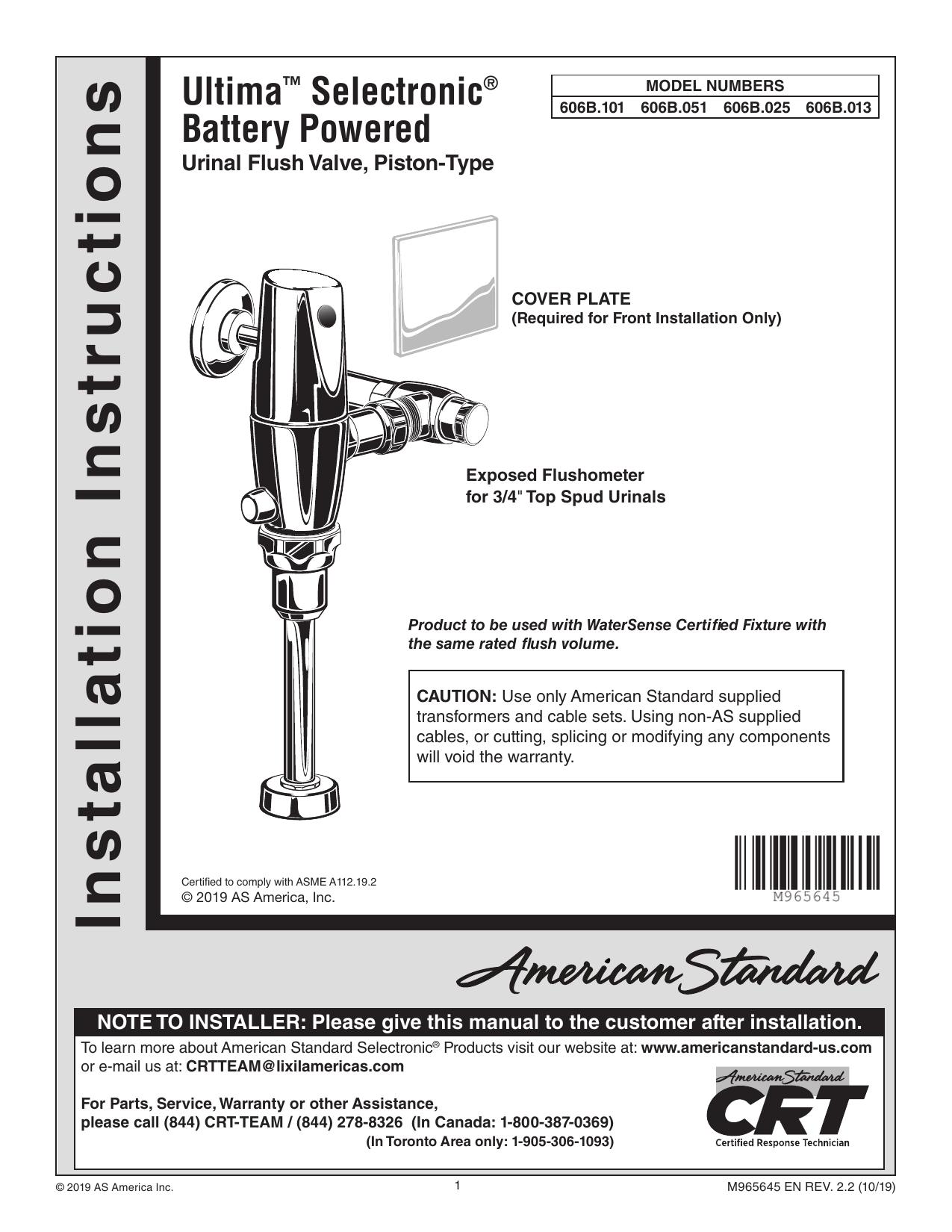

Installation Instructions

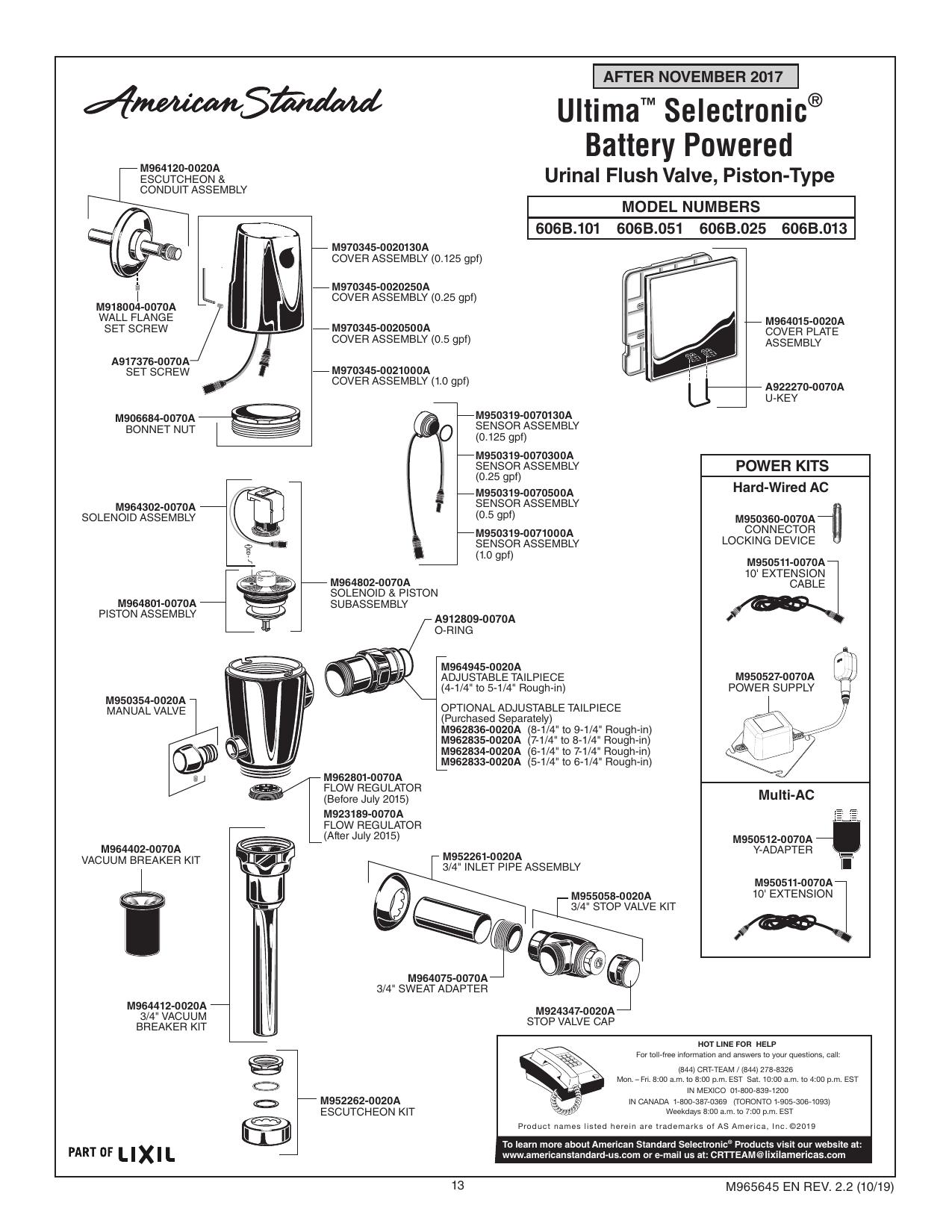

Replacement Parts

Environmental Product Declaration
