Madera

Madera Chair Height Toilet System With Touchless Selectronic® Piston Flush Valve, 1.1 gpf/4.2 Lpf

1.1 GPF HIGH-EFFICIENCY FLUSHOMETER TOILET SYSTEM

White 3043511.020 DISCONTINUED
List Price: $789.00
ADA Compliant Cal Green Environmental Product Declaration USMCA Compliant Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 16-1/2" (419 mm) rim height for accessible application
  • Static weight load of 2,500 lbs (1,134 kg)
  • Touchless piston-operated flush valve
  • 5-year CR-P2 lithium battery installed in valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
Technical Features
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 16-1/2" (419 mm) rim height for accessible application
  • Static weight load of 2,500 lbs (1,134 kg)
  • Touchless piston-operated flush valve
  • 5-year CR-P2 lithium battery installed in valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
Description
Net Weight
SKU
Color
List Price USD
Madera Chair Height Toilet System With Touchless Selectronic® Piston Flush Valve, 1.1 gpf/4.2 Lpf
1 lb (0.4 kg)
3043511.020
White (020)
789
Separate Components
Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Chair Height Top Spud Elongated Bowl
55 lb (25.0 kg)
3043001.020
White
207
spacer
Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Battery, 1.1 gpf/4.2 Lpf
8 lb (3.7 kg)
6065111.002
Chrome
582
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Front to Back Length: 16-1/2
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Flush Valves and Sanitary Items
Chair Height: Standard
Color / Finish: White
Flush Value: Exposed
Collections: Madera
WaterSense: Yes
Fitting Connection Size Input: 25.40
Fitting Material: Brass
Touchless: Touchless
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.1 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
MAP Performance Rating: 1000
Number of Output Valves: 1
Height: 839
Length: 718
Width: 356
Residential or Commercial: Commercial
Rough In Size: 12
Subcategory: Sensor Flush Valve and Sanitary Items
USMCA Compliant: Yes
Valve Input Diameter: 3/4
Valve Output Diameter: 3/4
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

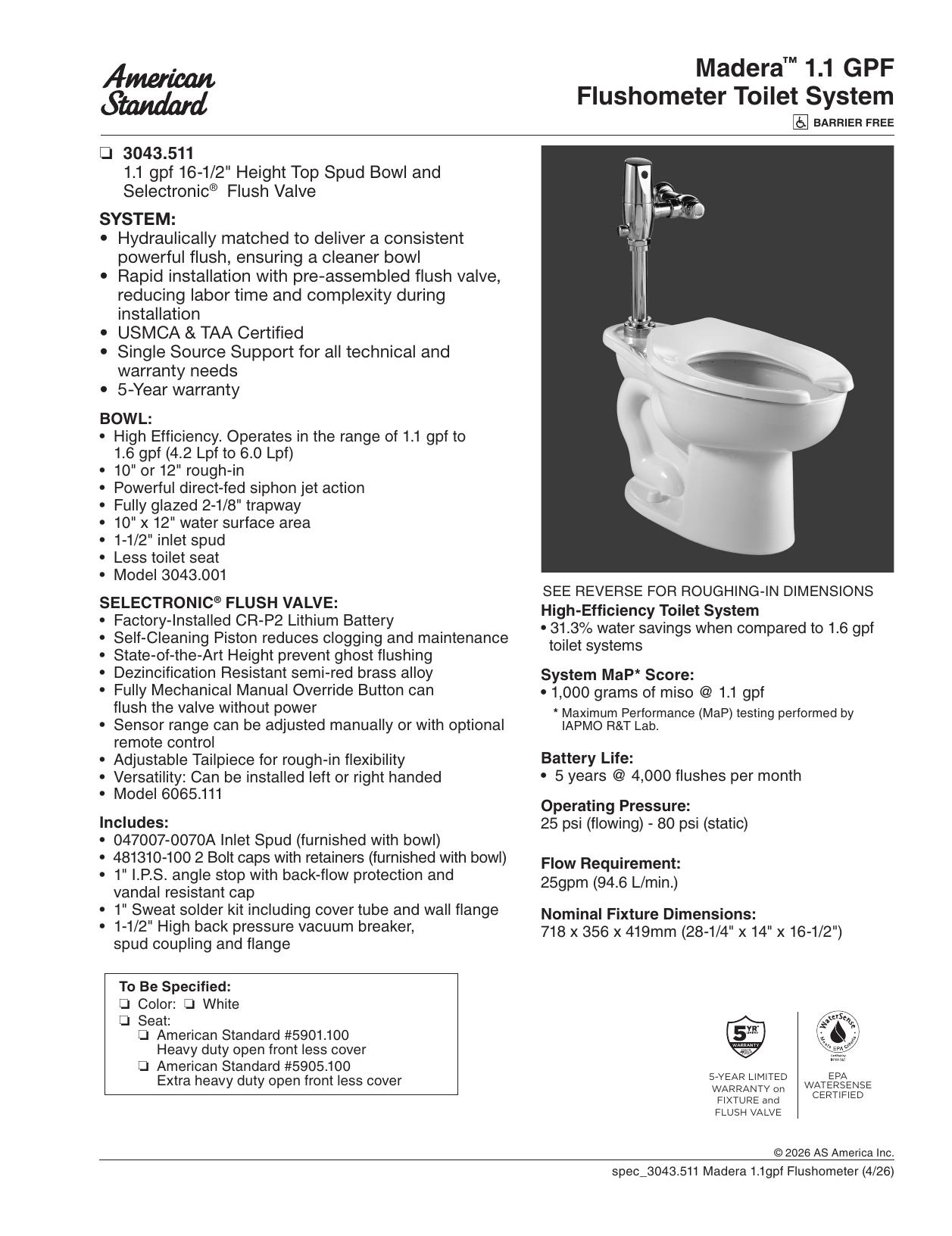

Specification Sheet

Installation Instructions

Environmental Product Declaration
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
