Madera

Madera 15-Inch EverClean® Toilet System With Touchless Selectronic® Piston Flush Valve, 1.28 gpf/4.8 Lpf

1.28 GPF HIGH-EFFICIENCY FLUSHOMETER TOILET SYSTEM

White 3451528.020 DISCONTINUED
List Price: $768.00
Cal Green Environmental Product Declaration Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 15" (381 mm) rim height
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • Touchless piston-operated flush valve
  • 5-year CR-P2 lithium battery installed in valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
Technical Features
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 15" (381 mm) rim height
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • Touchless piston-operated flush valve
  • 5-year CR-P2 lithium battery installed in valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
Description
Net Weight
SKU
Color
List Price USD
Madera 15-Inch EverClean® Toilet System With Touchless Selectronic® Piston Flush Valve, 1.28 gpf/4.8 Lpf
1 lb (0.4 kg)
3451528.020
White (020)
768
Separate Components
Madera 1.0 - 1.6 gpf (3.8 - 6.0 Lpf) 15" Height Top Spud Elongated EverClean® Bowl
50 lb (22.8 kg)
3451001.020
White
186
spacer
Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Battery, 1.28 gpf/4.8 Lpf
8 lb (3.7 kg)
6065121.002
Chrome
582
Download Specification Sheet
Batteries Included: Yes
Batteries Required: Yes
Front to Back Length: 15.0
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Flush Valves and Sanitary Items
Chair Height: Standard
Color / Finish: White
Flush Value: Exposed
Collections: Madera
WaterSense: Yes
Fitting Connection Size Input: 1
Fitting Material: Brass
Touchless: Touchless
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.28 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
MAP Performance Rating: 1000
Number of Output Valves: 1
Height: 800
Length: 718
Width: 356
Residential or Commercial: Commercial
Rough In Size: 12
Subcategory: Sensor Flush Valve and Sanitary Items
USMCA Compliant: Yes
Valve Input Diameter: 3/4
Valve Output Diameter: 3/4
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

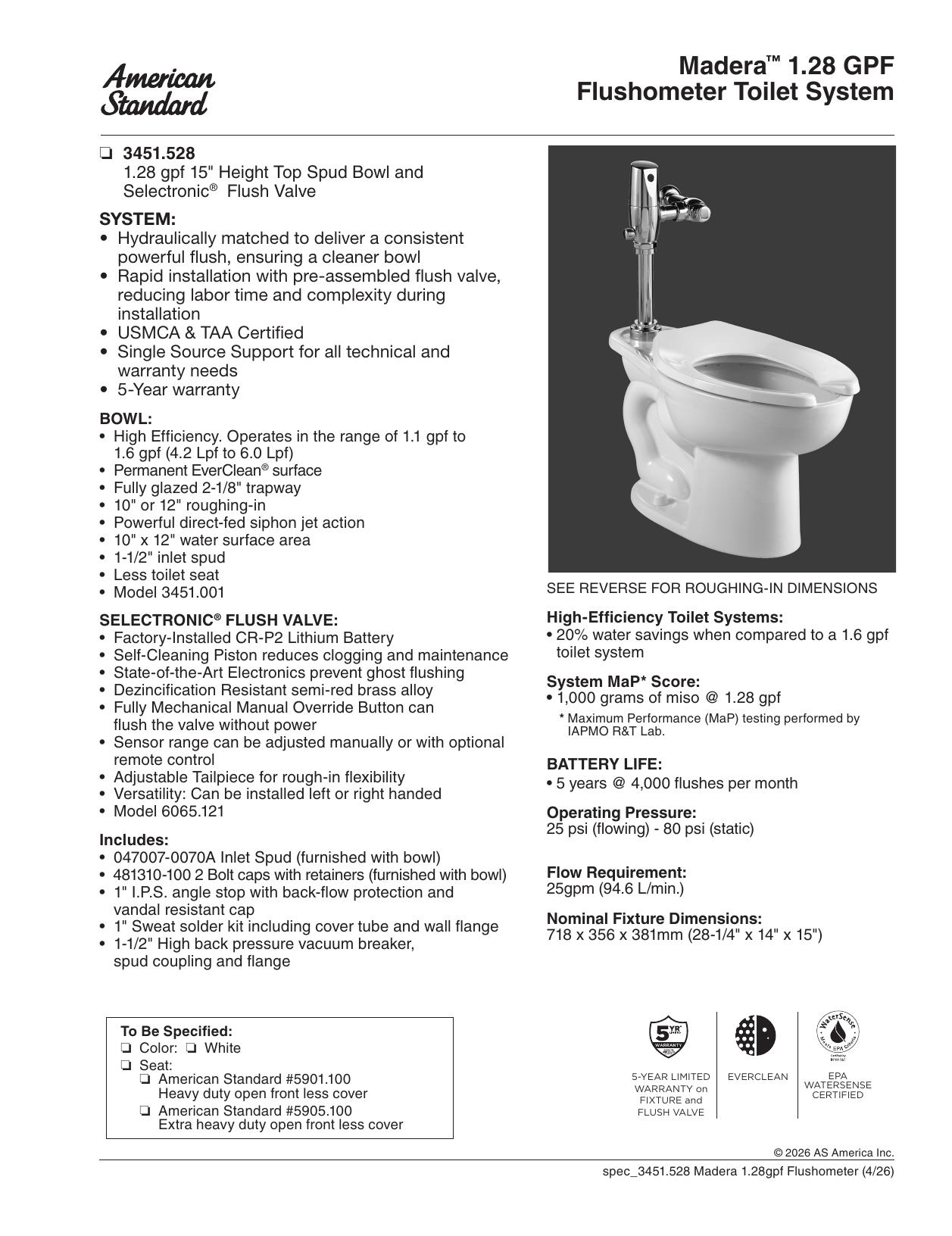

Specification Sheet

Environmental Product Declaration
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
