Allbrook

Allbrook 1.0 gpf Siphon Jet Top Spud Urinal with Selectronic Battery Flush Valve System

1.0 GPF HIGH-EFFICIENCY URINAL SYSTEM

White 6541610.020 DISCONTINUED   Substitution Available (6550001.020)
List Price: $0.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Vitreous china
  • High Efficiency. Operates in the range of 0.5 gpf to 1.0 gpf (1.9 Lpf to 3.8 Lpf)
  • Flushing rim
  • Siphon jet flush action
  • 3/4" inlet spud
  • Outlet connection threaded 2" inside (NPTF)
  • Meets ANSI flush requirements at 0.5 to 1.0 gpf
  • Factory-Installed CR-P2 Lithium Battery
  • Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure
Technical Features
  • Vitreous china
  • High Efficiency. Operates in the range of 0.5 gpf to 1.0 gpf (1.9 Lpf to 3.8 Lpf)
  • Flushing rim
  • Siphon jet flush action
  • 3/4" inlet spud
  • Outlet connection threaded 2" inside (NPTF)
  • Meets ANSI flush requirements at 0.5 to 1.0 gpf
  • Factory-Installed CR-P2 Lithium Battery
  • Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure
Description
Net Weight
SKU
Color
List Price USD
Allbrook 1.0 gpf Siphon Jet Top Spud Urinal with Selectronic Battery Flush Valve System
40 lb (18.4 kg)
6541610.020 *
White (020)
0
Separate Components
Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Battery, 1.0 gpf/3.8 Lpf
8 lb (3.8 kg)
6063101.002
Chrome
582
spacer
Allbrook® 0.5 – 1.0 gpf (1.9 – 3.8 Lpf) Top Spud Siphon Jet Urinal
28 lb (12.9 kg)
6550001.020
White
245
Substitutions
Allbrook® 0.5 – 1.0 gpf (1.9 – 3.8 Lpf) Top Spud Siphon Jet Urinal
28 lb (12.9 kg)
6550001.020
White
245


Models marked with * are discontinued, but product may still be available while supplies last.

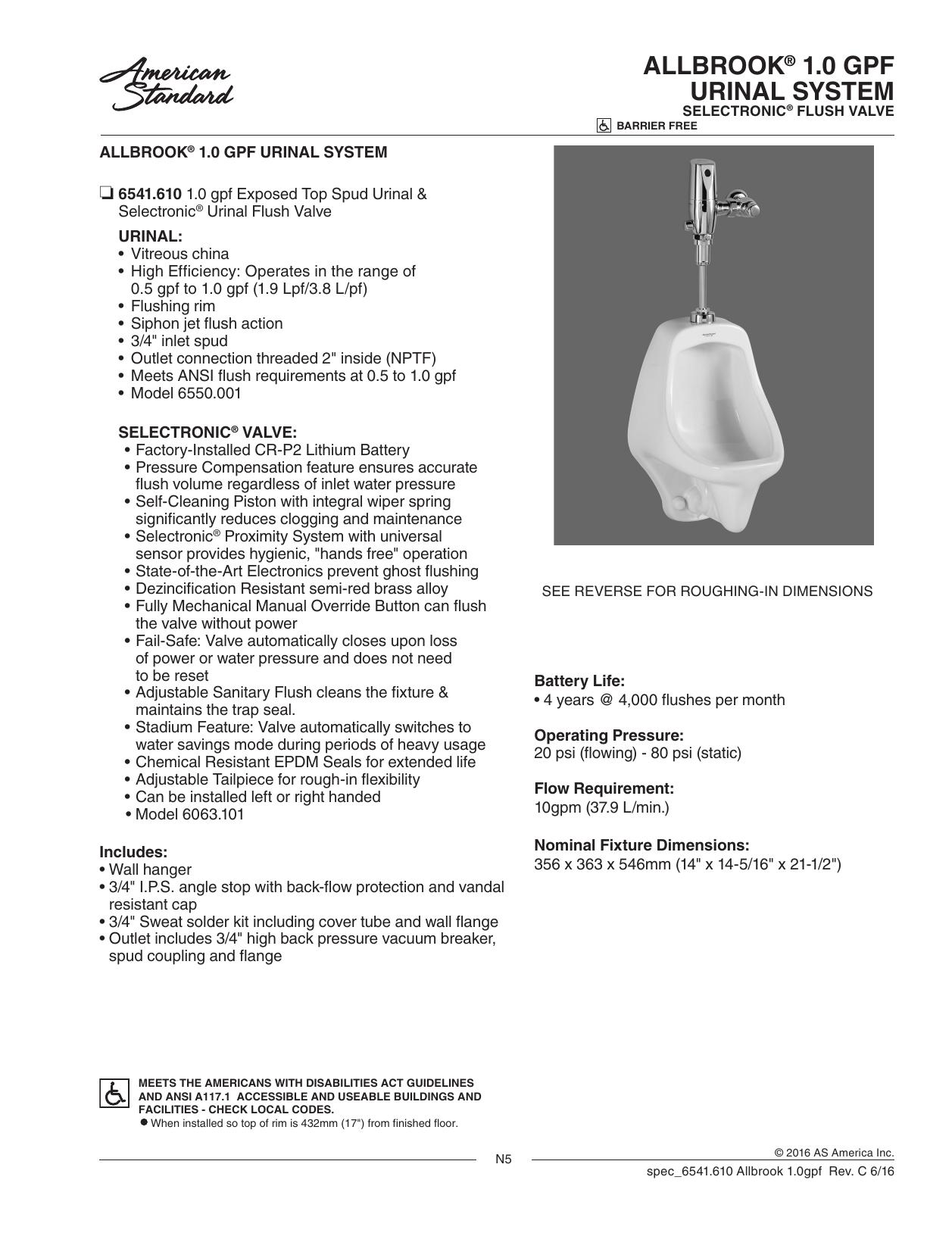

Download Specification Sheet
Batteries Included: Yes
Batteries Required: Yes
Brand: American Standard
Category: Flush Valves and Sanitary Items
Color / Finish: White
Collections: Allbrook
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Gallons Per Flush (min-max): 1 GPF
Residential or Commercial: Commercial
Subcategory: Sensor Flush Valve and Sanitary Items
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet
