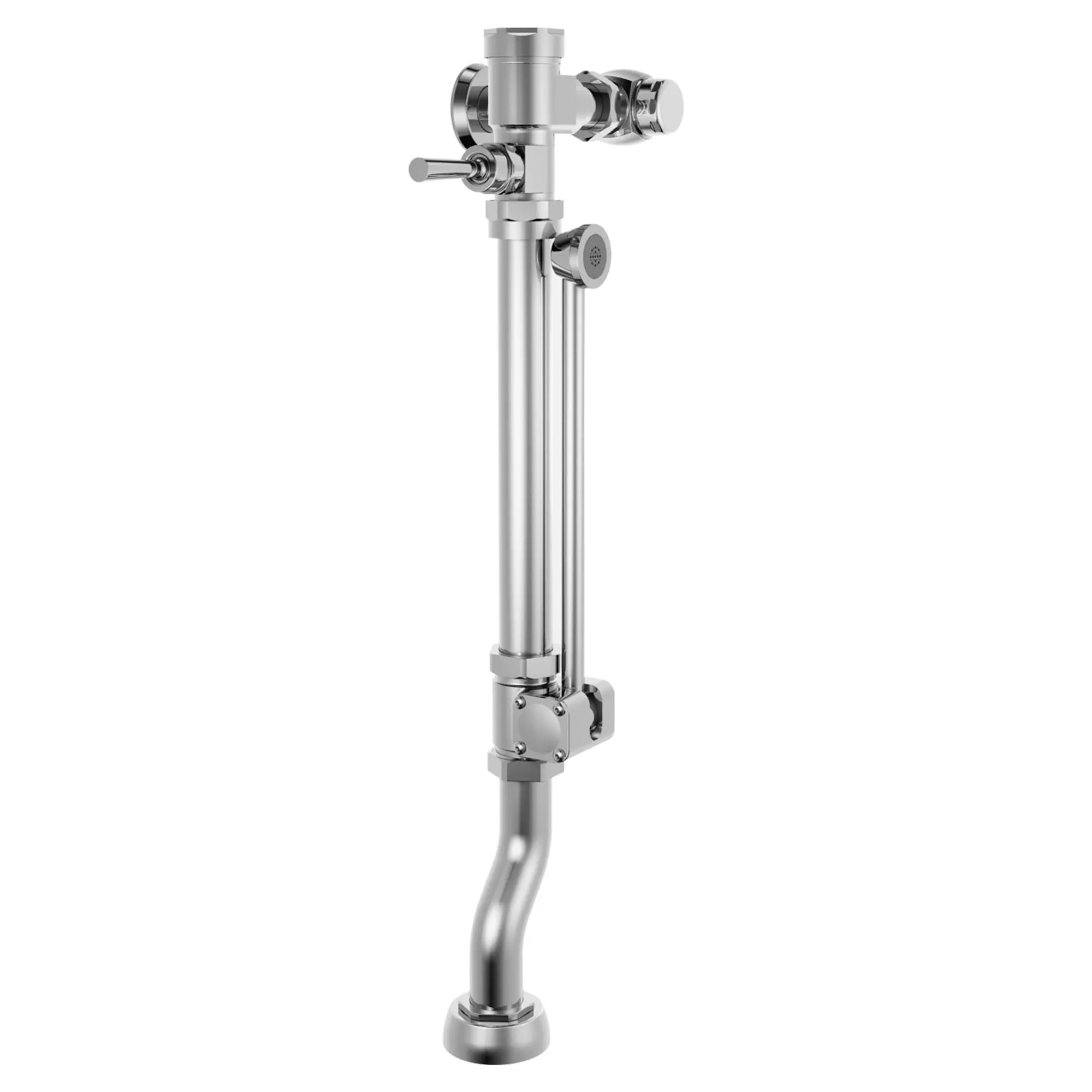

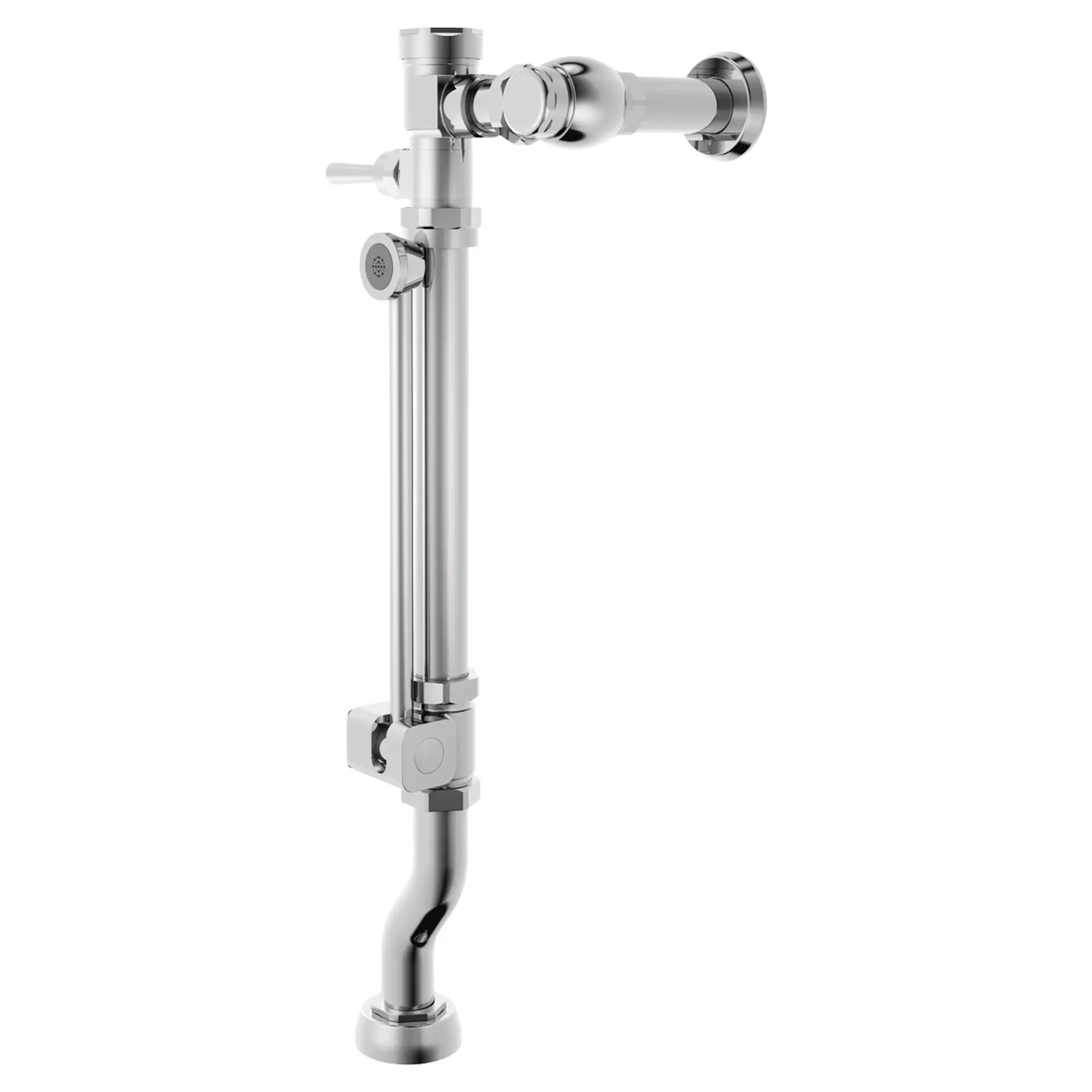

Ultima Manual Flush Valve With Bedpan Washer Assembly, Offset Tube, 1.28 gpf/4.8 Lpf

An impressive collection of electronic and manual valves designed to meet the demands of high-use spaces. Labor-saving installation, water-saving operation and time-saving maintenance and care. Kit Includes:

Features
  • Piston-type manual flush valve
  • Offset bedpan washer diverter assembly with counter balanced pivot assembly
  • Rugged brass construction
  • Includes stop valve, sweat solder assembly, wall support, 1-1/2" (38 mm) spud coupling and flange
Technical Features
  • Piston-type manual flush valve
  • Offset bedpan washer diverter assembly with counter balanced pivot assembly
  • Rugged brass construction
  • Includes stop valve, sweat solder assembly, wall support, 1-1/2" (38 mm) spud coupling and flange
There are no additional components to display for this product
Brand: American Standard
Cal Green: Yes
Category: Flush Valves and Sanitary Items
Color / Finish: Chrome
Flush Value: Exposed
Collections: Manual Piston Flush Valve
WaterSense: Yes
Fitting Connection Size Input: 1
Fitting Material: Brass
Fixture or Fitting Material: Brass
Gallons Per Flush (min-max): 1.28 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Number of Output Valves: 1
Height: 26-1/4
Residential or Commercial: Commercial
Subcategory: Manual Flush Valve and Sanitary Items
Valve Input Diameter: 1
Valve Output Diameter: 1-1/2
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
