Madera Chair Height Toilet System With Manual Piston Flush Valve, 1.1 gpf/4.2 Lpf

1.1 GPF HIGH-EFFICIENCY TOILET SYSTEM WITH MANUAL FLUSH VALVE

White 2857111.020 DISCONTINUED
List Price: $558.00
ADA Compliant Cal Green Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 16-1/2" rim height for accessible application
  • Static weight load of 2,500 lbs (1,134 kg)
  • Conventional glaze
  • Condensation channel
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Technical Features
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 16-1/2" rim height for accessible application
  • Static weight load of 2,500 lbs (1,134 kg)
  • Conventional glaze
  • Condensation channel
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Description
Net Weight
SKU
Color
List Price USD
Madera Chair Height Toilet System With Manual Piston Flush Valve, 1.1 gpf/4.2 Lpf
1 lb (0.4 kg)
2857111.020
White (020)
558
Separate Components
Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Chair Height Top Spud Elongated Bowl
55 lb (25.0 kg)
3043001.020
White
207
spacer
Ultima Manual Toilet Flush Valve, Piston-Type, 1.1 gpf/4.2 Lpf
5 lb (2.4 kg)
6047111.002
Chrome
351
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Flush Valves and Sanitary Items
Chair Height: Standard
Color / Finish: White
Flush Value: Exposed
Collections: Madera
WaterSense: Yes
Fitting Connection Size Input: 1
Fitting Material: Brass
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.1 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
MAP Performance Rating: 1000
Number of Output Valves: 1
Height: 762
Length: 718
Width: 356
Residential or Commercial: Commercial
Subcategory: Manual Flush Valve and Sanitary Items
Valve Input Diameter: 1
Valve Output Diameter: 1-1/2
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

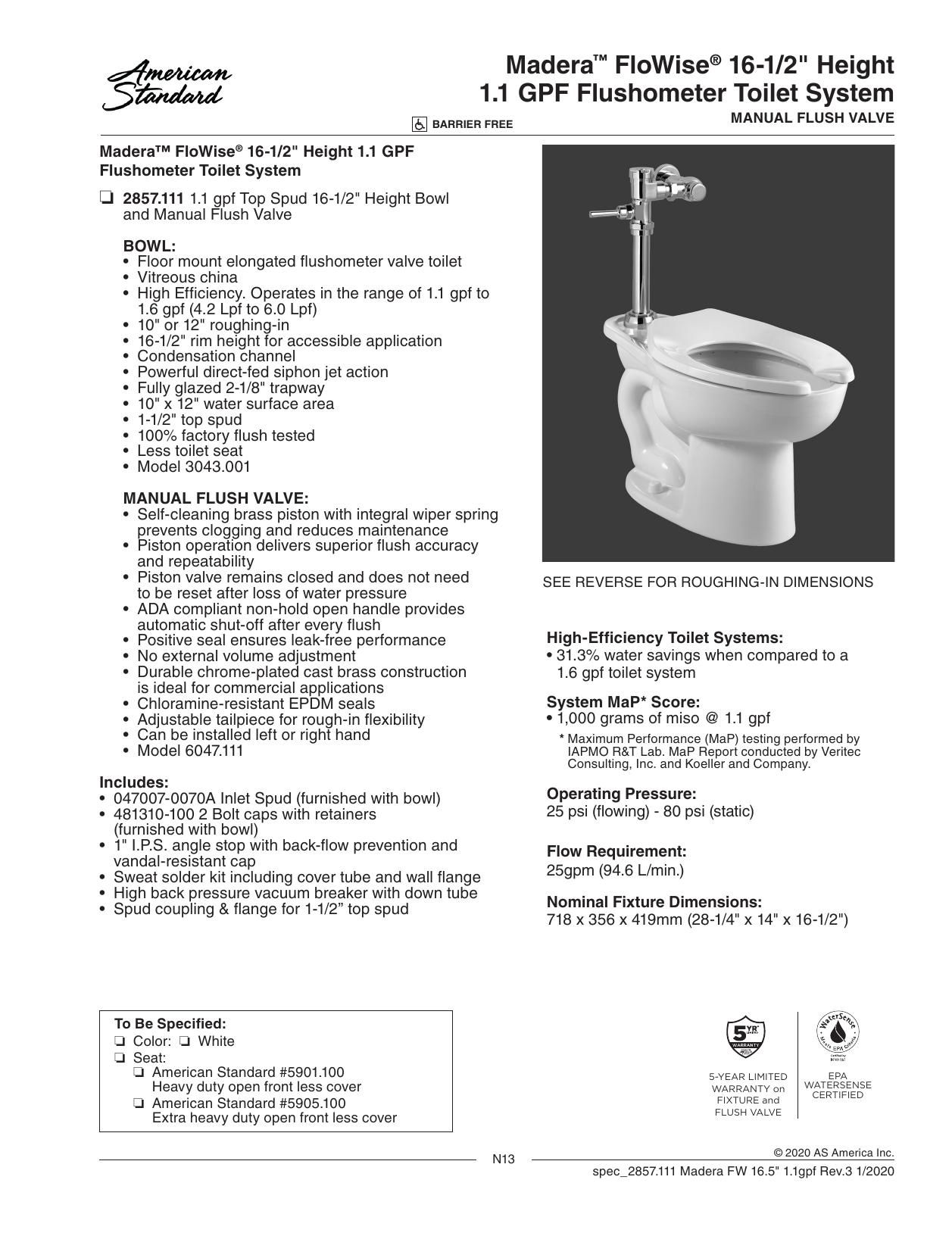

Specification Sheet
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
