Madera

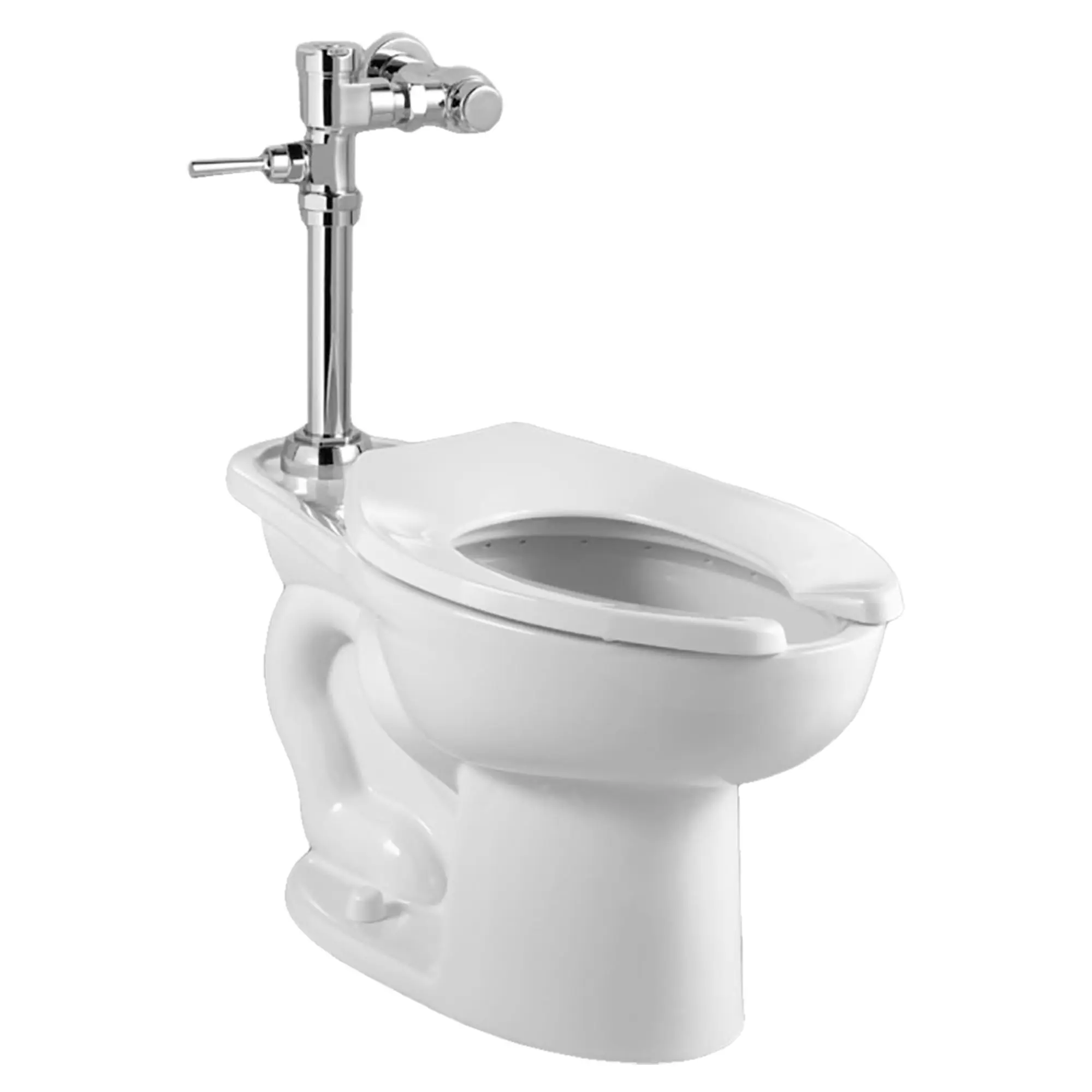

Madera 15-Inch Toilet System With Manual Piston Flush Valve, 1.1 gpf/4.2 Lpf

White 2858111.020 DISCONTINUED
List Price: $519.00
Cal Green Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 15" (381 mm) rim height
  • Conventional glaze
  • Condensation channel
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Technical Features
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 15" (381 mm) rim height
  • Conventional glaze
  • Condensation channel
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Nominal Dimensions: 28-1/4 in x 14 in x 28-1/2 in (718 mm x 356 mm x 724 mm)
Description
Net Weight
SKU
Color
List Price USD
Madera 15-Inch Toilet System With Manual Piston Flush Valve, 1.1 gpf/4.2 Lpf
1 lb (0.4 kg)
2858111.020
White (020)
519
Separate Components
Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) 15" Height Top Spud Elongated Bowl
54 lb (24.5 kg)
2234001.020
White
168
spacer
Ultima Manual Toilet Flush Valve, Piston-Type, 1.1 gpf/4.2 Lpf
5 lb (2.4 kg)
6047111.002
Chrome
351
Download Specification Sheet
Front to Back Length: 15.0
Bowl Included: Yes
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Flush Valves and Sanitary Items
Chair Height: Standard
Color / Finish: White
Flush Value: Exposed
Collections: Madera
WaterSense: Yes
Fitting Connection Size Input: 1
Fitting Material: Brass
Touchless: Touchless
Fixture Material: Vitreous China
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.1 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
MAP Performance Rating: 1000
Number of Output Valves: 1
Height: 28-1/2
Length: 28-1/4
Length: 28-1/4
Width: 14
Residential or Commercial: Commercial
Rough In Size: 12
Subcategory: Manual Flush Valve and Sanitary Items
Tank Included: Yes
Valve Input Diameter: 1
Valve Output Diameter: 1-1/2
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
