Madera

Madera 15-Inch EverClean® Toilet System With Manual Piston Flush Valve, 1.6 gpf/6.0 Lpf

We've been producing some of the industries best commercial toilets for more than 137 years. Built to stand the test of time and handle years of high use, there is an American Standard commercial toilet that's right for any job.

White 2855016.020 DISCONTINUED
List Price: $565.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 15" (381 mm) rim height
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • Condensation channel
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Technical Features
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 15" (381 mm) rim height
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • Condensation channel
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Description
Net Weight
SKU
Color
List Price USD
Madera 15-Inch EverClean® Toilet System With Manual Piston Flush Valve, 1.6 gpf/6.0 Lpf
1 lb (0.4 kg)
2855016.020
White (020)
565
Separate Components
Madera 1.0 - 1.6 gpf (3.8 - 6.0 Lpf) 15" Height Top Spud Elongated EverClean® Bowl
50 lb (22.8 kg)
3451001.020
White
214
spacer
Ultima Manual Toilet Flush Valve, Piston-Type, 1.6 gpf/6.0 Lpf
6 lb (2.6 kg)
6047161.002
Chrome
351

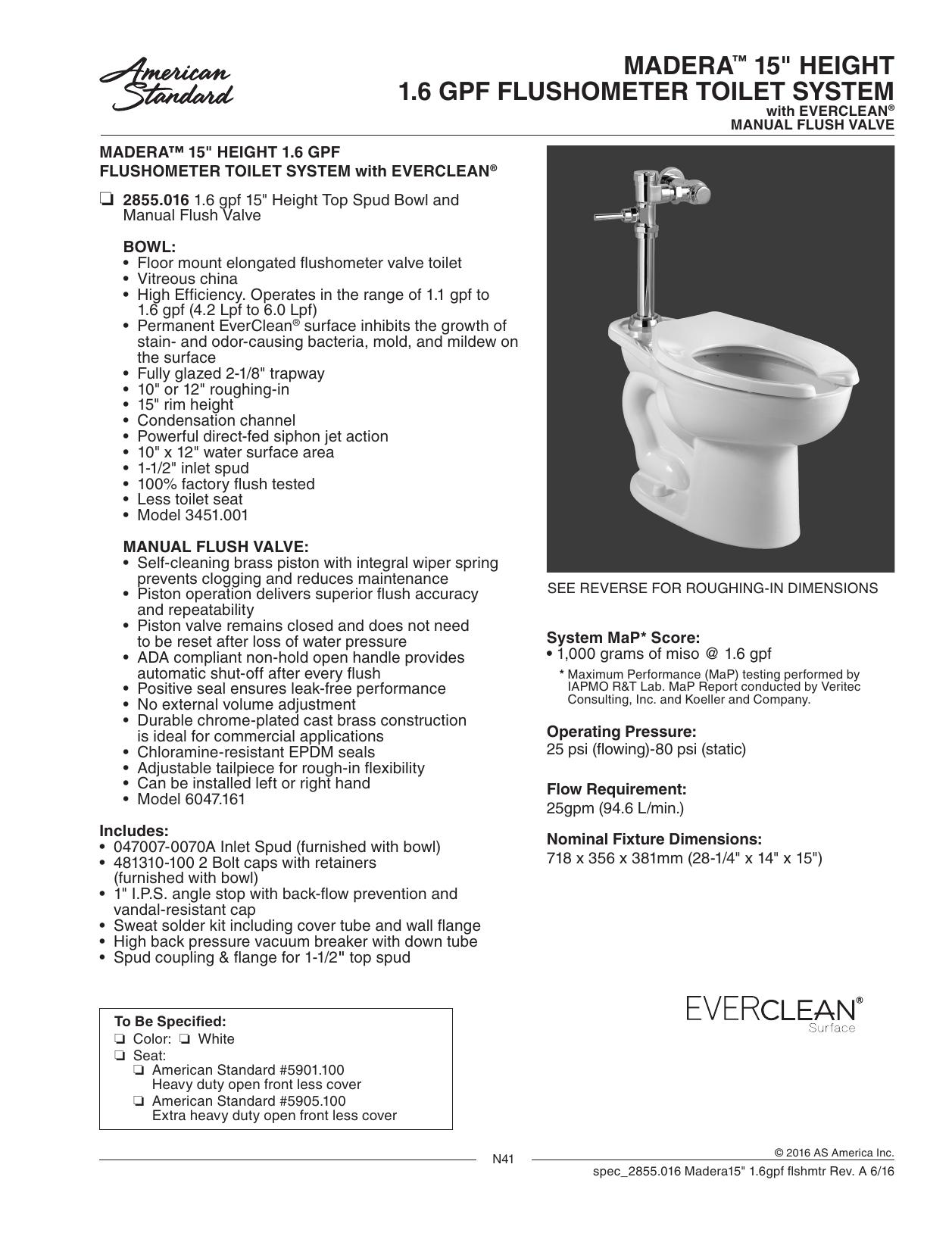

Download Specification Sheet
Front to Back Length: 15.0
Bowl Shape: Elongated
Brand: American Standard
Category: Flush Valves and Sanitary Items
Chair Height: Standard
Color / Finish: White
Flush Value: Exposed
Collections: Madera
Fitting Connection Size Input: 25.40
Fitting Material: Brass
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.6 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
MAP Performance Rating: 1000
Number of Output Valves: 1
Height: 724
Length: 718
Width: 356
Residential or Commercial: Commercial
Subcategory: Manual Flush Valve and Sanitary Items
Valve Input Diameter: 1
Valve Output Diameter: 1-1/2
Warranty: 5 Year Limited Warranty
Download All Supporting Documents

Specification Sheet
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
