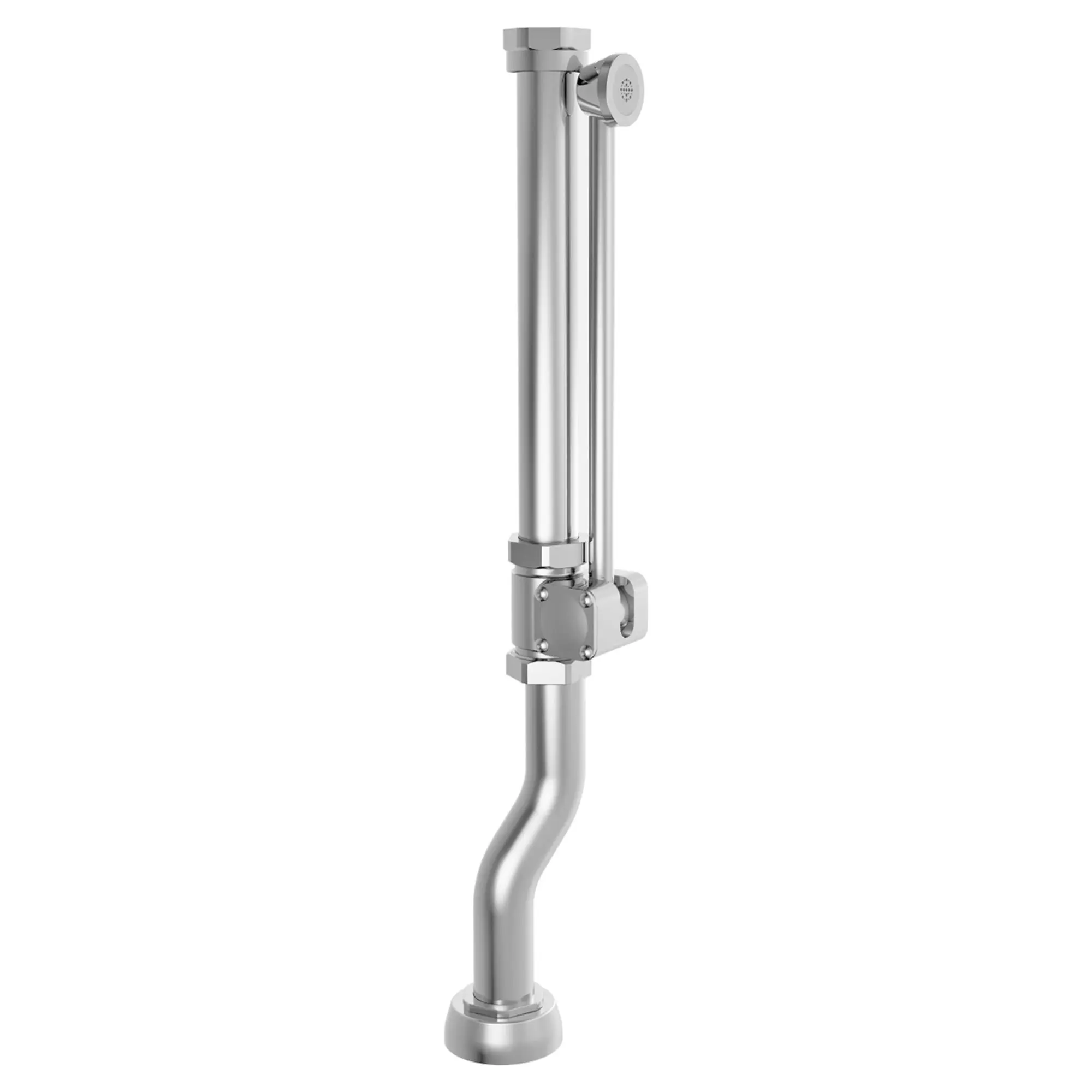

Bedpan Washer Diverter Assembly With Offset Tube

An impressive collection of electronic and manual valves designed to meet the demands of high-use spaces. Labor-saving installation, water-saving operation and time-saving maintenance and care.

Features
  • 1-1/2" offset flush tube for installation with grab bar above the toilet
  • Operates at 1.28 & 1.6 gpf
  • Solid brass construction
  • Counter balanced pivot assembly keeps spray arm in last position
  • Includes wall support
  • Includes 1-1/2" spud, spud coupling and chemical resistant EPDM vacuum breaker
Technical Features
  • Offset vacuum breaker tube
  • Operates at 1.1 gpf/4.2 Lpf, 1.28 gpf/4.8 Lpf and 1.6 gpf/6.0 Lpf
  • Rugged brass construction
  • Counter balanced pivot assembly
  • Includes wall support, 1-1/2-inch (38 mm) spud coupling and flange
  • Includes high back pressure vacuum breaker
  • Diverter assembly only. Flush valve sold separately
There are no additional components to display for this product
Brand: American Standard
Category: Flush Valves and Sanitary Items
Color / Finish: Chrome
Flush Value: Exposed
Collections: Manual Piston Flush Valve
Fitting Material: Brass
Fixture or Fitting Material: Brass
Input Connection Type: NPT (National Pipe Tapered Threads)
Residential or Commercial: Commercial
Subcategory: Manual Flush Valve and Sanitary Items
Warranty: 5 Year Limited Warranty
