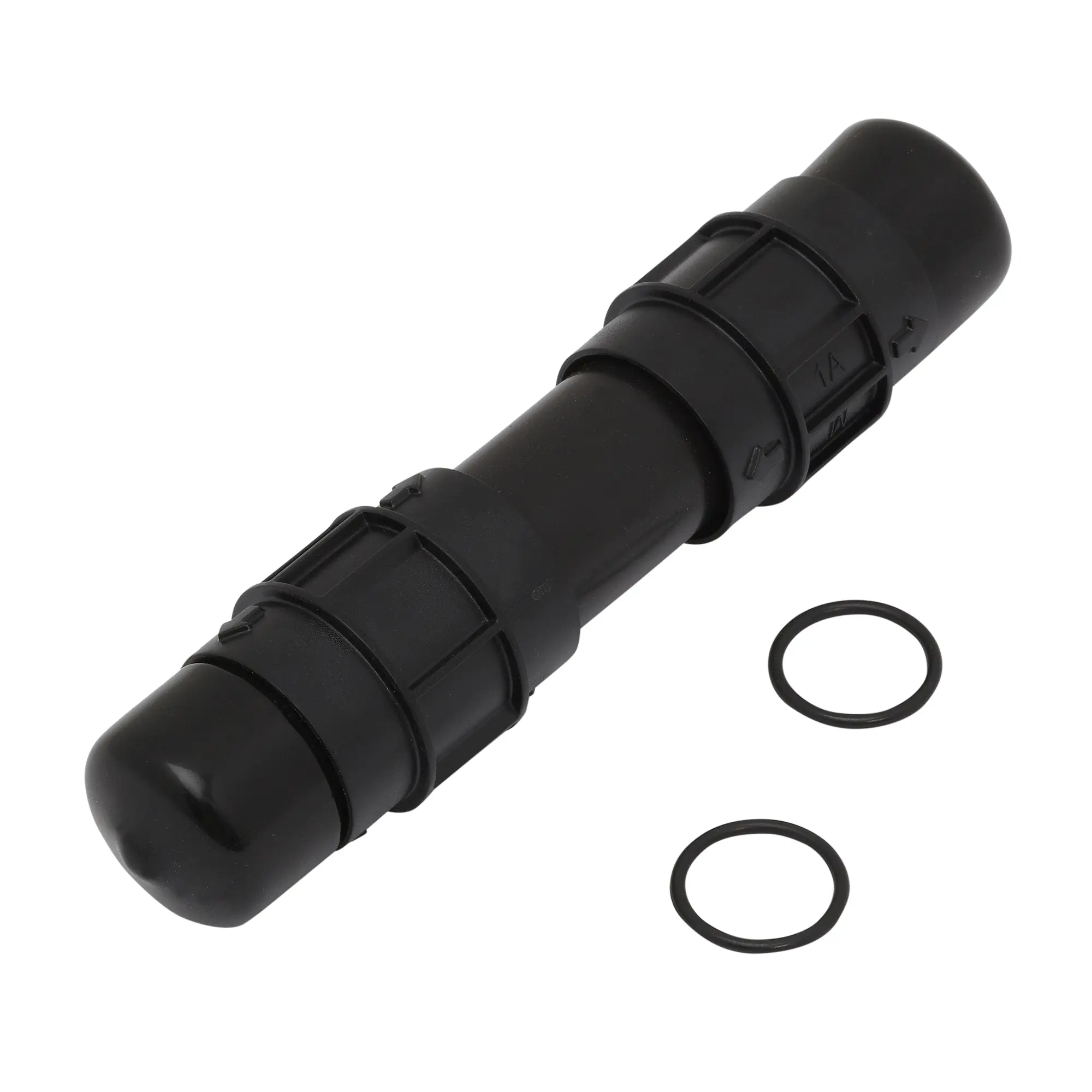

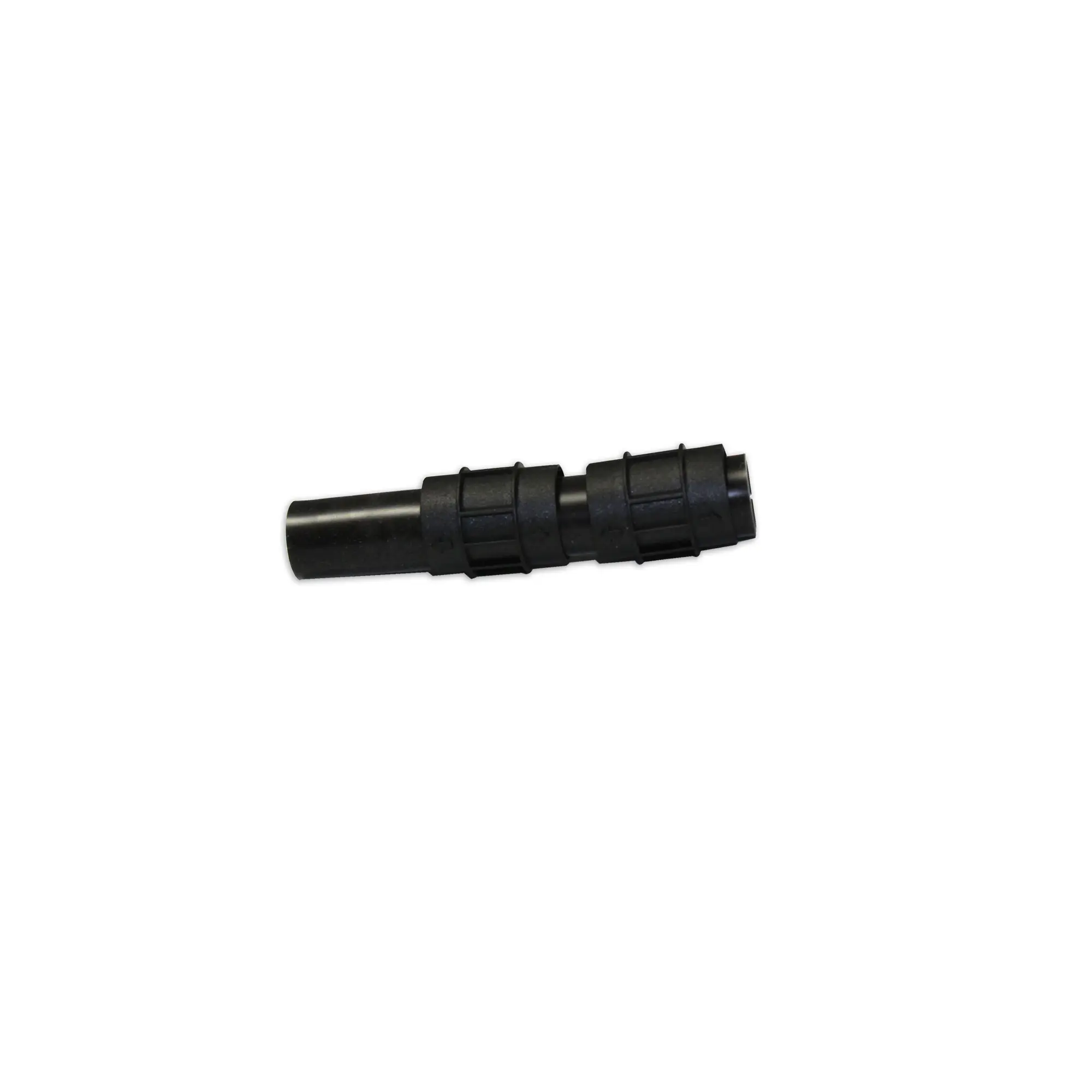

Activate Hose Assembly with Lock Sleeves

No Finish 7381553-201.0070A DISCONTINUED
List Price: $19.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Removal:
  • Turn off the water supply and flush the toilet to empty the tank
  • Remove the tank cover
  • Open the cover on the battery compartment and disconnect the battery cable from the battery terminal
  • Pull the locking collar off of the hose assembly using a twisting motion then remove the hose from the end of the actuator
  • Repeat this step to remove the hose assembly from the flush tower
  • Make sure the O-ring is reinstalled on the barb at the end of the actuator and on flush tower elbow
  • Re -INSTALL :
  • Remove the black rubber caps on both ends of the new hose assembly
Technical Features
  • Removal:
  • Turn off the water supply and flush the toilet to empty the tank
  • Remove the tank cover
  • Open the cover on the battery compartment and disconnect the battery cable from the battery terminal
  • Pull the locking collar off of the hose assembly using a twisting motion then remove the hose from the end of the actuator
  • Repeat this step to remove the hose assembly from the flush tower
  • Make sure the O-ring is reinstalled on the barb at the end of the actuator and on flush tower elbow
  • Re -INSTALL :
  • Remove the black rubber caps on both ends of the new hose assembly

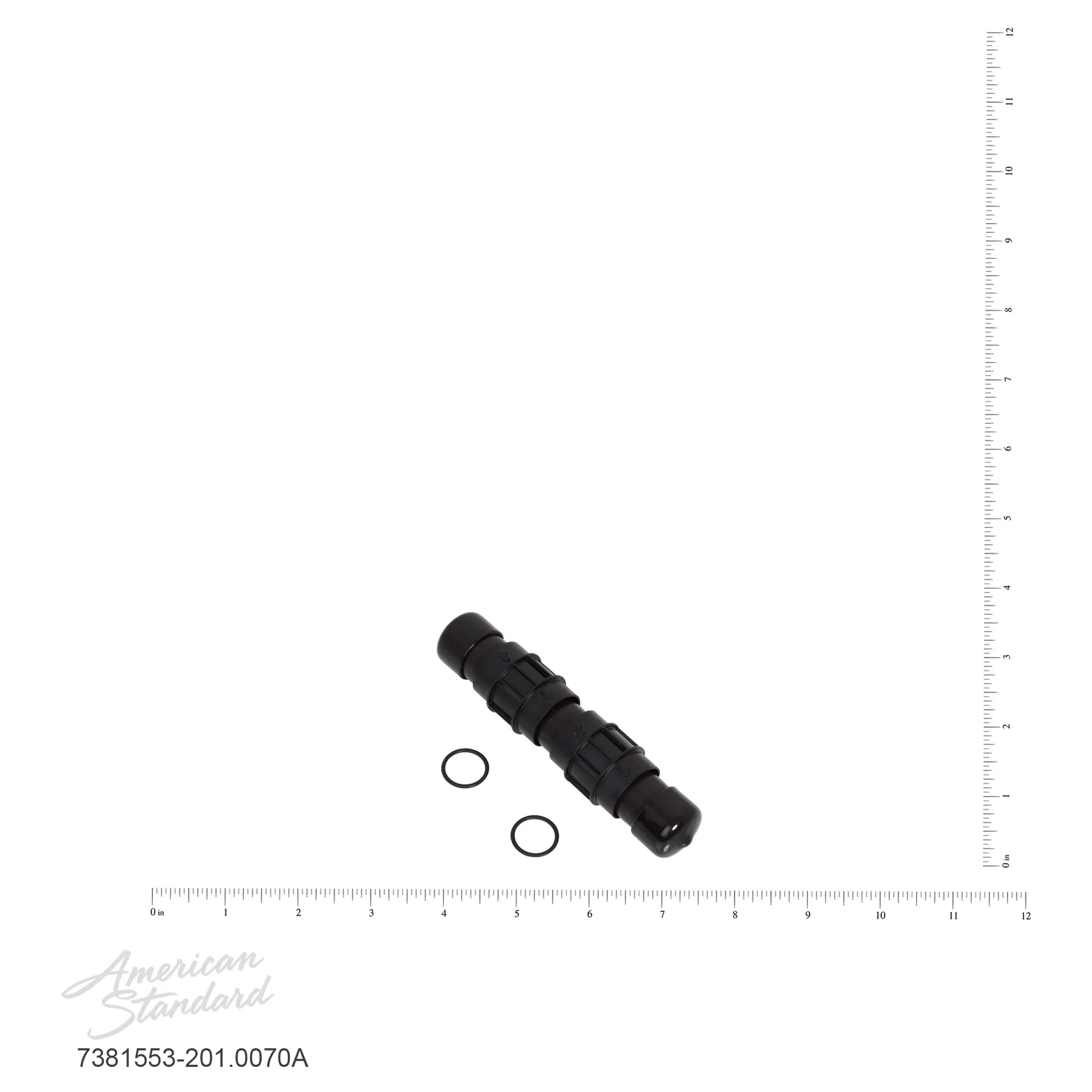

Nominal Dimensions: 1 in x 4.7 in x 1 in (25 mm x 119 mm x 25 mm)
Description
Net Weight
SKU
Color
List Price USD
Activate Hose Assembly with Lock Sleeves
0 lb (0.0 kg)
7381553-201.0070A
No Finish (007)
19
Models Using This Part
Studio® Activate® Two-Piece Concealed Trapway 1.28 gpf/4.8 Lpf Chair Height Elongated Toilet
1 lb (0.4 kg)
2794119.020 *
White
0
spacer
Studio® Activate® Two-Piece Concealed Trapway 1.28 gpf/4.8 Lpf Chair Height Round Front Toilet
1 lb (0.4 kg)
2795119.020 *
White
0


Models marked with * are discontinued, but product may still be available while supplies last.
Brand: American Standard
Category: Fixtures and Vanities Spare Parts
Color / Finish: No Finish
Collections: Repair Parts
Height: 1
Height: 1
Length: 1
Width: 4.7
Residential or Commercial: Repair Parts
Subcategory: Inlet Valves
Download All Supporting Documents

Installation Instructions
There are no design files currently available for this product
There are no videos currently available for this product
3D Objects are not currently available for this product
}
