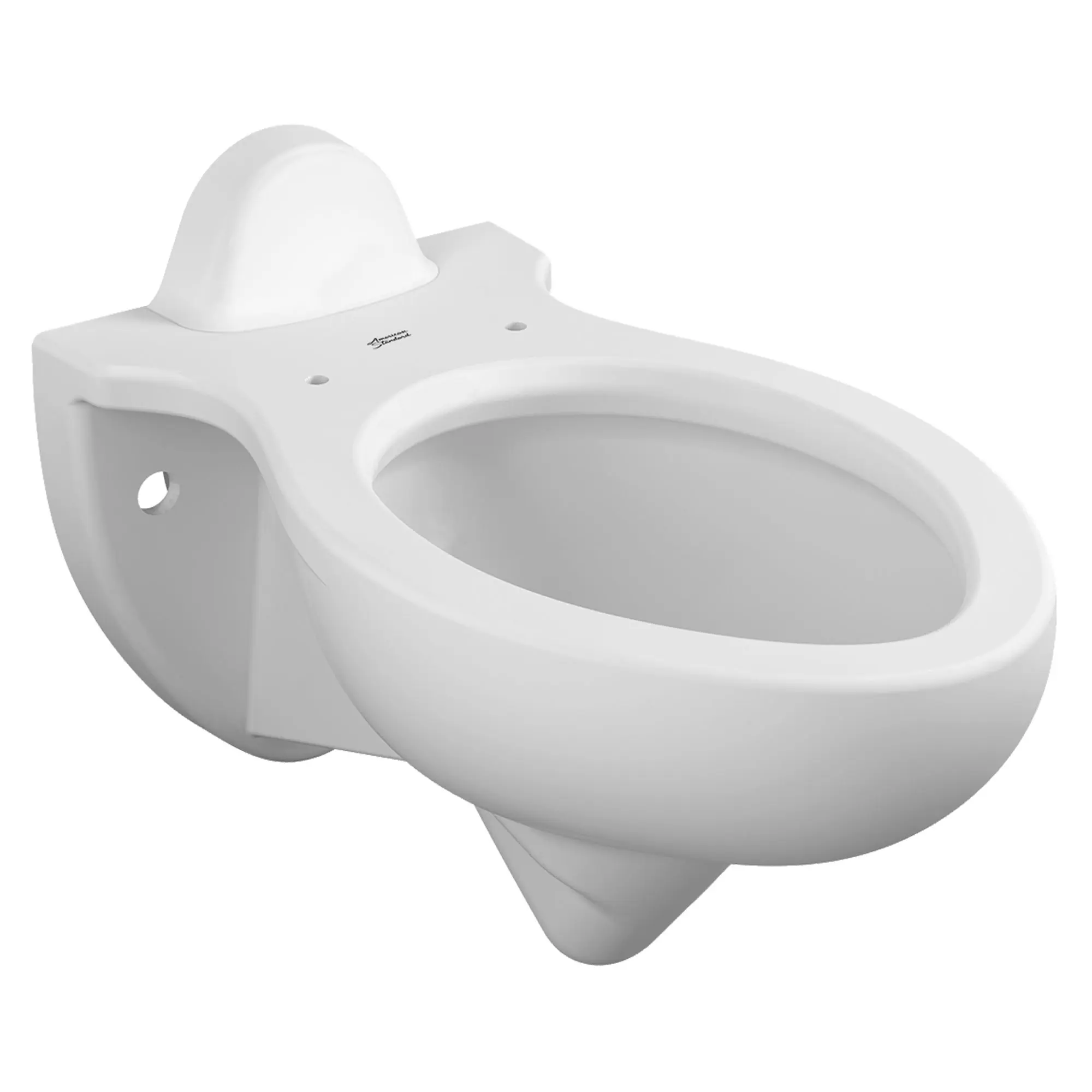

Rapidway 1.6 gpf/6.0 Lpf Back Spud Elongated Wall-Hung Bowl

We've been producing some of the industries best commercial toilets for more than 137 years. Built to stand the test of time and handle years of high use, there is an American Standard commercial toilet that's right for any job.

White 3445L101.020 DISCONTINUED
List Price: $547.00
ADA Compliant
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Unique three bolt elongated wall-hung, back spud flushometer bowl, less seat
  • Low consumption, operates at 1.6 gpf/6.0 Lpf
  • Blowout flush action
  • Conventional Glaze
  • 2-1/8" (54 mm) fully-glazed trapway – 2" (51 mm) minimum ballpass
  • Condensation channel
  • 10" x 12" (254 x 305 mm) water surface area
  • 1-1/2" (38 mm) inlet spud
Technical Features
  • Unique three bolt elongated wall-hung, back spud flushometer bowl, less seat
  • Low consumption, operates at 1.6 gpf/6.0 Lpf
  • Blowout flush action
  • Conventional Glaze
  • 2-1/8" (54 mm) fully-glazed trapway – 2" (51 mm) minimum ballpass
  • Condensation channel
  • 10" x 12" (254 x 305 mm) water surface area
  • 1-1/2" (38 mm) inlet spud
Nominal Dimensions: 25 in x 14-3/16 in x 16-5/16 in (635 mm x 360 mm x 414 mm)
Description
Net Weight
SKU
Color
List Price USD
Rapidway 1.6 gpf/6.0 Lpf Back Spud Elongated Wall-Hung Bowl
54 lb (24.5 kg)
3445L101.020
White (020)
547
Optional Components (Not Included)
Commercial Heavy Duty Open Front Elongated Toilet Seat
3 lb (1.4 kg)
5901100.020
White
46
spacer
Commercial Heavy Duty Open Front Elongated Toilet Seat With EverClean® Surface
3 lb (1.3 kg)
5901110T.020
White
57
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 13-3/4
Bowl Shape: Elongated
Brand: American Standard
Category: Commercial Toilet
Chair Height: Standard
Color / Finish: White
Collections: Rapidway
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Flushometer
Flush Valve Size: 2-1/8
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.6 GPF
Height: 16-5/16
Length: 25
Length: 25
Width: 14-3/16
Residential or Commercial: Commercial
Subcategory: Wall Hung Commercial Toilet
Toilet Mount Type: Wall Mount
Trapway Diameter: 2-1/8
Toilet Type: Wall_Hung_Toilet_Bowl
Warranty: 1 Year Limited Warranty
Download All Supporting Documents

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
