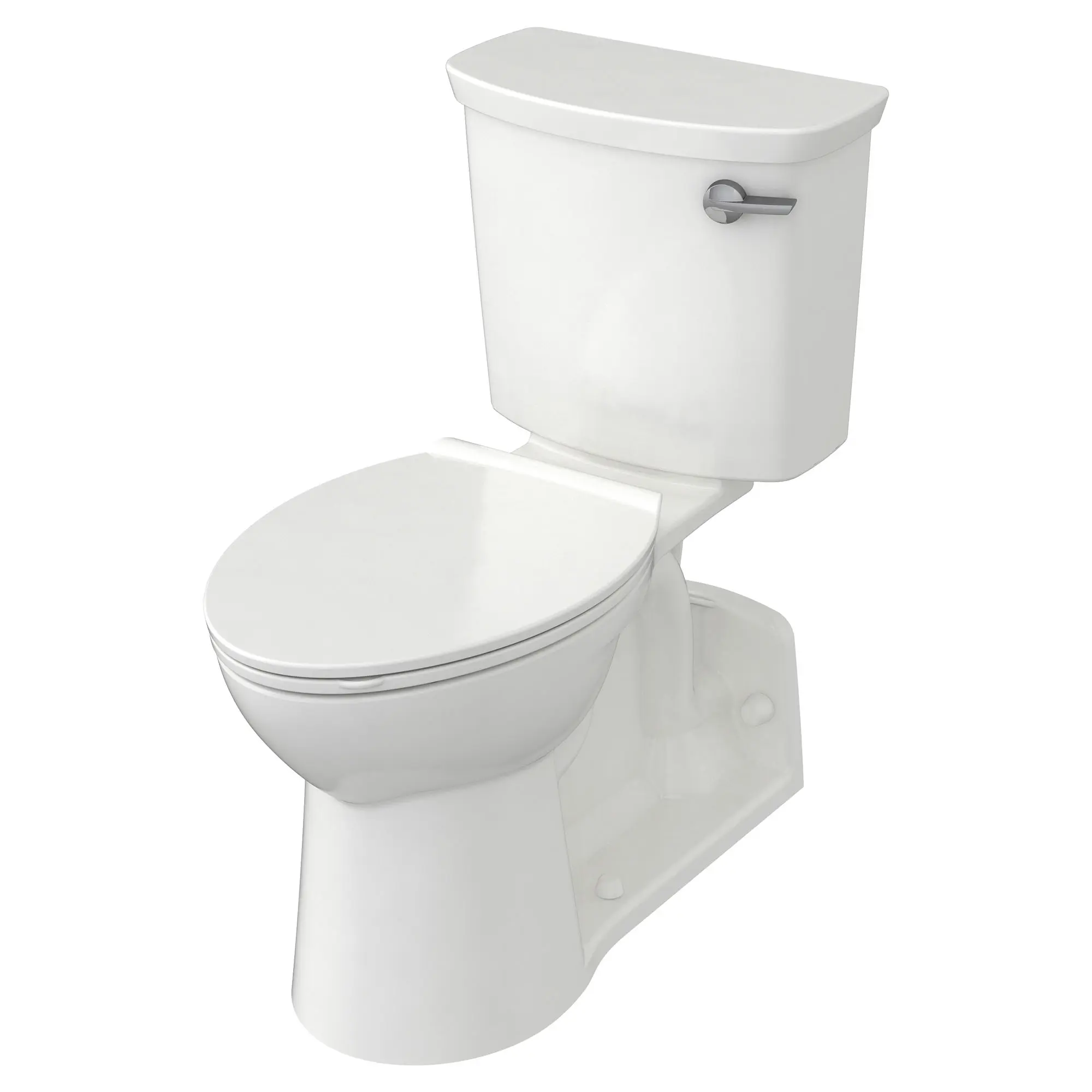

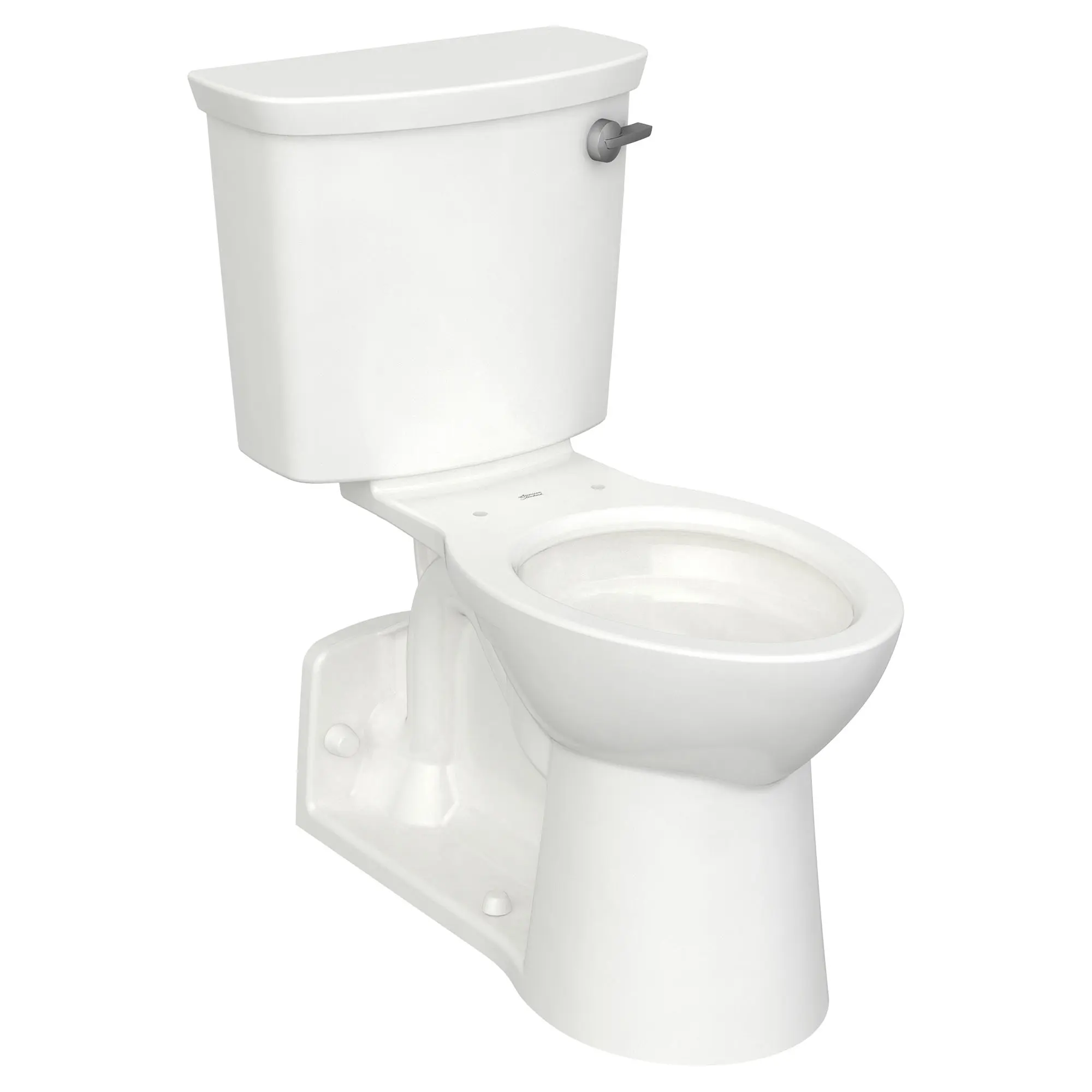

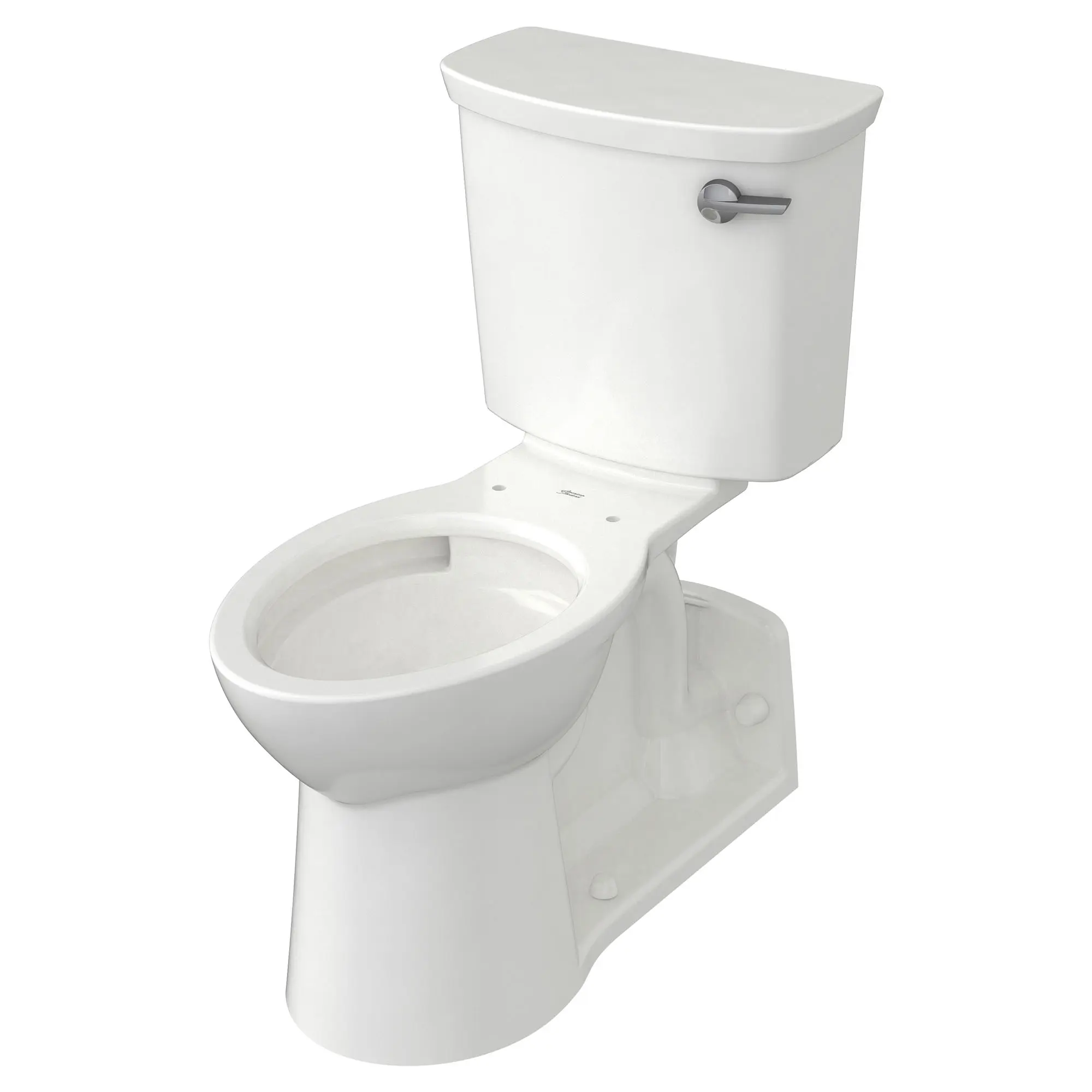

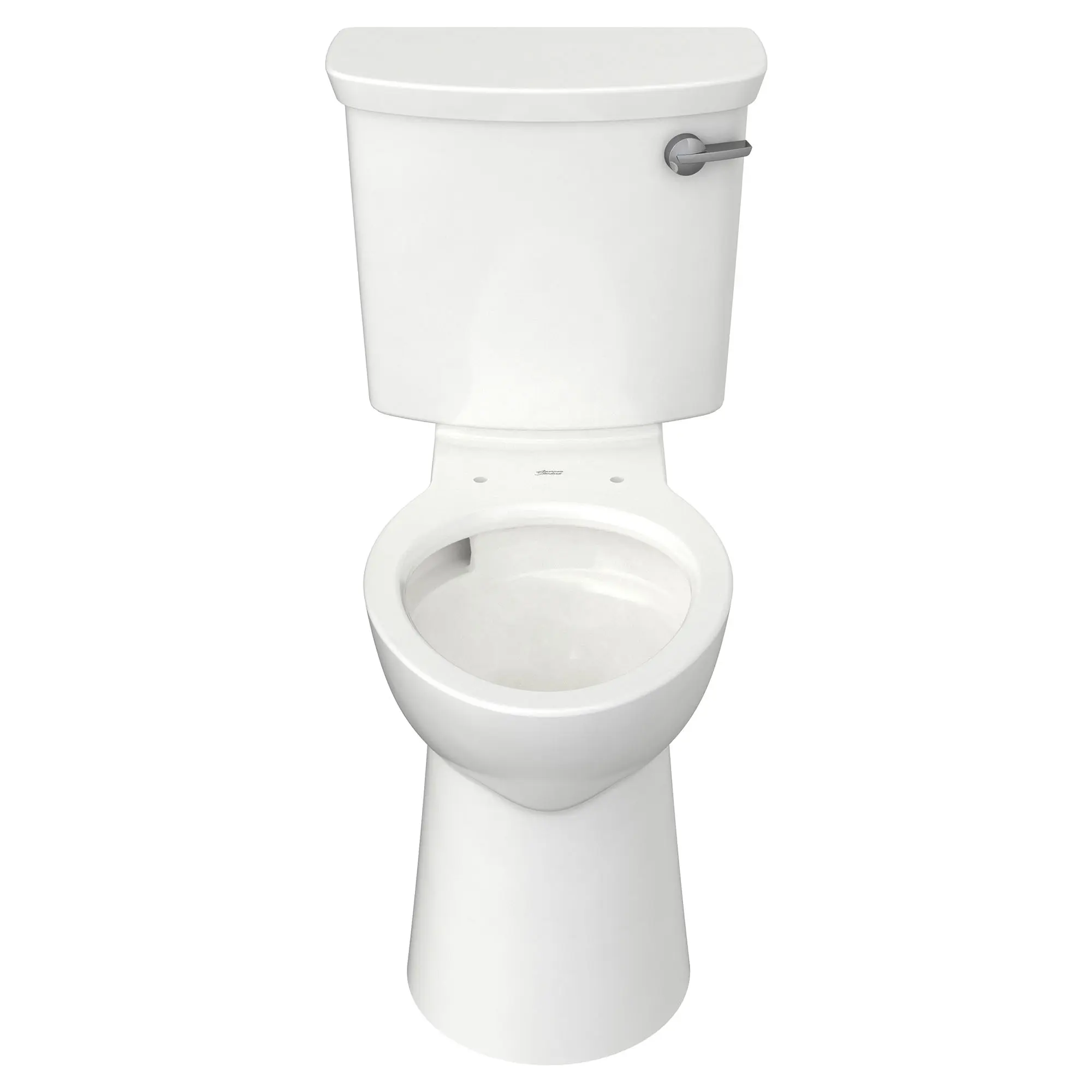

Yorkville® VorMax® Two-Piece 1.28 gpf/4.8 Lpf Right-Hand Trip Lever Chair Height Back Outlet Elongated EverClean® Toilet

The Yorkville VorMax Floor-Mount Back-Outlet Toilet from American Standard features the powerful VorMax flushing technology. The VorMax unparelleled scrubbing action circulates water around the bowl from top to bottom, leaving it twice as clean as a conventional toilet while using a water-conserving 1.28 gallons of water. The Yorkville VorMax Floor-Mount Back-Outlet Toilet has a 50% quieter flush than pressure-assist configurations and ensures the complete removal of paper seat covers. Features CleanCurve Rim and EverClean® antimicrobial surface to protect against mold, mildew, odor- and stain-causing bacteria.

Features
  • Floor mount, back outlet, gravity flush toilet
  • VorMax® flushing technology cleans two times better than conventional toilets
  • Combination bowl and tank, less seat
  • 16-1/2" (419 mm) Chair Height for accessible applications
  • High efficiency toilet (HET) 1.28 gpf/4.8 Lpf
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • CleanCurve® rim eliminates rim area where dirt and build-up hide
  • 50% less noise than pressure-assist technology toilets
  • Consistently flushes and removes paper seat covers unlike many pressure-assist toilets which tend to rip and leave paper
  • Chrome trip lever included
Technical Features
  • Floor mount, back outlet, gravity flush toilet
  • VorMax® flushing technology cleans two times better than conventional toilets
  • Combination bowl and tank, less seat
  • 16-1/2" (419 mm) Chair Height for accessible applications
  • High efficiency toilet (HET) 1.28 gpf/4.8 Lpf
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • CleanCurve® rim eliminates rim area where dirt and build-up hide
  • 50% less noise than pressure-assist technology toilets
  • Consistently flushes and removes paper seat covers unlike many pressure-assist toilets which tend to rip and leave paper
  • Chrome trip lever included
Nominal Dimensions: 30-3/16 in x 18-1/16 in x 32-13/16 in (767 mm x 459 mm x 833 mm)
Description
Net Weight
SKU
Color
List Price USD
Yorkville® VorMax® Two-Piece 1.28 gpf/4.8 Lpf Right-Hand Trip Lever Chair Height Back Outlet Elongated EverClean® Toilet
1 lb (0.4 kg)
White (020)
912
Separate Components
Yorkville® VorMax® Chair Height Back Outlet Elongated EverClean® Bowl
79 lb (36.0 kg)
White
538
spacer
Yorkville® VorMax® 1.28 gpf/4.8 Lpf Right-Hand Trip Lever EverClean® Tank
36 lb (16.5 kg)
White
374
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 17
Bowl Included: Yes
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Commercial Toilet
CEC Certified: Yes
Chair Height: Chair
Color / Finish: White
Collections: Yorkville
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Gravity Fed
Gallons Per Flush (min-max): 1.28 GPF
Height: 32-13/16
Length: 30-3/16
Length: 30-3/16
Width: 18-1/16
Residential or Commercial: Commercial
Rough In Valve Included: Yes
Subcategory: Floor Standing Commercial Toilet
Tank Included: Yes
Toilet Mount Type: Floor Mount
Trapway Diameter: 2-1/16
Toilet Type: Floor_Standing_Two_Piece_Toilet
USMCA Compliant: Yes
Warranty: 1 Year Limited Warranty
Water Efficient: Yes
There are no design files currently available for this product
3D Objects are not currently available for this product
