Yorkville

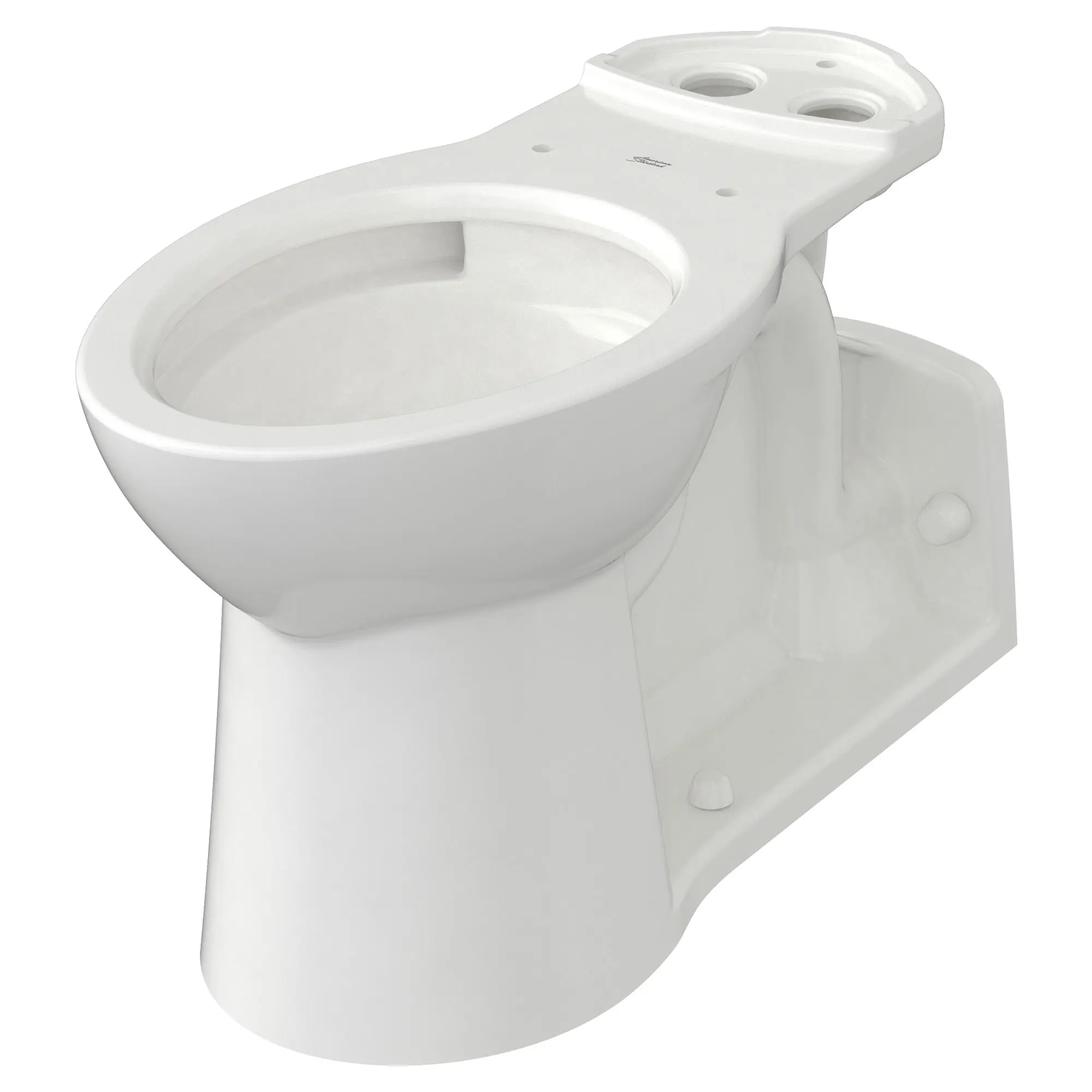

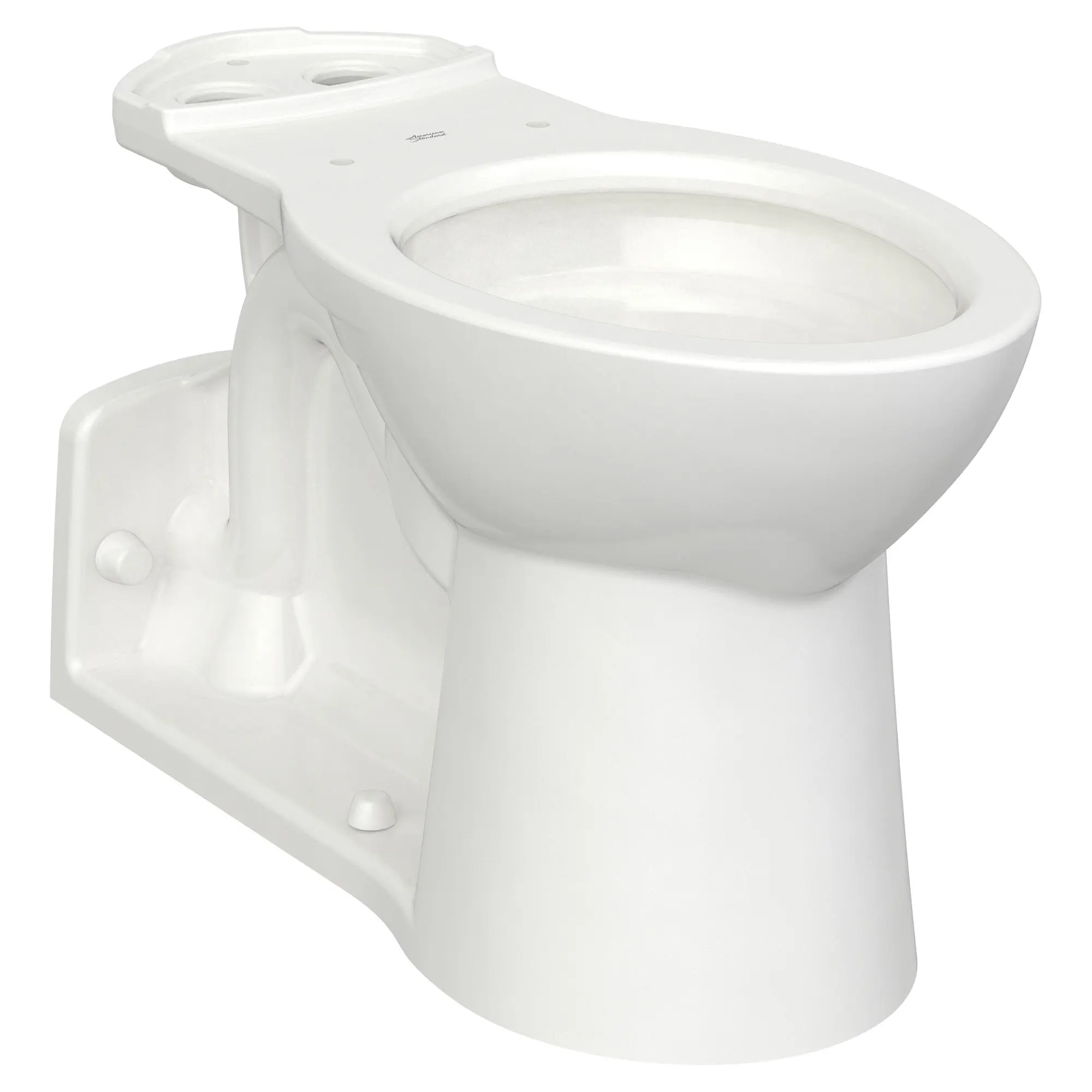

Yorkville® VorMax® Chair Height Back Outlet Elongated EverClean® Bowl

The Yorkville VorMax Floor-Mount Back-Outlet Right Height Elongated Toilet Bowl from American Standard is engineered for the powerful VorMax scrubbing action by circulating water around the bowl from top to bottom. Features the CleanCurve Rim that eliminates hard to reach surfaces where build-up hides, and the EverClean antimicrobial surface that inhibits the growth of bacteria, mold, and mildew.

White (020) 3359A101.020 DISCONTINUED
List Price: $538.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Elongated floor-mount flushometer valve toilet, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
  • Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
  • Conventional glaze
  • 2-1/8" (54 mm) fully-glazed trapway
  • 10" (254 mm) or 12" 305 mm) rough-in
  • Standard 15" (381 mm) rim height
  • Condensation channel
  • Powerful direct-fed siphon jet action
  • 1-1/2" (38 mm) inlet spud
Technical Features
  • Elongated floor-mount flushometer valve toilet, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
  • Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
  • Conventional glaze
  • 2-1/8" (54 mm) fully-glazed trapway
  • 10" (254 mm) or 12" 305 mm) rough-in
  • Standard 15" (381 mm) rim height
  • Condensation channel
  • Powerful direct-fed siphon jet action
  • 1-1/2" (38 mm) inlet spud
Nominal Dimensions: 28-5/8 in x 14 in x 17-1/2 in (727 mm x 356 mm x 445 mm)
There are no additional components to display for this product
View Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 17
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Commercial Toilet
CEC Certified: Yes
Chair Height: Chair
Color / Finish: White (020)
Collections: Yorkville
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Gravity Fed
Gallons Per Flush (min-max): 1.28 GPF
Height: 17-1/2
Length: 28-5/8
Width: 14
Residential or Commercial: Commercial
Rough In Size: 12
Subcategory: Floor Standing Commercial Toilet
Toilet Mount Type: Floor Mount
Trapway Diameter: 2
Toilet Type: Floor_Standing_Toilet_Bowl
Warranty: 1 Year Limited Warranty
Water Efficient: Yes
