Yorkville

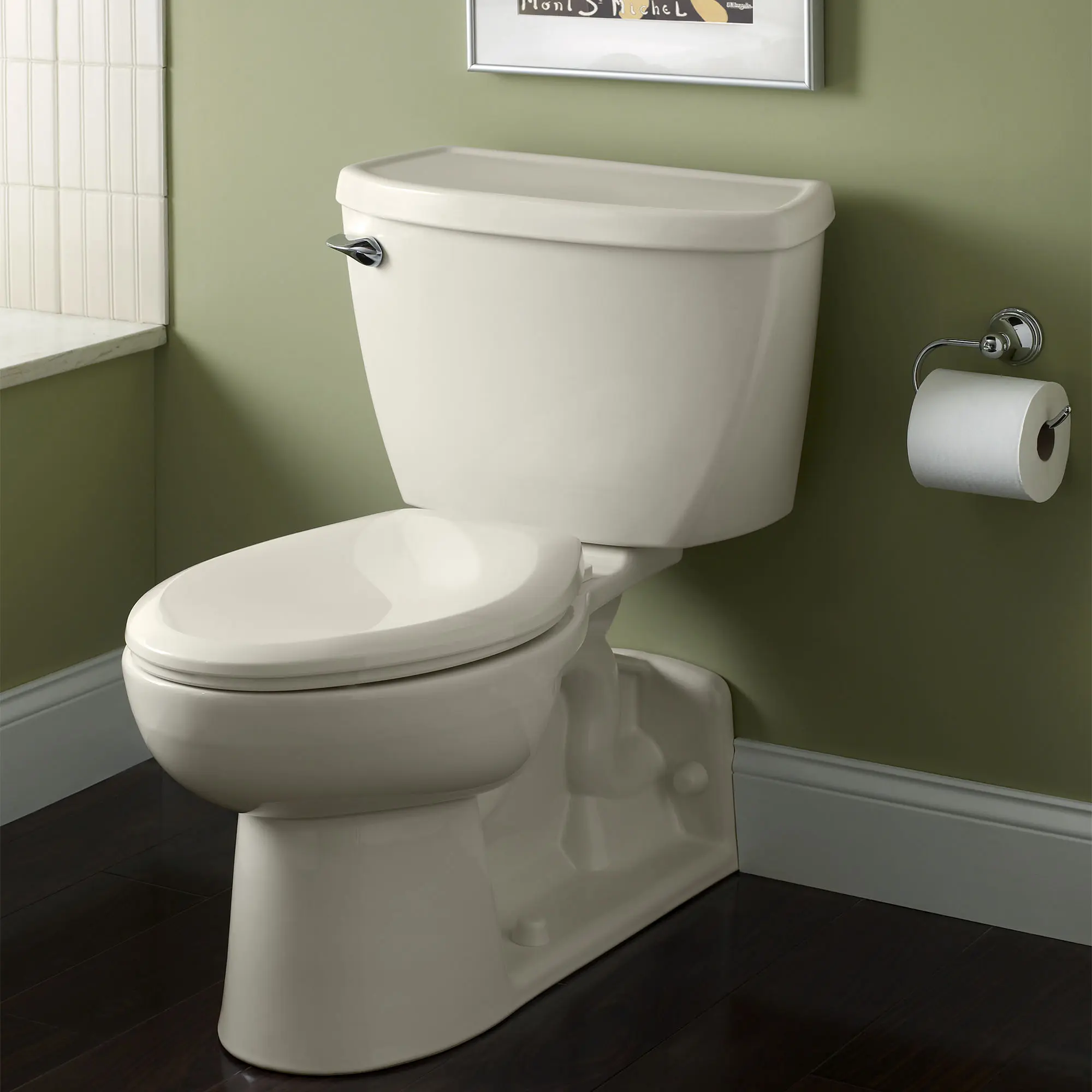

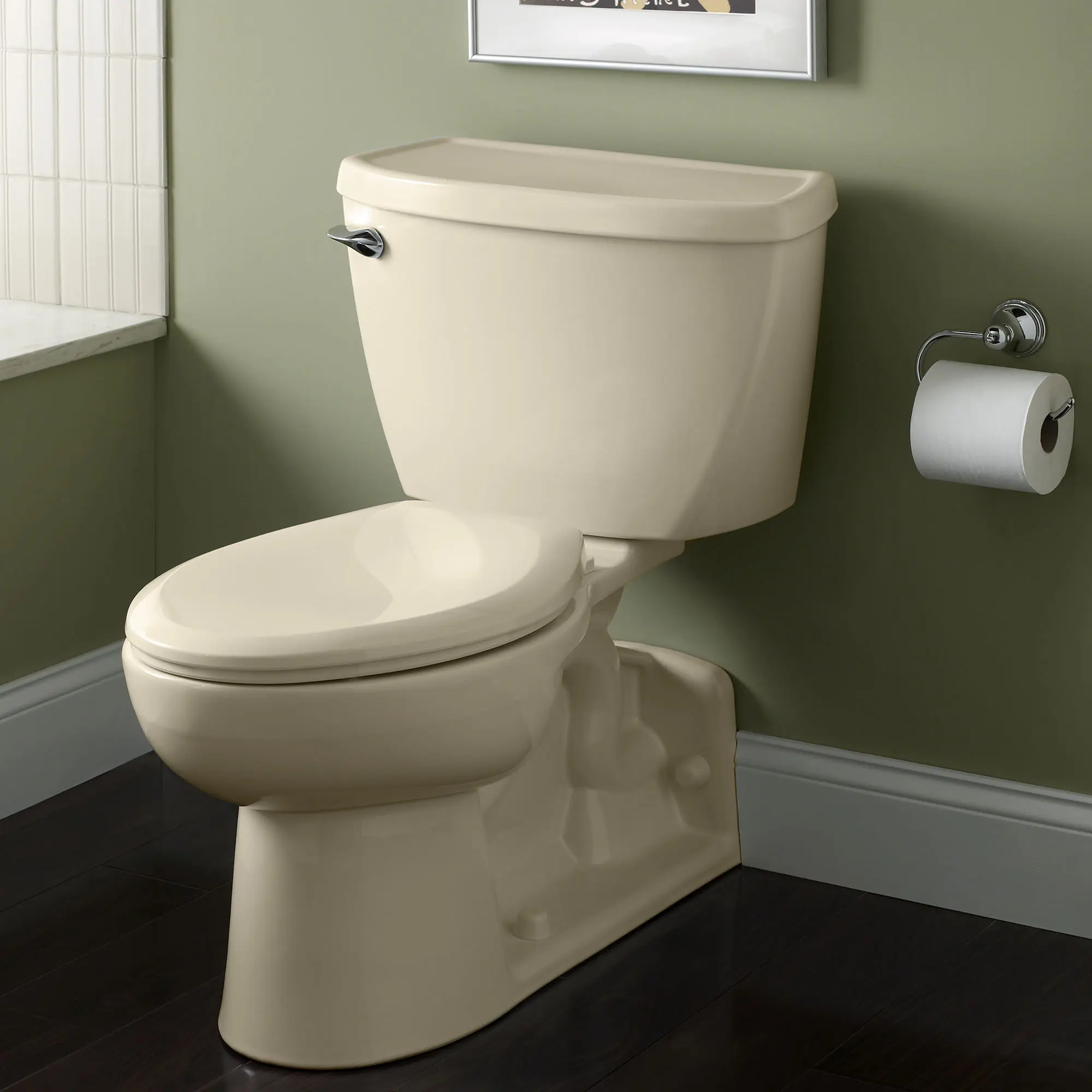

Yorkville® Two-Piece Pressure Assist 1.6 gpf/6.0 Lpf Back Outlet Elongated EverClean® Toilet

We've been producing some of the industries best commercial toilets for more than 137 years. Built to stand the test of time and handle years of high use, there is an American Standard commercial toilet that's right for any job. Elongated bowl. Close-coupled flushometer tank. Speed Connect® tank/bowl coupling system. Sanitary bar on bowl. \nRecommended working pressure range 25 psi - 80 psi.

White 2876016.020 DISCONTINUED
List Price: $735.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Floor-mounted, back-outlet toilet bowl and tank less seat
  • Pressure-assisted siphon jet action
  • High efficiency ultra low consumption (1.1 gpf/4.2 Lpf) uses 31% less water
  • EverClean® Antimicrobial Surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface
  • Standard 15" (381 mm) rim height
  • 2-1/8" (54 mm) fully-glazed trapway
  • Condensation channel
  • 10" x 12" water surface area
  • Chrome-plated metal trip lever
  • 4 color-matched bolt caps included
Technical Features
  • Floor-mounted, back-outlet toilet bowl and tank less seat
  • Pressure-assisted siphon jet action
  • Low consumption (1.6 gpf/6.0 Lpf)
  • EverClean® Antimicrobial Surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface
  • Standard 15" (381 mm) rim height
  • 2-1/8" (54 mm) fully-glazed trapway
  • Condensation channel
  • 10" x 12" water surface area
  • Chrome-plated metal trip lever
  • 4 color-matched bolt caps included
Nominal Dimensions: 29-3/4 in x 20-1/2 in x 30-3/4 in (756 mm x 521 mm x 781 mm)
Description
Net Weight
SKU
Color
List Price USD
Yorkville® Two-Piece Pressure Assist 1.6 gpf/6.0 Lpf Back Outlet Elongated EverClean® Toilet
1 lb (0.4 kg)
2876016.020
White (020)
735
2876016.021 *
Bone (021)
0
2876016.222 *
Linen (222)
0
Separate Components
Yorkville® Pressure Assist Back Outlet Elongated EverClean® Bowl
56 lb (25.2 kg)
3701001.020
White
367
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Left-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
4142016.020
White
368
Optional Components (Not Included)
Pressure Assist 1.6 gpf/6.0 Lpf Left-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
4142600.020
White
552
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Right-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
4142800.020
White
375
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Right-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
4142900.020
White
559


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Front to Back Length: 15
Bowl Shape: Elongated
Brand: American Standard
Category: Commercial Toilet
Chair Height: Standard
Color / Finish: White
Collections: Yorkville
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Pressure Assisted
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.6 GPF
Height: 30-3/4
Length: 29-3/4
Width: 20-1/2
Residential or Commercial: Commercial
Rough In Size: 12
Subcategory: Floor Standing Commercial Toilet
Toilet Mount Type: Floor Mount
Toilet Type: Floor_Standing_Two_Piece_Toilet
Warranty: 1 Year Limited Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions
There are no design files currently available for this product
3D Objects are not currently available for this product
}
