Yorkville

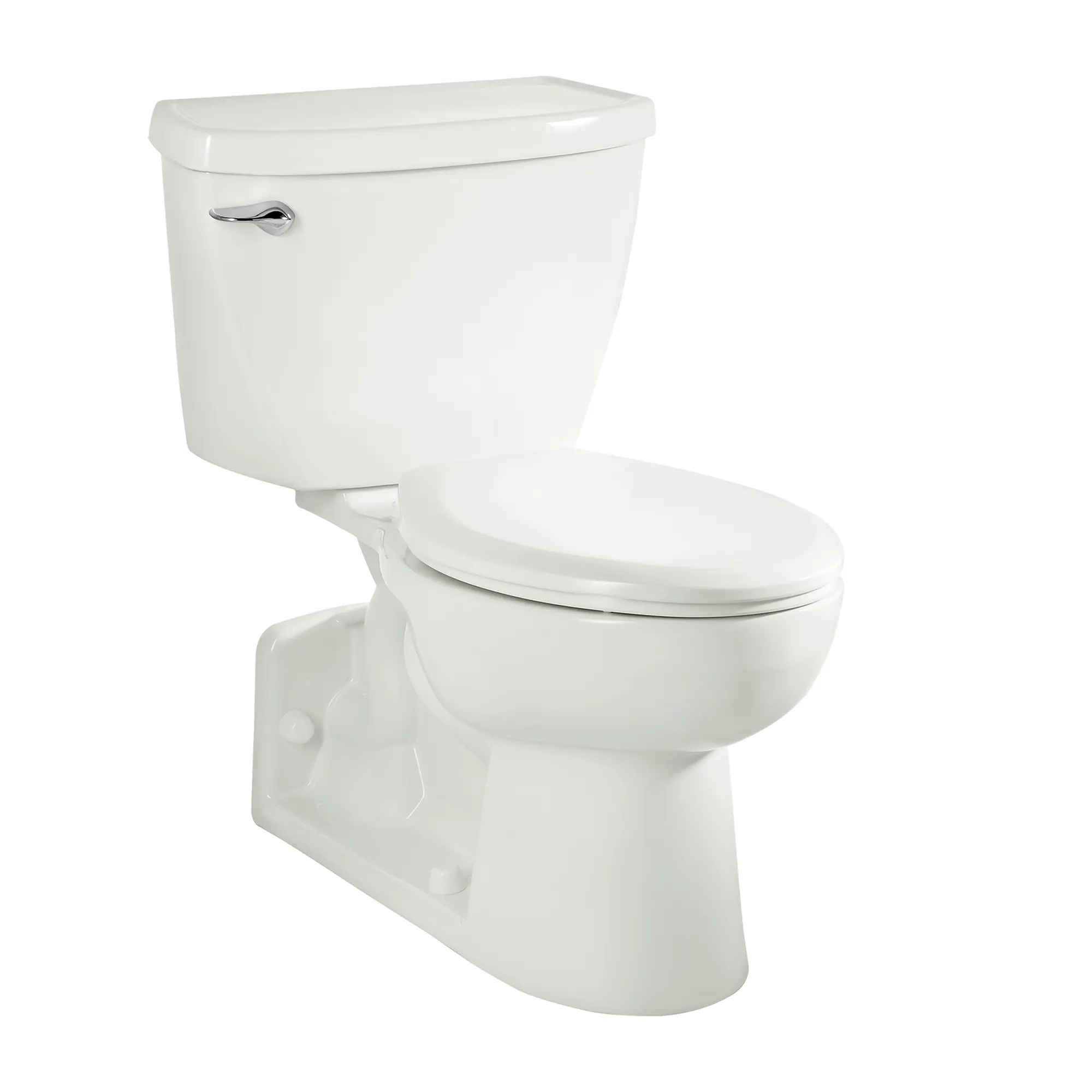

Yorkville® Two-Piece Pressure Assist 1.1 gpf/4.2 Lpf Chair Height Back Outlet Elongated EverClean® Toilet

We've been producing some of the industries best commercial toilets for more than 137 years. Built to stand the test of time and handle years of high use, there is an American Standard commercial toilet that's right for any job. High efficiency ultra low consumption (1.1gpf/4.2Lpf), utilizes 31% less water. Meets EPA WaterSense® criteria. Elongated 16-1/2" high bowl rim for accessible applications. Close-coupled flushometer tank . Speed Connect® tank/bowl coupling system. Sanitary bar on bowl.  Sustainability CEC Listed.   Recommended working pressure range 25 psi - 80 psi.

White 2878100.020 DISCONTINUED
List Price: $906.00
ADA Compliant Cal Green CEC Certified Everclean Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Floor-mounted, back-outlet toilet bowl and tank less seat
  • Pressure-assisted siphon jet action
  • Low consumption (1.6 gpf/6.0 Lpf)
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • 16-1/2" (419 mm) Chair Height for accessible applications
  • 2-1/8" (54 mm) fully-glazed trapway
  • Condensation channel
  • 10" x 12" water surface area
  • Chrome-plated metal trip lever
  • 4 color-matched bolt caps included
Technical Features
  • Floor-mounted, back-outlet toilet bowl and tank less seat
  • Pressure-assisted siphon jet action
  • High efficiency ultra low consumption (1.1 gpf/4.2 Lpf) uses 31% less water
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • 16-1/2" (419 mm) Chair Height for accessible applications
  • 2-1/8" (54 mm) fully-glazed trapway
  • Condensation channel
  • 10" x 12" water surface area
  • Chrome-plated metal trip lever
  • 4 color-matched bolt caps included
Nominal Dimensions: 29-3/4 in x 20-1/2 in x 30-3/4 in (756 mm x 521 mm x 781 mm)
Description
Net Weight
SKU
Color
List Price USD
Yorkville® Two-Piece Pressure Assist 1.1 gpf/4.2 Lpf Chair Height Back Outlet Elongated EverClean® Toilet
1 lb (0.4 kg)
2878100.020
White (020)
906
2878100.021 *
Bone (021)
0
2878100.222 *
Linen (222)
0
Separate Components
Yorkville® Pressure Assist Chair Height Back Outlet Elongated EverClean® Bowl
57 lb (25.9 kg)
3703001.020
White
538
spacer
Pressure Assist 1.1 gpf/4.2 Lpf Left-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
4142100.020
White
368
spacer
7381886-201.0020A-PRESSURE POD LH TRIP LEVER
0 lb (0.0 kg)
7381886-201.0020A
Chrome
101
spacer
7381886-202.0020A-PRESSURE POD RH TRIP LEVER
0 lb (0.0 kg)
7381886-202.0020A
Chrome
101
Optional Components (Not Included)
Pressure Assist 1.1 gpf/4.2 Lpf Left-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
4142601.020
White
552
spacer
Pressure Assist 1.1 gpf/4.2 Lpf Right-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
4142801.020
White
375
spacer
Pressure Assist 1.1 gpf/4.2 Lpf Right-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
4142901.020
White
559
spacer
Tank cover for locking device
7 lb (3.3 kg)
735133-401.020
White
86


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Commercial Toilet
CEC Certified: Yes
Chair Height: Standard
Color / Finish: White
Collections: Yorkville
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Pressure Assisted
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.1 - 1.28 GPF
Height: 30-3/4
Length: 29-3/4
Width: 20-1/2
Residential or Commercial: Commercial
Rough In Size: 12
Subcategory: Floor Standing Commercial Toilet
Toilet Mount Type: Floor Mount
Toilet Type: Floor_Standing_Two_Piece_Toilet
Warranty: 1 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions
There are no design files currently available for this product
3D Objects are not currently available for this product
