Madera

Right Width® 1.28 – 1.6 gpf (4.8 – 6.0 Lpf) Chair Height Top Spud Elongated Bowl With Seat

3641001.020 DISCONTINUED
List Price: $0.00
ADA Compliant Cal Green WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Floor-mount, elongated flushometer bowl, less seat
  • High efficiency, low consumption operates in the range of 1.28 gpf to 1.6 gpf (4.8Lpf to 6.0Lpf)
  • 16-1/2" (419mm) Chair Height for accessible applications
  • Static weight load of 2,000 lbs (908kg)
  • Extra large footprint ideal for remodeling
  • Large water surface area
  • 10" (254mm) or 12" (305mm) rough-in
  • 2" (51mm) fully glazed trapway
  • Includes seat
  • Includes color-matched bolt caps
Technical Features
  • Floor-mount, elongated flushometer bowl, with seat
  • High efficiency, low consumption operates in the range of 1.28 gpf to 1.6 gpf (4.8Lpf to 6.0Lpf)
  • 16-1/2" (419mm) Chair Height for accessible applications
  • Static weight load of 2,000 lbs (908kg)
  • Extra large footprint ideal for remodeling
  • Large water surface area
  • 10" (254mm) or 12" (305mm) rough-in
  • 2" (51mm) fully glazed trapway
  • Includes seat
  • Includes color-matched bolt caps
Nominal Dimensions: 28-3/8 in x 16-15/16 in x 16-1/2 in (721 mm x 430 mm x 419 mm)
Description
Net Weight
SKU
Color
List Price USD
Right Width® 1.28 – 1.6 gpf (4.8 – 6.0 Lpf) Chair Height Top Spud Elongated Bowl With Seat
57 lb (25.9 kg)
3641001.020
0
Optional Components (Not Included)
Right Width Open Front Elongated Toilet Seat
5 lb (2.3 kg)
5309110.020 *
0


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Commercial Toilet
Chair Height: Chair
Color / Finish: White (020)
Collections: Madera
WaterSense: Yes
Fixture Material: Vitreous China
Flush Technology: Flushometer
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.28 - 1.6 GPF
Height: 16-1/2
Length: 28-3/8
Width: 16-15/16
Residential or Commercial: Commercial
Rough In Size: 12
Subcategory: Floor Standing Commercial Toilet
Bowl Height With Seat: 18-13/16
Toilet Mount Type: Floor Mount
Trapway Diameter: 2
Toilet Type: Floor_Standing_Toilet_Bowl
Warranty: 1 Year Limited Warranty
Download All Supporting Documents

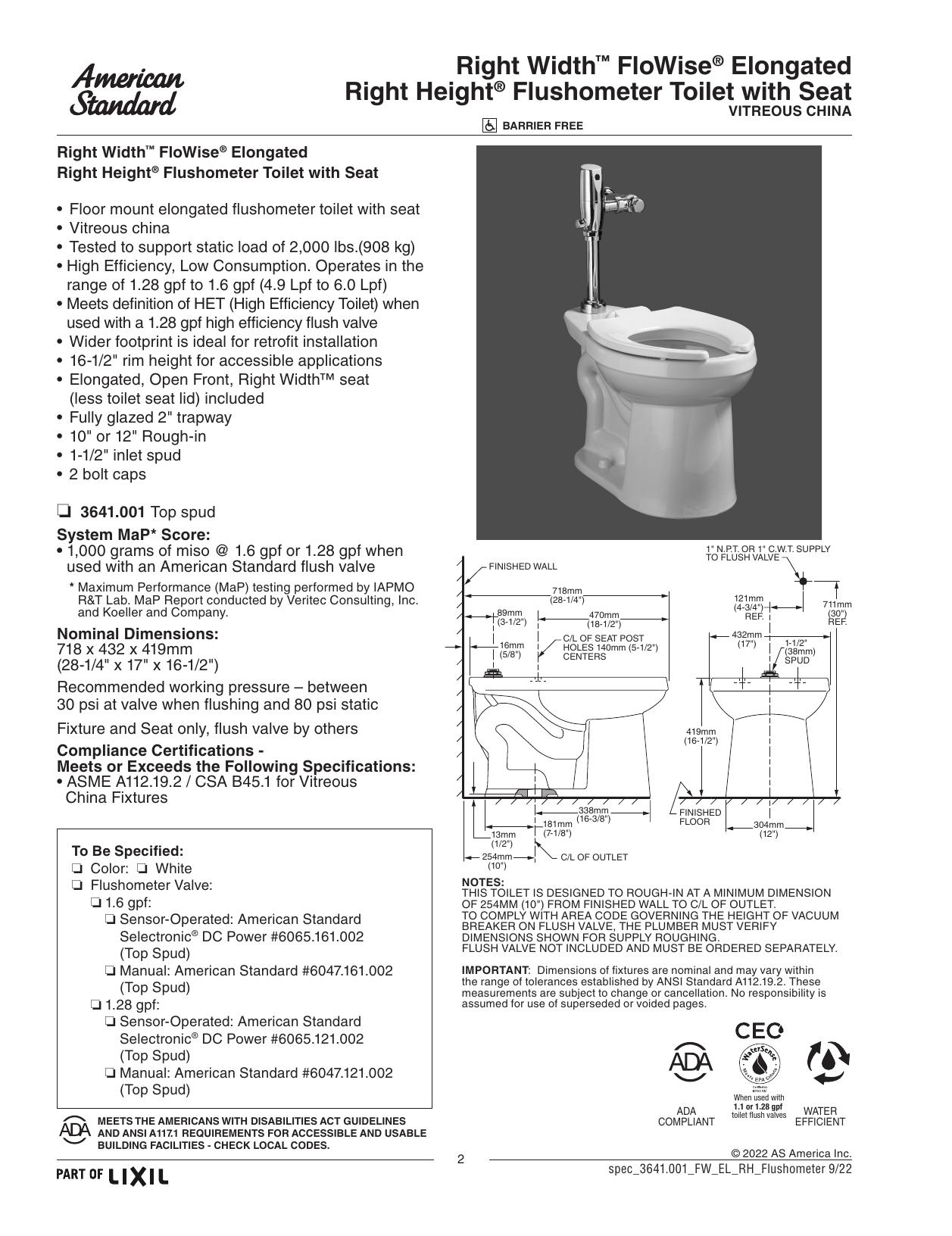

Specification Sheet

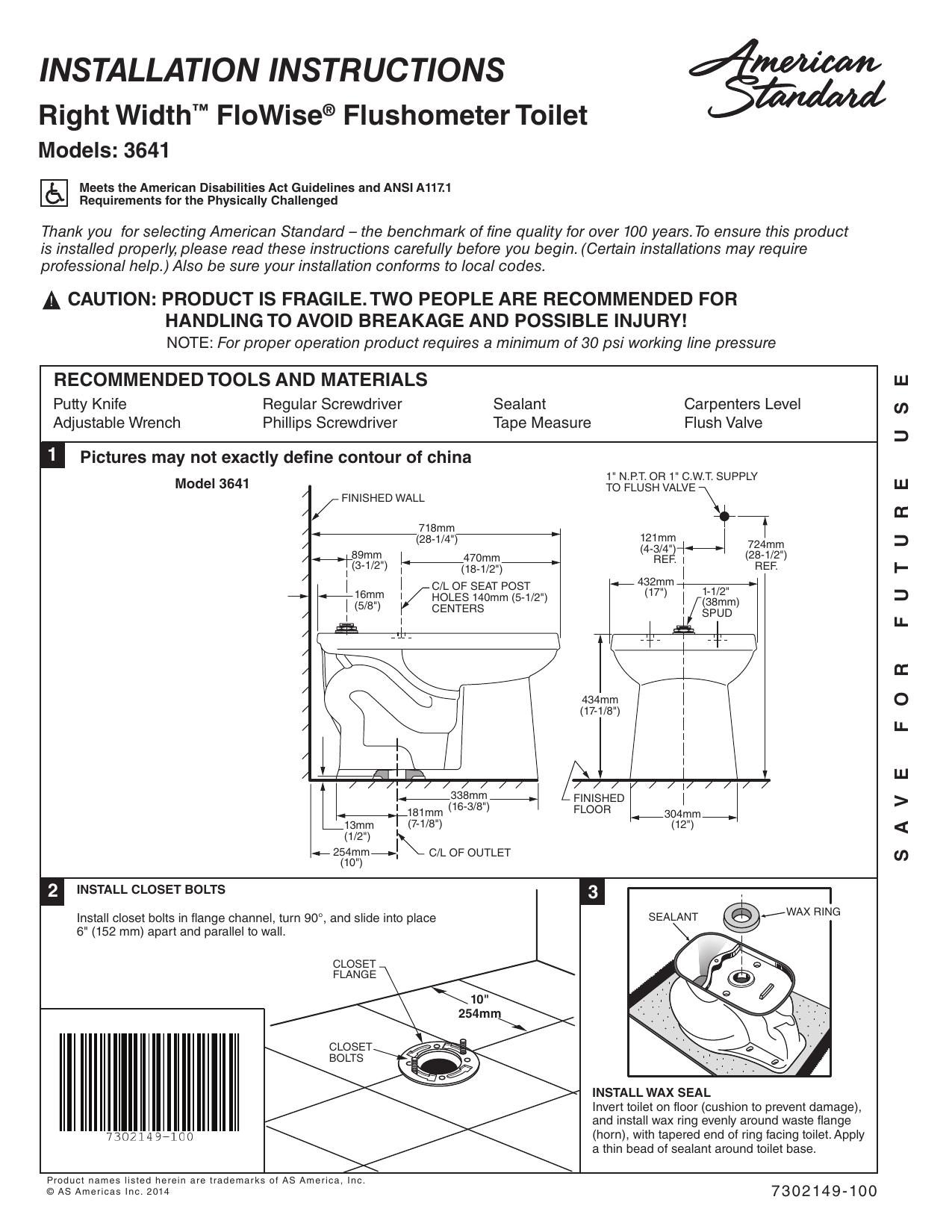

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
3D Objects are not currently available for this product
