Priolo

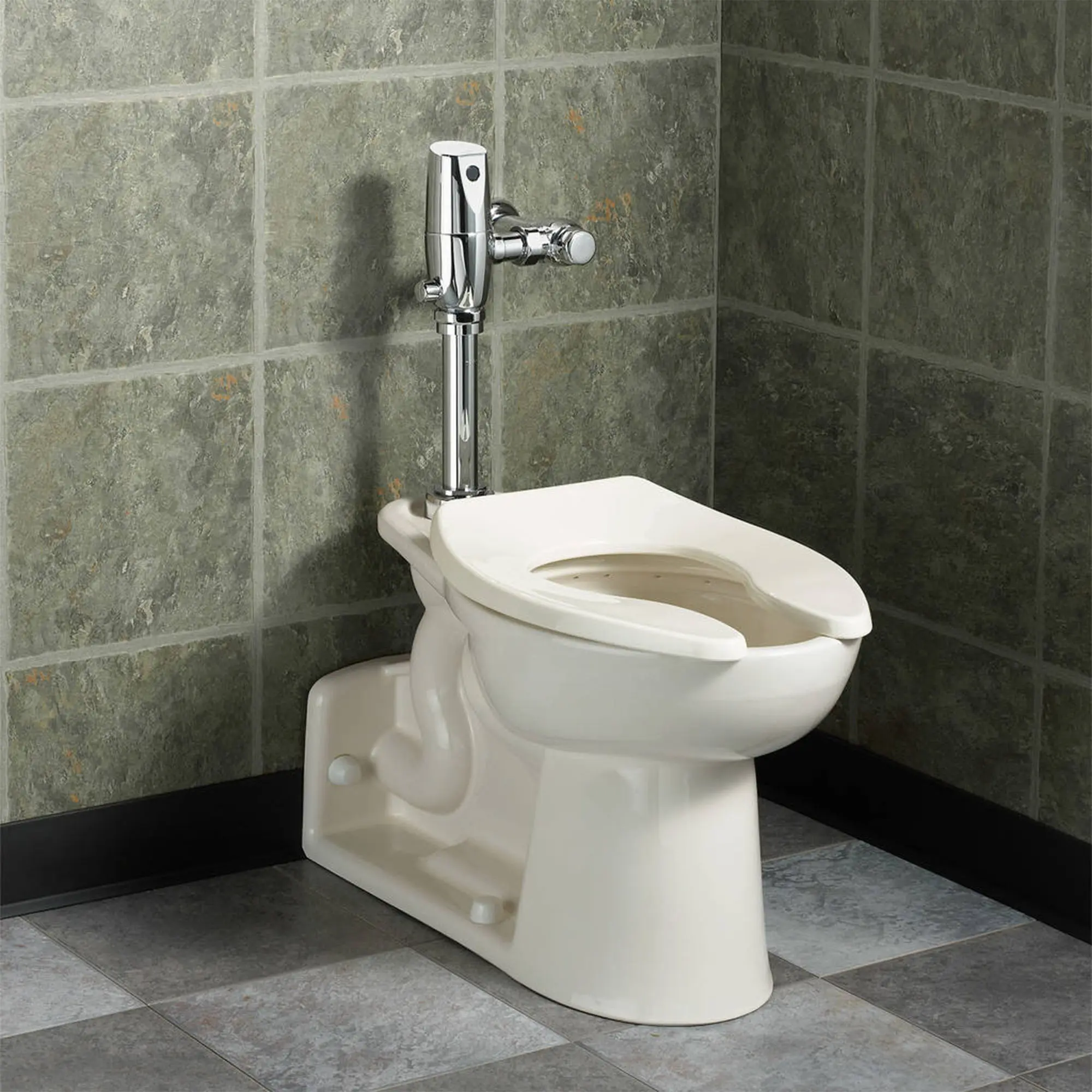

Priolo® Floor-Mount, Back Outlet EverClean® Bowl Less Seat

We've been producing some of the industries best commercial toilets for more than 137 years. Built to stand the test of time and handle years of high use, there is an American Standard commercial toilet that's right for any job.

White 3695001.020 DISCONTINUED
List Price: $565.00
ADA Compliant Cal Green Everclean WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Floor mount, back outlet, elongated flushometer bowl, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
  • Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • 16-1/2" (419 mm) Chair Height for accessible applications
  • Elongated bowl with condensation channel
  • Powerful direct-fed siphon jet action
  • 2-1/8" (54 mm) fully glazed trapway
  • 1-1/2" inlet spud
Technical Features
  • Floor mount, back outlet, elongated flushometer bowl, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
  • Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • 16-1/2" (419 mm) Chair Height for accessible applications
  • Elongated bowl with condensation channel
  • Powerful direct-fed siphon jet action
  • 2-1/8" (54 mm) fully glazed trapway
  • 1-1/2" inlet spud
Nominal Dimensions: 29-5/8 in x 14 in x 16-7/8 in (752 mm x 356 mm x 429 mm)
Description
Net Weight
SKU
Color
List Price USD
Priolo® Floor-Mount, Back Outlet EverClean® Bowl Less Seat
57 lb (25.9 kg)
3695001.020
White (020)
565
Optional Components (Not Included)
Yorkville VorMax® 1.28 gpf/4.8 Lpf Left-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
36 lb (16.5 kg)
4385A187.020 *
White
375
spacer
Commercial Heavy Duty Open Front Elongated Toilet Seat
3 lb (1.4 kg)
5901100.020
White
43
spacer
Commercial Heavy Duty Open Front Elongated Toilet Seat With EverClean® Surface
3 lb (1.3 kg)
5901110T.020
White
53


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Commercial Toilet
Chair Height: Standard
Color / Finish: White
Collections: Priolo
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Flushometer
Gallons Per Flush (min-max): 1.1 - 1.6 GPF
MAP Performance Rating: 1000
Height: 16-7/8
Length: 29-5/8
Width: 14
Residential or Commercial: Commercial
Rough In Size: 12
Subcategory: Floor Standing Commercial Toilet
Toilet Mount Type: Floor Mount
Trapway Diameter: 2-1/8
Toilet Type: Floor_Standing_Toilet_Bowl
Warranty: 1 Year Limited Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.zip icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
