Find Your Salesperson

Madera

Madera Youth 1.28 – 1.6 gpf (4.8 – 6.0 Lpf) 14-inch Height Top Spud Elongated Bowl

We've been producing some of the industries best commercial toilets for more than 137 years. Built to stand the test of time and handle years of high use, there is an American Standard commercial toilet that's right for any job.

White 2599001.020 DISCONTINUED
List Price: $222.00
Cal Green Environmental Product Declaration Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Floor-mount, elongated flushometer bowl, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.28 gpf – 1.6 gpf (4.8 Lpf – 6.0 Lpf)
  • Maximum Performance (MaP) score of 800 grams at 1.28 - 1.6 gpf
  • ADA and TAS compliant 14" (356 mm) rim height for elementary school children, 5 - 8 years old
  • 2-1/8" (54 mm) fully-glazed trapway
  • 10" (254 mm) or 12" (305 mm) rough-in
  • Condensation channel
  • Powerful direct-fed siphon jet action
Technical Features
  • Floor-mount, elongated flushometer bowl, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.28 gpf – 1.6 gpf (4.8 Lpf – 6.0 Lpf)
  • Maximum Performance (MaP) score of 800 grams at 1.28 - 1.6 gpf
  • ADA and TAS compliant 14" (356 mm) rim height for elementary school children, 5 - 8 years old
  • 2-1/8" (54 mm) fully-glazed trapway
  • 10" (254 mm) or 12" (305 mm) rough-in
  • Condensation channel
  • Powerful direct-fed siphon jet action
  • 1-1/2" (38 mm) inlet spud
Nominal Dimensions: 27-1/4 in x 14 in x 14-3/16 in (692 mm x 356 mm x 360 mm)
Description
Net Weight
SKU
Color
List Price USD
Madera Youth 1.28 – 1.6 gpf (4.8 – 6.0 Lpf) 14-inch Height Top Spud Elongated Bowl
50 lb (22.8 kg)
2599001.020
White (020)
222
Optional Components (Not Included)
Commercial Heavy Duty Open Front Elongated Toilet Seat With EverClean® Surface
3 lb (1.3 kg)
5901110T.020
White
57

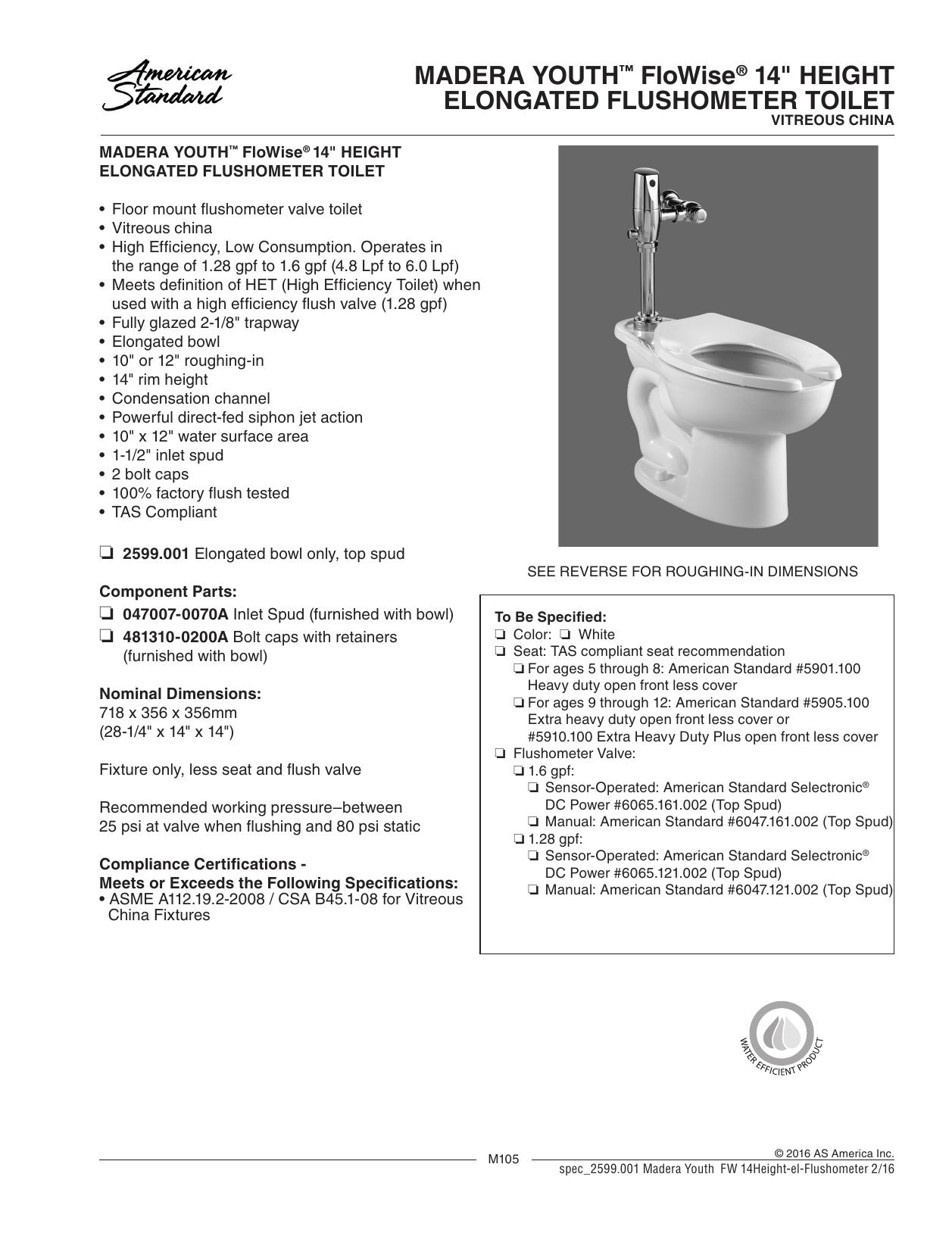

Download Specification Sheet
Front to Back Length: 14
Bowl Included: Yes
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Commercial Toilet
Chair Height: Standard
Color / Finish: White
Collections: Madera
WaterSense: Yes
Fixture Material: Vitreous China
Flush Technology: Flushometer
Gallons Per Flush (min-max): 1.28 - 1.6 GPF
Height: 14-3/16
Length: 27-1/4
Width: 14
Residential or Commercial: Commercial
Subcategory: Floor Standing Commercial Toilet
Toilet Mount Type: Floor Mount
Trapway Diameter: 2-1/8
Toilet Type: Floor_Standing_Toilet_Bowl
Warranty: 1 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Environmental Product Declaration
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
